ACA30R-AWPGKW (2008)
Toyota Rav4

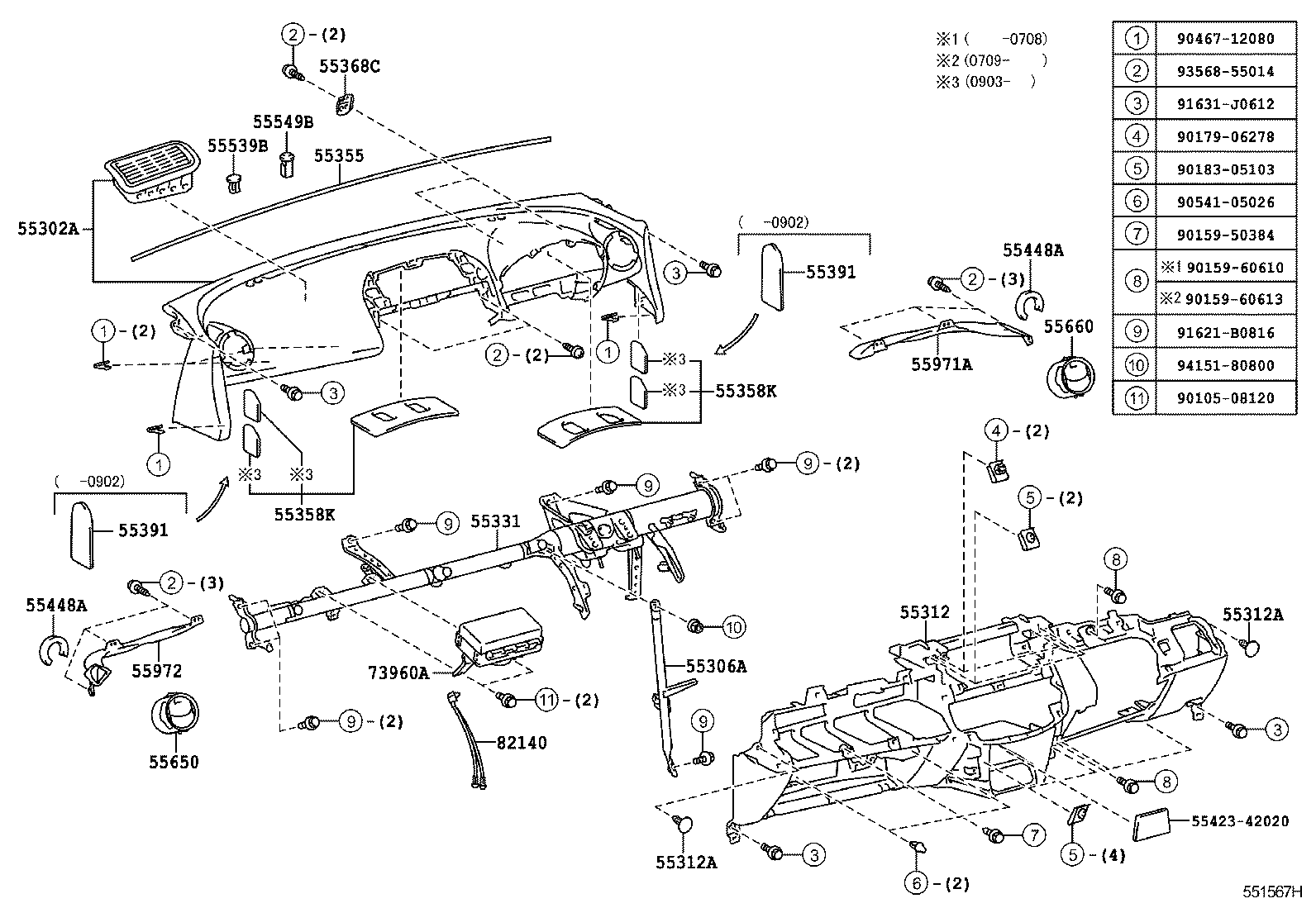

ILLUST NO. 1 OF 2(0511- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-42902B0 |
ACA30,ALA30..RHD..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55302-42902B0 |
ACA30,ALA3#,ZSA3#..RHD..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-42100 |
ACA30,ALA30..RHD |
1 | ||
| 55306-42110 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-42040B0 |
ACA30,ALA30..RHD DK.GRAY,TRIM1# |
1 | ||
| 55312-42040E0 |
ACA30,ALA30..RHD..G FAWN,TRIM4# |
1 | ||
| 55312-42040B0 |
ACA30,ALA3#,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55312-42040E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
ACA33,38;ACA30,ALA30..G..(DCR,DCRL,HTWC) DK.GRAY,TRIM1#,4# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
ACA33,38;ACA30,ALA30..G..(DCR,DCRL,HTWC) DK.GRAY,TRIM1#,4# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-42240 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55330-42230 |
ACA30,ALA30..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-42051 |
ALA35..LHD..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..RHD;ALA30,ZSA3#..LHD..(DCRE,DCRL,HTWVM)..ATYPE |
2 | ||
| 55358-42050 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-42051 |
ALA35..LHD..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..RHD;ALA30,ZSA3#..LHD..(DCRE,DCRL,HTWVM)..ATYPE |
2 | ||
| 55358-42050 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55368-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-42040B0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) AIR CONDITIONER-MANUAL,DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-42040B0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#,4# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-42020 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 55549-42020 |
ACA30,31,ALA30 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-42040B0 |
ACA33,38..LHD;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55650-42051B0 |
ACA33,38..LHD;ALA35..RHD..G;ALA35..LHD..G..DCRE;ACA30,ALA30,ZSA3#..G GRAY,TRIM1#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-42040B0 |
ACA33,38..LHD;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55650-42051B0 |
ACA33,38..LHD;ALA35..RHD..G;ALA35..LHD..G..DCRE;ACA30,ALA30,ZSA3#..G GRAY,TRIM1#,4# |
1 | ||
| 55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-42040 |
ACA30,ALA30..RHD |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-42040 |
ACA30,ALA30..RHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-42010 |
ACA30,31,ALA30 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-47010 |
ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 55423-42020 | ||||
| 90105-08120 | ||||
| 90159-50384 | ||||
| 90159-60610 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 90541-05026 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF 2(0511- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
ACA30,31,ALA30 |
1 | ||
| 55388A - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42020 |
ACA30,ALA30..RHD |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-42020 |
ACA30,ALA30..RHD |
1 | ||
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55395-42020B0 |
ACA30,33,ALA30..RHD DK.GRAY,TRIM1# |
1 | ||
| 55395-42020E0 |
ACA33..ARL;ACA30,ALA30..RHD..G FAWN,TRIM4# |
1 | ||
| 55395-42021E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55394-42040E0 |
ACA33..ARL;ACA30,ALA30..RHD..G FAWN,TRIM4# |
1 | ||
| 55394-42040B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 55394-42040E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-42120B0 |
ACA30,ALA30..G AUDIO-RADIO LESS,DK.GRAY,TRIM1#,4# |
1 | ||
| 55410-42120B0 |
ACA30,ALA3#,ZSA3#..G AUDIO-RADIO LESS,DK.GRAY,TRIM1#,4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-42060B0 |
ACA33..ARL;ACA30,ALA30..RHD..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55411-42060B0 |
ACA30,ALA3#,ZSA3#..RHD..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-42060 |
ACA3#,ALA30 |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-42070 |
ACA3#,ALA30 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-42020 |
ACA30,ALA30..RHD |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-42060 |
ACA30,ALA30..RHD..G WIRELESS DOOR LOCK-SMART ENTRY |
1 | ||
| 55420-42040 |
ACA3#,ALA30..G |
1 | ||
| 55420-42040 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL |
1 | ||
| 55420-42040 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55420-42030B0 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG),GRAY,TRIM1#,4# |
1 | ||
| 55420-42040 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT |
1 | ||
| 55420-42060B1 |
ACA30,ALA3#,ZSA3#..RHD..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),GRAY,TRIM1#,4# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-42040 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL |
1 | ||
| 55423-42040 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT |
1 | ||
| 55423-42030 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55423-42040 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55423-42040 |
ACA30,31,33,ALA30..G..(EUR,GCC) |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-42040 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL |
1 | ||
| 55423-42040 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT |
1 | ||
| 55423-42030 |
ACA30,ALA30..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55423-42040 |
ACA30,ALA30..G..(DCR,DCRL,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55423-42040 |
ACA30,31,33,ALA30..G..(EUR,GCC) |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-42110E0 |
ACA30,ALA30..RHD..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 55432-42110B0 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-42020B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 55440-42020E0 |
ACA33..ARL;ACA30,ALA30..RHD..G FAWN,TRIM4# |
1 | ||
| 55440-42020E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-42050E0 |
ACA30,ALA30..RHD..G WIRELESS DOOR LOCK-SMART ENTRY,FAWN,TRIM4# |
1 | ||
| 55446-42060E0 |
ACA33..ARL;ACA30,ALA30..RHD..G..(DCR,DCRE,HTWC) FAWN,TRIM4# |
1 | ||
| 55446-42060B0 |
ACA30,33,ALA30..RHD DK.GRAY,TRIM1# |
1 | ||
| 55446-42050B0 |
ACA30,ALA30..RHD..G WIRELESS DOOR LOCK-SMART ENTRY,DK.GRAY,TRIM1# |
1 | ||
| 55446-42051B0 |
ACA30,ALA3#,ZSA3#..RHD..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.GRAY,TRIM1# |
1 | ||
| 55446-42051E1 |
ACA30,ALA3#,ZSA3#..RHD..G WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),SAND BEIGE,TRIM4# |
1 | ||
| 55446-42061E1 |
ALA35,ZSA3#..RHD..G;ALA30..RHD..G..BTYPE;ACA30,ALA30..RHD..G..(DCR,DCRE,HTWC)..ATYPE SAND BEIGE,TRIM4# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-42010B0 |
ACA33,38;ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-42030 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-42020 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-42020 |
ACA30,ALA30..RHD |
1 | ||
| 55476-42021 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-42090B0 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 55550-42090E0 |
ACA30,ALA30..RHD..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG),FAWN,TRIM4# |
1 | ||
| 55550-42110E0 |
ACA30,ALA30..RHD..G FAWN,TRIM4# |
1 | ||
| 55550-42110B0 |
ACA30,ALA30..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 55550-42110E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| 55550-42110B0 |
ACA30,ALA3#,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 55550-42111E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| 55550-42111B0 |
ACA30,ALA3#,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ACA30,ALA30 AUDIO-RADIO LESS |
2 | ||
| 55521-20150 |
ACA30,ALA3#,ZSA3# AUDIO-RADIO LESS |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
ACA33,38..LHD;ACA30,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52060E1 |
ACA33,38..LHD;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
ACA33,38..LHD;ACA30,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52060E1 |
ACA33,38..LHD;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
ACA33,38..LHD;ACA30,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55539-52060E1 |
ACA33,38..LHD;ACA30,31,ALA30..G FAWN,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-42040 |
ACA30,ALA30..RHD |
1 | ||
| 55606-42040 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-42040 |
ACA30,ALA30..RHD |
1 | ||
| 55607-42040 |
ACA30,ALA30..RHD..G WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-42050B0 |
ACA30,31,ALA30..G DK.GRAY,TRIM1#,4# |
1 | ||
| 55670-42050B2 |
ACA30,33,ALA3#,ZSA3#..G..EUR DK.GRAY,TRIM1#,4# |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-53010 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
1 | ||
| 69065-42010 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 69065-53010 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 69065-42010 |
ACA30,31,ALA30 |
1 | ||
| 69065-74010 |
ACA30,33,ALA3#,ZSA3#..EUR |
1 | ||
| 69065-47040 |
ACA30,33,ALA3#,ZSA3#..G..EUR WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-42020B0 |
ACA30,ALA30..RHD DK.GRAY,TRIM1# |
1 | ||
| 73900-42020E0 |
ACA30,ALA30..RHD..G FAWN,TRIM4# |
1 | ||
| 73900-42020E1 |
ACA30,ALA3#,ZSA3#..RHD..G SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60610 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93540-54010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
