ACA30R-AWPGKW (2008)

Toyota Rav4

Production Dec 2008 - Dec 2012
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

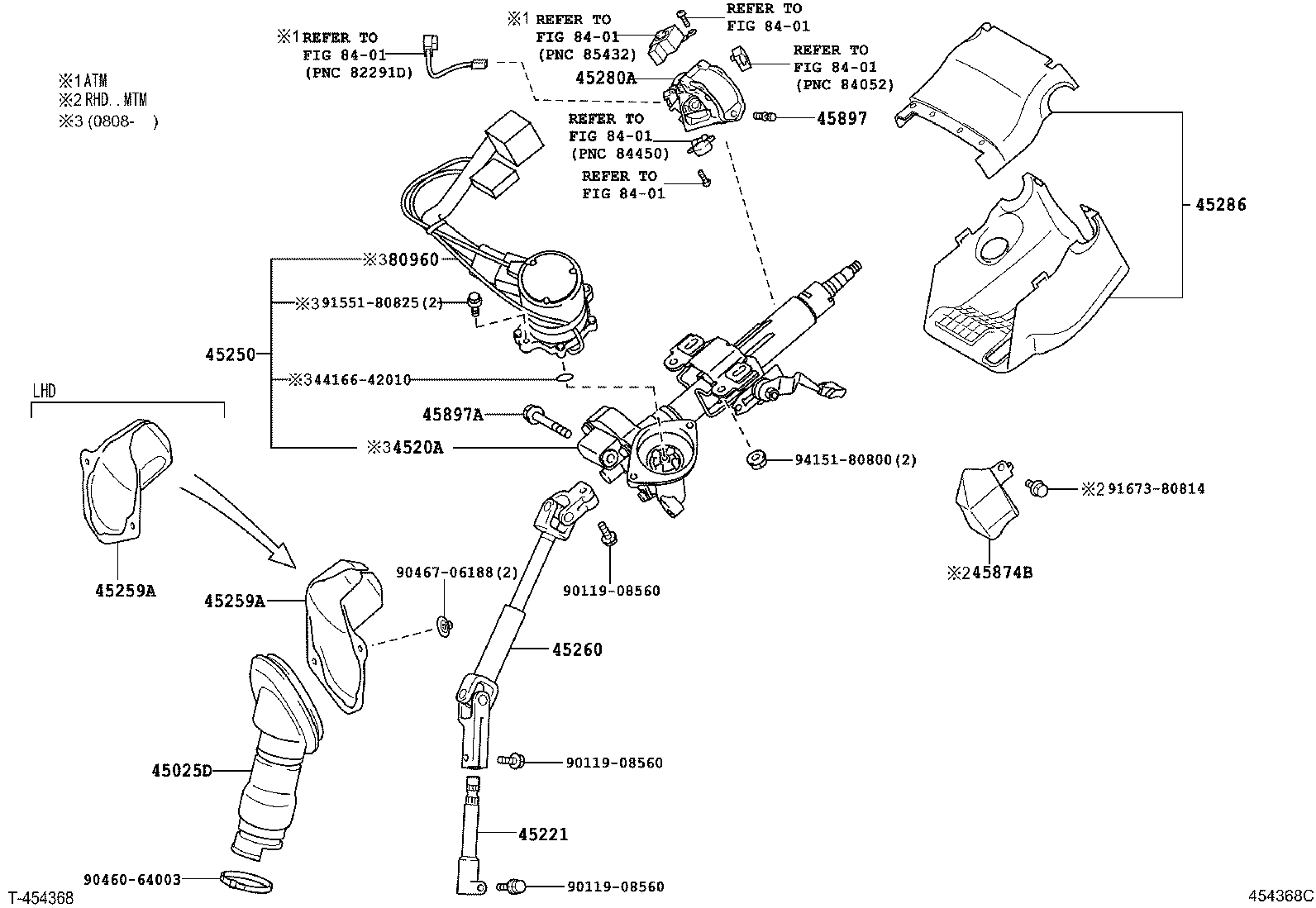

Click highlighted areas on diagram

diagram 4416642010 45025D 4520A 45221 45250 45259A 45259A 45260 45280A 45286 45874B 45897 45897A 80960 8401 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9046064003 9046706188 9155180825 9167380814 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-42070

ACA30,ALA30..RHD

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-42020

ACA30,ALA3#,ZSA3#..RHD..G

WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-42060

ACA3#,ALA30

 1
45250 - COLUMN ASSY, STEERING
45250-42250

ACA30,ALA30..RHD..G

WIRELESS DOOR LOCK-SMART ENTRY

 1
45250-42250

ACA30,ALA3#,ZSA3#..RHD..G

WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

 1
45250-42260

ACA30,ALA30..RHD

 1
45250-42261

ACA3#,ALA3#,GSA33,ZSA3#..RHD

 1
45250-42251

ACA30,ALA3#,ZSA3#..RHD..G

WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-42010

ACA30,ALA30..RHD

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-42010

ACA30,ALA30..RHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42080

ACA30,ALA30..RHD

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-42150

ACA30,ALA30,ZSA30..RHD..ATM

 1
45280-42150

ACA30..RHD..4FC

 1
45286 - COVER, STEERING COLUMN
45286-42914B0

ACA30,31,ALA30..G

WIRELESS DOOR LOCK-SMART ENTRY,DK.GRAY,TRIM1#,4#

 1
45286-42918B0

ACA30,33,ALA3#,ZSA3#..G..EUR

WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR),DK.GRAY,TRIM1#,4#

 1
45286-42915B0

ACA33,38..LHD;ACA30,31,ALA30..G..(DCR,DCRE,HTWC)

DK.GRAY,TRIM1#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACA33..G..GCC;ACA30,31,ALA30

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

ACA33..G..GCC;ACA30,31,ALA30

 1
Common parts
44166-42010
90119-08560
90460-64003
90467-06188
91551-80825
91673-80814
94151-80800
Linked diagrams
8401
