ACA30R-AWPGKW (2008)
Toyota Rav4

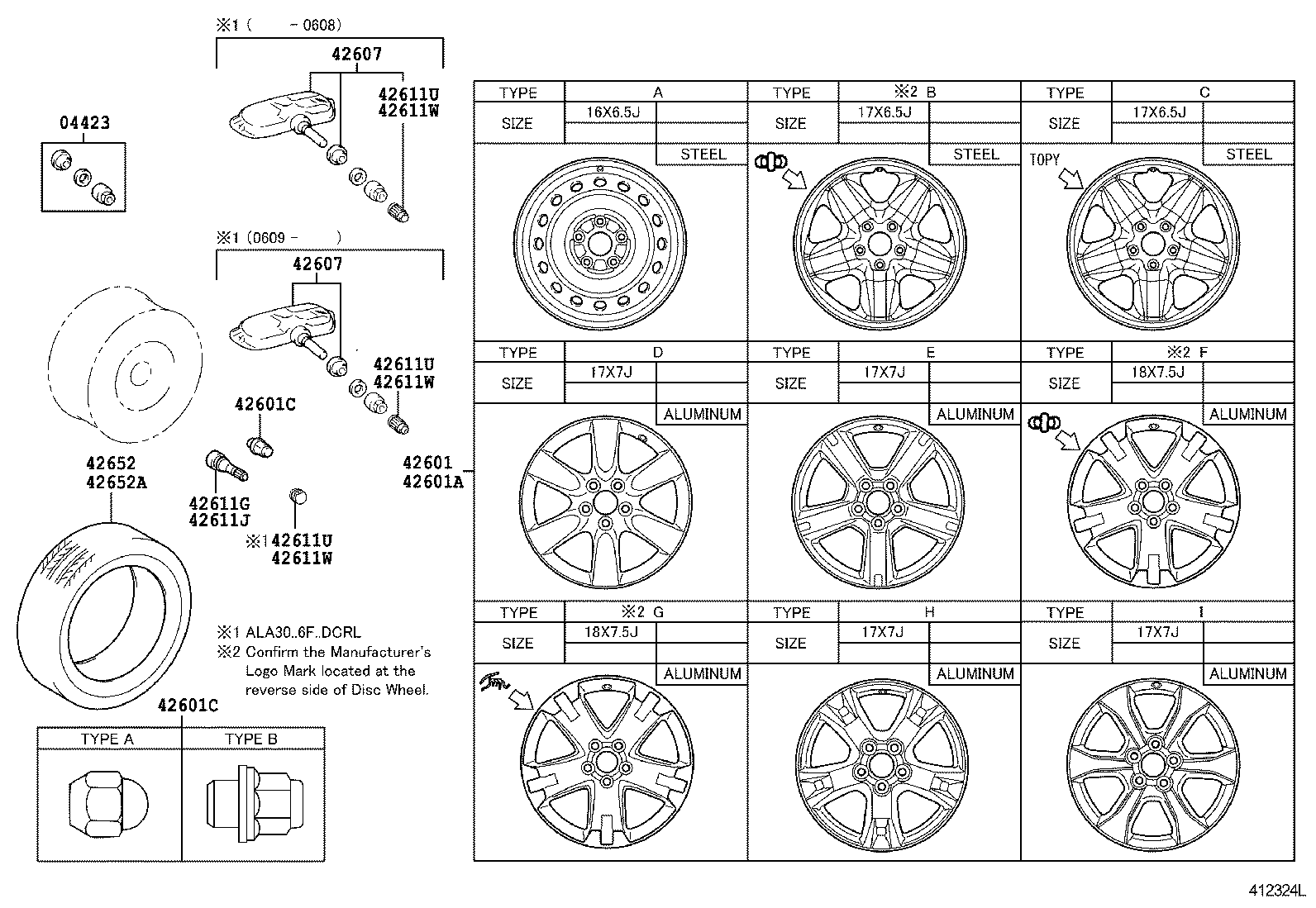

ILLUST NO. 1 OF 3(0511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-42220 |
ACA30,ALA30..G 17X7J,#,TYPE E:REFER ILLUST. |
4 | ||
| 42611-42170 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) 16X6.5J,#,WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..4FC..G 17X7J,#,HONG KONG SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,SOUTH AFRICA SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,BERMUDA SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,TRINIDAD SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,JAMAICA SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42350 |
ACA30,ALA3#,ZSA3#..(4FC,5F,6F,CVFC)..G..ATYPE 17X7J,#,TYPE H:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-42220 |
ACA30,ALA30..G 17X7J,#,TYPE E:REFER ILLUST. |
1 | ||
| 42611-42170 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) 16X6.5J,#,WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,SOUTH AFRICA SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..4FC..G 17X7J,#,HONG KONG SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,JAMAICA SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,TRINIDAD SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42350 |
ACA30,ALA3#,ZSA3#..(4FC,5F,6F,CVFC)..G..ATYPE 17X7J,#,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,BERMUDA SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
ACA30,31,33,ALA30..G..(EUR,GCC) TYPE B:REFER ILLUST. |
20 | ||
| 90942-01021 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
ACA30,31,33,ALA30..G..(EUR,GCC) TYPE B:REFER ILLUST. |
20 | ||
| 90942-01021 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
ALA30..G;ACA30..RHD;ALA30..RHD..X;ACA30,31,33..LHD..G..(EUR,GCC) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ALA30..G;ACA30..RHD;ALA30..RHD..X;ACA30,31,33..LHD..G..(EUR,GCC) |
1 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05039 |
ACA30,31,ALA30 |
1 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05039 |
ACA30,31,ALA30 |
1 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05039 |
ACA30,31,ALA30 |
1 | ||
ILLUST NO. 2 OF 3(0511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-42220 |
ACA30,ALA30..G 17X7J,#,TYPE E:REFER ILLUST. |
4 | ||
| 42611-42170 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) 16X6.5J,#,WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..4FC..G 17X7J,#,HONG KONG SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,SOUTH AFRICA SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,BERMUDA SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,TRINIDAD SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,JAMAICA SPEC,TYPE H:REFER ILLUST. |
4 | ||
| 42611-42350 |
ACA30,ALA3#,ZSA3#..(4FC,5F,6F,CVFC)..G..ATYPE 17X7J,#,TYPE H:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-42220 |
ACA30,ALA30..G 17X7J,#,TYPE E:REFER ILLUST. |
1 | ||
| 42611-42170 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) 16X6.5J,#,WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,SOUTH AFRICA SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..4FC..G 17X7J,#,HONG KONG SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,JAMAICA SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,TRINIDAD SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42350 |
ACA30,ALA3#,ZSA3#..(4FC,5F,6F,CVFC)..G..ATYPE 17X7J,#,TYPE H:REFER ILLUST. |
1 | ||
| 42611-42320 |
ACA30..RHD..G 17X7J,#,BERMUDA SPEC,TYPE H:REFER ILLUST. |
1 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-42120 |
ACA30,ALA30..G *ALU,TYPE C:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-42010 |
ACA30,ALA30..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG),TYPE A:REFER ILLUST. |
5 | ||
ILLUST NO. 3 OF 3(0511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03041 | ||||
| 90942-03098 | ||||
| 90942-03099 | ||||
| 90942-03100 | ||||
| 90942-03101 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03161 | ||||
| 90942-03167 | ||||
| 90942-03194 | ||||
| 90942-03195 | ||||
| 90942-03203 | ||||
| 90942-03204 | ||||
| 90942-03205 | ||||
| 90942-03206 | ||||
| 90942-03207 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
