ACA30R-AWMXKW (2005)
Toyota Rav4
ILLUST NO. 6 OF 8(0511-0812)ACA30,31,ALA30 ; (0511- )ARL,GCC,GEN
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42090 |
ACA30,ALA30..X |
1 | ||
| 84140-42091 |
ACA30,ALA30..X |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42090 |
ACA30,ALA30..X |
1 | ||
| 84140-42091 |
ACA30,ALA30..X |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-22010 |
ACA30,ALA30..X |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48060 |
ACA3#,ALA30..EUR,GCC,GEN |
1 | ||
| 84652-48180 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-48060 |
ACA3#,ALA30..EUR,GCC,GEN |
1 | ||
| 84652-48180 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-52030 |
ACA30,31,33,ALA30,GSA33 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 8(0511-0808)ARL ; (0511-0812)ACA30,ALA30..RHD

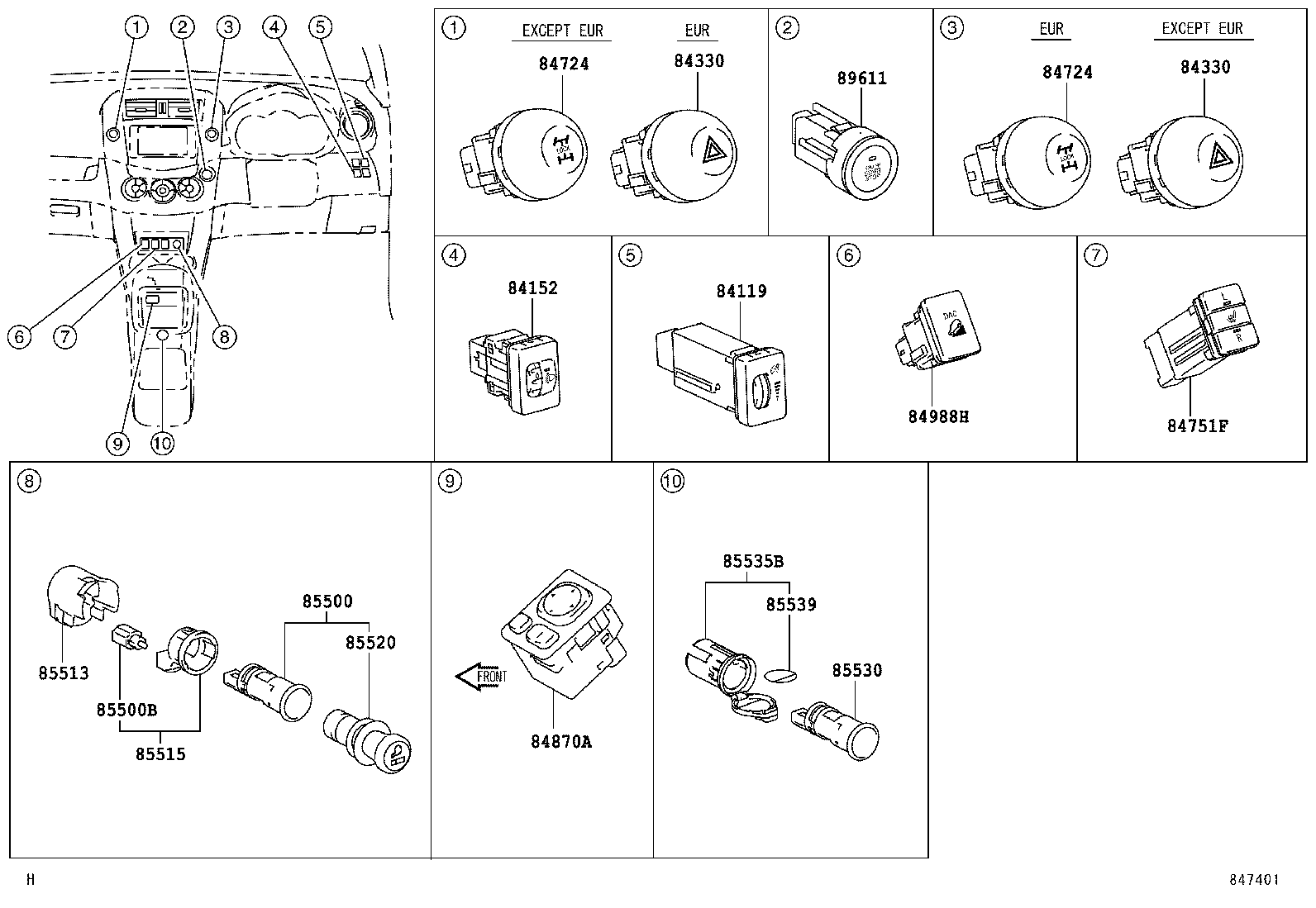

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52080 |
ACA30,31,ALA30 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACA33..G..GCC;ACA30,ALA30..X |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
ACA33..G..GCC;ACA30,31,ALA30 14V1.4W,W/ORANGE CAP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35080B0 |
GSA33;ACA30,ALA30..X DK.GRAY,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
ILLUST NO. 1 OF 8(0511- )ACA3#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ACA30,ALA30..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42170 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28120 |
ACA30,33..RHD MARK 89467-28120 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ACA30,31;ACA33..G..GCC |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 8 OF 8(0511- )
DOOR,ROOF & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ACA33..G..GCC;ACA30,31,ALA30 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ACA33..G..GCC;ACA30,31,ALA30 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ACA33..G..GCC;ACA30,31,ALA30 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ACA33..G..GCC;ACA30,31,ALA30 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
ACA30,ALA30..RHD |
1 | ||
| 84820-52270 |
ACA30,33,ALA30..RHD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
ACA30,ALA30..RHD |
1 | ||
| 84820-52270 |
ACA30,33,ALA30..RHD |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080B0 |
GSA33;ACA30,ALA30..X DK.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||
ILLUST NO. 2 OF 8(0511-0808)ACA33,38 ; (0511-0812)ACA30,31,ALA30

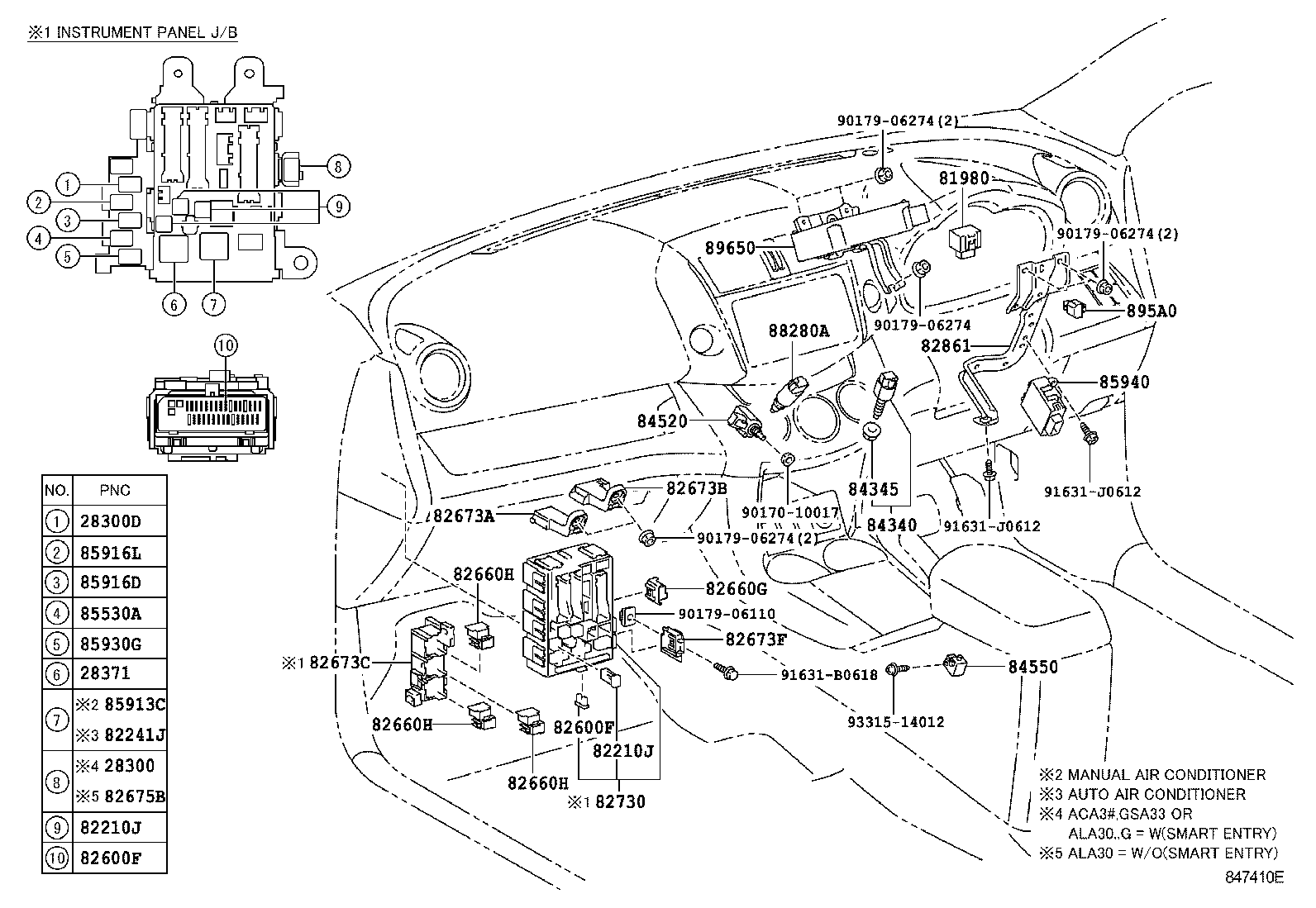

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
ILLUST NO. 4 OF 8(0511-0808)ARL ; (0511-0812)ACA30,ALA30..RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| 90987-02025 |
1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
ACA30,31,ALA30 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-42140 |
ACA30,ALA30..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-42150 |
ACA30,ALA30..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-42110 |
ACA30,31,ALA30 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-42130 |
ACA30,ALA30..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42160 |
ACA30,ALA30..RHD..MTM |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-42030 |
ACA30,ALA30..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
ACA3#,ALA30,GSA33 |
1 | ||
| 84340-69075 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACA30,33,ALA30,GSA33..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ACA30,ALA30..X |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACA30,31,ALA30 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-46010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42030 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90170-10017 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| 93315-14012 | ||||
ILLUST NO. 5 OF 8(0808- )ACA38..GEN ; (0808- )ACA33..GCC,GEN ; (0812- )LHD..EUR ; (0812-
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52080 |
ACA30,31,ALA30 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACA33..G..GCC;ACA30,ALA30..X |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
ACA33..G..GCC;ACA30,31,ALA30 14V1.4W,W/ORANGE CAP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35080B0 |
GSA33;ACA30,ALA30..X DK.GRAY,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
ILLUST NO. 5 OF 8(0808- )ACA33,GSA33..ARL ; (0812- )ACA30,38,ALA3#,ZSA3#..RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52080 |
ACA30,31,ALA30 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACA33..G..GCC;ACA30,ALA30..X |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01030 |
ACA33..G..GCC;ACA30,31,ALA30 14V1.4W,W/ORANGE CAP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35080B0 |
GSA33;ACA30,ALA30..X DK.GRAY,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
ILLUST NO. 4 OF 8(0808- )ACA38..GEN ; (0808- )ACA33..GCC,GEN ; (0812- )LHD..EUR ; (0812-
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| 90987-02025 |
1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
ACA30,31,ALA30 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-42140 |
ACA30,ALA30..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-42150 |
ACA30,ALA30..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-42110 |
ACA30,31,ALA30 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-42130 |
ACA30,ALA30..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42160 |
ACA30,ALA30..RHD..MTM |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-42030 |
ACA30,ALA30..RHD |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-42030 |
ACA30,ALA30..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
ACA3#,ALA30,GSA33 |
1 | ||
| 84340-69075 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACA30,33,ALA30,GSA33..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ACA30,ALA30..X |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACA30,31,ALA30 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-46010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42030 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-70004 | ||||
| 90170-10017 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91631-J0612 | ||||
| 93315-14012 | ||||
ILLUST NO. 4 OF 8(0808- )ACA33,GSA33..ARL ; (0812- )ACA30,38,ALA3#,ZSA3#..RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| 90987-02025 |
1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
ACA30,31,ALA30 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ACA30,31,ALA30 |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-42140 |
ACA30,ALA30..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-42150 |
ACA30,ALA30..RHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-42110 |
ACA30,31,ALA30 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-42130 |
ACA30,ALA30..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42160 |
ACA30,ALA30..RHD..MTM |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-42030 |
ACA30,ALA30..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
ACA3#,ALA30,GSA33 |
1 | ||
| 84340-69075 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACA30,33,ALA30,GSA33..RHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ACA30,ALA30..X |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACA30,31,ALA30 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-46010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42030 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90170-10017 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91631-B0618 | ||||
| 91631-J0612 | ||||
| 93315-14012 | ||||
ILLUST NO. 2 OF 8(0808- )ACA38..GEN ; (0808- )ACA33..ARL,GCC,GEN ; (0812- )EUR ; (0812-
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
ILLUST NO. 3 OF 8(0511-0808)ACA33,38 ; (0511-0812)ACA30,31,ALA30
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42010 |
ACA33..G..GCC;ACA30,31,ALA30 NO.1 |
1 | ||
| 82631-42020 |
ACA33..G..GCC;ACA30,31,ALA30 NO.2 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42010 |
ACA33..G..GCC;ACA30,31,ALA30 NO.1 |
1 | ||
| 82631-42020 |
ACA33..G..GCC;ACA30,31,ALA30 NO.2 |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42030 |
ACA30..X WITHOUT(VSC) |
1 | ||
| 82660-42030 |
ACA30,31,ALA30 |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ALA30;ACA30..RHD;ACA33..G..GCC |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA30,31,ALA30 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42171 |
ACA3# MARK 82662-42171 |
1 | ||
| 82662-42170 |
ACA3# MARK 82662-42170 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42190 |
ACA3#,ALA30 MARK 82662-42190 |
1 | ||
| 82662-42191 |
ACA3#,ALA30 MARK 82662-42191 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-42080 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-42090 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACA30,ALA30 AIR CONDITIONER-WITHOUT |
1 | ||
| 90987-04004 |
ACA30,ALA30..X..(DCR,HTWC) WITH(FRONT WHEEL SPLASH SHIELD) |
1 | ||
| 90987-04004 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ACA30,ALA30..X..(DCR,HTWC) WITH(FRONT WHEEL SPLASH SHIELD) |
1 | ||
| 90987-02027 |
ACA30,ALA30 AIR CONDITIONER-WITHOUT |
1 | ||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8414 | ||||
ILLUST NO. 3 OF 8(0808- )ACA38..GEN ; (0808- )ACA33..ARL,GCC,GEN ; (0812- )EUR ; (0812-
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
ACA3#,ALA30,GSA33 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08274 |
ACA3# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ACA3#,ALA30,GSA33 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
ACA3#,ALA30,GSA33 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08295 |
ACA3#,ALA30,GSA33 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ACA3#,ALA30,GSA33 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ACA3#,ALA30,GSA33 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ACA3#,ALA30,GSA33 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ACA3#,ALA30,GSA33 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACA3#,ALA30,GSA33 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ACA3#,ALA30,GSA33 10A,MINI FUSE,RED |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42010 |
ACA33..G..GCC;ACA30,31,ALA30 NO.1 |
1 | ||
| 82631-42020 |
ACA33..G..GCC;ACA30,31,ALA30 NO.2 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-42010 |
ACA33..G..GCC;ACA30,31,ALA30 NO.1 |
1 | ||
| 82631-42020 |
ACA33..G..GCC;ACA30,31,ALA30 NO.2 |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42030 |
ACA30..X WITHOUT(VSC) |
1 | ||
| 82660-42030 |
ACA30,31,ALA30 |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA30,31;ACA33..G..GCC |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ALA30;ACA30..RHD;ACA33..G..GCC |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ACA30,31,ALA30 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42171 |
ACA3# MARK 82662-42171 |
1 | ||
| 82662-42170 |
ACA3# MARK 82662-42170 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42190 |
ACA3#,ALA30 MARK 82662-42190 |
1 | ||
| 82662-42191 |
ACA3#,ALA30 MARK 82662-42191 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-42080 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-42090 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-42030 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACA30,ALA30 AIR CONDITIONER-WITHOUT |
1 | ||
| 90987-04004 |
ACA30,ALA30..X..(DCR,HTWC) WITH(FRONT WHEEL SPLASH SHIELD) |
1 | ||
| 90987-04004 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ACA30,ALA30..X..(DCR,HTWC) WITH(FRONT WHEEL SPLASH SHIELD) |
1 | ||
| 90987-02027 |
ACA30,ALA30 AIR CONDITIONER-WITHOUT |
1 | ||
| 90987-02027 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
