ACA30R-AWMXKW (2005)
Toyota Rav4
ILLUST NO. 2 OF 2(0511- )G..GCC,GEN ; (0511- )ACA30,33,38,ALA30,ZSA3#..X
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-42180 |
ACA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
1 | ||
| 44050-42180 |
ACA30..X WITHOUT(VSC) |
1 | ||
| 44050-42230 |
ACA30,ALA30..MTM |
1 | ||
| 44050-42260 |
ACA30,ALA30..MTM REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ACA30,ALA30..X WITHOUT(VSC) |
2 | ||
| 44545-42070 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
2 | ||
| 44545-42090 |
ACA30,31,ALA30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ACA30,ALA30..X WITHOUT(VSC) |
2 | ||
| 44545-42070 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
2 | ||
| 44545-42090 |
ACA30,31,ALA30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
ACA30,ALA30 |
3 | ||
| 44546-42130 |
ACA30,ALA30..X WITHOUT(VSC) |
3 | ||
| 44546-42130 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
3 | ||
| 44546-42190 |
ACA30,ALA30 REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
ACA30,ALA30 |
3 | ||
| 44546-42130 |
ACA30,ALA30..X WITHOUT(VSC) |
3 | ||
| 44546-42130 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
3 | ||
| 44546-42190 |
ACA30,ALA30 REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
ACA30,ALA30 |
3 | ||
| 44546-42130 |
ACA30,ALA30..X WITHOUT(VSC) |
3 | ||
| 44546-42130 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
3 | ||
| 44546-42190 |
ACA30,ALA30 REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-42100 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
1 | ||
| 44590-42110 |
ACA30,31,ALA30 |
1 | ||
| 44590-42100 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90179-08249 | ||||
ILLUST NO. 2 OF 2(0511-0808)GSA33 ; (0511-0808)ACA33..G..ARL,GCC; (0511-0812)ACA30,31,ALA30
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-42180 |
ACA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
1 | ||
| 44050-42180 |
ACA30..X WITHOUT(VSC) |
1 | ||
| 44050-42230 |
ACA30,ALA30..MTM |
1 | ||
| 44050-42260 |
ACA30,ALA30..MTM REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ACA30,ALA30..X WITHOUT(VSC) |
2 | ||
| 44545-42070 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
2 | ||
| 44545-42090 |
ACA30,31,ALA30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42070 |
ACA30,ALA30..X WITHOUT(VSC) |
2 | ||
| 44545-42070 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
2 | ||
| 44545-42090 |
ACA30,31,ALA30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
ACA30,ALA30 |
3 | ||
| 44546-42130 |
ACA30,ALA30..X WITHOUT(VSC) |
3 | ||
| 44546-42130 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
3 | ||
| 44546-42190 |
ACA30,ALA30 REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
ACA30,ALA30 |
3 | ||
| 44546-42130 |
ACA30,ALA30..X WITHOUT(VSC) |
3 | ||
| 44546-42130 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
3 | ||
| 44546-42190 |
ACA30,ALA30 REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42090 |
ACA30,ALA30 |
3 | ||
| 44546-42130 |
ACA30,ALA30..X WITHOUT(VSC) |
3 | ||
| 44546-42130 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
3 | ||
| 44546-42190 |
ACA30,ALA30 REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-42100 |
ACA30,ALA30..X REGULATION COMFORMITY LABEL & NAME PLATE-WITH(*NTA),REFER TO FIG.74-55&WITHOUT(VSC) |
1 | ||
| 44590-42110 |
ACA30,31,ALA30 |
1 | ||
| 44590-42100 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90179-08249 | ||||

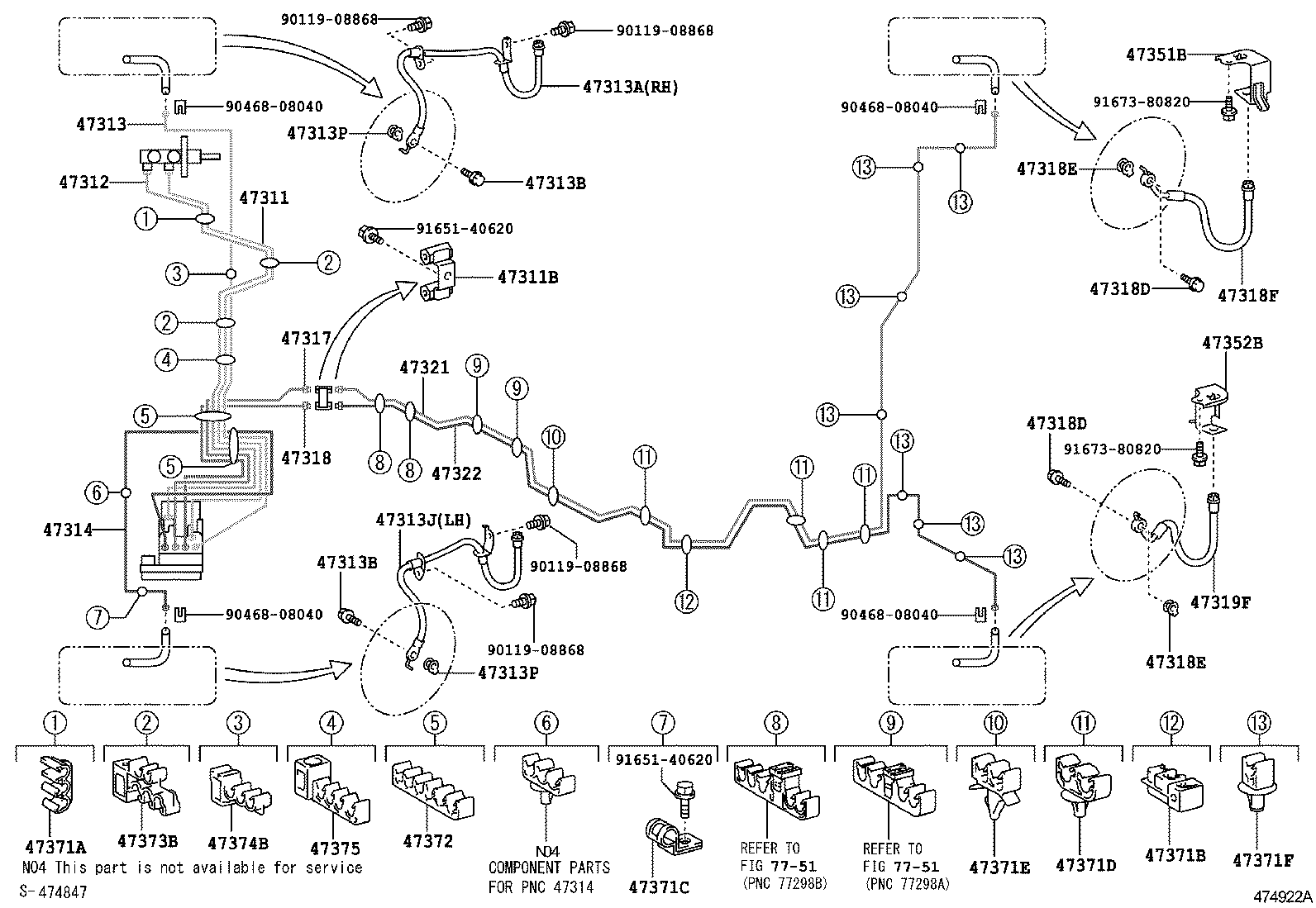

ILLUST NO. 1 OF 2(0511-0808)ACA33..X..ARL ; (0511-0812)ACA30,ALA30..RHD..X
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-42140 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47311-42130 |
ACA30,ALA30..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47312-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F49 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E26 |
ACA3#,ALA30 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E27 |
ACA3#,ALA30 |
1 | ||
| 90947-02F50 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42171 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47314-42161 |
ACA30,31,ALA30 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47317-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F51 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E58 |
ACA3#,ALA30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E59 |
ACA3#,ALA30 |
1 | ||
| 90947-02F52 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42140 |
ACA30,31,ALA30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42130 |
ACA30,31,ALA30 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ACA3#,ALA30,GSA33 |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
ACA3#,ALA30,GSA33 |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ACA30,ALA30..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C19 |
ACA30,ALA30..RHD |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D05 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D44 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40620 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 7751 | ||||

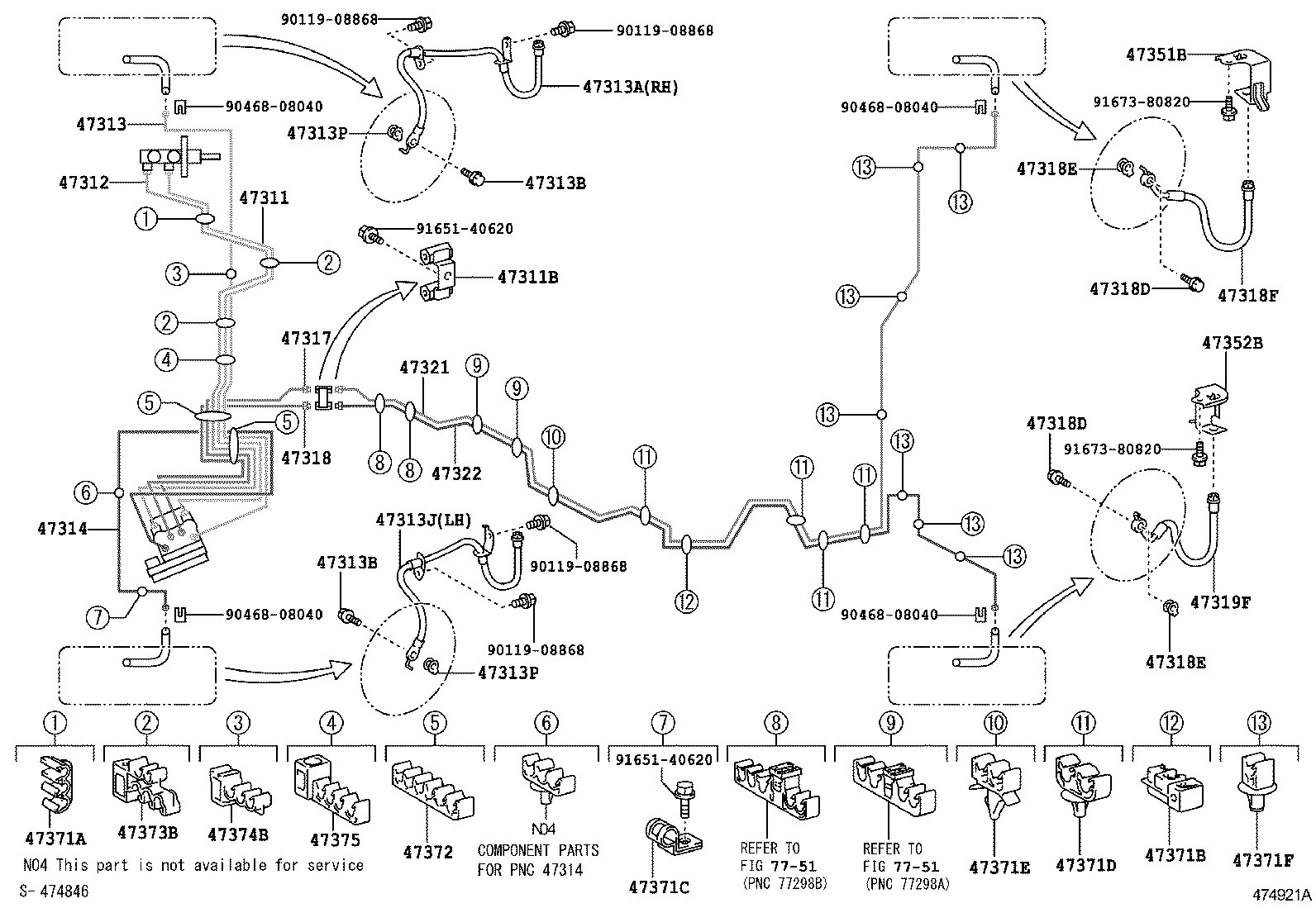

ILLUST NO. 1 OF 2(0511-0808)GSA33 ; (0511-0808)ACA33..G..ARL ; (0511-0812)ACA30,ALA30..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-42140 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47311-42130 |
ACA30,ALA30..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47312-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F49 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E26 |
ACA3#,ALA30 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E27 |
ACA3#,ALA30 |
1 | ||
| 90947-02F50 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42171 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47314-42161 |
ACA30,31,ALA30 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47317-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F51 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E58 |
ACA3#,ALA30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E59 |
ACA3#,ALA30 |
1 | ||
| 90947-02F52 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42140 |
ACA30,31,ALA30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42130 |
ACA30,31,ALA30 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ACA3#,ALA30,GSA33 |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
ACA3#,ALA30,GSA33 |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ACA30,ALA30..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C19 |
ACA30,ALA30..RHD |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D05 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D44 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40620 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 1 OF 2(0808- )ARL ; (0812- )ACA30,ALA3#,ZSA3#..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-42140 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47311-42130 |
ACA30,ALA30..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47312-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F49 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E26 |
ACA3#,ALA30 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E27 |
ACA3#,ALA30 |
1 | ||
| 90947-02F50 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42171 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47314-42161 |
ACA30,31,ALA30 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47317-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F51 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E58 |
ACA3#,ALA30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E59 |
ACA3#,ALA30 |
1 | ||
| 90947-02F52 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42140 |
ACA30,31,ALA30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42130 |
ACA30,31,ALA30 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ACA3#,ALA30,GSA33 |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
ACA3#,ALA30,GSA33 |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ACA30,ALA30..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C19 |
ACA30,ALA30..RHD |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D44 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40620 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 7751 | ||||
ILLUST NO. 1 OF 2(0808- )ACA33,38..X..ARL ; (0812- )ACA30,ALA30,ZSA3#..RHD..X
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-42140 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47311-42130 |
ACA30,ALA30..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47312-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-42300 |
ACA30,ALA30..RHD |
1 | ||
| 47313-42310 |
ACA30,ALA30..RHD..X WITHOUT(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F49 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E26 |
ACA3#,ALA30 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02E27 |
ACA3#,ALA30 |
1 | ||
| 90947-02F50 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42171 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47314-42161 |
ACA30,31,ALA30 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47317-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42190 |
ACA30,31,ALA30 |
1 | ||
| 47318-42200 |
ACA30,ALA30..X WITHOUT(VSC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F51 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 90947-02E58 |
ACA3#,ALA30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E59 |
ACA3#,ALA30 |
1 | ||
| 90947-02F52 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42140 |
ACA30,31,ALA30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42130 |
ACA30,31,ALA30 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-42071 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 77299-32030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10781 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90469-07020 |
ACA3#,ALA30,GSA33 |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ACA3#,ALA30,GSA33 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
ACA3#,ALA30,GSA33 |
7 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00890 |
ACA30,ALA30..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C19 |
ACA30,ALA30..RHD |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D44 |
ACA30,ALA30..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
