ACA23R-AWPNKQ (2003)

Toyota Rav4

Production Jul 2003 - Nov 2005
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )ARL,EUR

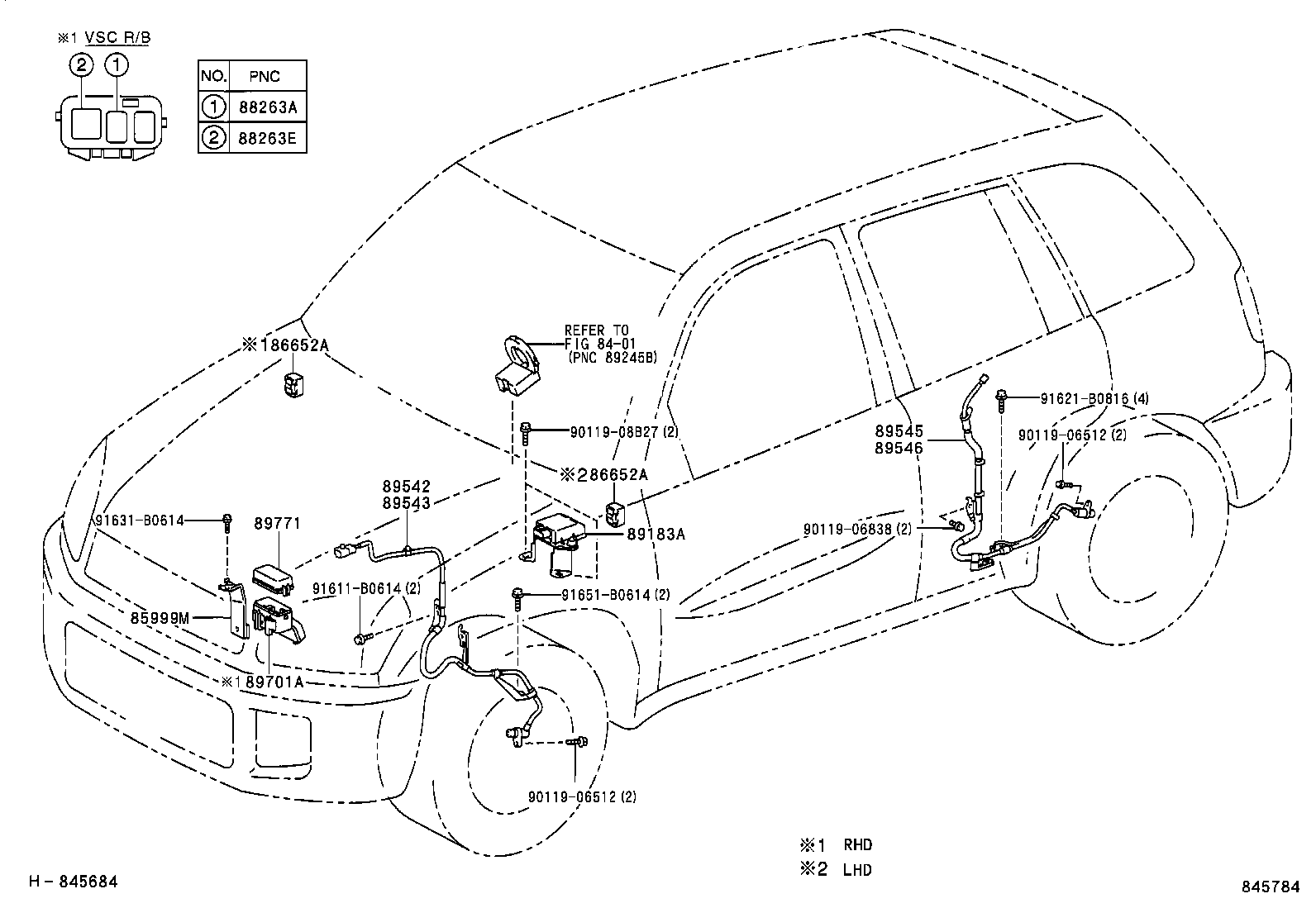

Click highlighted areas on diagram

W(VSC)

diagram 8401 85999M 86652A 86652A 88263A 88263E 89183A 89542 89543 89545 89546 89701A 89771 9011906512 9011906512 9011906838 9011908B27 91611B0614 91621B0816 91631B0614 91651B0614
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-42050

ACA2#,CLA2#..ARL,EUR

 1
86652A - BUZZER ASSY, SKID CONTROL
86652-48010

ACA2#,CLA2#..ARL,EUR

 1
86652A - BUZZER ASSY, SKID CONTROL
86652-48010

ACA2#,CLA2#..ARL,EUR

 1
88263A - RELAY, SKID CONTROL
88263-32070

ACA2#,CLA2#..ARL,EUR

 1
88263E - RELAY, SKID CONTROL NO.2
88263-21010

ACA2#,CLA2#..ARL,EUR

 1
89183A - SENSOR, YAWRATE
89180-42010

ACA2#,CLA2#..ARL,EUR

 1
89542 - SENSOR, SPEED, FRONT RH
89542-42040

ACA2#,CLA2#,ZCA2#

 1
89542-42040

ACA2#,CLA2#,ZCA2#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-42040

ACA2#,CLA2#,ZCA2#

 1
89543-42040

ACA2#,CLA2#,ZCA2#

 1
89545 - SENSOR, SPEED, REAR RH
89545-42030

ACA2#,CLA2#

 1
89545-42030

ACA2#,CLA2#

 1
89546 - SENSOR, SPEED, REAR LH
89546-42030

ACA2#,CLA2#

 1
89546-42030

ACA2#,CLA2#

 1
89701A - BLOCK SUB-ASSY, ABS RELAY
89701-21020

ACA2#,CLA2#..ARL,EUR

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-21020

ACA2#,CLA2#..ARL,EUR

 1
Common parts
90119-06512
90119-06838
90119-08B27
91611-B0614
91621-B0816
91631-B0614
91651-B0614
Linked diagrams
8401

(0307- )

Click highlighted areas on diagram

W(VSC)

diagram 8401 85999M 86652A 88263A 88263E 89183A 89542 89543 89545 89546 89701A 89771 9011906512 9011906512 9011906838 9011908B27 91611B0614 91621B0816 91631B0614 91651B0614
Part # Description Qty Price
Common parts
90119-06512
90119-06838
90119-08B27
91611-B0614
91621-B0816
91631-B0614
91651-B0614
Linked diagrams
8401
