ACA23L-AWPNKK (2003)

Toyota Rav4

Production Jul 2003 - Nov 2005
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

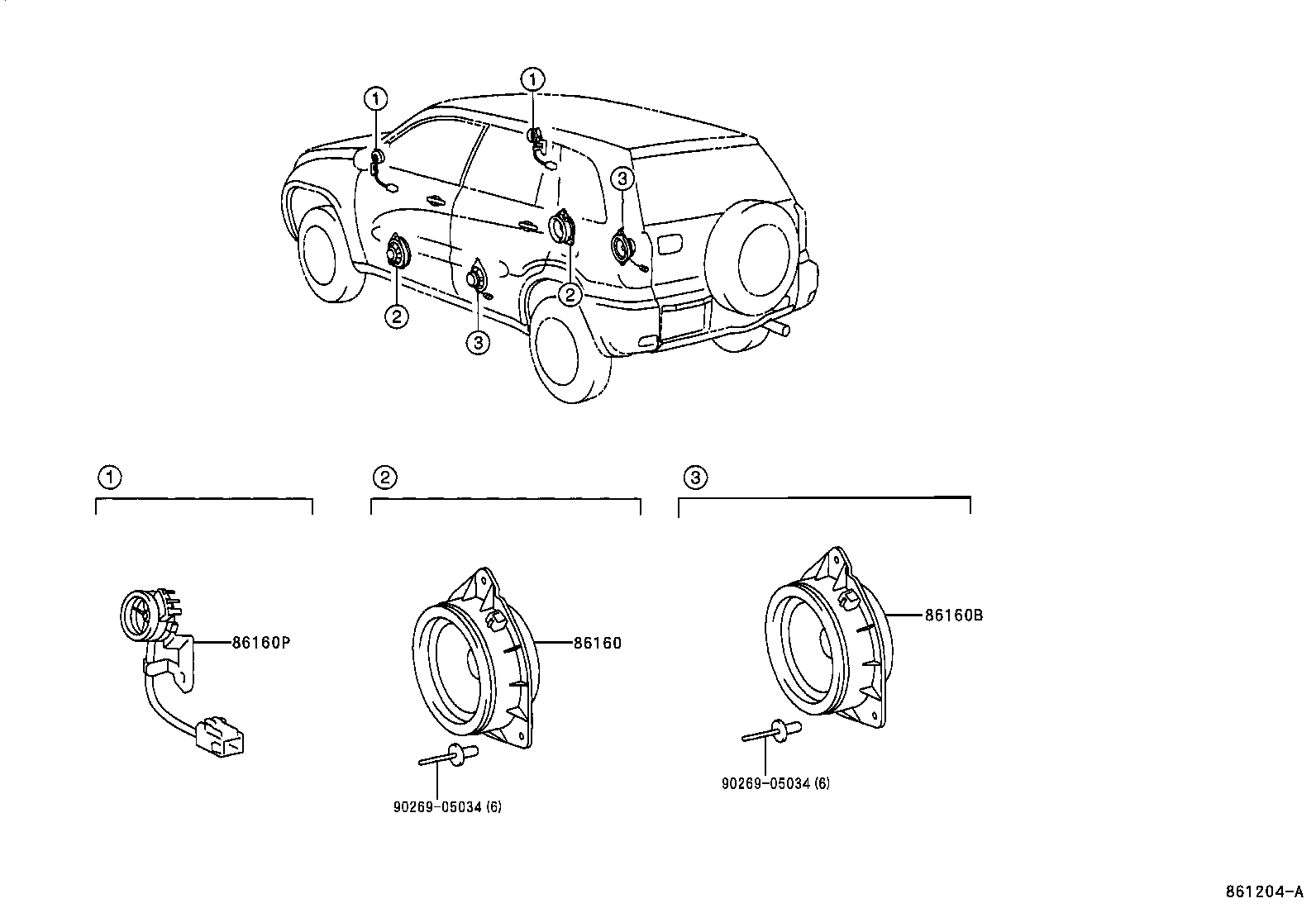

Click highlighted areas on diagram

diagram 86160 86160B 86160B 86160P 9011906915 9026905034 9026905034
Part # Description Qty Price
Common parts
90119-06915
90269-05034

(0008- )

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9026905034 9026905034
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0W810

ACA2#

W(JBL PREMIUM SOUND SYSTEM)

 2
86160-42070

ACA2#

 2
86160-42110

ACA2#

 2
86160-42070

ACA2#

 2
86160B - SPEAKER ASSY, REAR
86160-0W820

ACA2#

W(JBL PREMIUM SOUND SYSTEM)

 2
86160-42110

ACA2#

 2
86160-42070

ACA2#

 2
86160-42070

ACA2#

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0W850

ACA2#

W(JBL PREMIUM SOUND SYSTEM),RH

 1
86160-42090

ACA2#

RH

 1
86160-0W860

ACA2#

W(JBL PREMIUM SOUND SYSTEM),LH

 1
86160-42100

ACA2#

LH

 1
Common parts
90269-05034
