ACA23L-AWPNKK (2003)
Toyota Rav4

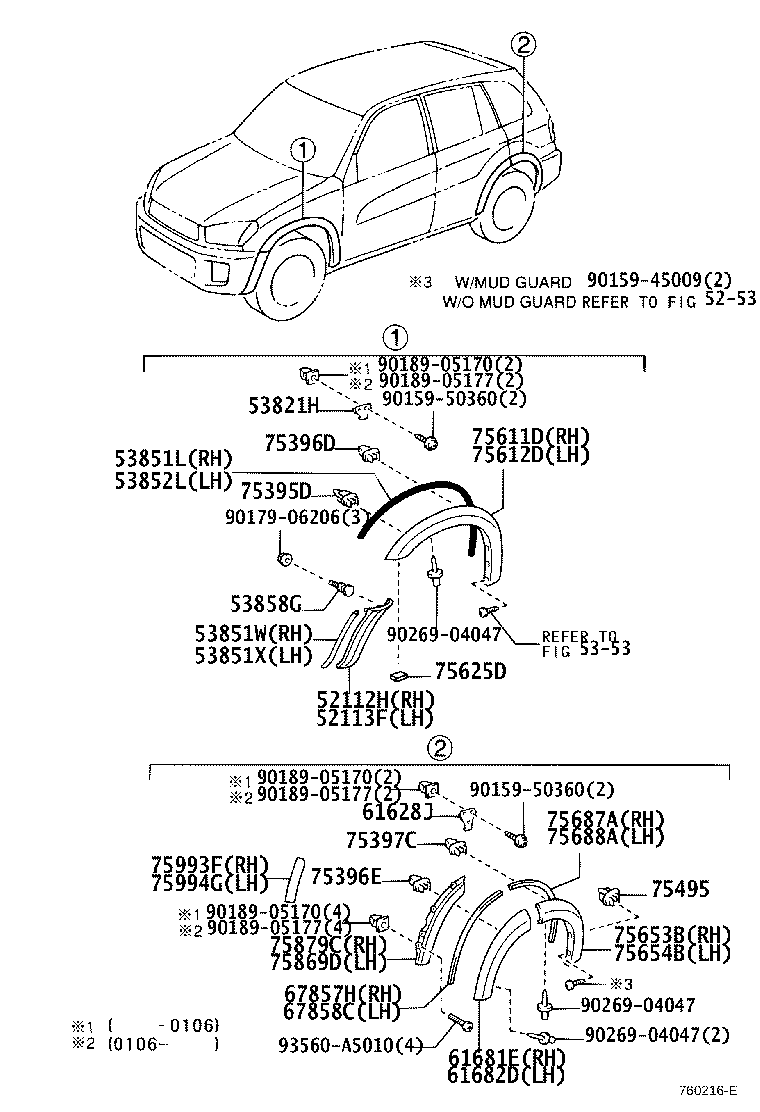

ILLUST NO. 1 OF 2(0005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-45009 | ||||
| 90159-50360 | ||||
| 90179-06206 | ||||
| 90189-05170 | ||||
| 90189-05177 | ||||
| 90269-04047 | ||||
| 93560-A5010 | ||||
| Linked diagrams | ||||
| 5253 | ||||
| 5353 | ||||
ILLUST NO. 2 OF 2(0005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76621D - MUDGUARD, FRONT FENDER, RH | ||||
| 76621-42070 |
ACA2# |
1 | ||
| 76621-42080 |
ACA2# W(OVER FENDER) |
1 | ||
| 76621-42070 |
ACA2# |
1 | ||
| 76622D - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-42070 |
ACA2# |
1 | ||
| 76622-42080 |
ACA2# W(OVER FENDER) |
1 | ||
| 76622-42070 |
ACA2# |
1 | ||
| 76625G - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-42080 |
ACA2# |
1 | ||
| 76625-42090 |
ACA2# W(OVER FENDER) |
1 | ||
| 76625-42080 |
ACA2# |
1 | ||
| 76626E - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-42140 |
ACA2# |
1 | ||
| 76626-42140 |
ACA2# |
1 | ||
| 76626-42150 |
ACA2# W(OVER FENDER) |
1 | ||
| 76791B - BRACKET, REAR SPOILER | ||||
| 76791-42010 |
ACA2# |
2 | ||
| 76791-42010 |
ACA2# |
2 | ||
| 76791B - BRACKET, REAR SPOILER | ||||
| 76791-42010 |
ACA2# |
2 | ||
| 76791-42010 |
ACA2# |
2 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-42030G0 |
ACA2# DK.GREEN M.M.,6S3 |
1 | ||
| 76871-42030C0 |
ACA2# BLACK,202 |
1 | ||
| 76871-42030A0 |
ACA2# WHITE,056 |
1 | ||
| 76871-42030B0 |
ACA2# SILVER ME.,1D4 |
1 | ||
| 76871-42030J0 |
ACA2# BLUE MC.,8M6 |
1 | ||
| 76871-42030A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 76871-42030B0 |
ACA2# SILVER ME.,1D4 |
1 | ||
| 76871-42030C0 |
ACA2# BLACK,202 |
1 | ||
| 76871-42030D0 |
ACA2# RED M.M.,3P1 |
1 | ||
| 76871-42030B4 |
ACA2# DK.GRAY MC.,1E0 |
1 | ||
| 76871-42030A2 |
ACA2# SUPER WHITE 2,040 |
1 | ||
| 76871-42030E0 |
ACA2# BEIGE ME.,4R4 |
1 | ||
| 76871-42030J0 |
ACA2# BLUE MC.,8M6 |
1 | ||
| 76871-42030F0 |
ACA2# CHAMPAGNE ME.,586 |
1 | ||
| 76871-42030D1 |
ACA2# DK. RED M.M.,3Q3 |
1 | ||
| 76871-42030A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 76871-42030G1 |
ACA23..CND DARK GREEN MC.,6R4 |
1 | ||
| 76871-42030G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| Common parts | ||||
| 90154-50033 | ||||
| 90159-45009 | ||||
| 90159-50125 | ||||
| 90164-60024 | ||||
| 90179-05095 | ||||
| 90179-06274 | ||||
| 90189-06048 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 5253 | ||||
| 5353 | ||||
ILLUST NO. 2 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76621D - MUDGUARD, FRONT FENDER, RH | ||||
| 76621-42070 |
ACA2# |
1 | ||
| 76621-42080 |
ACA2# W(OVER FENDER) |
1 | ||
| 76621-42070 |
ACA2# |
1 | ||
| 76622D - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-42070 |
ACA2# |
1 | ||
| 76622-42080 |
ACA2# W(OVER FENDER) |
1 | ||
| 76622-42070 |
ACA2# |
1 | ||
| 76625G - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-42080 |
ACA2# |
1 | ||
| 76625-42090 |
ACA2# W(OVER FENDER) |
1 | ||
| 76625-42080 |
ACA2# |
1 | ||
| 76626E - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-42140 |
ACA2# |
1 | ||
| 76626-42140 |
ACA2# |
1 | ||
| 76626-42150 |
ACA2# W(OVER FENDER) |
1 | ||
| 76791B - BRACKET, REAR SPOILER | ||||
| 76791-42010 |
ACA2# |
2 | ||
| 76791-42010 |
ACA2# |
2 | ||
| 76791B - BRACKET, REAR SPOILER | ||||
| 76791-42010 |
ACA2# |
2 | ||
| 76791-42010 |
ACA2# |
2 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-42030G0 |
ACA2# DK.GREEN M.M.,6S3 |
1 | ||
| 76871-42030C0 |
ACA2# BLACK,202 |
1 | ||
| 76871-42030A0 |
ACA2# WHITE,056 |
1 | ||
| 76871-42030B0 |
ACA2# SILVER ME.,1D4 |
1 | ||
| 76871-42030J0 |
ACA2# BLUE MC.,8M6 |
1 | ||
| 76871-42030A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 76871-42030B0 |
ACA2# SILVER ME.,1D4 |
1 | ||
| 76871-42030C0 |
ACA2# BLACK,202 |
1 | ||
| 76871-42030D0 |
ACA2# RED M.M.,3P1 |
1 | ||
| 76871-42030B4 |
ACA2# DK.GRAY MC.,1E0 |
1 | ||
| 76871-42030A2 |
ACA2# SUPER WHITE 2,040 |
1 | ||
| 76871-42030E0 |
ACA2# BEIGE ME.,4R4 |
1 | ||
| 76871-42030J0 |
ACA2# BLUE MC.,8M6 |
1 | ||
| 76871-42030F0 |
ACA2# CHAMPAGNE ME.,586 |
1 | ||
| 76871-42030D1 |
ACA2# DK. RED M.M.,3Q3 |
1 | ||
| 76871-42030A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 76871-42030G1 |
ACA23..CND DARK GREEN MC.,6R4 |
1 | ||
| 76871-42030G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42100 |
ACA2# NO.3 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-42090 |
ACA2# NO.2 |
1 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| 76887-26020 |
ACA2# NO.1 |
2 | ||
| Common parts | ||||
| 90154-50033 | ||||
| 90159-45009 | ||||
| 90159-50125 | ||||
| 90164-60024 | ||||
| 90179-05095 | ||||
| 90179-06274 | ||||
| 90189-06048 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 5253 | ||||
| 5353 | ||||
ILLUST NO. 1 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112H - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-42050B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 52112-42050J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 52112-42050A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 52112-42050C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 52112-42050B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 52112-42050G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 52112-42050G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 52113F - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-42050A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 52113-42050B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 52113-42050C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 52113-42050G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 52113-42050G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 52113-42050B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 52113-42050J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 53821H - BRACKET, FRONT FENDER, REAR | ||||
| 53821-42011 |
ACA2# |
2 | ||
| 53851L - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-42140C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42140B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42190A0 |
ACA2# WHITE,064,COLOR NO.A050 ONLY |
1 | ||
| 53851W - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-42100B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42100C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42180A0 |
ACA2# WHITE,064,COLOR NO.A050 ONLY |
1 | ||
| 53851X - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-42100B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42100C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42180A0 |
ACA2# WHITE,064,COLOR NO.A050 ONLY |
1 | ||
| 53852L - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53851-42200A0 |
ACA2# WHITE,064,COLOR NO.A050 ONLY |
1 | ||
| 53851-42160B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53851-42160C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 53858G - BOLT, WHEEL OPENING SET | ||||
| 53858-60050 |
ACA2# |
6 | ||
| 61628J - EXTENSION, QUARTER OUTER PANEL, FRONT | ||||
| 61628-42041 |
ACA2# |
2 | ||
| 61681E - EXTENSION, REAR WHEEL OPENING, NO.1 RH | ||||
| 61681-42040A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 61681-42040C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 61681-42040B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 61681-42040G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 61681-42040G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 61681-42040B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 61681-42040J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 61682D - EXTENSION, REAR WHEEL OPENING, NO.1 LH | ||||
| 61682-42040B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 61682-42040B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 61682-42040C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 61682-42040G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 61682-42040A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 61682-42040J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 61682-42040G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 67857H - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-42010B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 67857-42020 |
ACA2# COLOR NO.A050 ONLY |
1 | ||
| 67857-42010C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 67857-42020A0 |
ACA2# WHITE,064,EXCEPT COLOR NO.A050 |
1 | ||
| 67858C - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67857-42010C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 67857-42020 |
ACA2# COLOR NO.A050 ONLY |
1 | ||
| 67857-42010B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 67857-42020A0 |
ACA2# WHITE,064,EXCEPT COLOR NO.A050 |
1 | ||
| 75395D - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-42020 |
ACA2# |
4 | ||
| 75396E - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-42020 |
ACA2# |
14 | ||
| 75397C - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-42010 |
ACA2# |
4 | ||
| 75495 - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-42010 |
ACA2# |
4 | ||
| 75611D - MOULDING, FRONT FENDER, OUTSIDE FRONT RH | ||||
| 75611-42080B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 75611-42080B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 75611-42080G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 75611-42080A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 75611-42080G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 75611-42080C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 75611-42080J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 75612D - MOULDING, FRONT FENDER, OUTSIDE FRONT LH | ||||
| 75612-42080A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 75612-42080B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 75612-42080B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 75612-42080C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 75612-42080G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 75612-42080G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 75612-42080J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 75625D - PAD, FRONT FENDER OUTSIDE MOULDING, UPPRER | ||||
| 75625-42010 |
ACA2# |
2 | ||
| 75653B - MOULDING, QUARTER OUTSIDE, RH NO.3 | ||||
| 75653-42070B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 75653-42070A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 75653-42070G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 75653-42070J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 75653-42070C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 75653-42070B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 75653-42070G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 75654B - MOULDING, QUARTER, OUTSIDE NO.4 | ||||
| 75654-42070B0 |
ACA2# SILVER ME.,040 ,1D4 ,4R4 |
1 | ||
| 75654-42070G2 |
ACA2# LT.GREEN ME.,6T6 |
1 | ||
| 75654-42070B1 |
ACA23..CND GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6 |
1 | ||
| 75654-42070G1 |
ACA23..CND *104,DARK GREEN MC.,6R4 |
1 | ||
| 75654-42070A1 |
ACA2# WHITE PEARL CS.,064 |
1 | ||
| 75654-42070C0 |
ACA2# *104,BLACK,202 |
1 | ||
| 75654-42070J0 |
ACA2# *104,BLUE MC.,8M6 |
1 | ||
| 75687A - PROTECTOR, QUARTER MOULDING, LOWER REAR RH | ||||
| 75687-42010C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 75687-42011C0 |
ACA23..CND BLACK,202 ,6R4 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 75687-42011B0 |
ACA23..CND GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 75687-42020A0 |
ACA2# WHITE,064,COLOR NO.A050 ONLY |
1 | ||
| 75687-42010B0 |
ACA23..CND GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050 |
1 | ||
| 75688A - PROTECTOR, QUARTER MOULDING, LOWER REAR LH | ||||
| 75688-42030A0 |
ACA2# WHITE,064,WHITE |
1 | ||
| 75688-42020B0 |
ACA23..CND GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK |
1 | ||
| 75688-42021B0 |
ACA23..CND GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK |
1 | ||
| 75688-42021C0 |
ACA23..CND BLACK,202 ,6R4 ,8M6,BLACK |
1 | ||
| 75688-42020C0 |
ACA23..CND BLACK,202 ,3Q3 ,6R4 ,8M6,BLACK |
1 | ||
| 75869D - RETAINER, QUARTER OPENING, LH | ||||
| 75869-42021 |
ACA2# |
1 | ||
| 75879C - RETAINER, QUARTER OPENING, RH | ||||
| 75879-42021 |
ACA2# |
1 | ||
| 75993F - STRIPE, QUARTER, FRONT RH | ||||
| 75991-42040 |
ACA2# |
1 | ||
| 75994G - STRIPE, QUARTER, FRONT LH | ||||
| 75992-42030 |
ACA2# |
1 | ||
| Common parts | ||||
| 90159-45009 | ||||
| 90159-50360 | ||||
| 90179-06206 | ||||
| 90189-05170 | ||||
| 90189-05177 | ||||
| 90269-04047 | ||||
| 93560-A5010 | ||||
| Linked diagrams | ||||
| 5253 | ||||
| 5353 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
