ACA23L-AWPNKA (2003)

Toyota Rav4

Production Jul 2003 - Nov 2005
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )

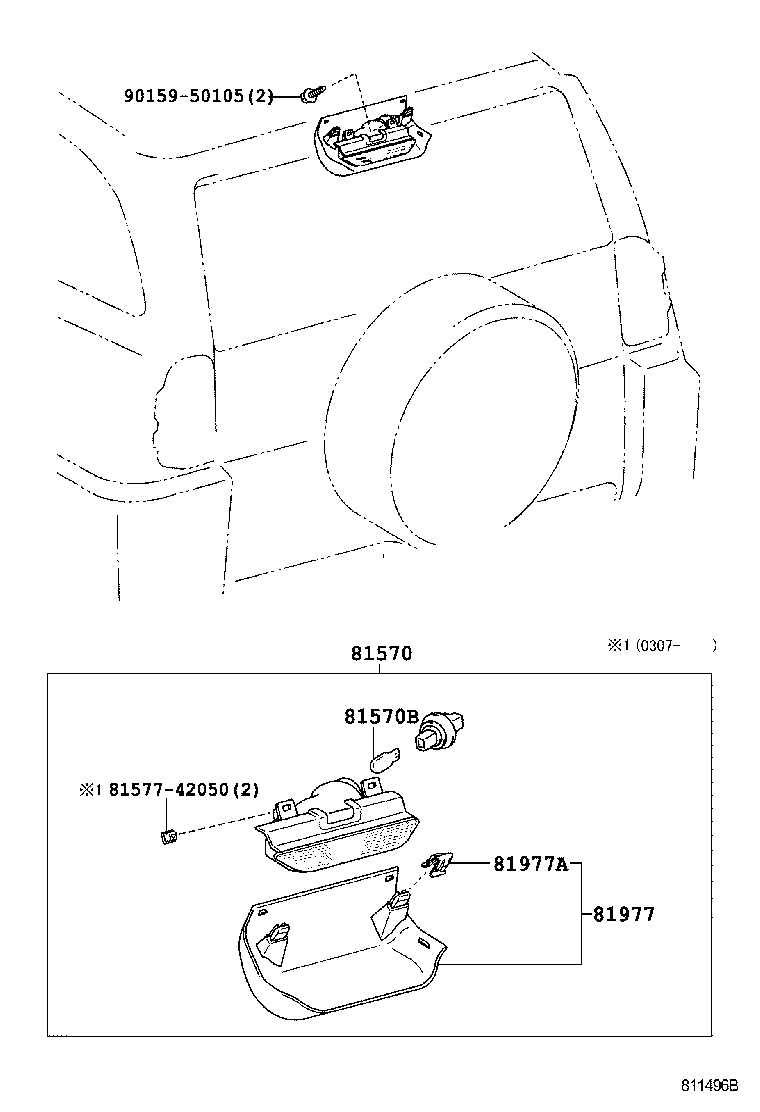

Click highlighted areas on diagram

diagram 81570 81570B 8157742050 81977 81977A 9015950105
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-49015

ACA2#

 1
81570-49015B0

ACA2#

GRAY,TRIM1#

 1
81570-49015E0

ACA2#

FAWN,TRIM4#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

ACA2#

12V 21W

 1
90981-13043

ACA2#

12V 21W

 1
81977 - COVER, CENTER STOP LAMP
81977-42030E0

ACA2#

FAWN,TRIM4#

 1
81977-42030E0

ACA2#

FAWN,TRIM4#

 1
81977-42030B0

ACA2#

BLUE GRAY,TRIM1#

 1
81977-42030B1

ACA2#

NEW GRAY,TRIM1#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90468-05060

ACA2#

 2
90468-05060

ACA2#

 2
Common parts
81577-42050
90159-50105

(0008- )

Click highlighted areas on diagram

diagram 81570 81570B 8157742050 81977 81977A 9015950105
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-49015

ACA2#

 1
81570-49015B0

ACA2#

GRAY,TRIM1#

 1
81570-49015E0

ACA2#

FAWN,TRIM4#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

ACA2#

12V 21W

 1
90981-13043

ACA2#

12V 21W

 1
81977 - COVER, CENTER STOP LAMP
81977-42030E0

ACA2#

FAWN,TRIM4#

 1
81977-42030E0

ACA2#

FAWN,TRIM4#

 1
81977-42030B0

ACA2#

BLUE GRAY,TRIM1#

 1
81977-42030B1

ACA2#

NEW GRAY,TRIM1#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90468-05060

ACA2#

 2
90468-05060

ACA2#

 2
Common parts
81577-42050
90159-50105
