ACA23L-AWPNKA (2003)

Toyota Rav4

Production Jul 2003 - Nov 2005
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0005- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

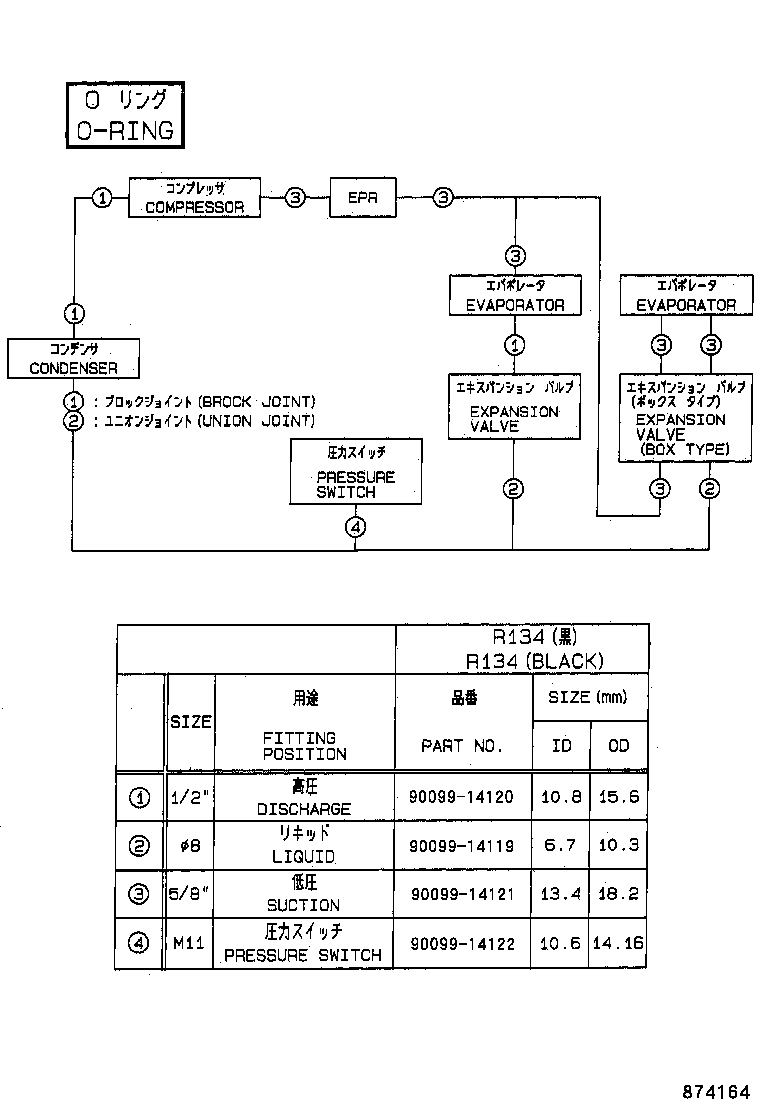

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0307- )

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87106N 87107A 87114B 87130D 87138C 87139C 8715 8715 87174G 88539 88539C 88897M 88899M 9011906051 9015960213 9017906314 9095901538
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42050

ACA2#..USA

COLD SPEC & W(AIR CONDITIONER)

 1
87050-42080

ACA2#..USA

COLD SPEC

 1
87050-42090

ACA2#..USA

 1
87050-42080

ACA2#..USA

COLD SPEC

 1
87050-42090

ACA2#..USA

 1
87050-42230

ACA2#..USA

COLD SPEC & W(AIR CONDITIONER)

 1
87050-42060

ACA2#..USA

W(AIR CONDITIONER)

 1
87050-42240

ACA2#..USA

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42040

ACA2#

 1
87103-42060

ACA2#

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42050

ACA2#

 1
87106-42050

ACA2#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42130

ACA2#

 1
87107-42130

ACA2#

 1
87114B - COVER, HEATER
87114-42060

ACA2#

 1
87114-42060

ACA2#

 1
87130D - BLOWER ASSY
87130-42150

ACA2#

 1
87130-42100

ACA2#

 1
87138C - RESISTOR, BLOWER
87138-42030

ACA2#

 1
87138-42030

ACA2#

 1
87139C - FILTER, CLEAN AIR
88568-52010

ACA2#

 1
88568-52010

ACA2#

 1
87174G - GUIDE, AIR HEATER
87174-20020

ACA2#

 1
87174-20020

ACA2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42040

ACA2#

 1
88539-42040

ACA2#

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-42030

ACA2#

 1
88539-42030

ACA2#

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#

 1
90480-01405

ACA2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#

 1
88899-42090

ACA2#

 1
Common parts
90119-06051
90159-60213
90179-06314
90959-01538
Linked diagrams
8715

ILLUST NO. 1 OF 2(0307- )

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106N 87107A 87114B 87130D 87138C 87139C 8715 8715 88501 88515 88539 88539C 88625 88650E 88710A 88897K 88897M 88899M 9009904497 9011906051 9015960213 9017906314 9095901538 9356855014
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42050

ACA2#..USA

COLD SPEC & W(AIR CONDITIONER)

 1
87050-42080

ACA2#..USA

COLD SPEC

 1
87050-42090

ACA2#..USA

 1
87050-42080

ACA2#..USA

COLD SPEC

 1
87050-42090

ACA2#..USA

 1
87050-42230

ACA2#..USA

COLD SPEC & W(AIR CONDITIONER)

 1
87050-42060

ACA2#..USA

W(AIR CONDITIONER)

 1
87050-42240

ACA2#..USA

W(AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42040

ACA2#

 1
87103-42060

ACA2#

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42050

ACA2#

 1
87106-42050

ACA2#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42130

ACA2#

 1
87107-42130

ACA2#

 1
87114B - COVER, HEATER
87114-42060

ACA2#

 1
87114-42060

ACA2#

 1
87130D - BLOWER ASSY
87130-42150

ACA2#

 1
87130-42100

ACA2#

 1
87138C - RESISTOR, BLOWER
87138-42030

ACA2#

 1
87138-42030

ACA2#

 1
87139C - FILTER, CLEAN AIR
88568-52010

ACA2#

 1
88568-52010

ACA2#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-42080

ACA2#

MAKER OPTION

 1
88501-47020

ACA2#

 1
88515 - VALVE, COOLER EXPANSION
88515-42080

ACA2#

MAKER OPTION

 1
88515-42070

ACA2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42040

ACA2#

 1
88539-42040

ACA2#

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-42030

ACA2#

 1
88539-42030

ACA2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-42080

ACA2#

 1
88625-42080

ACA2#

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-42130

ACA2#

 1
88650-42130

ACA2#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-42050

ACA2#

 1
88710-42050

ACA2#

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-12240

ACA2#

 1
88897-12240

ACA2#

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#

 1
90480-01405

ACA2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#

 1
88899-42090

ACA2#

 1
Common parts
90099-04497
90119-06051
90159-60213
90179-06314
90959-01538
93568-55014
Linked diagrams
8715
