ACA23L-AWPNKA (2003)

Toyota Rav4

Production Jul 2003 - Nov 2005
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

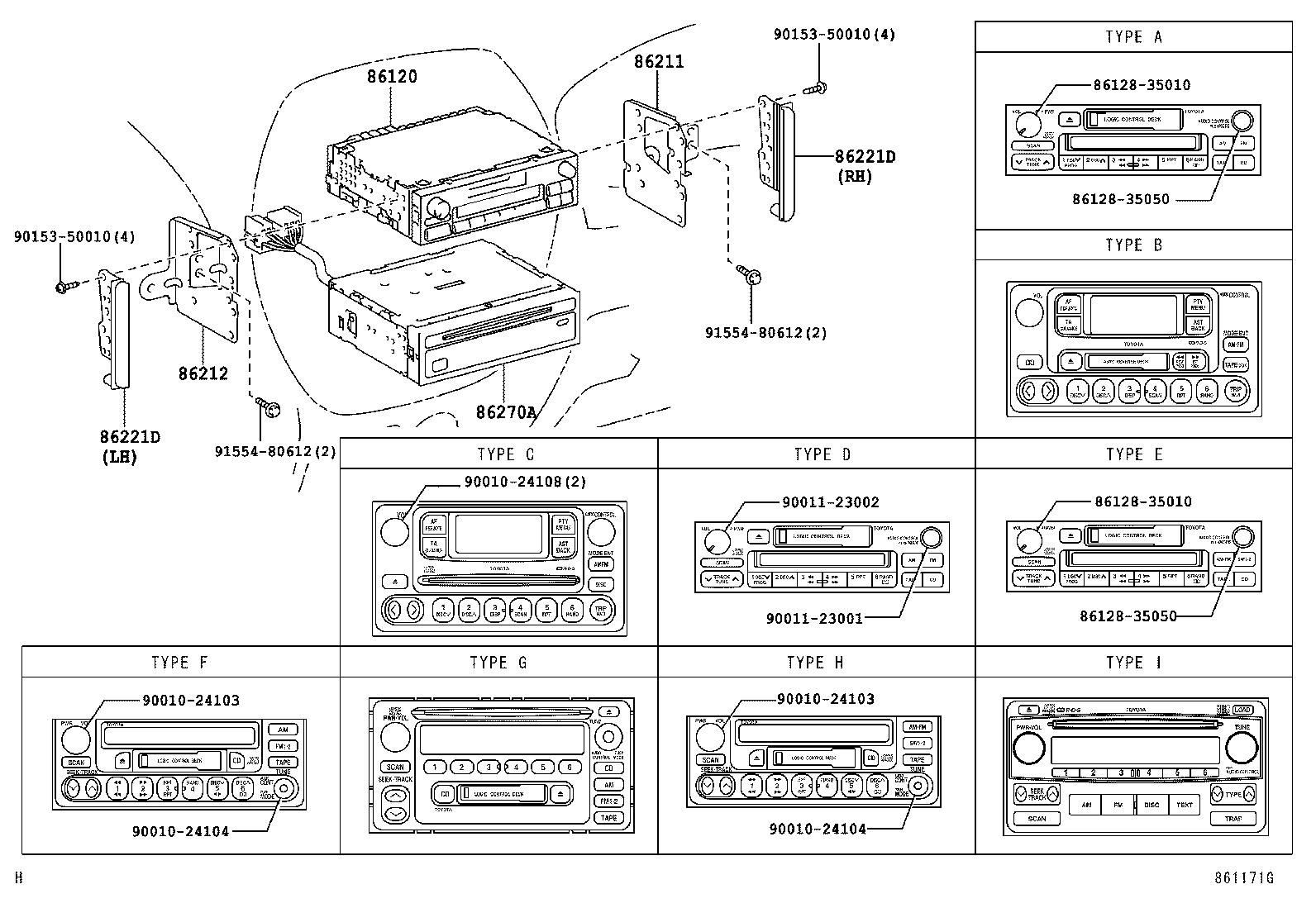

ILLUST NO. 1 OF 2(0005- )

Click highlighted areas on diagram

diagram 86120 8612835010 8612835010 8612835050 8612835050 86211 86212 86221D 86221D 86270A 9001024103 9001024103 9001024104 9001024104 9001024108 9001123001 9001123002 9015350010 9015350010 9155480612 9155480612
Part # Description Qty Price
Common parts
86128-35010
86128-35050
90010-24103
90010-24104
90010-24108
90011-23001
90011-23002
90153-50010
91554-80612

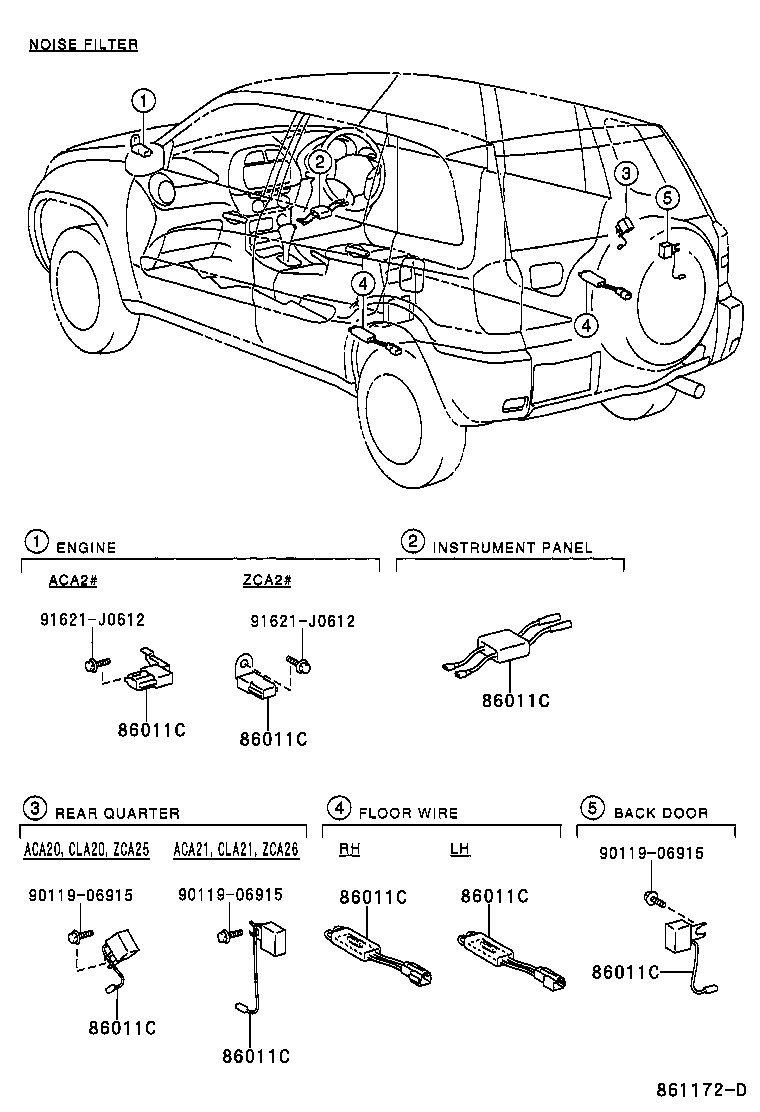

ILLUST NO. 2 OF 2(0005- )

Click highlighted areas on diagram

NOISE FILTER

diagram 86011C 86011C 86011C 86011C 86011C 86011C 86011C 86011C 9011906915 9011906915 9011906915 91621J0612 91621J0612
Part # Description Qty Price
Common parts
90119-06915
91621-J0612

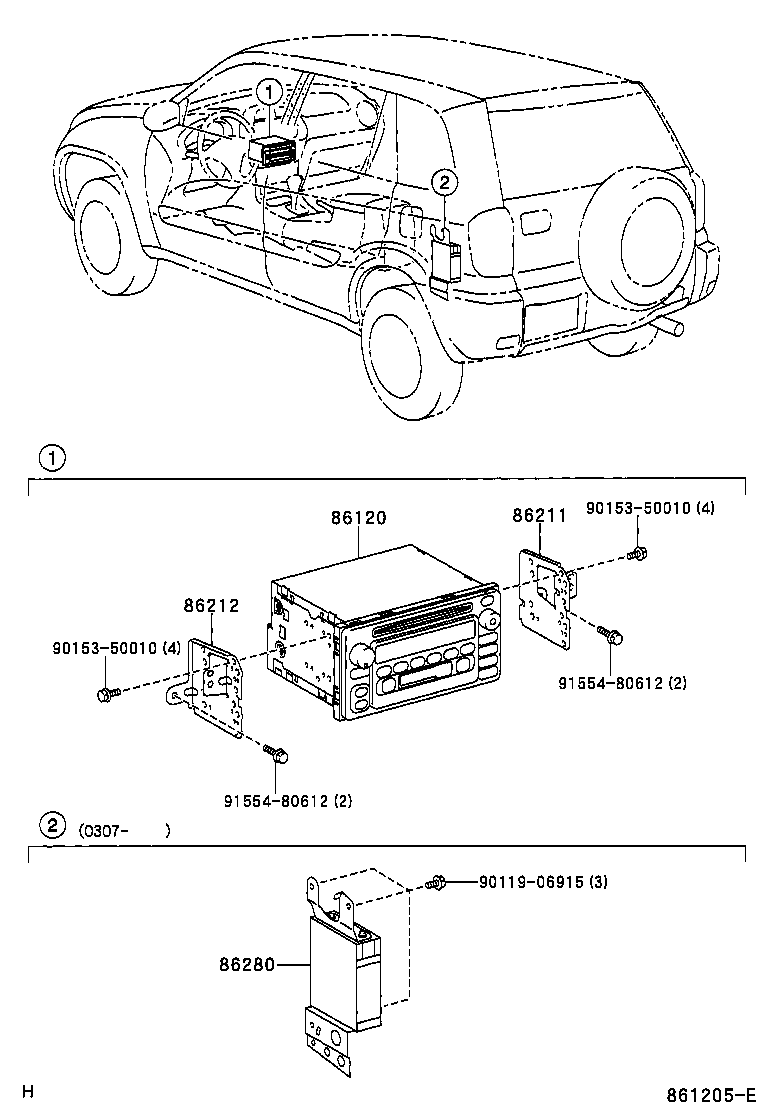

ILLUST NO. 1 OF 3(0008- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86280 9011906915 9015350010 9015350010 9155480612 9155480612
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-42040

ACA2#

MATSUSHITA, ID=56818,TYPE A:REFER TO ILLUSTRATION

 1
86120-42030

ACA2#

MATSUSHITA, ID=56413,TYPE B:REFER TO ILLUSTRATION

 1
86120-35262

ACA2#

FUJITSU TEN,ID=16847,TYPE C:REFER TO ILLUSTRATION & W(JBL PREMIUM SOUND SYSTEM)

 1
86120-42090

ACA2#..USA

MATSUSHITA,ID=A51805,TYPE D:REFER TO ILLUSTRATION

 1
86120-42120

ACA2#

MATSUSHITA,ID=A51821

 1
86120-42110

ACA2#..USA

MATSUSHITA,ID=A56837,TYPE E:REFER TO ILLUSTRATION

 1
86120-2B761

ACA2#..USA

FUJITSU TEN,ID=16844,TYPE C:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-42030

ACA2#

 1
86211-42030

ACA2#

 1
86212 - BRACKET, RADIO, NO.2
86212-42030

ACA2#

 1
86212-42030

ACA2#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W110

ACA2#

 1
Common parts
90119-06915
90153-50010
91554-80612

ILLUST NO. 3 OF 3(0008- )

Click highlighted areas on diagram

CONDENSER

diagram 86011C 91621J0612
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05344

ACA2#

 1
90980-05344

ACA2#

 1
Common parts
91621-J0612

ILLUST NO. 2 OF 3(0008- )

Click highlighted areas on diagram

diagram 9001024103 9001024104 9001024105 9001024106
Part # Description Qty Price
Common parts
90010-24103
90010-24104
90010-24105
90010-24106
