ACA23L-AWPNKA (2003)
Toyota Rav4
Production
Jul 2003
-
Nov 2005
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

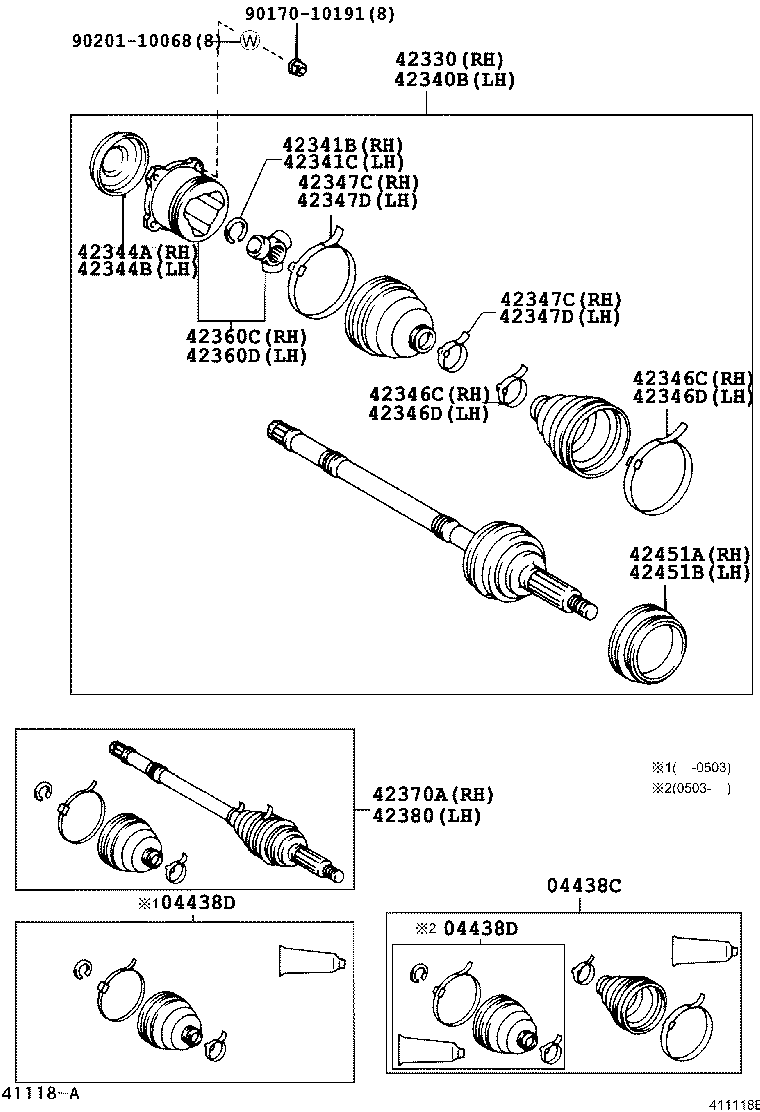

ILLUST NO. 1 OF 2(0005- )ACA2#,CLA2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04429-42020 |
ACA23 |
2 | ||
| 04438-42020 |
ACA23 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04438-42010 |
ACA23 |
2 | ||
| 04439-42020 |
ACA23 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04438-42010 |
ACA23 |
2 | ||
| 04439-42020 |
ACA23 |
2 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-42030 |
ACA23 W(ABS) |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-12061 |
ACA23 W(ABS) |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-22005 |
ACA23 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-22005 |
ACA23 |
1 | ||
| 42344A - COVER, REAR AXLE INBOARD JOINT END, RH | ||||
| 42343-14010 |
ACA23 |
1 | ||
| 42344B - COVER, REAR AXLE INBOARD JOINT END, LH | ||||
| 42343-14010 |
ACA23 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42350-42010 |
ACA23 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42350-42010 |
ACA23 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49075 |
ACA23 W(ABS) |
1 | ||
| 42370-49085 |
ACA23 |
1 | ||
| 42370-49075 |
ACA23 W(ABS) |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49095 |
ACA23 W(ABS) |
1 | ||
| 42370-49095 |
ACA23 W(ABS) |
1 | ||
| 42370-49105 |
ACA23 |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 42451-32010 |
ACA23..USA |
1 | ||
| 43247-12010 |
ACA23 W(ABS) |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
ACA23 W(ABS) |
1 | ||
| 42451-32010 |
ACA23..USA |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
ILLUST NO. 2 OF 2(0005- )ACA2#,CLA2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90178-22001 |
ACA23 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ACA2# |
5 | ||
| 90942-02049 |
ACA2# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90178-22001 |
ACA23 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ACA2# |
5 | ||
| 90942-02049 |
ACA2# |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-42011 |
ACA2# |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01288 |
ACA2# 20G |
1 | ||
| 90937-01287 |
ACA2# 10G |
1 | ||
| 90937-01289 |
ACA2# 30G |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-42020 |
ACA23 |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42405-42010 |
ACA23 W(ABS) |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-42040 |
ACA2# |
2 | ||
| 42431-42041 |
ACA2# |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-42020 |
ACA23 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42406-42010 |
ACA23 W(ABS) |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
ACA2# |
2 | ||
| 47491-14010 |
ACA2# |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
ACA2# |
2 | ||
| 47491-14010 |
ACA2# |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 42428-42010 |
ACA23 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 42428-42010 |
ACA23 |
1 | ||
| Common parts | ||||
| 90126-10031 | ||||
| 90178-10011 | ||||
| 90252-03014 | ||||
ILLUST NO. 1 OF 2(0008- )ACA21,23
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438C - BOOT KIT, REAR DRIVE SHAFT | ||||
| 04429-42020 |
ACA23 |
2 | ||
| 04438-42020 |
ACA23 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04438-42010 |
ACA23 |
2 | ||
| 04439-42020 |
ACA23 |
2 | ||
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04438-42010 |
ACA23 |
2 | ||
| 04439-42020 |
ACA23 |
2 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-42030 |
ACA23 W(ABS) |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-12061 |
ACA23 W(ABS) |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-22005 |
ACA23 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-22005 |
ACA23 |
1 | ||
| 42344A - COVER, REAR AXLE INBOARD JOINT END, RH | ||||
| 42343-14010 |
ACA23 |
1 | ||
| 42344B - COVER, REAR AXLE INBOARD JOINT END, LH | ||||
| 42343-14010 |
ACA23 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ACA23 ID=32.7 |
1 | ||
| 90949-01080 |
ACA23 ID=88.2 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
ACA23 ID=35.75 |
1 | ||
| 42345-14020 |
ACA23 ID=93.97 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42350-42010 |
ACA23 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42350-42010 |
ACA23 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49075 |
ACA23 W(ABS) |
1 | ||
| 42370-49085 |
ACA23 |
1 | ||
| 42370-49075 |
ACA23 W(ABS) |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49095 |
ACA23 W(ABS) |
1 | ||
| 42370-49095 |
ACA23 W(ABS) |
1 | ||
| 42370-49105 |
ACA23 |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 42451-32010 |
ACA23..USA |
1 | ||
| 43247-12010 |
ACA23 W(ABS) |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
ACA23 W(ABS) |
1 | ||
| 42451-32010 |
ACA23..USA |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
ILLUST NO. 2 OF 2(0008- )ACA21,23
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90178-22001 |
ACA23 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ACA2# |
5 | ||
| 90942-02049 |
ACA2# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90178-22001 |
ACA23 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ACA2# |
5 | ||
| 90942-02049 |
ACA2# |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-42011 |
ACA2# |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01288 |
ACA2# 20G |
1 | ||
| 90937-01287 |
ACA2# 10G |
1 | ||
| 90937-01289 |
ACA2# 30G |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-42020 |
ACA23 |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42405-42010 |
ACA23 W(ABS) |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-42040 |
ACA2# |
2 | ||
| 42431-42041 |
ACA2# |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-42020 |
ACA23 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42406-42010 |
ACA23 W(ABS) |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
ACA2# |
2 | ||
| 47491-14010 |
ACA2# |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
ACA2# |
2 | ||
| 47491-14010 |
ACA2# |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 42428-42010 |
ACA23 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 42428-42010 |
ACA23 |
1 | ||
| Common parts | ||||
| 90126-10031 | ||||
| 90178-10011 | ||||
| 90252-03014 | ||||
