ACA23L-AWPNKA (2003)
Toyota Rav4
ILLUST NO. 2 OF 2(0005- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08760 | ||||
| 90179-08061 | ||||
| 90468-12023 | ||||
| 90468-14016 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 3514 | ||||
ILLUST NO. 1 OF 2(0008- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-42020 |
ACA2#..ATM |
1 | ||
| 33521-42020 |
ACA2#..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-42060 |
ACA2#..ATM |
1 | ||
| 33055-42060 |
ACA2#..ATM |
1 | ||
| 33055-42061 |
ACA2#..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
ACA2#..ATM |
2 | ||
| 90159-40238 |
ACA2#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-42040 |
ACA2#..ATM |
1 | ||
| 33542-42050 |
ACA2#..ATM LEATHER |
1 | ||
| 33542-42050 |
ACA2#..ATM LEATHER |
1 | ||
| 33542-42040 |
ACA2#..ATM |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-42020 |
ACA2#..ATM |
1 | ||
| 33511-42020 |
ACA2#..ATM |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-42010 |
ACA2#..ATM |
1 | ||
| 33523-42010 |
ACA2#..ATM |
1 | ||
| 33525 - SUPPORT, SHIFT LEVER | ||||
| 33525-42010 |
ACA2#..ATM |
1 | ||
| 33525-42010 |
ACA2#..ATM |
1 | ||
| 33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33535-42010 |
ACA2#..ATM |
1 | ||
| 33535-42010 |
ACA2#..ATM |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
ACA2#..ATM |
4 | ||
| 33544-33010 |
ACA2#..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ACA2#..ATM 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
ACA2#..ATM 12V 1.2W W/O SOCKET |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-42020 |
ACA2#..ATM |
1 | ||
| 33554-42020 |
ACA2#..ATM |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-42010 |
ACA2#..ATM |
1 | ||
| 33560-42012 |
ACA2#..ATM |
1 | ||
| 33560-42011 |
ACA2#..ATM |
1 | ||
| 33560-42010 |
ACA2#..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-42030 |
ACA2#..ATM |
1 | ||
| 33563-42030 |
ACA2#..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06089 |
ACA2#..ATM |
1 | ||
| 90501-06089 |
ACA2#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-42030 |
ACA2#..ATM |
1 | ||
| 33623-42030 |
ACA2#..ATM |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07144 |
ACA2#..ATM |
1 | ||
| 90501-07144 |
ACA2#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-42010 |
ACA2#..ATM |
1 | ||
| 33631-42010 |
ACA2#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07139 |
ACA2#..ATM |
1 | ||
| 90501-07139 |
ACA2#..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-42020 |
ACA2#..ATM |
1 | ||
| 35559-42020 |
ACA2#..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-42040 |
ACA2#..ATM |
1 | ||
| 35906-42040 |
ACA2#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-42040 |
ACA2#..ATM |
1 | ||
| 35921-42040 |
ACA2#..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-42030 |
ACA2#..ATM |
1 | ||
| 35971-42030 |
ACA2#..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-42030 |
ACA2#..ATM |
1 | ||
| 35974-42030 |
ACA2#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-42010 |
ACA2#..ATM |
1 | ||
| 35975-42010 |
ACA2#..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-12080C0 |
ACA2#..ATM BLACK,TRIM1#,4# |
1 | ||
| 35976-12080C0 |
ACA2#..ATM BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||

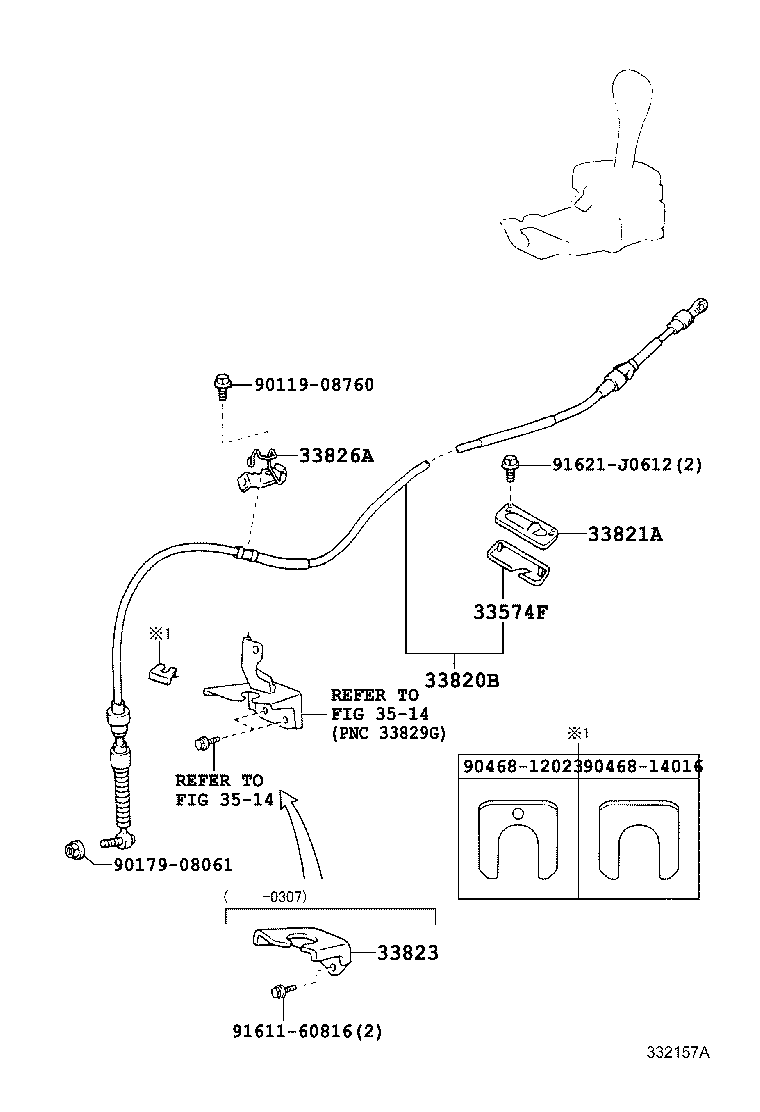

ILLUST NO. 2 OF 2(0008- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-42030 |
ACA2#..ATM |
1 | ||
| 33574-42030 |
ACA2#..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-42090 |
ACA2#..ATM |
1 | ||
| 33820-42090 |
ACA2#..ATM |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33577-42030 |
ACA2#..ATM |
1 | ||
| 33577-42030 |
ACA2#..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-28240 |
ACA2#..ATM |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-42030 |
ACA2#..ATM |
1 | ||
| 33826-42030 |
ACA2#..ATM |
1 | ||
| Common parts | ||||
| 90119-08760 | ||||
| 90179-08061 | ||||
| 90468-12023 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 3514 | ||||
