ACA23L-AWPNKA (2003)
Toyota Rav4
Production
Jul 2003
-
Nov 2005
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )1AZFE,2AZFE

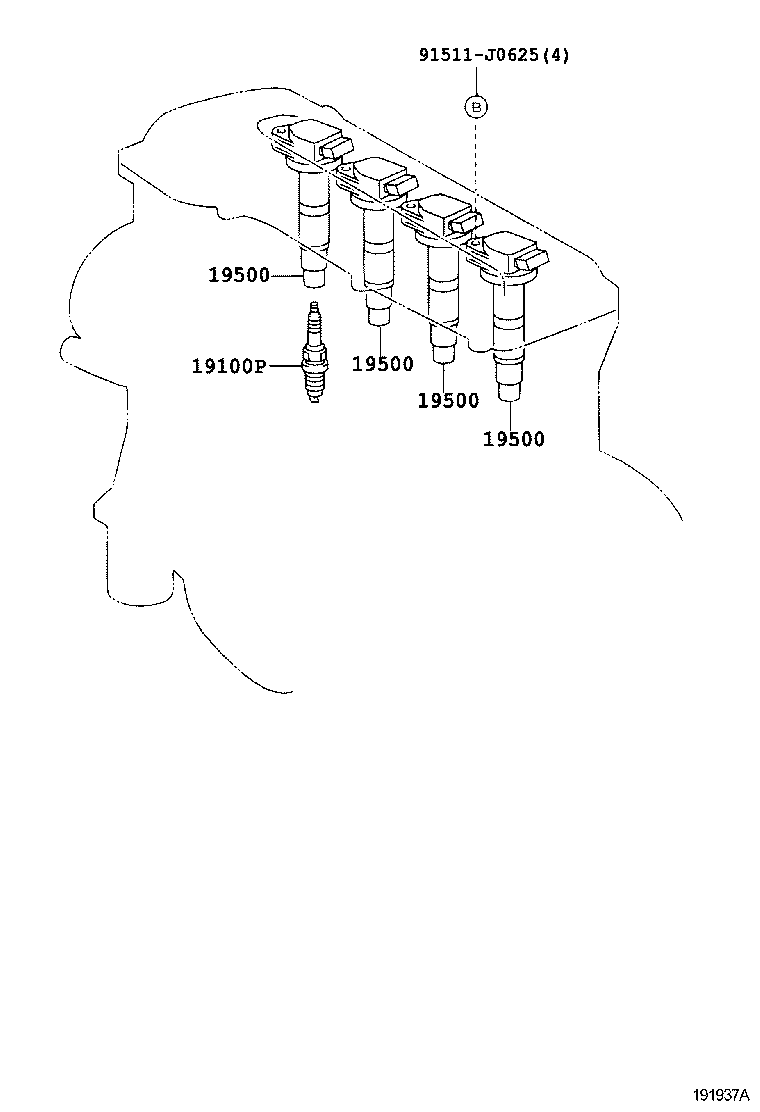

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01237 |
2AZFE..ACA2# SK20R11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| Common parts | ||||
| 91511-J0625 | ||||
(0008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01237 |
2AZFE..ACA2# SK20R11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02243 |
2AZFE..ACA2# MARK 90919-02243 |
4 | ||
| 90919-02244 |
2AZFE..ACA2# MARK 90919-02244 |
4 | ||
| Common parts | ||||
| 91511-J0625 | ||||
