ACA23L-AWPNKA (2003)
Toyota Rav4
Production
Jul 2003
-
Nov 2005
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

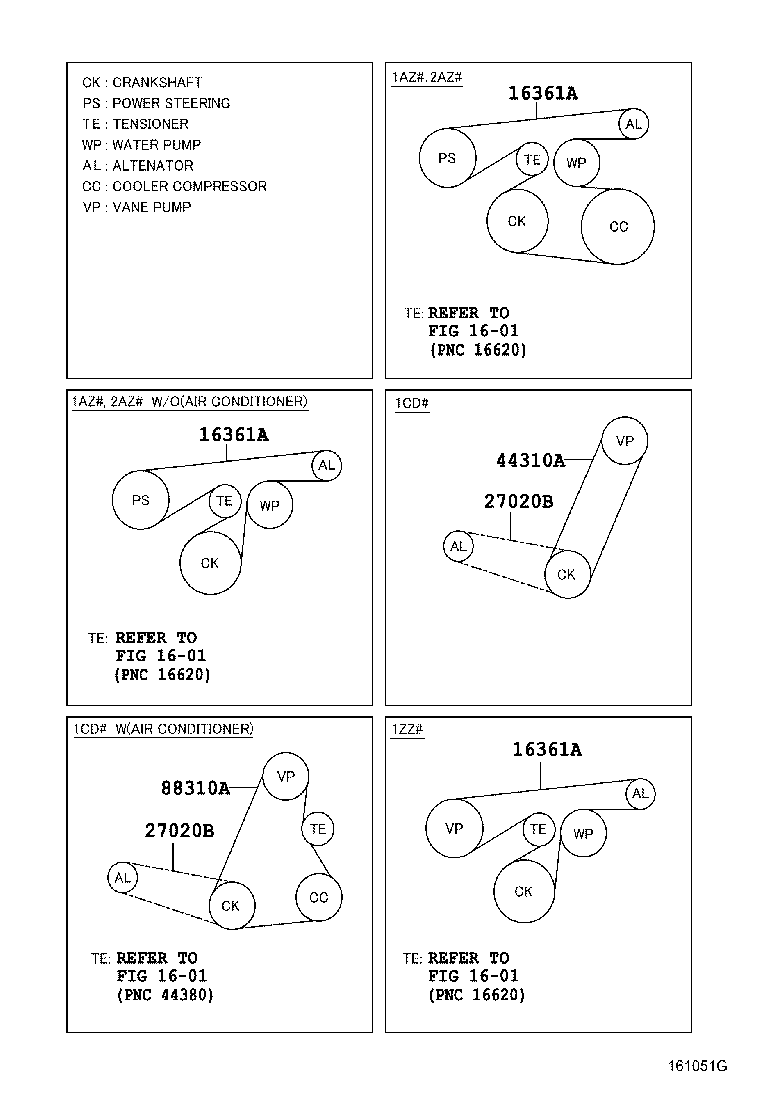

ILLUST NO. 1 OF 2(0005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1601 | ||||
(0008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02503 |
2AZFE..ACA2#..ATM W(AIR CONDITIONER ),MARK 90916-02503 |
1 | ||
| 90916-02494 |
2AZFE..ACA2#..ATM MARK 90916-02494 |
1 | ||
| 90916-02597 |
2AZFE..ACA2#..ATM MARK 90916-02597 |
1 | ||
| 90916-02599 |
2AZFE..ACA2#..ATM W(AIR CONDITIONER ),MARK 90916-02599 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02503 |
2AZFE..ACA2#..ATM W(AIR CONDITIONER ),MARK 90916-02503 |
1 | ||
| 90916-02494 |
2AZFE..ACA2#..ATM MARK 90916-02494 |
1 | ||
| 90916-02597 |
2AZFE..ACA2#..ATM MARK 90916-02597 |
1 | ||
| 90916-02599 |
2AZFE..ACA2#..ATM W(AIR CONDITIONER ),MARK 90916-02599 |
1 | ||
| Linked diagrams | ||||
| 1601 | ||||
