ACA21R-AWPNK (2000)

Toyota Rav4

Production Aug 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

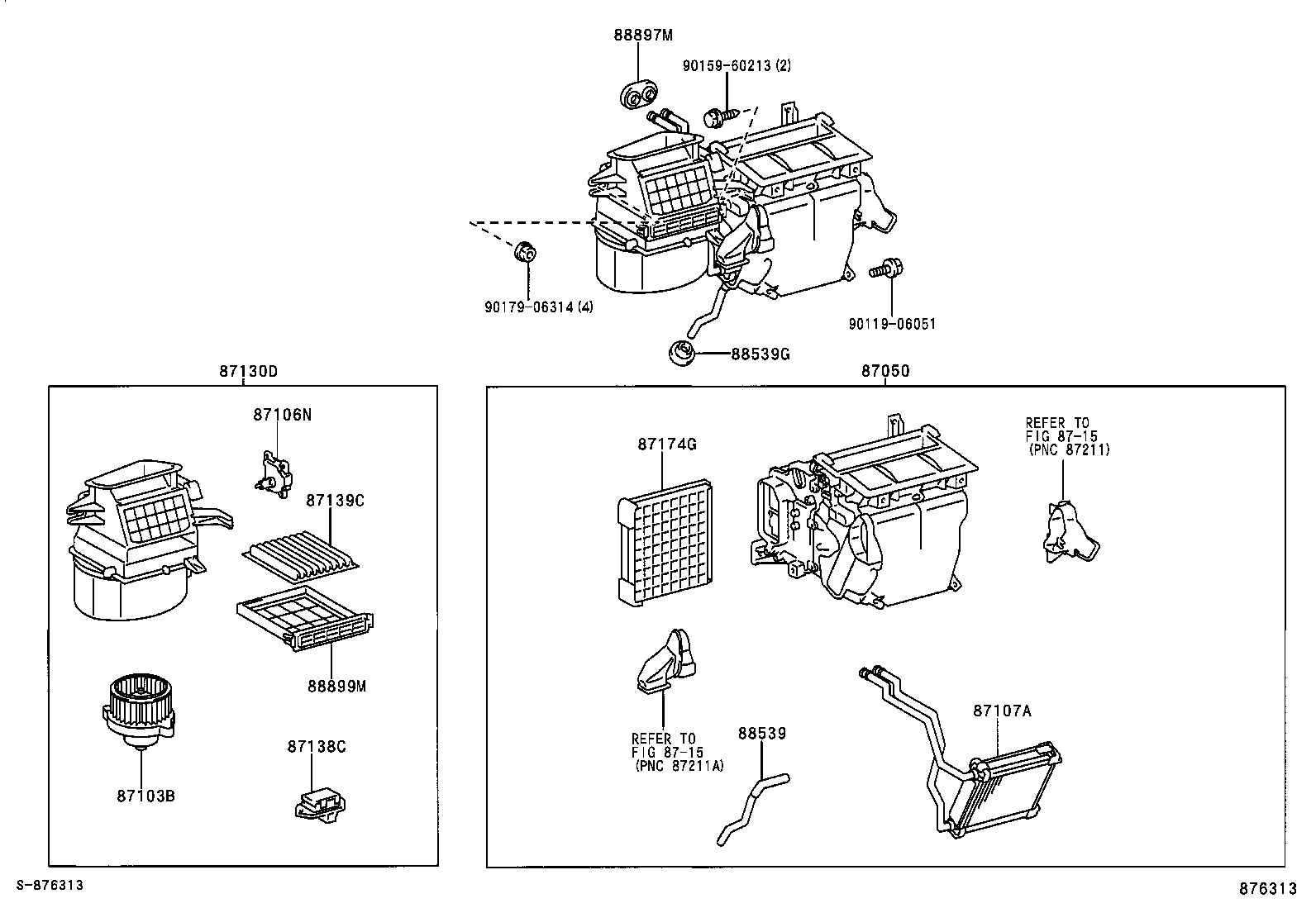

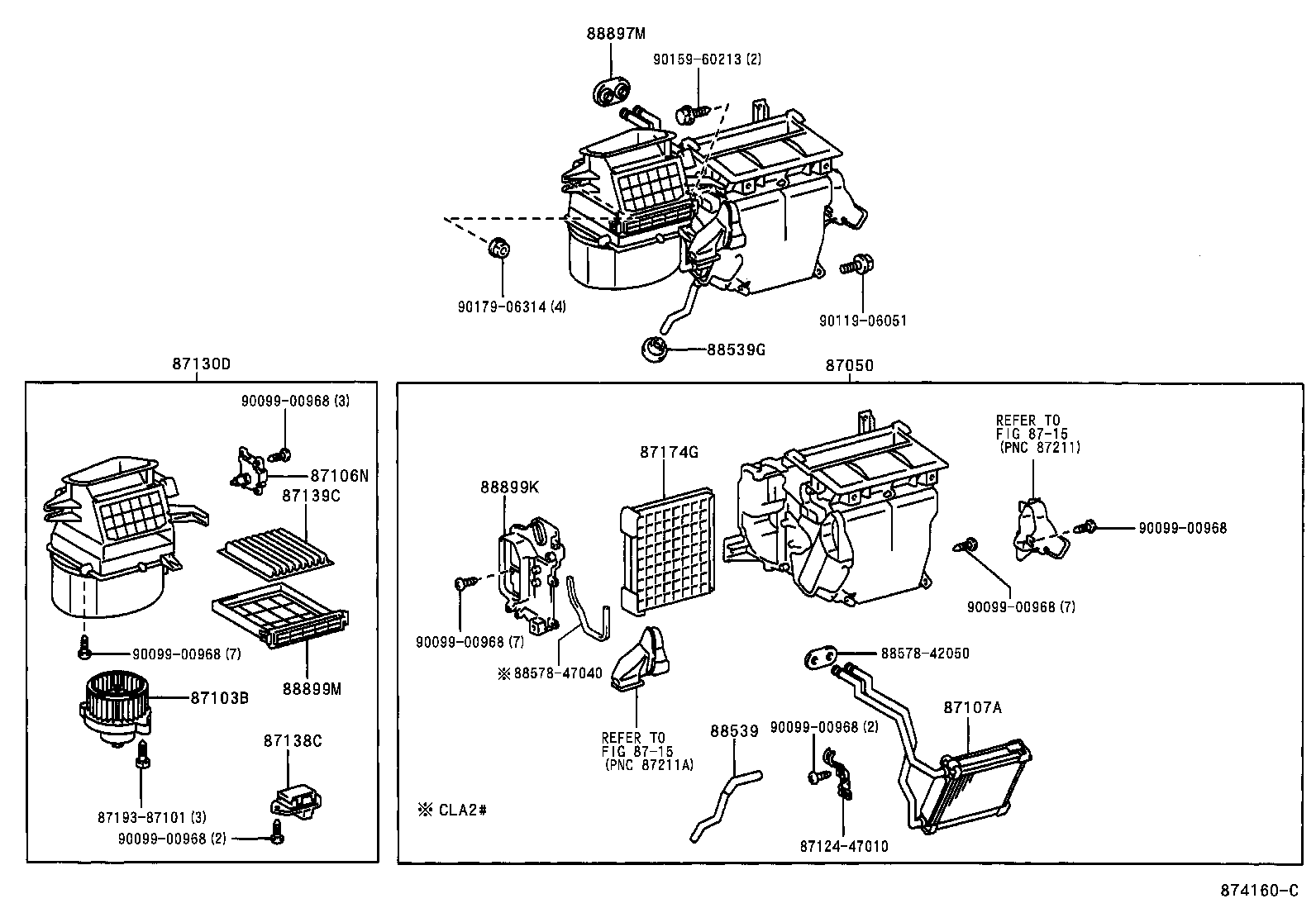

ILLUST NO. 1 OF 2(0005-0307)RHD

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87106N 87107A 8712447010 87130D 87138C 87139C 8715 8715 87174G 8719387101 88539 88539G 8857842050 8857847040 88897M 88899K 88899M 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9011906051 9015960213 9017906314
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42040

ACA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42220

ACA20,21,ZCA2#..RHD

MANUAL AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
87103-42030

ACA2#,CLA2#,ZCA2#..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87130D - BLOWER ASSY
87130-42080

ACA2#..RHD..(ARL,GEN)

 1
87130-42140

ACA21,22,23..RHD..(ARL,GEN)

 1
87138C - RESISTOR, BLOWER
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87174G - GUIDE, AIR HEATER
87174-20020

ACA2#,CLA2#,ZCA2#

 1
87174-20020

ACA2#,CLA2#,ZCA2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#,CLA2#,ZCA2#

 1
90480-01405

ACA2#,CLA2#,ZCA2#

 1
88899K - PLATE, COVER
88899-42070

ACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
88899-42100

ACA2#,CLA2#,ZCA2#..RHD

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#,CLA2#,ZCA2#

 1
Common parts
87124-47010
87193-87101
88578-42050
88578-47040
90099-00968
90119-06051
90159-60213
90179-06314
Linked diagrams
8715

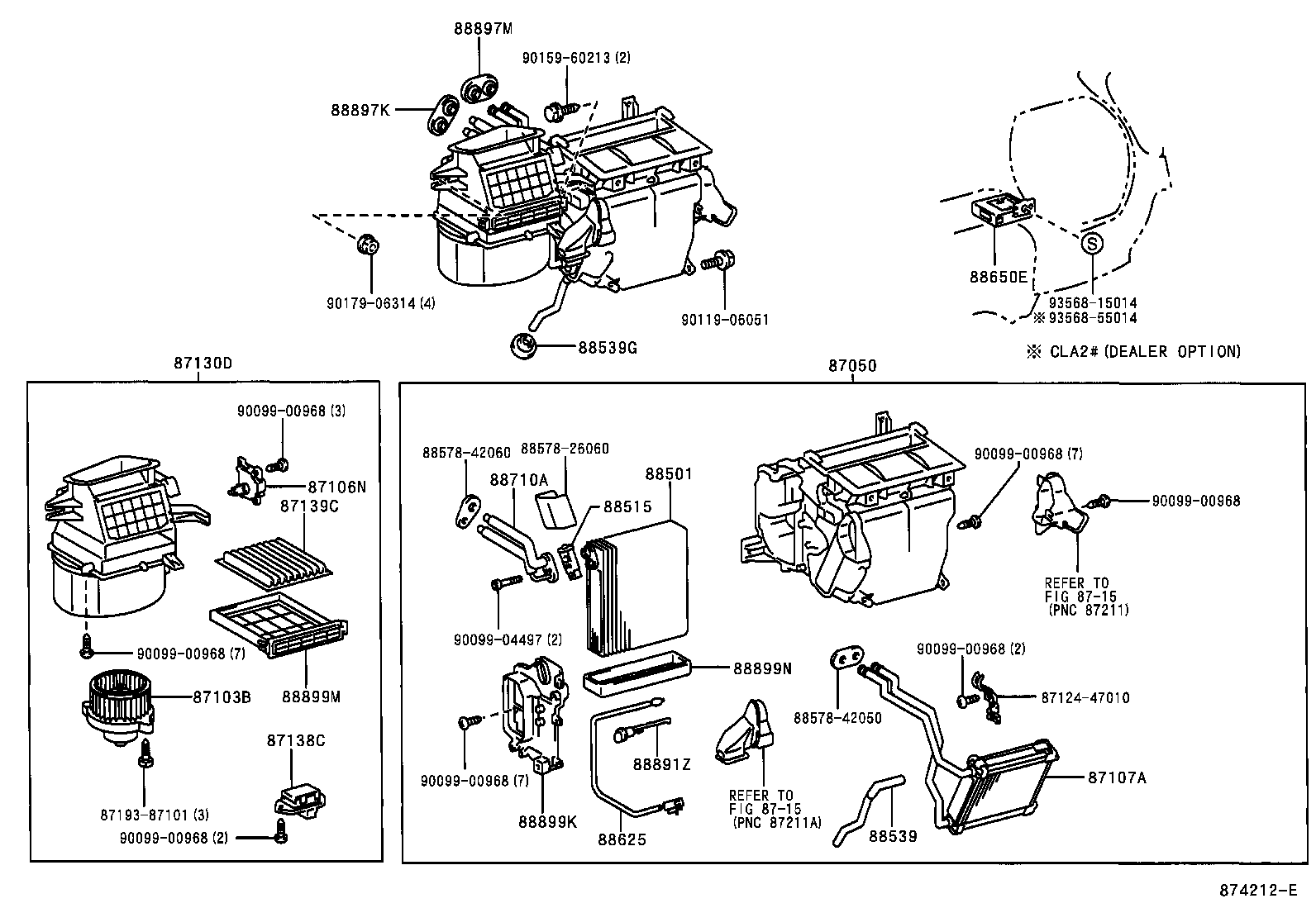

ILLUST NO. 1 OF 2(0005-0307)RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106N 87107A 8712447010 87130D 87138C 87139C 8715 8715 8719387101 88501 88515 88539 88539G 8857826060 8857842050 8857842060 88625 88650E 88710A 88891Z 88897K 88897M 88899K 88899M 88899N 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009904497 9011906051 9015960213 9017906314 9356815014 9356855014
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42040

ACA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42220

ACA20,21,ZCA2#..RHD

MANUAL AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
87103-42030

ACA2#,CLA2#,ZCA2#..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87130D - BLOWER ASSY
87130-42080

ACA2#..RHD..(ARL,GEN)

 1
87130-42140

ACA21,22,23..RHD..(ARL,GEN)

 1
87138C - RESISTOR, BLOWER
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-47010

ACA2#,ZCA2#..RHD

 1
88501-42070

ACA2#,ZCA2#..RHD..(EUR,GEN)

MAKER OPTION

 1
88501-42070

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-42070

ACA2#,CLA2#,ZCA2#

 1
88515-42080

ACA20,21,CLA2#,ZCA2#

MAKER OPTION

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-42080

ACA2#,CLA2#,ZCA2#

 1
88625-42080

ACA2#,CLA2#,ZCA2#

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-42130

ACA2#,ZCA2#

 1
88650-42130

ACA2#,ZCA2#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
88710-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-12240

ACA2#,CLA2#,ZCA2#

 1
88897-12240

ACA2#,CLA2#,ZCA2#

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#,CLA2#,ZCA2#

 1
90480-01405

ACA2#,CLA2#,ZCA2#

 1
88899K - PLATE, COVER
88899-42070

ACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
88899-42100

ACA2#,CLA2#,ZCA2#..RHD

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#,CLA2#,ZCA2#

 1
88899N - PLATE, COVER
88899-47030

ACA2#,CLA2#,ZCA2#

 1
Common parts
87124-47010
87193-87101
88578-26060
88578-42050
88578-42060
90099-00968
90099-04497
90119-06051
90159-60213
90179-06314
93568-15014
93568-55014
Linked diagrams
8715

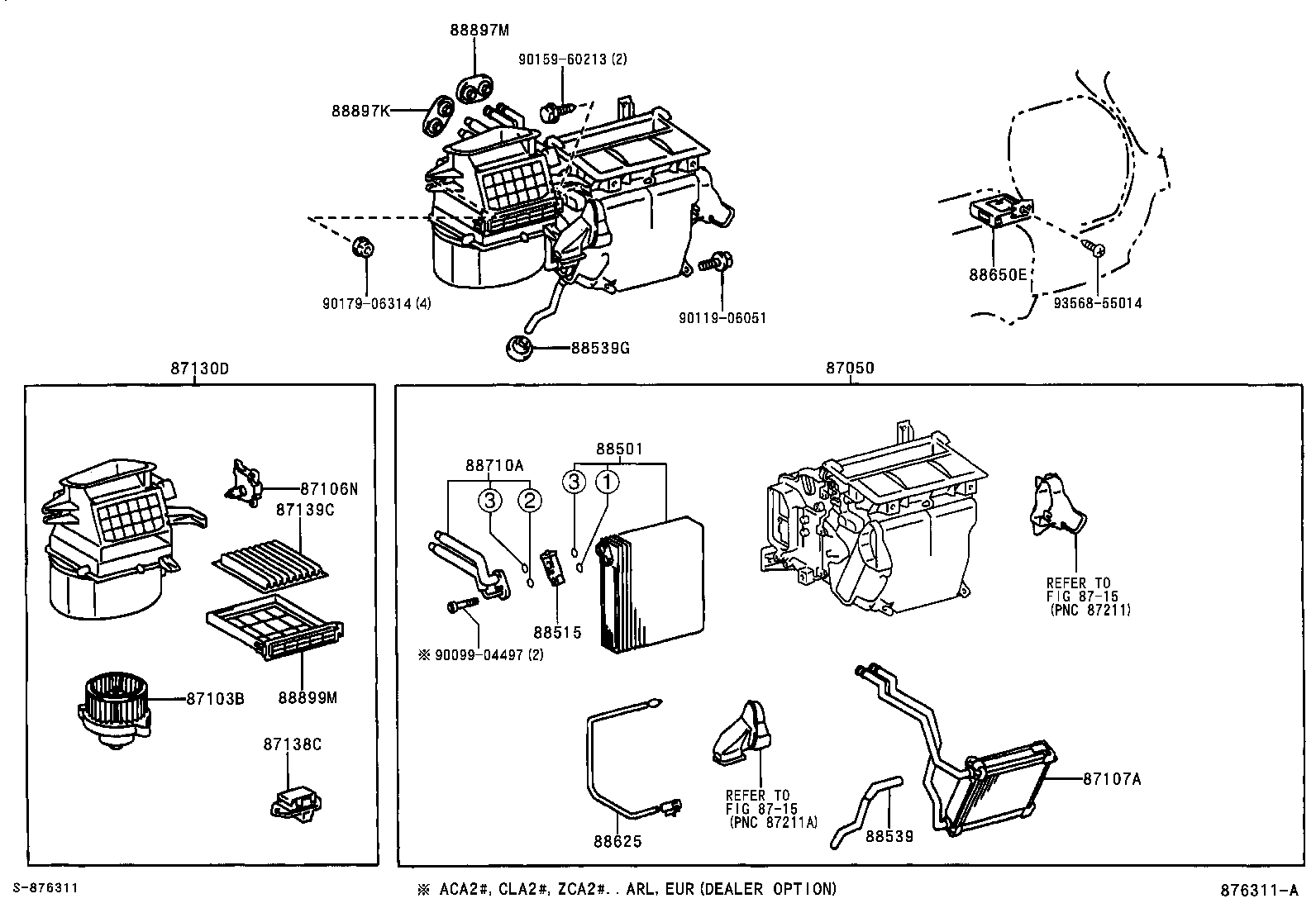

ILLUST NO. 1 OF 2(0307- )RHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106N 87107A 87130D 87138C 87139C 8715 8715 88501 88515 88539 88539G 88625 88650E 88710A 88897K 88897M 88899M 9009904497 9011906051 9015960213 9017906314 9356855014
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42040

ACA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42220

ACA20,21,ZCA2#..RHD

MANUAL AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
87103-42030

ACA2#,CLA2#,ZCA2#..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87130D - BLOWER ASSY
87130-42080

ACA2#..RHD..(ARL,GEN)

 1
87130-42140

ACA21,22,23..RHD..(ARL,GEN)

 1
87138C - RESISTOR, BLOWER
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-47010

ACA2#,ZCA2#..RHD

 1
88501-42070

ACA2#,ZCA2#..RHD..(EUR,GEN)

MAKER OPTION

 1
88501-42070

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-42070

ACA2#,CLA2#,ZCA2#

 1
88515-42080

ACA20,21,CLA2#,ZCA2#

MAKER OPTION

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-42080

ACA2#,CLA2#,ZCA2#

 1
88625-42080

ACA2#,CLA2#,ZCA2#

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-42130

ACA2#,ZCA2#

 1
88650-42130

ACA2#,ZCA2#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
88710-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-12240

ACA2#,CLA2#,ZCA2#

 1
88897-12240

ACA2#,CLA2#,ZCA2#

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#,CLA2#,ZCA2#

 1
90480-01405

ACA2#,CLA2#,ZCA2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#,CLA2#,ZCA2#

 1
Common parts
90099-04497
90119-06051
90159-60213
90179-06314
93568-55014
Linked diagrams
8715

ILLUST NO. 1 OF 2(0307- )RHD

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87106N 87107A 87130D 87138C 87139C 8715 8715 87174G 88539 88539G 88897M 88899M 9011906051 9015960213 9017906314
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42040

ACA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42220

ACA20,21,ZCA2#..RHD

MANUAL AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
87103-42030

ACA2#,CLA2#,ZCA2#..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87130D - BLOWER ASSY
87130-42080

ACA2#..RHD..(ARL,GEN)

 1
87130-42140

ACA21,22,23..RHD..(ARL,GEN)

 1
87138C - RESISTOR, BLOWER
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87174G - GUIDE, AIR HEATER
87174-20020

ACA2#,CLA2#,ZCA2#

 1
87174-20020

ACA2#,CLA2#,ZCA2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#,CLA2#,ZCA2#

 1
90480-01405

ACA2#,CLA2#,ZCA2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#,CLA2#,ZCA2#

 1
Common parts
90119-06051
90159-60213
90179-06314
Linked diagrams
8715

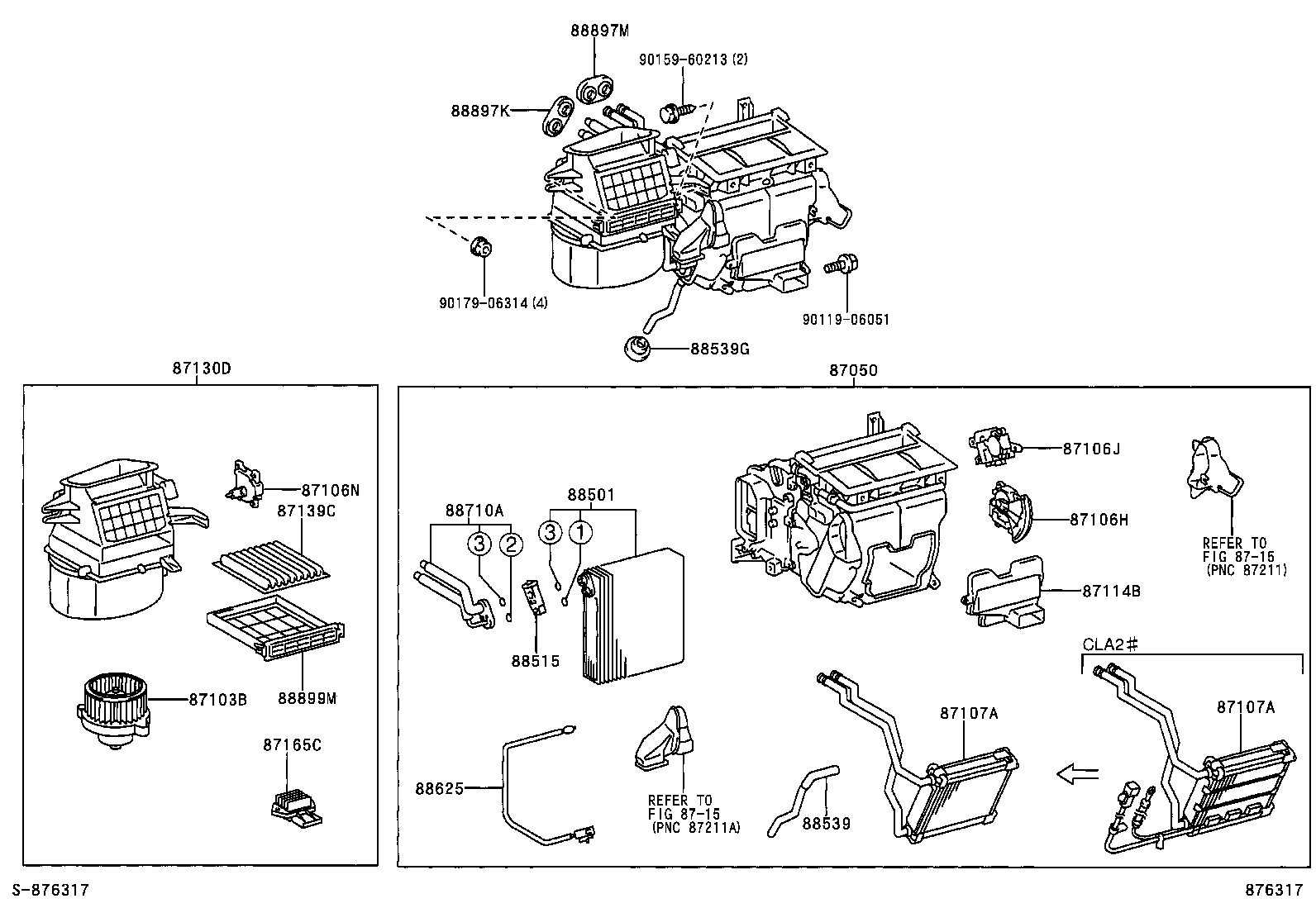

ILLUST NO. 1 OF 2(0307- )RHD

Click highlighted areas on diagram

AUTO AIR CONDITIONER

diagram 87050 87103B 87106H 87106J 87106N 87107A 87107A 87114B 87130D 87139C 8715 8715 87165C 88501 88515 88539 88539G 88625 88710A 88897K 88897M 88899M 9011906051 9015960213 9017906314
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42040

ACA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42220

ACA20,21,ZCA2#..RHD

MANUAL AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
87103-42030

ACA2#,CLA2#,ZCA2#..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87130D - BLOWER ASSY
87130-42080

ACA2#..RHD..(ARL,GEN)

 1
87130-42140

ACA21,22,23..RHD..(ARL,GEN)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-47010

ACA2#,ZCA2#..RHD

 1
88501-42070

ACA2#,ZCA2#..RHD..(EUR,GEN)

MAKER OPTION

 1
88501-42070

ACA20,21,ZCA2#..RHD

MAKER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-42070

ACA2#,CLA2#,ZCA2#

 1
88515-42080

ACA20,21,CLA2#,ZCA2#

MAKER OPTION

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
90480-25035

ACA2#,CLA2#,ZCA2#..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-42080

ACA2#,CLA2#,ZCA2#

 1
88625-42080

ACA2#,CLA2#,ZCA2#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
88710-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-12240

ACA2#,CLA2#,ZCA2#

 1
88897-12240

ACA2#,CLA2#,ZCA2#

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#,CLA2#,ZCA2#

 1
90480-01405

ACA2#,CLA2#,ZCA2#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#,CLA2#,ZCA2#

 1
Common parts
90119-06051
90159-60213
90179-06314
Linked diagrams
8715

ILLUST NO. 1 OF 2(0008-0307)

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106N 87107A 87114B 8712442020 87130D 87138C 87139C 8715 8715 8719387101 88501 88515 88539 88539C 8857826060 8857842050 8857842060 88625 88650E 88710A 88891Z 88897K 88897M 88899K 88899M 88899N 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009904497 9011906051 9015960213 9017906314 9095901538 9356815014
Part # Description Qty Price
Common parts
87124-42020
87193-87101
88578-26060
88578-42050
88578-42060
90099-00968
90099-04497
90119-06051
90159-60213
90179-06314
90959-01538
93568-15014
Linked diagrams
8715

ILLUST NO. 1 OF 2(0008-0307)

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87106N 87107A 87114B 8712442020 87130D 87138C 87139C 8715 8715 87174G 8719387101 88539 88539C 8857842050 88897M 88899K 88899M 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9009900968 9011906051 9015960213 9017906314 9095901538
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-42040

ACA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42070

ACA2#,ZCA2#..RHD

 1
87050-42220

ACA20,21,ZCA2#..RHD

MANUAL AIR CONDITIONER

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
87103-42030

ACA2#,CLA2#,ZCA2#..RHD

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87106-42040

ACA2#,CLA2#,ZCA2#..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42120

ACA2#,ZCA2#..RHD

 1
87107-42120

ACA2#,ZCA2#..RHD

 1
87130D - BLOWER ASSY
87130-42080

ACA2#..RHD..(ARL,GEN)

 1
87130-42140

ACA21,22,23..RHD..(ARL,GEN)

 1
87138C - RESISTOR, BLOWER
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87138-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
87174G - GUIDE, AIR HEATER
87174-20020

ACA2#,CLA2#,ZCA2#

 1
87174-20020

ACA2#,CLA2#,ZCA2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88539-42020

ACA2#,CLA2#,ZCA2#..RHD

 1
88897M - GROMMET (FOR HEATER PIPE)
90480-01405

ACA2#,CLA2#,ZCA2#

 1
90480-01405

ACA2#,CLA2#,ZCA2#

 1
88899K - PLATE, COVER
88899-42070

ACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)

MANUAL AIR CONDITIONER

 1
88899-42100

ACA2#,CLA2#,ZCA2#..RHD

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-42090

ACA2#,CLA2#,ZCA2#

 1
Common parts
87124-42020
87193-87101
88578-42050
90099-00968
90119-06051
90159-60213
90179-06314
90959-01538
Linked diagrams
8715

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0307- )

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87106N 87107A 87114B 87130D 87138C 87139C 8715 8715 87174G 88539 88539C 88897M 88899M 9011906051 9015960213 9017906314 9095901538
Part # Description Qty Price
Common parts
90119-06051
90159-60213
90179-06314
90959-01538
Linked diagrams
8715

ILLUST NO. 1 OF 2(0307- )

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106N 87107A 87114B 87130D 87138C 87139C 8715 8715 88501 88515 88539 88539C 88625 88650E 88710A 88897K 88897M 88899M 9009904497 9011906051 9015960213 9017906314 9095901538 9356855014
Part # Description Qty Price
Common parts
90099-04497
90119-06051
90159-60213
90179-06314
90959-01538
93568-55014
Linked diagrams
8715
