ACA21R-AWPNK (2000)

Toyota Rav4

Production Aug 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005-0307)LHD..EUR,GCC ; (0005-0307)RHD..ARL,GEN

Click highlighted areas on diagram

W/O(KEY LESS ENTRY)

diagram 89703 89708C 89780 89783 89785 89786 9356815014
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-42080

ACA2#..RHD..(ARL,GEN);ACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)

 1
89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89708-42040

ACA2#..GCC;ACA2#..RHD..(ARL,GEN)

 1
69005-42380

ACA21,22,23..RHD..(ARL,GEN);ACA20,21,CLA2#..LHD..(EUR,GCC)

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-42100

ACA21..RHD..GEN

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52040

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89783-52010

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

ACA2#..RHD..(ARL,GEN);ACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)

 1
89785-60160

ACA21,22,23..RHD..(ARL,GEN);ACA20,21,CLA2#..LHD..(EUR,GCC)

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89786-60050

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
Common parts
93568-15014

(0005-0307)

Click highlighted areas on diagram

W(KEY LESS ENTRY)

diagram 8420 8420 8420 8420 8420 8420 8420 8420 8420 8420 89780 89783 89786 9356815014
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-42100

ACA21..RHD..GEN

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52040

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89783-52010

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89786-60050

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
Common parts
93568-15014
Linked diagrams
8420

(0307- )RHD..GEN ; (0307- )ACA22,23,CLA2#; (0307- )ACA20,21,ZCA2#..LHD..E

Click highlighted areas on diagram

W/O(KEY LESS ENTRY)

diagram 89708C 89780 89783 89785 89786 9356855014
Part # Description Qty Price
89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89708-42040

ACA2#..GCC;ACA2#..RHD..(ARL,GEN)

 1
69005-42380

ACA21,22,23..RHD..(ARL,GEN);ACA20,21,CLA2#..LHD..(EUR,GCC)

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-42100

ACA21..RHD..GEN

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52040

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89783-52010

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

ACA2#..RHD..(ARL,GEN);ACA2#,CLA2#,ZCA2#..LHD..(EUR,GCC)

 1
89785-60160

ACA21,22,23..RHD..(ARL,GEN);ACA20,21,CLA2#..LHD..(EUR,GCC)

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89786-60050

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
Common parts
93568-55014

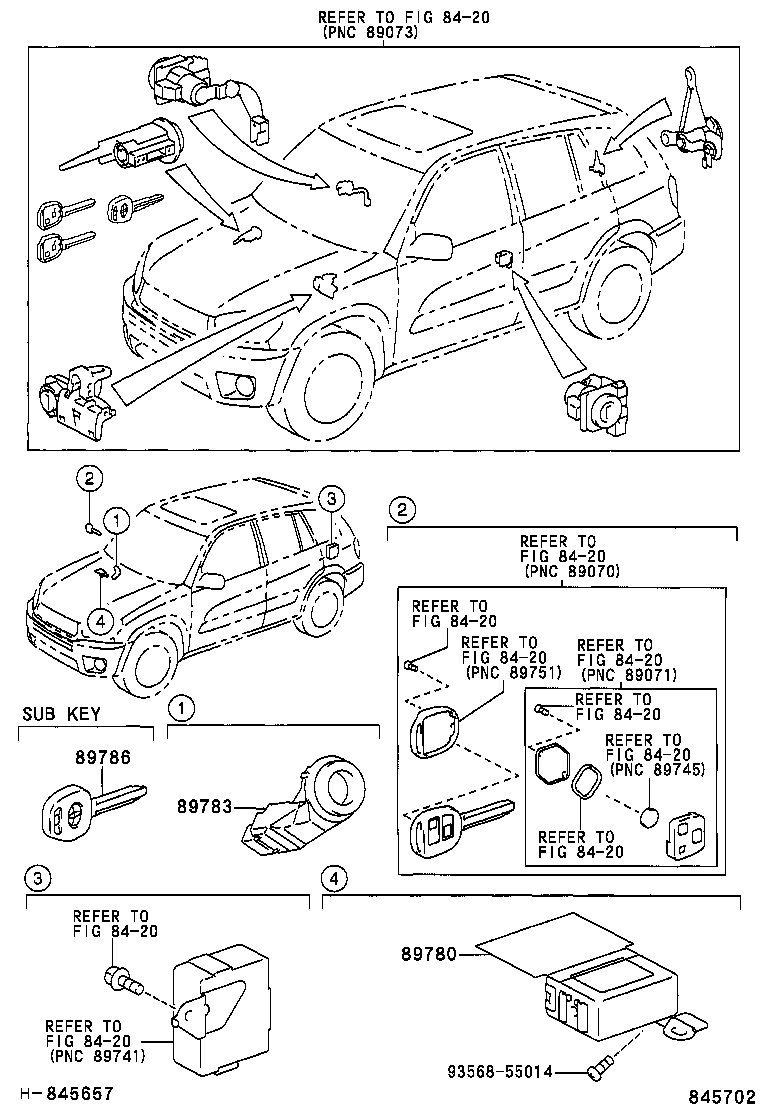

(0307- )ACA21..RHD ; (0307- )ACA21..LHD..EUR,GCC ; (0307- )ACA20,22,23,CLA

Click highlighted areas on diagram

W(KEY LESS ENTRY)

diagram 8420 8420 8420 8420 8420 8420 8420 8420 8420 8420 89780 89783 89786 9356855014
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-42100

ACA21..RHD..GEN

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-52040

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89783-52010

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ACA21..RHD;ACA20,22,23,CLA2#;ACA21..LHD..(EUR,GCC)

 1
89786-60050

ACA2#..RHD;CLA2#,ZCA2#;ACA2#..LHD..(EUR,GCC)

 1
Common parts
93568-55014
Linked diagrams
8420

(0008-0307)

Click highlighted areas on diagram

diagram 89703 89708C 89783 89785 89786
Part # Description Qty Price

(0307- )

Click highlighted areas on diagram

diagram 89708C 89780 89783 89785 89786 9356855014
Part # Description Qty Price
Common parts
93568-55014
