ACA21R-AWPNK (2000)

Toyota Rav4

Production Aug 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

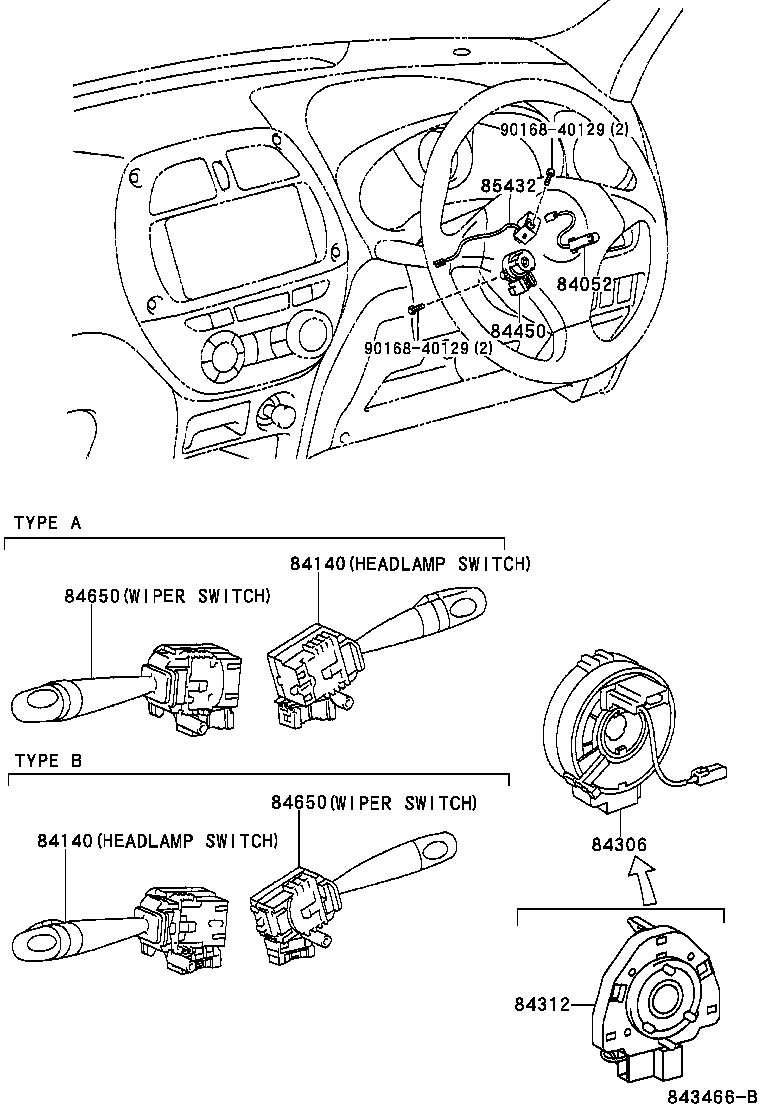

ILLUST NO. 5 OF 6(0005-0307)RHD

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCH

diagram 84052 84140 84140 84306 84312 84450 84650 84650 85432 9016840129 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-60020

ACA2#,CLA2#,ZCA2#

 1
84052-60020

ACA2#,CLA2#,ZCA2#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-42020

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-42020

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-12510

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84140-12510

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-42020

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-42020

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-12510

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84140-12510

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-52020

ACA2#..GEN

W(*80,DRIVER SIDE & PASSENGER SIDE)

 1
84306-52041

ACA2#

TYPE A:REFER TO ILLUSTRATION

 1
84312 - PLATE, HORN CONTACT
84312-52010

ACA2#..GEN

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-52010

ACA2#,CLA2#,ZCA2#

 1
84450-52010

ACA2#,CLA2#,ZCA2#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-42090

ACA20..RHD..GEN;ACA21..RHD..(EUR,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84652-42100

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-42090

ACA20..RHD..GEN;ACA21..RHD..(EUR,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84652-42100

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
85432 - SOLENOID, KEY INTER LOCK
85432-42020

ACA2#..ATM

 1
85432-42020

ACA2#..ATM

 1
Common parts
90168-40129

ILLUST NO. 1 OF 6(0005-0307)ACA2#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 3304 3505 8271542690 8271542700 83181G 83181H 83530 84210 84540 8761642020 89428 89465 89465 89467B 89467B 89615 9043018008 9161160816 9165140625
Part # Description Qty Price
83181G - SENSOR, SPEEDOMETER
83181-42010

ACA2#..ATM

 1
83181-42010

ACA2#..ATM

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
90301-18018

ACA2#..ATM

 1
90301-18018

ACA2#..ATM

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

ACA2#,ZCA2#

YAZAKI

 1
83530-28020

ACA2#,ZCA2#

DENSO

 1
83530-60020

ACA2#,ZCA2#

YAZAKI

 1
83530-28020

ACA2#,ZCA2#

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-48010

ACA2#..ATM

 1
84540-12230

ACA2#..ATM

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-20110

CLA2#;ACA21..GEN

 1
89428-20110

ACA2#,CLA2#

 1
89615 - SENSOR, KNOCK CONTROL
89615-32030

ACA2#

DENSO

 1
89615-30080

ACA2#

MATSUSHITA

 1
89615-44010

ACA21..GEN

 1
89615-44010

ACA2#

 1
Common parts
82715-42690
82715-42700
87616-42020
90430-18008
91611-60816
91651-40625
Linked diagrams
3304
3505

ILLUST NO. 5 OF 6(0307- )

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCH

diagram 4501 84052 84140 84140 84247A 84258A 84306 84450 84650 84650 85432 89245B 9015950199 9016840129 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-60020

ACA2#,CLA2#,ZCA2#

 1
84052-60020

ACA2#,CLA2#,ZCA2#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-42020

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-42020

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-12510

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84140-12510

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-42020

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-42020

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION & W(FRONT FOG LAMP SW)

 1
84140-12510

ACA21..RHD;ACA20..RHD..(ARL,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84140-12510

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-52020

ACA2#..GEN

W(*80,DRIVER SIDE & PASSENGER SIDE)

 1
84306-52041

ACA2#

TYPE A:REFER TO ILLUSTRATION

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-52010

ACA2#,CLA2#,ZCA2#

 1
84450-52010

ACA2#,CLA2#,ZCA2#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-42090

ACA20..RHD..GEN;ACA21..RHD..(EUR,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84652-42100

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-42090

ACA20..RHD..GEN;ACA21..RHD..(EUR,GEN)

TYPE A:REFER TO ILLUSTRATION

 1
84652-42100

ACA2#,ZCA2#..RHD

TYPE A:REFER TO ILLUSTRATION

 1
85432 - SOLENOID, KEY INTER LOCK
85432-42020

ACA2#..ATM

 1
85432-42020

ACA2#..ATM

 1
Common parts
90159-50199
90168-40129
Linked diagrams
4501

ILLUST NO. 1 OF 6(0307- )ACA2#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 3304 3505 8271542710 83181G 83181H 83530 84210 84540 8761642020 89465 89467B 89615 89615 9012608039 9017908153 9043018008 9165140625
Part # Description Qty Price
83181G - SENSOR, SPEEDOMETER
83181-42010

ACA2#..ATM

 1
83181-42010

ACA2#..ATM

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
90301-18018

ACA2#..ATM

 1
90301-18018

ACA2#..ATM

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

ACA2#,ZCA2#

YAZAKI

 1
83530-28020

ACA2#,ZCA2#

DENSO

 1
83530-60020

ACA2#,ZCA2#

YAZAKI

 1
83530-28020

ACA2#,ZCA2#

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-48010

ACA2#..ATM

 1
84540-12230

ACA2#..ATM

 1
89615 - SENSOR, KNOCK CONTROL
89615-32030

ACA2#

DENSO

 1
89615-30080

ACA2#

MATSUSHITA

 1
89615-44010

ACA21..GEN

 1
89615-44010

ACA2#

 1
89615 - SENSOR, KNOCK CONTROL
89615-32030

ACA2#

DENSO

 1
89615-30080

ACA2#

MATSUSHITA

 1
89615-44010

ACA21..GEN

 1
89615-44010

ACA2#

 1
Common parts
82715-42710
87616-42020
90126-08039
90179-08153
90430-18008
91651-40625
Linked diagrams
3304
3505

ILLUST NO. 5 OF 6(0008-0307)

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCH

diagram 84052 84140 84306 84450 84650 85432 9016840129 9016840129
Part # Description Qty Price
Common parts
90168-40129

ILLUST NO. 2 OF 6(0008- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28300 28371C 8201 8202 8202 82600F 82600F 82600F 82616 82620A 82671A 82672A 82674 82675B 82740 82824Z 82824Z 83482 8404 8404 8404 8414 8414 8414 85913C 85916P 85927 85927A 85927B 89438 9017908204 91621J0612 91651B0620
Part # Description Qty Price
Common parts
90179-08204
91621-J0612
91651-B0620
Linked diagrams
8201
8202
8404
8414

ILLUST NO. 3 OF 6(0008- )

Click highlighted areas on diagram

COWL

diagram 81980 8202 8202 8202 8202 82600F 82600F 82600M 82600M 82673A 82683 82731 84340 84520 84550 85530A 85912 85916D 85916N 85930 86530 91621J0612 91621J0612 9331514012 9412041000
Part # Description Qty Price
Common parts
91621-J0612
93315-14012
94120-41000
Linked diagrams
8202

ILLUST NO. 4 OF 6(0008-0307)

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 8302 84118 84119 84870A 84930 84930C 85500 85500 85500B 85510 85513 85515 85520 85520 85530 85535B 85539 9017009002
Part # Description Qty Price
Common parts
90170-09002
Linked diagrams
8302

ILLUST NO. 6 OF 6(0008- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 7751 83320 83320 84233 84233 84234 84234 84235 84656C 84656C 84810 84810D 84810D 84820 84930 85530B 85535C 85539A 85920 9016440103 9016760014 9016760014 9016760014 9016760014 9016760014 9016770003 9016770003 9016770003 9016770003 9016770003 93319A4010
Part # Description Qty Price
Common parts
90164-40103
90167-60014
90167-70003
93319-A4010
Linked diagrams
7751

ILLUST NO. 1 OF 6(0008-0307)

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 3304 3505 8271542690 8271542700 83181G 83181H 83530 84210 84540 8761642020 89428 89465 89465 89467B 89467B 89615 9043018008 9161160816 9165140625
Part # Description Qty Price
83181G - SENSOR, SPEEDOMETER
83181-42010

ACA2#..ATM

 1
83181-42010

ACA2#..ATM

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
90301-18018

ACA2#..ATM

 1
90301-18018

ACA2#..ATM

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

ACA2#,ZCA2#

YAZAKI

 1
83530-28020

ACA2#,ZCA2#

DENSO

 1
83530-60020

ACA2#,ZCA2#

YAZAKI

 1
83530-28020

ACA2#,ZCA2#

DENSO

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-48010

ACA2#..ATM

 1
84540-12230

ACA2#..ATM

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-20110

CLA2#;ACA21..GEN

 1
89428-20110

ACA2#,CLA2#

 1
89615 - SENSOR, KNOCK CONTROL
89615-32030

ACA2#

DENSO

 1
89615-30080

ACA2#

MATSUSHITA

 1
89615-44010

ACA21..GEN

 1
89615-44010

ACA2#

 1
Common parts
82715-42690
82715-42700
87616-42020
90430-18008
91611-60816
91651-40625
Linked diagrams
3304
3505

ILLUST NO. 1 OF 6(0307- )

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 3304 3505 8271542710 83181G 83181H 83530 84210 84540 8761642020 89465 89467B 89615 9012608039 9017908153 9043018008 9165140625
Part # Description Qty Price
Common parts
82715-42710
87616-42020
90126-08039
90179-08153
90430-18008
91651-40625
Linked diagrams
3304
3505

ILLUST NO. 4 OF 6(0307- )

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 8302 84118 84119 84746 84751 84751 84751B 84751B 84870A 84988F 84988G 85500 85500B 85510 85513 85515 85520 85530 85535B 85539 9017009002
Part # Description Qty Price
Common parts
90170-09002
Linked diagrams
8302

ILLUST NO. 5 OF 6(0307- )

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCH

diagram 4501 84052 84140 84247A 84258A 84306 84450 84650 85432 89245B 9015950199 9016840129 9016840129
Part # Description Qty Price
Common parts
90159-50199
90168-40129
Linked diagrams
4501
