ACA21R-AWPNK (2000)

Toyota Rav4

Production Aug 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

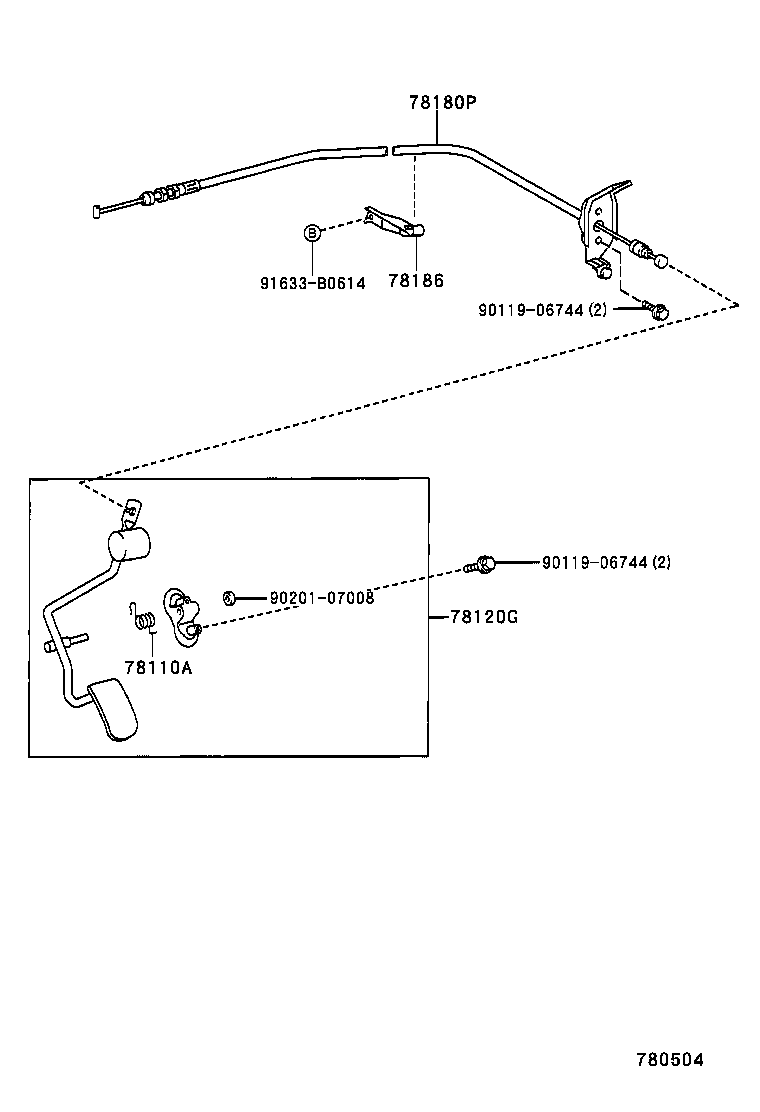

(0005-0307)ACA2#..RHD

Click highlighted areas on diagram

diagram 78110A 78120G 78180P 78186 9011906744 9011906744 9020107008 91633B0614
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26075

ACA2#,ZCA2#..RHD

 1
90508-26075

ZCA2#..RHD;ACA21..RHD..GEN

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-42090

ZCA2#..RHD;ACA21..RHD..GEN

 1
78120-42090

ACA2#,ZCA2#..RHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-42090

ACA21..RHD..GEN

 1
78180-42090

ACA2#..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-42030

ZCA2#..RHD;ACA21..RHD..GEN

 1
78186-42030

ACA2#,ZCA2#..RHD

 1
Common parts
90119-06744
90201-07008
91633-B0614

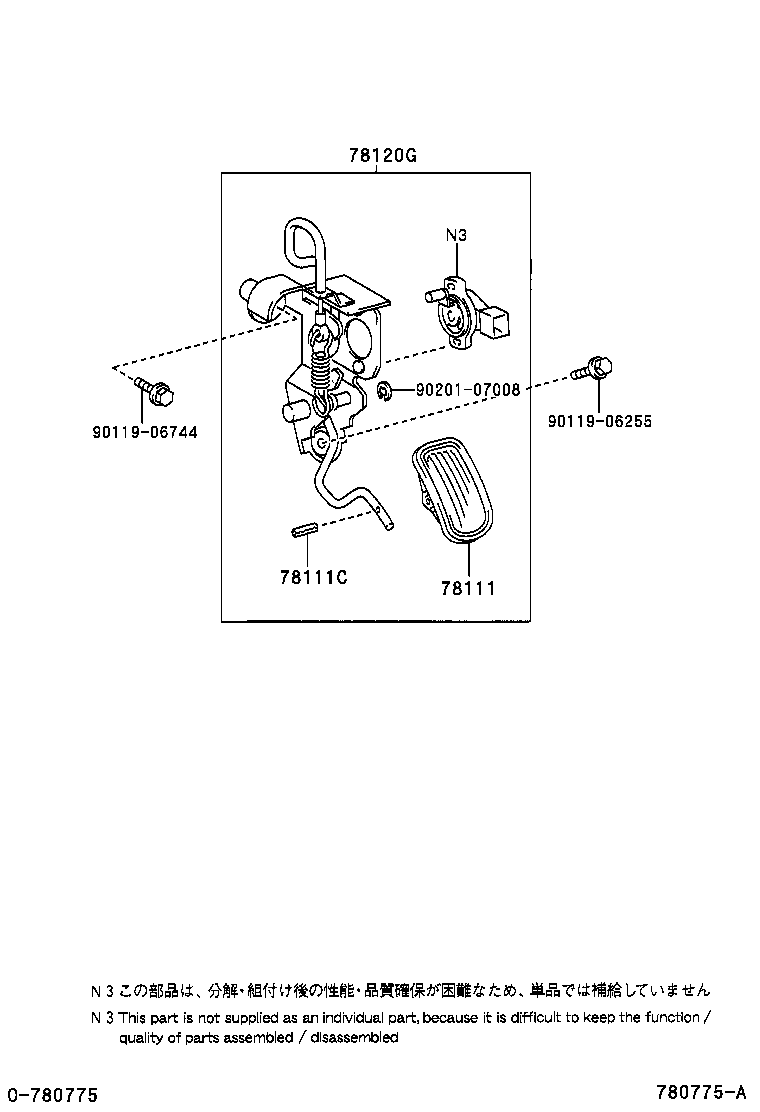

(0307- )ACA2#,CLA2#..RHD

Click highlighted areas on diagram

diagram 78111 78111C 78120G 9011906255 9011906744 9020107008
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-33020

ACA2#,CLA2#,ZCA2#..RHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ACA2#,CLA2#,ZCA2#..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-42090

ZCA2#..RHD;ACA21..RHD..GEN

 1
78120-42090

ACA2#,ZCA2#..RHD

 1
Common parts
90119-06255
90119-06744
90201-07008

(0008-0307)

Click highlighted areas on diagram

diagram 78110A 78110C 78110C 78120G 78150B 78180P 78180P 78183B 9011906744 9011906744 9011906744 9020107008 91633B0616 9321915008
Part # Description Qty Price
Common parts
90119-06744
90201-07008
91633-B0616
93219-15008

(0307- )

Click highlighted areas on diagram

diagram 78120G 9011906744 9011906744
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-42090

ZCA2#..RHD;ACA21..RHD..GEN

 1
78120-42090

ACA2#,ZCA2#..RHD

 1
Common parts
90119-06744
