ACA21R-AWMNKW (2000)
Toyota Rav4
(0005-0307)EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-33020 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85330-60190 |
ACA20,21,CLA2#,ZCA2#..EUR |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-42150 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85315-42190 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85336-60300 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33050 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85386-60040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85312-68010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-16192 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85375-42110 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85375-42110 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85375-10260 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85348-14390 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348-14390 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=850 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=850 |
1 | ||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=690 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=950 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=950 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=250 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=250 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=170 |
1 | ||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=170 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=660 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=170 |
1 | ||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=170 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=660 |
1 | ||
| Common parts | ||||
| 85371-32020 | ||||
| 90119-06144 | ||||
| 90179-06216 | ||||
| 90467-07164 | ||||
| 90469-07011 | ||||

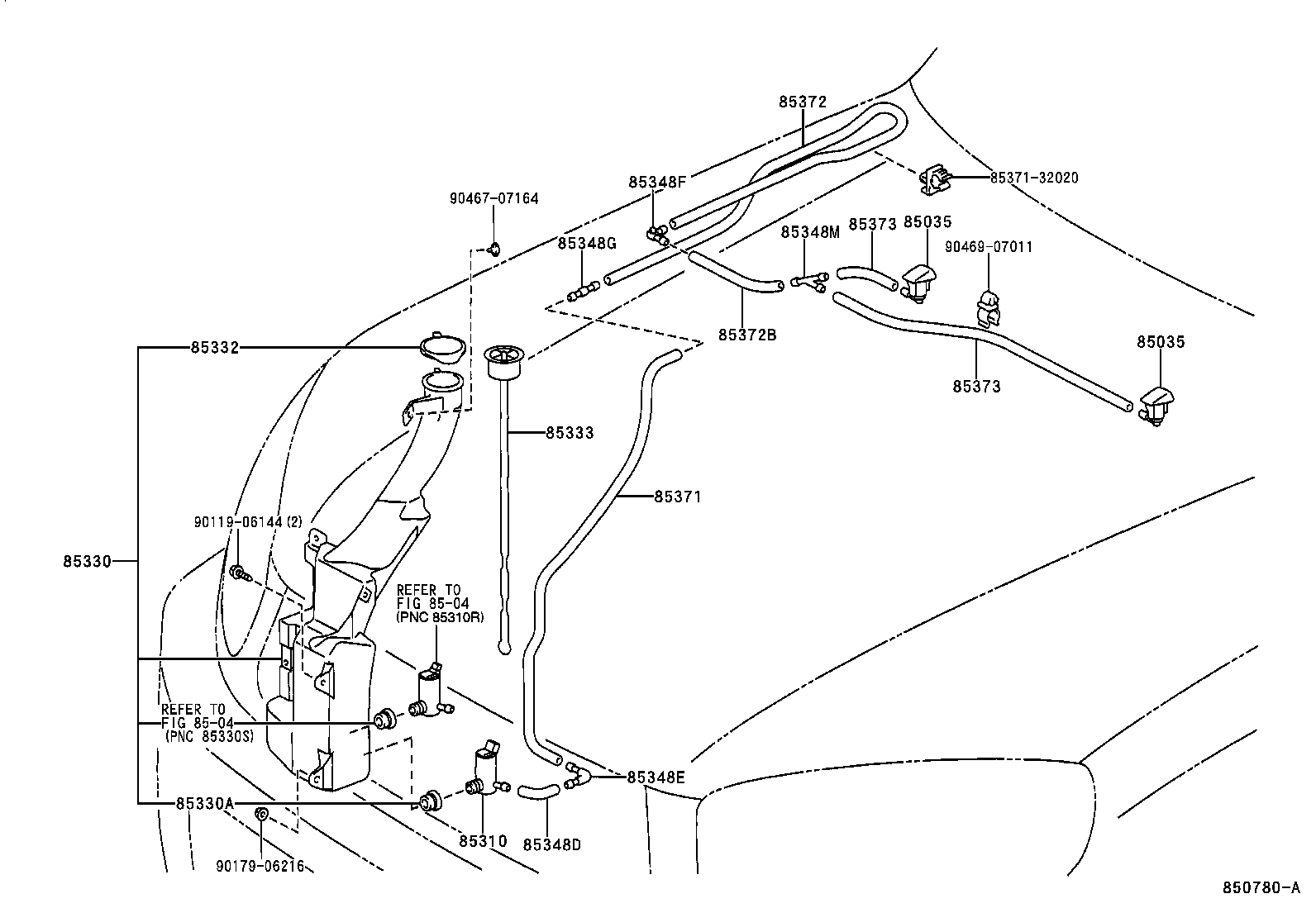

| Linked diagrams | ||||
| 8504 | ||||
(0307- )EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85381-42050 |
ACA2#,CLA2#,ZCA2#..RHD |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-33020 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85330-60190 |
ACA20,21,CLA2#,ZCA2#..EUR |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-42150 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85315-42190 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85336-60300 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33050 |
ACA2#,CLA2#,ZCA2#..EUR |
1 | ||
| 85386-60040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85312-68010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-42190 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85375-42110 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85375-42110 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85375-10260 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85348-14390 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85348-14390 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=850 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=850 |
1 | ||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=690 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=950 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=950 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=250 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=250 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=170 |
1 | ||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=170 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=660 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ACA2#,CLA2#,ZCA2# *H,L=170 |
1 | ||
| 90099-33080 |
ACA20,21,CLA2#,ZCA2#..EUR *H,L=170 |
1 | ||
| 90099-33080 |
ACA2#,CLA2#,ZCA2#..EUR *H,L=660 |
1 | ||
| Common parts | ||||
| 85371-32020 | ||||
| 90119-06144 | ||||
| 90467-07164 | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8504 | ||||
