ACA21L-AWPNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )EUR

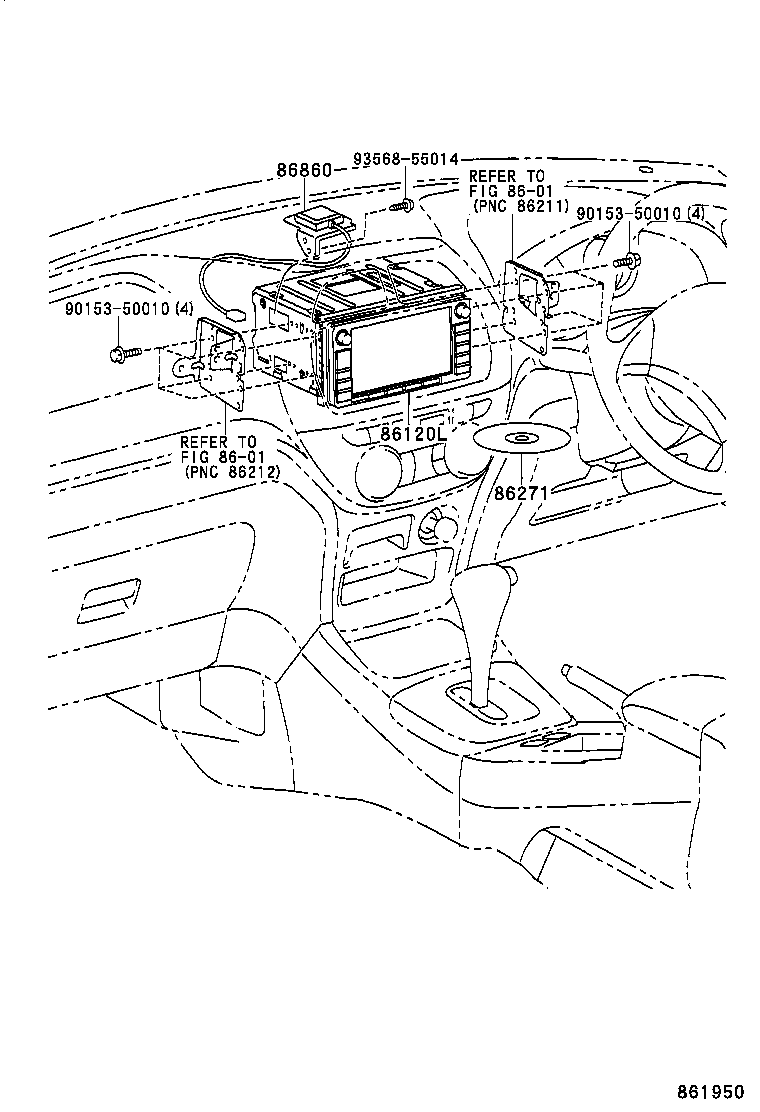

Click highlighted areas on diagram

diagram 8601 8601 86120L 86271 86860 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-42100

ACA20,21,CLA2#,ZCA2#..EUR

AISIN AW

 1
86120-42100

ACA20,21,CLA2#,ZCA2#..EUR

AISIN AW

 1
86120-42100

ACA20,21,CLA2#,ZCA2#..EUR

AISIN AW

 1
86271 - DISC, DISC PLAYER
86271-64011

ACA20,21,CLA2#,ZCA2#..EUR

 1
86271-64010

ACA20,21,CLA2#,ZCA2#..EUR

 1
86271-64012

ACA20,21,CLA2#,ZCA2#..EUR

 1
86271-53030

ACA20,21,CLA2#,ZCA2#..EUR

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-42020

ACA20,21,CLA2#,ZCA2#..EUR

 1
Common parts
90153-50010
93568-55014
Linked diagrams
8601
