ACA21L-AWPNKV (2000)
Toyota Rav4
Production
Aug 2000
-
Nov 2005
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

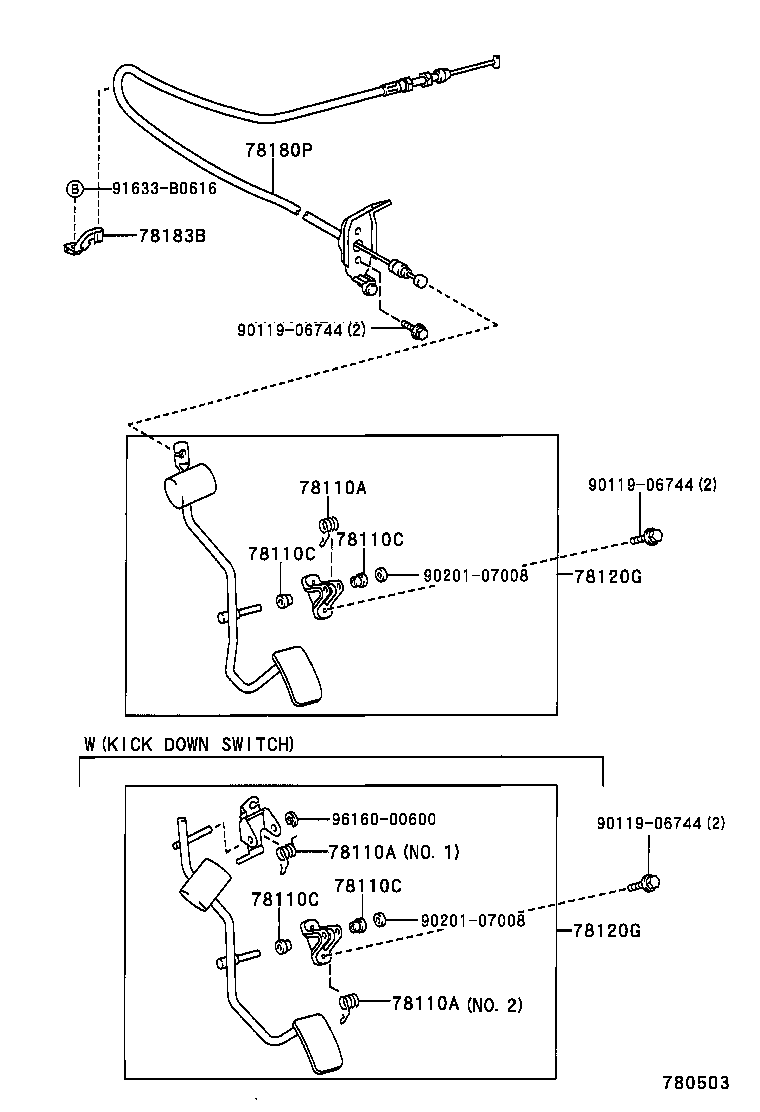

(0005-0307)ACA2#..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03292 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03292 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03292 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08063 |
ACA2#,ZCA2#..LHD |
2 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-42020 |
ACA20,21,CLA2#..LHD..(EUR,GCC) |
1 | ||
| 78120-42110 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-42020 |
ACA20,21,CLA2#..LHD..(EUR,GCC) |
1 | ||
| 78120-42110 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-42100 |
ACA2#..LHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-42020 |
ACA2#..LHD |
1 | ||
| Common parts | ||||
| 90119-06744 | ||||
| 90201-07008 | ||||
| 91633-B0616 | ||||
| 96160-00600 | ||||
(0008-0307)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06744 | ||||
| 90201-07008 | ||||
| 91633-B0616 | ||||
| 93219-15008 | ||||

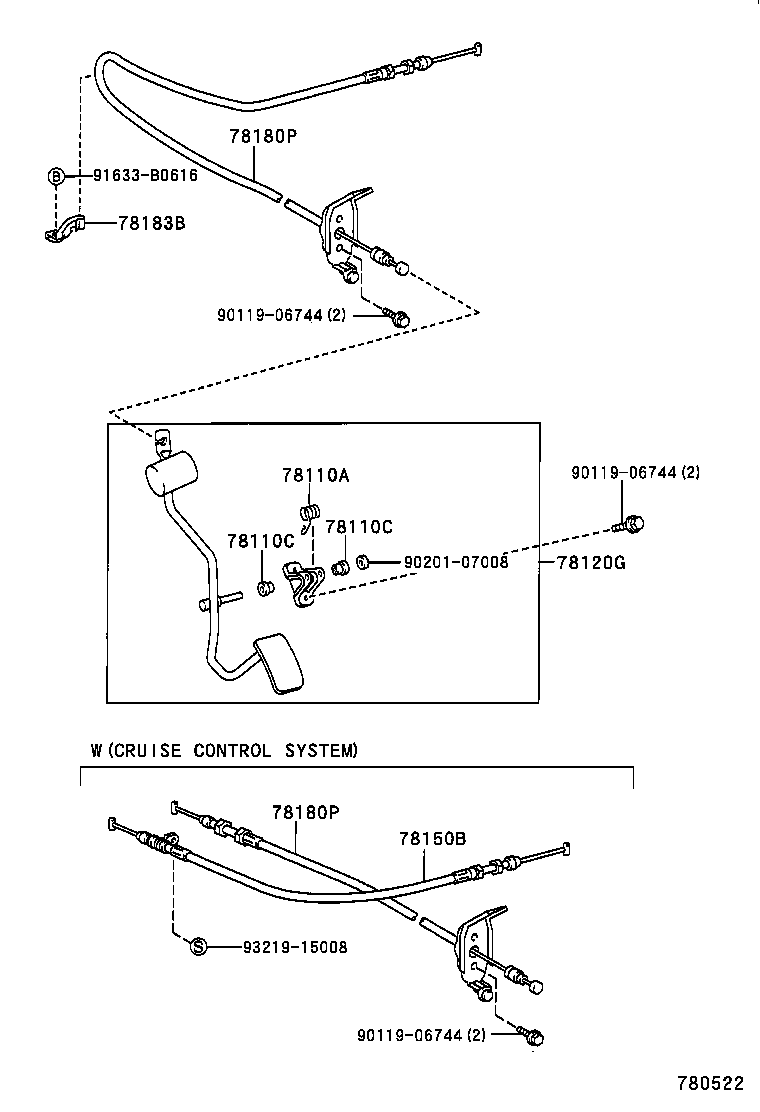

(0307- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-42020 |
ACA20,21,CLA2#..LHD..(EUR,GCC) |
1 | ||
| 78120-42110 |
ACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06744 | ||||
