ACA21L-AWPNKV (2000)

Toyota Rav4

Production Aug 2000 - Nov 2005
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0005-0307)1AZFE ; (0307- )1AZFE..ACA21..GEN

Click highlighted areas on diagram

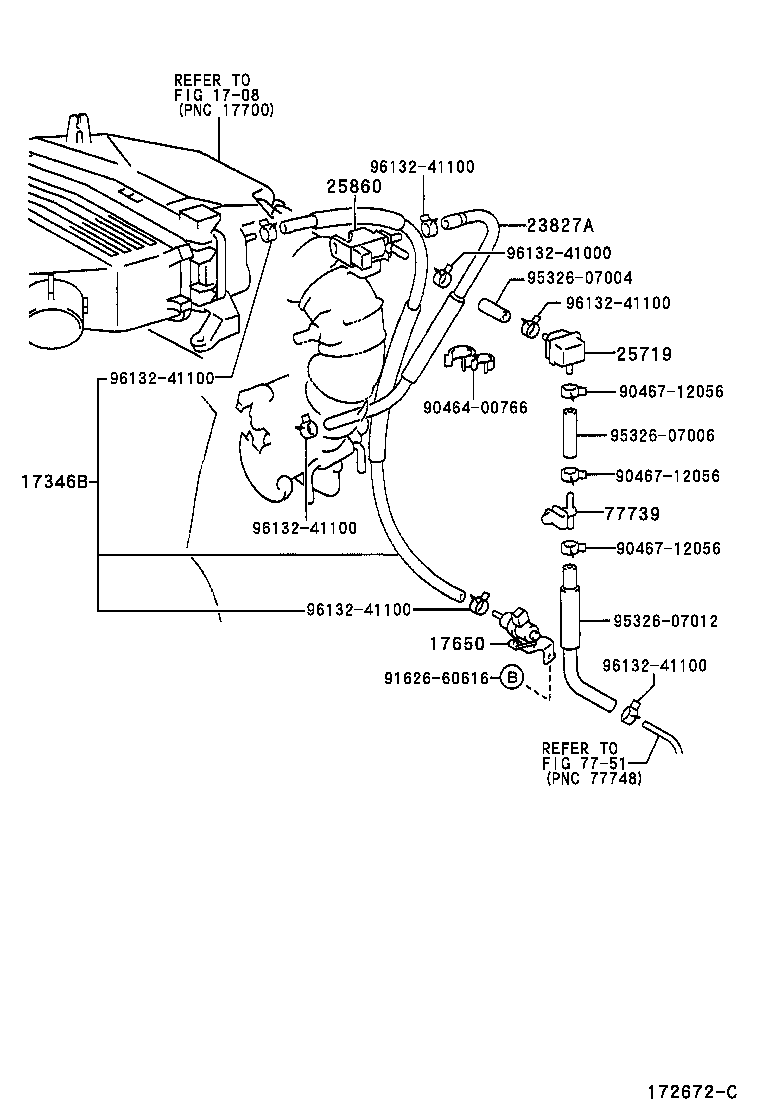

diagram 23826 23826A 23826A 23827A 23827A 23827B 23827B 25719 25860 7751 9613241000 9613251100
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-28020

1AZFE,2AZFE..ACA2#

 1
23826-28020

1AZFE..ACA2#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-12056

1AZFE..ACA2#

NO.1

 1
96132-41100

1AZFE..ACA2#

NO.2

 1
90467-12056

1AZFE,2AZFE..ACA2#

NO.1

 1
96132-51100

1AZFE,2AZFE..ACA2#

NO.2

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90467-12056

1AZFE..ACA2#

NO.1

 1
96132-41100

1AZFE..ACA2#

NO.2

 1
90467-12056

1AZFE,2AZFE..ACA2#

NO.1

 1
96132-51100

1AZFE,2AZFE..ACA2#

NO.2

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-28060

1AZFE..ACA2#

NO.2

 1
23827-28180

1AZFE,2AZFE..ACA2#..ARL,EUR,GCC

NO.2

 1
23827-28180

1AZFE,2AZFE..ACA2#

NO.2

 1
23827-28190

1AZFE,2AZFE..ACA2#..ARL,EUR,GCC

NO.1

 1
23827-28040

1AZFE..ACA2#

NO.1

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-28060

1AZFE..ACA2#

NO.2

 1
23827-28180

1AZFE,2AZFE..ACA2#..ARL,EUR,GCC

NO.2

 1
23827-28180

1AZFE,2AZFE..ACA2#

NO.2

 1
23827-28190

1AZFE,2AZFE..ACA2#..ARL,EUR,GCC

NO.1

 1
23827-28040

1AZFE..ACA2#

NO.1

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-12056

1AZFE..ACA2#

NO.1

 1
96132-41100

1AZFE..ACA2#

NO.2

 1
90467-12056

1AZFE,2AZFE..ACA2#

NO.1

 1
96132-51100

1AZFE,2AZFE..ACA2#

NO.2

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-12056

1AZFE..ACA2#

NO.1

 1
96132-41100

1AZFE..ACA2#

NO.2

 1
90467-12056

1AZFE,2AZFE..ACA2#

NO.1

 1
96132-51100

1AZFE,2AZFE..ACA2#

NO.2

 1
25719 - TANK, VACUUM SURGE
25719-62040

1AZFE,2AZFE..ACA2#

 1
25719-62040

1AZFE..ACA2#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28060

1AZFE,2AZFE..ACA2#..ARL,EUR,GCC

 1
25860-28040

1AZFE..ACA2#

 1
Common parts
96132-41000
96132-51100
Linked diagrams
7751
