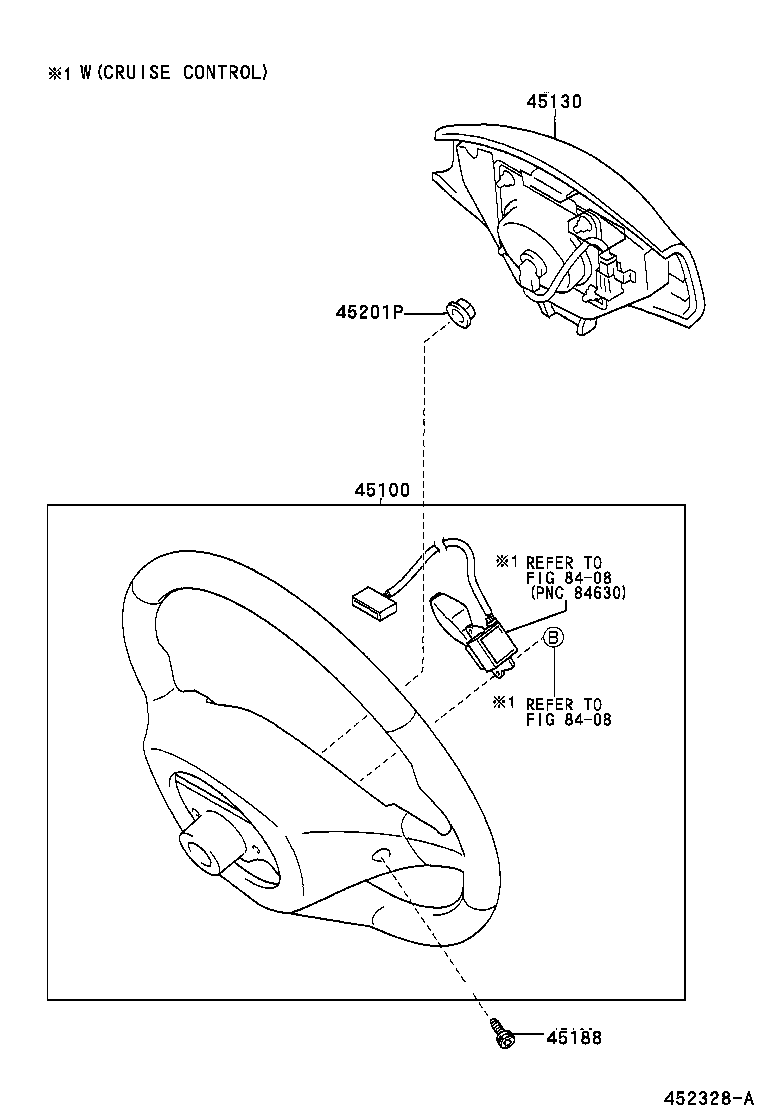

ACA21L-AWMNK (2000)
Toyota Rav4
(0005-0307)
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,URETHANE,BLACK,TRIM14,15 |
1 | ||
| 45100-42200C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-42100C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,LEATHER,BLACK,TRIM14,15 |
1 | ||
| 45100-42210C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,LEATHER,BLACK,TRIM1# |
1 | ||
| 45100-2B290C0 |
ACA2#..GEN 3-SPOKE,URETHANE,W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-42010C0 |
ACA2#..GEN W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45130-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLACK,TRIM14,15 |
1 | ||
| 45130-42110C0 |
ACA2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188-60010 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||

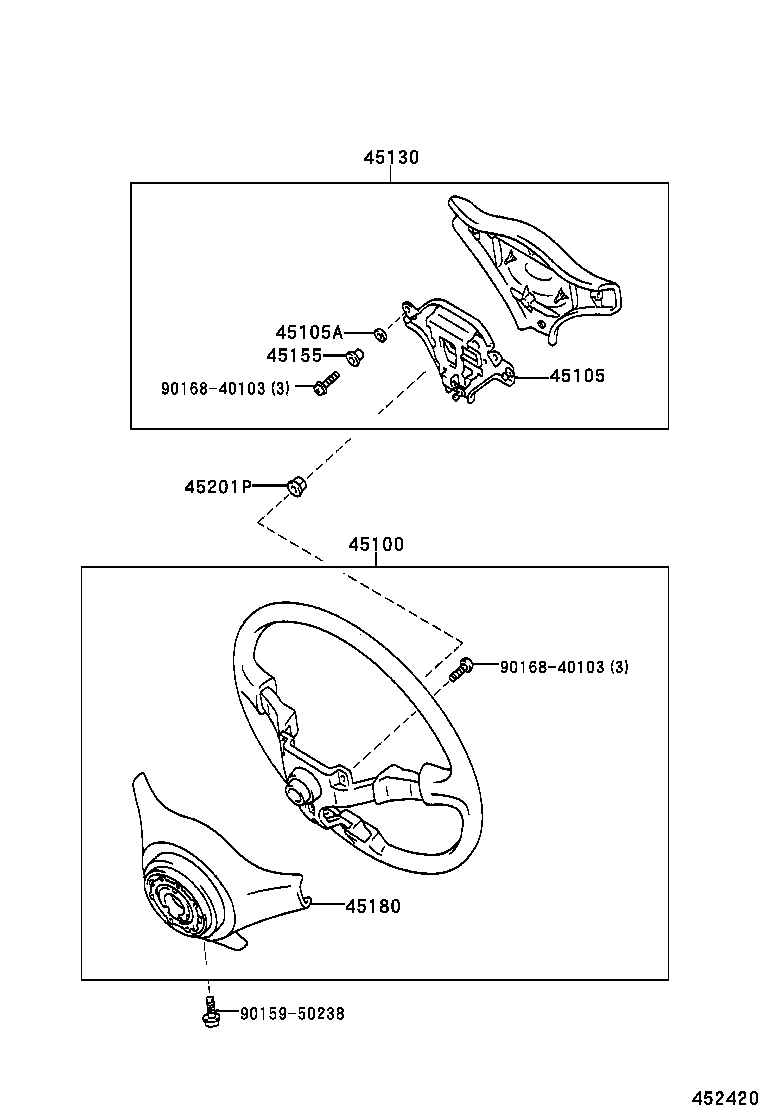

(0008-0307)GEN
3-SPOKE,W/O(*80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,URETHANE,BLACK,TRIM14,15 |
1 | ||
| 45100-42200C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-42100C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,LEATHER,BLACK,TRIM14,15 |
1 | ||
| 45100-42210C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,LEATHER,BLACK,TRIM1# |
1 | ||
| 45100-2B290C0 |
ACA2#..GEN 3-SPOKE,URETHANE,W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20500 |
ACA2#..GEN |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08014 |
ACA2#..GEN |
3 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-42010C0 |
ACA2#..GEN W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45130-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLACK,TRIM14,15 |
1 | ||
| 45130-42110C0 |
ACA2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 45155 - SPACER, HORN BUTTON CONTACT PLATE | ||||
| 45155-22040 |
ACA2#..GEN |
3 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20270C0 |
ACA2#..GEN BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90168-40103 | ||||
(0307- )
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,URETHANE,BLACK,TRIM14,15 |
1 | ||
| 45100-42200C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-42100C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,LEATHER,BLACK,TRIM14,15 |
1 | ||
| 45100-42210C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,LEATHER,BLACK,TRIM1# |
1 | ||
| 45100-2B290C0 |
ACA2#..GEN 3-SPOKE,URETHANE,W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-42010 |
ACA2# TYPE A:REFER TO ILLUSTRATION, (PNC45130) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-42010C0 |
ACA2#..GEN W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45130-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLACK,TRIM14,15 |
1 | ||
| 45130-42110C0 |
ACA2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-42010C0 |
ACA2#..GEN W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45130-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLACK,TRIM14,15 |
1 | ||
| 45130-42110C0 |
ACA2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188-60010 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188-60010 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Linked diagrams | ||||
| 8408 | ||||
(0008-0307)
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8408 | ||||
(0307- )
3-SPOKE,W(AUDIO SWITCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,URETHANE,BLACK,TRIM14,15 |
1 | ||
| 45100-42200C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,URETHANE,BLACK,TRIM1# |
1 | ||
| 45100-42100C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN 3-SPOKE,LEATHER,BLACK,TRIM14,15 |
1 | ||
| 45100-42210C0 |
ACA2#,CLA2#,ZCA2# 3-SPOKE,LEATHER,BLACK,TRIM1# |
1 | ||
| 45100-2B290C0 |
ACA2#..GEN 3-SPOKE,URETHANE,W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-42010 |
ACA2# TYPE A:REFER TO ILLUSTRATION, (PNC45130) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-42010C0 |
ACA2#..GEN W/O(*80),BLACK,TRIM14,15 |
1 | ||
| 45130-42080C0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLACK,TRIM14,15 |
1 | ||
| 45130-42110C0 |
ACA2# TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188-60010 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 90148-60007 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45188-60010 |
ACA2#,CLA2#,ZCA2# L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 90179-12071 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
(0307- )
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8408 | ||||
