ACA21L-AWMNK (2000)
Toyota Rav4
(0005- )ACA2#,CLA2#..MTM
E352F,E353F,E359F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
ACA2#,CLA2#..MTM |
1 | ||
| 90311-30017 |
ACA2#,CLA2#..MTM |
1 | ||
| 90311-30006 |
ACA2#,CLA2#..MTM |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-42010 |
ACA2#..MTM |
1 | ||
| 31115-42030 |

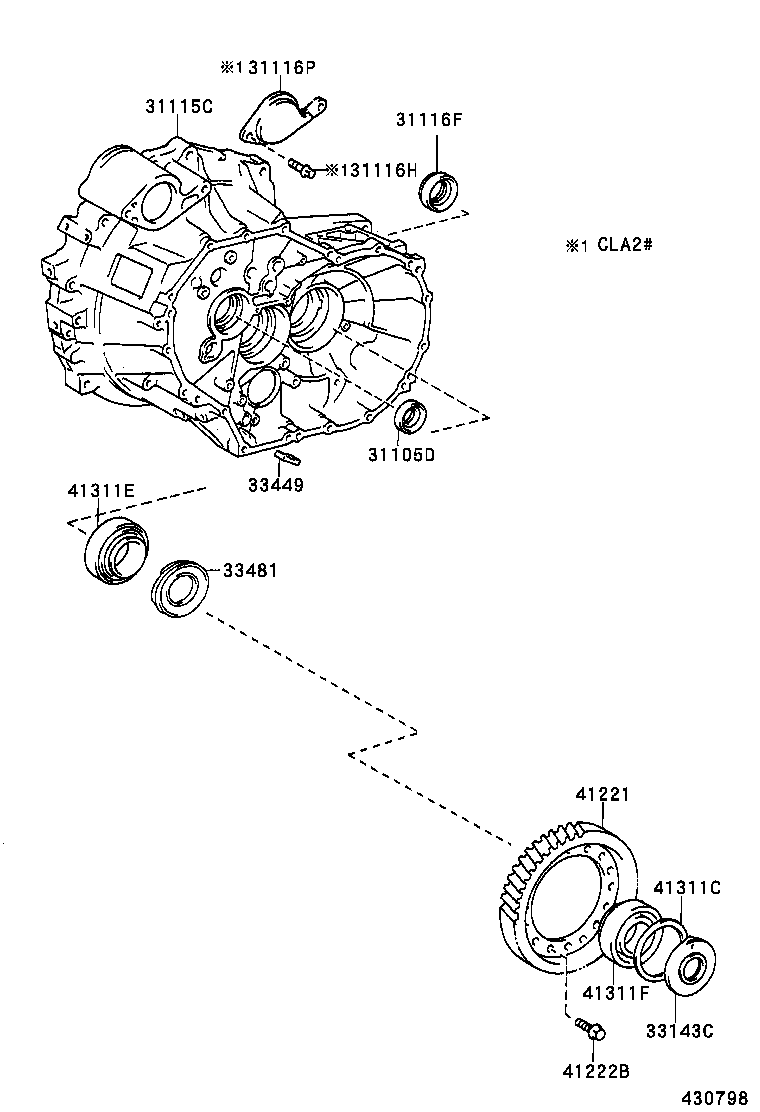

ACA2#..MTM AISIN AI:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 31115-42030 |
ACA20,21..MTM AISIN AI:REFER 33-01 |
1 | ||
| 31115-42011 |
ACA20,21..MTM TOYOTA:REFER 33-01 |
1 | ||
| 31115-42011 |
ACA2#..MTM TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 31116F - SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER) | ||||
| 90311-62005 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90311-62005 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90311-62005 |
ACA2#,CLA2#..MTM |
1 | ||
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-20040 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33143-20040 |
ACA2#,CLA2#..MTM |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33449-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-42031 |
ACA2#..MTM N=35 |
1 | ||
| 33481-42030 |
ACA2#..MTM N=35 |
1 | ||
| 33481-42031 |
ACA20,21..MTM N=35 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-42040 |
ACA2#..MTM TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 41221-42040 |
ACA20,21..MTM TOYOTA:REFER 33-01 |
1 | ||
| 41221-42080 |
ACA2#..MTM AISIN AI:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 41221-42080 |
ACA20,21..MTM AISIN AI:REFER 33-01 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
ACA2#,CLA2#..MTM |
16 | ||
| 90105-12150 |
ACA20,21,CLA2#..MTM |
16 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-76001 |
ACA2#,CLA2#..MTM T=2.00,MARK 0 |
1 | ||
| 90564-76002 |
ACA2#,CLA2#..MTM T=2.05,MARK 1 |
1 | ||
| 90564-76004 |
ACA2#,CLA2#..MTM T=2.15,MARK 3 |
1 | ||
| 90564-76007 |
ACA2#,CLA2#..MTM T=2.30,MARK 6 |
1 | ||
| 90564-76006 |
ACA2#,CLA2#..MTM T=2.25,MARK 5 |
1 | ||
| 90564-76003 |
ACA2#,CLA2#..MTM T=2.10,MARK 2 |
1 | ||
| 90564-76011 |
ACA2#,CLA2#..MTM T=2.50,MARK A |
1 | ||
| 90564-76005 |
ACA2#,CLA2#..MTM T=2.20,MARK 4 |
1 | ||
| 90564-76008 |
ACA2#,CLA2#..MTM T=2.35,MARK 7 |
1 | ||
| 90564-76010 |
ACA2#,CLA2#..MTM T=2.45,MARK 9 |
1 | ||
| 90564-76016 |
ACA2#,CLA2#..MTM T=2.75,MARK F |
1 | ||
| 90564-76012 |
ACA2#,CLA2#..MTM T=2.55,MARK B |
1 | ||
| 90564-76014 |
ACA2#,CLA2#..MTM T=2.65,MARK D |
1 | ||
| 90564-76009 |
ACA2#,CLA2#..MTM T=2.40,MARK 8 |
1 | ||
| 90564-76013 |
ACA2#,CLA2#..MTM T=2.60,MARK C |
1 | ||
| 90564-76018 |
ACA2#,CLA2#..MTM T=2.85,MARK H |
1 | ||
| 90564-76015 |
ACA2#,CLA2#..MTM T=2.70,MARK E |
1 | ||
| 90564-76017 |
ACA2#,CLA2#..MTM T=2.80,MARK G |
1 | ||
| 90564-76002 |
ACA2#,CLA2#..MTM T=2.05,MARK 1 |
1 | ||
| 90564-76004 |
ACA2#,CLA2#..MTM T=2.15,MARK 3 |
1 | ||
| 90564-76008 |
ACA2#,CLA2#..MTM T=2.35,MARK 7 |
1 | ||
| 90564-76003 |
ACA2#,CLA2#..MTM T=2.10,MARK 2 |
1 | ||
| 90564-76005 |
ACA2#,CLA2#..MTM T=2.20,MARK 4 |
1 | ||
| 90564-76001 |
ACA2#,CLA2#..MTM T=2.00,MARK 0 |
1 | ||
| 90564-76007 |
ACA2#,CLA2#..MTM T=2.30,MARK 6 |
1 | ||
| 90564-76006 |
ACA2#,CLA2#..MTM T=2.25,MARK 5 |
1 | ||
| 90564-76011 |
ACA2#,CLA2#..MTM T=2.50,MARK A |
1 | ||
| 90564-76010 |
ACA2#,CLA2#..MTM T=2.45,MARK 9 |
1 | ||
| 90564-76012 |
ACA2#,CLA2#..MTM T=2.55,MARK B |
1 | ||
| 90564-76017 |
ACA2#,CLA2#..MTM T=2.80,MARK G |
1 | ||
| 90564-76016 |
ACA2#,CLA2#..MTM T=2.75,MARK F |
1 | ||
| 90564-76018 |
ACA2#,CLA2#..MTM T=2.85,MARK H |
1 | ||
| 90564-76015 |
ACA2#,CLA2#..MTM T=2.70,MARK E |
1 | ||
| 90564-76009 |
ACA2#,CLA2#..MTM T=2.40,MARK 8 |
1 | ||
| 90564-76014 |
ACA2#,CLA2#..MTM T=2.65,MARK D |
1 | ||
| 90564-76013 |
ACA2#,CLA2#..MTM T=2.60,MARK C |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50014 |
ACA2#,CLA2#..MTM |
1 | ||
| 90366-50014 |
ACA2#,CLA2#..MTM |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-62007 |
ACA2#,CLA2#..MTM |
1 | ||
| 90366-62007 |
ACA20,21,CLA2#..MTM |
2 | ||
(0008- )MTM
E352,E352F,E359F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4302 | ||||
