ACA21L-AWMNK (2000)
Toyota Rav4

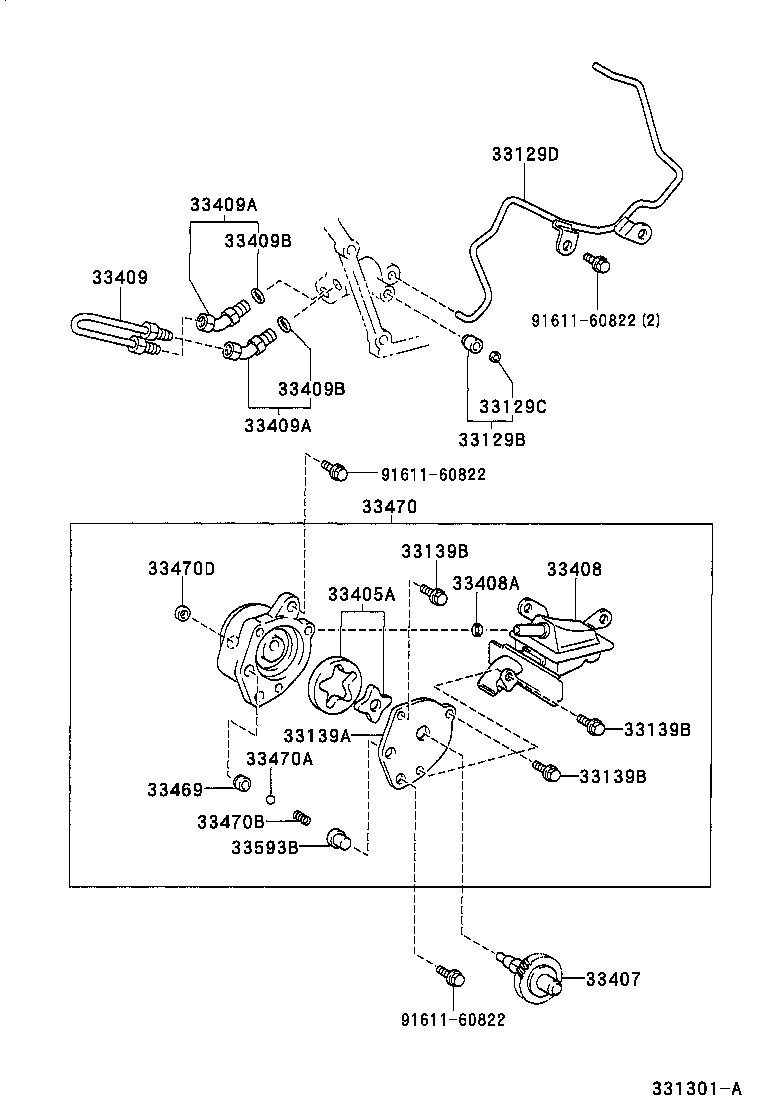

(0005-0511)ACA2#,CLA2#..MTM
E352F,E353F,E359F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-42010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33106-42010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
ACA2#,CLA2#..MTM |
1 | ||
| 90430-09004 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33129D - PIPE, TRANSMISSION OIL, NO.3 | ||||
| 33129-42020 |
ACA2#,CLA2#..MTM |
1 | ||
| 33129-42020 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33139-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ACA20,21,CLA2#..MTM |
3 | ||
| 90119-06199 |
ACA2#,CLA2#..MTM |
3 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ACA20,21,CLA2#..MTM |
3 | ||
| 90119-06199 |
ACA2#,CLA2#..MTM |
3 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ACA20,21,CLA2#..MTM |
3 | ||
| 90119-06199 |
ACA2#,CLA2#..MTM |
3 | ||
| 33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP | ||||
| 33405-20020 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33405-20020 |
ACA2#,CLA2#..MTM |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12031 |
ACA20,21..MTM |
1 | ||
| 33407-12031 |
ACA2#..MTM |
1 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-20011 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33408-20011 |
ACA2#,CLA2#..MTM |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19012 |
ACA2#,CLA2#..MTM |
1 | ||
| 96721-19012 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33409 - TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER | ||||
| 33409-17010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33409-17010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
ACA20,21,CLA2#..MTM |
2 | ||
| 90407-16017 |
ACA2#,CLA2#..MTM |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
ACA20,21,CLA2#..MTM |
2 | ||
| 90407-16017 |
ACA2#,CLA2#..MTM |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ACA2#,CLA2#..MTM |
2 | ||
| 90301-11006 |
ACA20,21,CLA2#..MTM |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ACA2#,CLA2#..MTM |
2 | ||
| 90301-11006 |
ACA20,21,CLA2#..MTM |
2 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33469-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470 - PUMP ASSY, MANUAL TRANSMISSION OIL | ||||
| 33470-12011 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470-12011 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-10003 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90360-10003 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-08092 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90501-08092 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470D - GASKET (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90430-09004 |
ACA2#,CLA2#..MTM |
1 | ||
| 90430-09004 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33593-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| Common parts | ||||
| 91611-60822 | ||||
(0008-0511)ACA21,23..MTM
E352F,E359F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2 | ||||
| 33106-42010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33106-42010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE) | ||||
| 90430-09004 |
ACA2#,CLA2#..MTM |
1 | ||
| 90430-09004 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33129D - PIPE, TRANSMISSION OIL, NO.3 | ||||
| 33129-42020 |
ACA2#,CLA2#..MTM |
1 | ||
| 33129-42020 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33139-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ACA20,21,CLA2#..MTM |
3 | ||
| 90119-06199 |
ACA2#,CLA2#..MTM |
3 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ACA20,21,CLA2#..MTM |
3 | ||
| 90119-06199 |
ACA2#,CLA2#..MTM |
3 | ||
| 33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90119-06199 |
ACA20,21,CLA2#..MTM |
3 | ||
| 90119-06199 |
ACA2#,CLA2#..MTM |
3 | ||
| 33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP | ||||
| 33405-20020 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33405-20020 |
ACA2#,CLA2#..MTM |
1 | ||
| 33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE | ||||
| 33407-12031 |
ACA20,21..MTM |
1 | ||
| 33407-12031 |
ACA2#..MTM |
1 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-20011 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33408-20011 |
ACA2#,CLA2#..MTM |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19012 |
ACA2#,CLA2#..MTM |
1 | ||
| 96721-19012 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33409 - TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER | ||||
| 33409-17010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33409-17010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
ACA20,21,CLA2#..MTM |
2 | ||
| 90407-16017 |
ACA2#,CLA2#..MTM |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-16017 |
ACA20,21,CLA2#..MTM |
2 | ||
| 90407-16017 |
ACA2#,CLA2#..MTM |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ACA2#,CLA2#..MTM |
2 | ||
| 90301-11006 |
ACA20,21,CLA2#..MTM |
2 | ||
| 33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
ACA2#,CLA2#..MTM |
2 | ||
| 90301-11006 |
ACA20,21,CLA2#..MTM |
2 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33469-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470 - PUMP ASSY, MANUAL TRANSMISSION OIL | ||||
| 33470-12011 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470-12011 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90360-10003 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90360-10003 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90501-08092 |
ACA20,21,CLA2#..MTM |
1 | ||
| 90501-08092 |
ACA2#,CLA2#..MTM |
1 | ||
| 33470D - GASKET (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 90430-09004 |
ACA2#,CLA2#..MTM |
1 | ||
| 90430-09004 |
ACA20,21,CLA2#..MTM |
1 | ||
| 33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33593-20010 |
ACA2#,CLA2#..MTM |
1 | ||
| 33593-20010 |
ACA20,21,CLA2#..MTM |
1 | ||
| Common parts | ||||
| 91611-60822 | ||||
