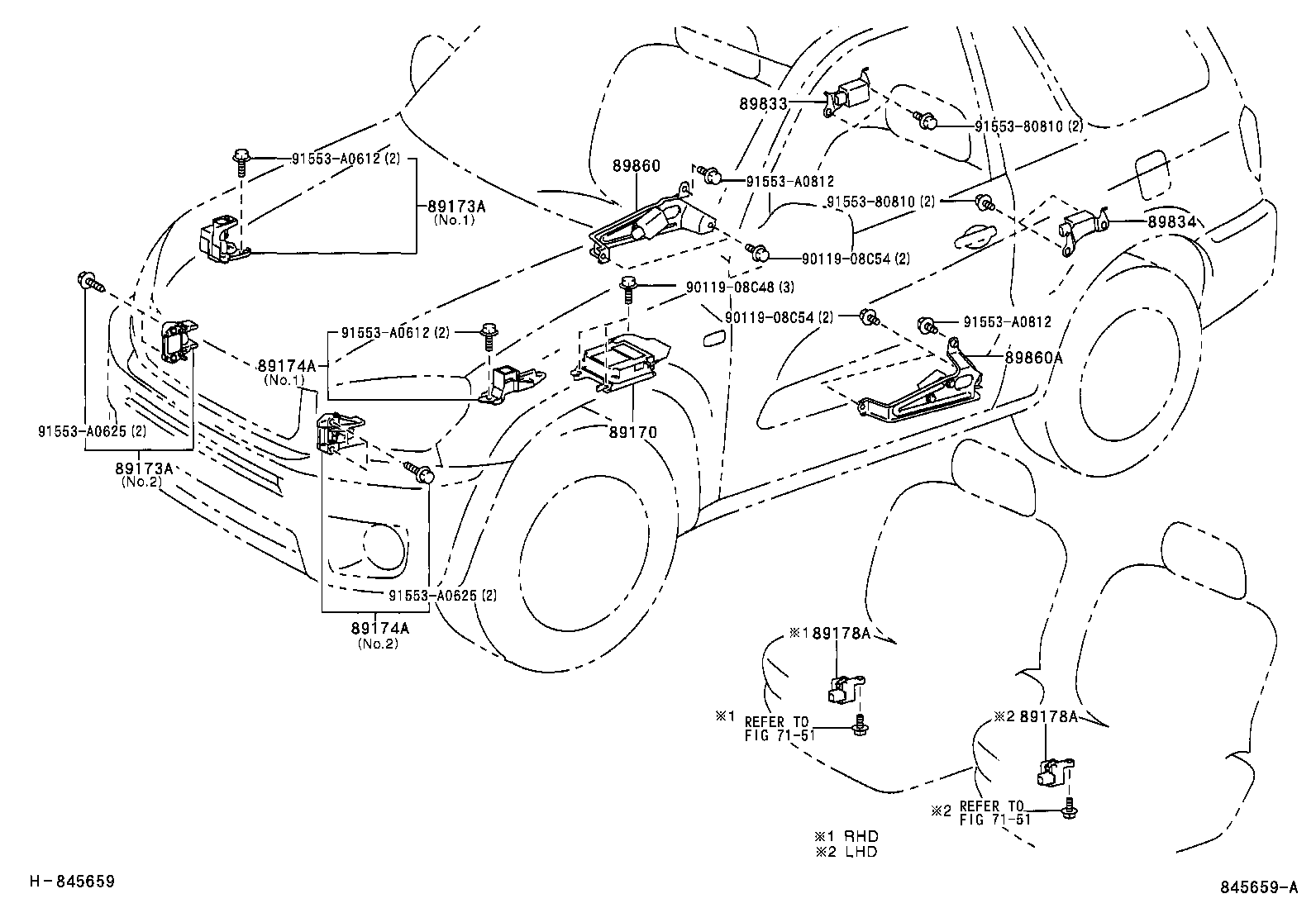

ACA20R-AZMNKW (2000)
Toyota Rav4
(0005-0307)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-42140 |
ACA20,21,CLA2#,ZCA2#..EUR PART NUMBER LABEL=89170-42140 |
1 | ||
| 89170-42160 |
ACA20,21,CLA2#,ZCA2#..EUR PART NUMBER LABEL=89170-42160 |
1 | ||
| 89170-42100 |
ACA2# PART NUMBER LABEL=89170-42100 |
1 | ||
| 89170-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49245 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173-49395 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89173-49245 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89174-49095 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89174-49145 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174-49095 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| Common parts | ||||
| 90119-08C11 | ||||
| 91553-A0612 | ||||
(0307- )ACA20,22,CLA20,ZCA25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-42140 |
ACA20,21,CLA2#,ZCA2#..EUR PART NUMBER LABEL=89170-42140 |
1 | ||
| 89170-42160 |
ACA20,21,CLA2#,ZCA2#..EUR PART NUMBER LABEL=89170-42160 |
1 | ||
| 89170-42100 |
ACA2# PART NUMBER LABEL=89170-42100 |
1 | ||
| 89170-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49245 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173-49395 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89173-49245 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49245 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173-49395 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89173-49245 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89174-49095 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89174-49145 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174-49095 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89174-49095 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89174-49145 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174-49095 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-06020 |
ACA20,21,CLA2#,ZCA2#..EUR |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-06020 |
ACA20,21,CLA2#,ZCA2#..EUR |
1 | ||
| 89833 - SENSOR, AIR BAG, REAR RH | ||||
| 89833-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 89834 - SENSOR, AIR BAG, REAR LH | ||||
| 89834-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89830-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| Common parts | ||||
| 90119-08C48 | ||||
| 90119-08C54 | ||||
| 91553-80810 | ||||
| 91553-A0612 | ||||
| 91553-A0625 | ||||
| 91553-A0812 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(0008-0307)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-42140 |
ACA20,21,CLA2#,ZCA2#..EUR PART NUMBER LABEL=89170-42140 |
1 | ||
| 89170-42160 |
ACA20,21,CLA2#,ZCA2#..EUR PART NUMBER LABEL=89170-42160 |
1 | ||
| 89170-42100 |
ACA2# PART NUMBER LABEL=89170-42100 |
1 | ||
| 89170-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49245 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89173-49395 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89173-49245 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-49295 |
ACA20,21,CLA2#,ZCA2#..EUR W(MECHANICAL TYPE *80),NO.2 |
1 | ||
| 89174-49095 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 89174-49145 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| 89174-49095 |
ACA2# W(ELECTRICAL TYPE *80),NO.1 |
1 | ||
| Common parts | ||||
| 90119-08C11 | ||||
| 91553-A0612 | ||||
(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C48 | ||||
| 91553-80810 | ||||
| 91553-A0625 | ||||
| Linked diagrams | ||||
| 7151 | ||||
