ACA20R-AZMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 7(0005- )ACA2#,ZCA2#

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001C 9162261016 9162261016
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07205

ACA2#,ZCA2#

 1
90980-07205

ACA2#,ZCA2#

 1
82001C - CABLE, BOND, NO.2
90980-07315

ACA2#,ZCA2#

 1
90980-07315

ACA2#,ZCA2#

 1
Common parts
91622-61016

ILLUST NO. 2 OF 7(0005- )ACA2#..RHD

Click highlighted areas on diagram

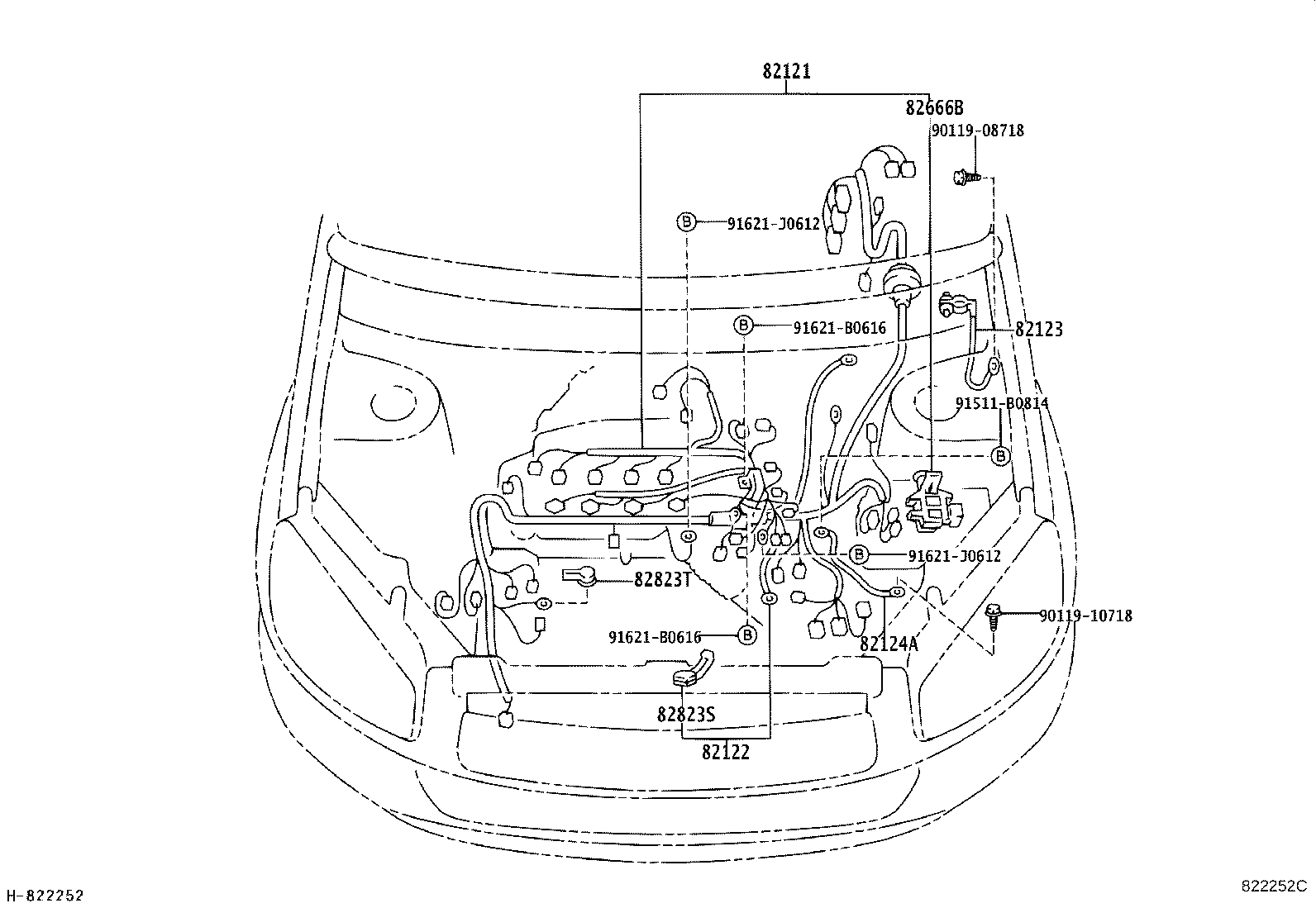

ENGINE

diagram 82121 82122 82123 82124A 82666B 82823S 82823T 9011908718 9011910718 91511B0814 91621B0616 91621B0616 91621J0612 91621J0612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-42650

ACA2#..RHD..MTM..(ARL,EUR)

 1
82121-42790

ACA2#..RHD..MTM..(ARL,EUR)

 1
82121-42791

ACA2#..RHD..MTM..(ARL,EUR)

 1
82122 - WIRE, ENGINE, NO.2
82122-42020

ACA2#..RHD

 1
82122-42020

ACA2#..RHD

 1
82123 - WIRE, ENGINE, NO.3
82123-42080

ACA2#,CLA2#,ZCA2#..RHD

 1
82123-42080

ACA2#,CLA2#,ZCA2#..RHD

 1
82124A - WIRE, ENGINE, NO.5
82124-42040

ACA2#,ZCA2#

 1
82124-42040

ACA2#,ZCA2#

 1
82666B - HOLDER, CONNECTOR NO.3
82666-42100

ACA2#,CLA2#,ZCA2#

 1
82666-42100

ACA2#,CLA2#,ZCA2#

 1
82823S - CAP, STARTER TERMINAL
82823-42010

ACA2#

 1
82823-42010

ACA2#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ACA2#,CLA2#,ZCA2#

 1
82823-22050

ACA2#,CLA2#,ZCA2#

 1
Common parts
90119-08718
90119-10718
91511-B0814
91621-B0616
91621-J0612

ILLUST NO. 5 OF 7(0005- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271116790 827111E260 827111E300 827112D350 8271195D06 8271512420 8271512780 8271521110 8271528A50 827152B200 827152J050 827152J060 827152J070 827152J080 827152J120 8271532390 8271534430 8271542510 8271542520 8271542530 8271542540 8271542550 8271542560 8271542580 8271542590 8271542600 8271542610 8271542680 8271542720 8271542730 8272920010 9094901C15 91511B0818 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0814 9162261014 91631B0614 91631B0614 91671A0612 91671A0612 91671A0612
Part # Description Qty Price
Common parts
82711-16790
82711-1E260
82711-1E300
82711-2D350
82711-95D06
82715-12420
82715-12780
82715-21110
82715-28A50
82715-2B200
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-2J120
82715-32390
82715-34430
82715-42510
82715-42520
82715-42530
82715-42540
82715-42550
82715-42560
82715-42580
82715-42590
82715-42600
82715-42610
82715-42680
82715-42720
82715-42730
82729-20010
90949-01C15
91511-B0818
91621-J0612
91621-J0814
91622-61014
91631-B0614
91671-A0612

ILLUST NO. 4 OF 7(0005- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & BACK DOOR

diagram 6451 6451 82151 82152 82153 82154 82161 82171 82172 82184 82666G 82666L 8601 8601 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 91621J0612 91621J0612
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-42530

ACA20,CLA20,ZCA25..EUR,GCC,GEN

 1
82151-42580

ACA20,CLA20,ZCA25..RHD..EUR

W(KEY LESS ENTRY & POWER DOOR LOCK)

 1
82151-42760

ACA20,22,ZCA25..RHD

W(*80,CURTAIN SHIELD)

 1
82151-42790

ACA20,CLA20,ZCA25..RHD

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
82151-42800

ACA20,CLA20,ZCA25..RHD

W(POWER DOOR LOCK & DOUBLE LOCK & *80,CURTAIN SHIELD)

 1
82151-42750

ACA20,22,ZCA25..RHD

 1
82151-42590

ACA20,CLA20,ZCA25..RHD..EUR

W(KEY LESS ENTRY & POWER DOOR LOCK & POWER WINDOW)

 1
82152 - WIRE, FRONT DOOR, LH
82152-42520

ACA20,CLA20,ZCA25..RHD..EUR

W(KEY LESS ENTRY & POWER DOOR LOCK)

 1
82151-42530

ACA20,CLA20,ZCA25..EUR,GCC,GEN

 1
82152-42530

ACA20,CLA20,ZCA25..RHD..EUR

W(KEY LESS ENTRY & POWER DOOR LOCK & POWER WINDOW)

 1
82152-42660

ACA20,22,ZCA25..RHD

W(*80,CURTAIN SHIELD)

 1
82152-42690

ACA20,CLA20,ZCA25..RHD

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
82152-42650

ACA20,22,ZCA25..RHD

 1
82152-42700

ACA20,CLA20,ZCA25..RHD

W(POWER DOOR LOCK & DOUBLE LOCK & *80,CURTAIN SHIELD)

 1
82161 - WIRE, FLOOR
82161-42790

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82161-42790

 1
82161-42810

ACA20,CLA20,ZCA25..RHD..EUR

PART NUMBER LABEL=82161-42810

 1
82161-42800

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82161-42800

 1
82161-42820

ACA20,CLA20,ZCA25..RHD..EUR

PART NUMBER LABEL=82161-42820

 1
82161-42B90

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82161-42B90

 1
82161-42B70

ACA20,ZCA25..RHD

PART NUMBER LABEL=82161-42B70

 1
82161-42B80

ACA20,ZCA25..RHD

PART NUMBER LABEL=82161-42B80

 1
82161-42B50

ACA20,22..RHD

PART NUMBER LABEL=82161-42B50

 1
82161-42C00

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82161-42C00

 1
82161-42D00

ACA20..RHD

PART NUMBER LABEL=82161-42D00

 1
82161-42B81

ACA20,ZCA25..RHD

PART NUMBER LABEL=82161-42B81

 1
82161-42B51

ACA20,22..RHD

PART NUMBER LABEL=82161-42B51

 1
82161-42B91

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82161-42B91

 1
82161-42C01

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82161-42C01

 1
82161-42B71

ACA20,ZCA25..RHD

PART NUMBER LABEL=82161-42B71

 1
82161-42D01

ACA20..RHD

PART NUMBER LABEL=82161-42D01

 1
82171 - WIRE, ROOF, NO.1
82171-42290

ACA20,22,CLA20,ZCA25..RHD

PART NUMBER LABEL=82171-42290

 1
82171-42200

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82171-42200

 1
82171-42300

ACA20,22,CLA20,ZCA25..RHD

PART NUMBER LABEL=82171-42300

 1
82171-42210

ACA20,CLA20,ZCA25..RHD

PART NUMBER LABEL=82171-42210

 1
82172 - WIRE, ROOF, NO.2
82172-42010

ACA2#,CLA2#,ZCA2#

 1
82184 - WIRE, BACK DOOR, NO.1
82184-42210

ACA2#,CLA2#,ZCA2#..RHD..EUR

 1
82184-42180

ACA2#,CLA2#,ZCA2#..RHD..EUR

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
82184-42210

ACA20,21,ZCA2#..RHD..EUR

 1
82184-42180

ACA20,21,CLA2#,ZCA2#..RHD..EUR

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
82666G - HOLDER, CONNECTOR NO.8
82666-42040

ACA2#,CLA2#,ZCA2#

 1
82666-42120

ACA2#,CLA2#,ZCA2#

 1
82666L - HOLDER, CONNECTOR NO.9
82666-42130

ACA2#,CLA2#,ZCA2#

 1
82666-42050

ACA2#,CLA2#,ZCA2#

 1
Common parts
90119-06915
91621-J0612
Linked diagrams
6451
8601

ILLUST NO. 1 OF 7(0005- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82210C 82666A 82821A 82821A 8401 8401 8401 8414 9011906915 9011906915 9017906274
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-4A110

ACA2#,ZCA2#..RHD

PART NUMBER LABEL=82111-4A110

 1
82111-4A101

ACA2#,ZCA2#..RHD..(ARL,EUR)

PART NUMBER LABEL=82111-4A101

 1
82111-4A100

ACA2#,ZCA2#..RHD

PART NUMBER LABEL=82111-4A100

 1
82111-4A111

ACA2#,ZCA2#..RHD

PART NUMBER LABEL=82111-4A111

 1
82111-42A40

ACA2#,ZCA2#..RHD

PART NUMBER LABEL=82111-42A40

 1
82111-42A30

ACA2#,ZCA2#..RHD..(ARL,EUR)

PART NUMBER LABEL=82111-42A30

 1
82111-42A50

ACA2#..RHD..(ARL,EUR)

PART NUMBER LABEL=82111-42A50

 1
82111-42A31

ACA2#,ZCA2#..RHD..(ARL,EUR)

PART NUMBER LABEL=82111-42A31

 1
82111-42A41

ACA2#,ZCA2#..RHD

PART NUMBER LABEL=82111-42A41

 1
82111-42A51

ACA2#..RHD..(ARL,EUR)

PART NUMBER LABEL=82111-42A51

 1
82210C - FUSIBLE LINK
90982-08280

ACA2#,CLA2#,ZCA2#

30A,TERM.:FEMALE,PNK

 4
90982-08280

ACA2#,CLA2#,ZCA2#

30A,TERM.:FEMALE,PNK

 1
90982-08281

ACA2#,CLA2#,ZCA2#

40A,TERM.:FEMALE,GRN

 1
90982-08281

ACA2#,CLA2#,ZCA2#

40A,TERM.:FEMALE,GRN

 1
90982-08282

ACA2#,ZCA2#

50A,TERM.:FEMALE,RED

 1
82666A - HOLDER, CONNECTOR NO.2
82666-42090

ACA2#,CLA2#,ZCA2#

 1
82666-42090

ACA2#,CLA2#,ZCA2#

 1
82821A - COVER, CONNECTOR
82821-12360

ACA2#,CLA2#,ZCA2#

 2
82821A - COVER, CONNECTOR
82821-12360

ACA2#,CLA2#,ZCA2#

 2
Common parts
90119-06915
90179-06274
Linked diagrams
8401
8414

ILLUST NO. 7 OF 7(0005- )

Click highlighted areas on diagram

CONNECTOR

diagram 9098010619 9098010796 9098011019 9098011096 9098011141 9098011149 9098011159 9098011162 9098011188 9098011188 9098011314 9098011917
Part # Description Qty Price
Common parts
90980-10619
90980-10796
90980-11019
90980-11096
90980-11141
90980-11149
90980-11159
90980-11162
90980-11188
90980-11314
90980-11917

ILLUST NO. 3 OF 7(0005- )RHD

Click highlighted areas on diagram

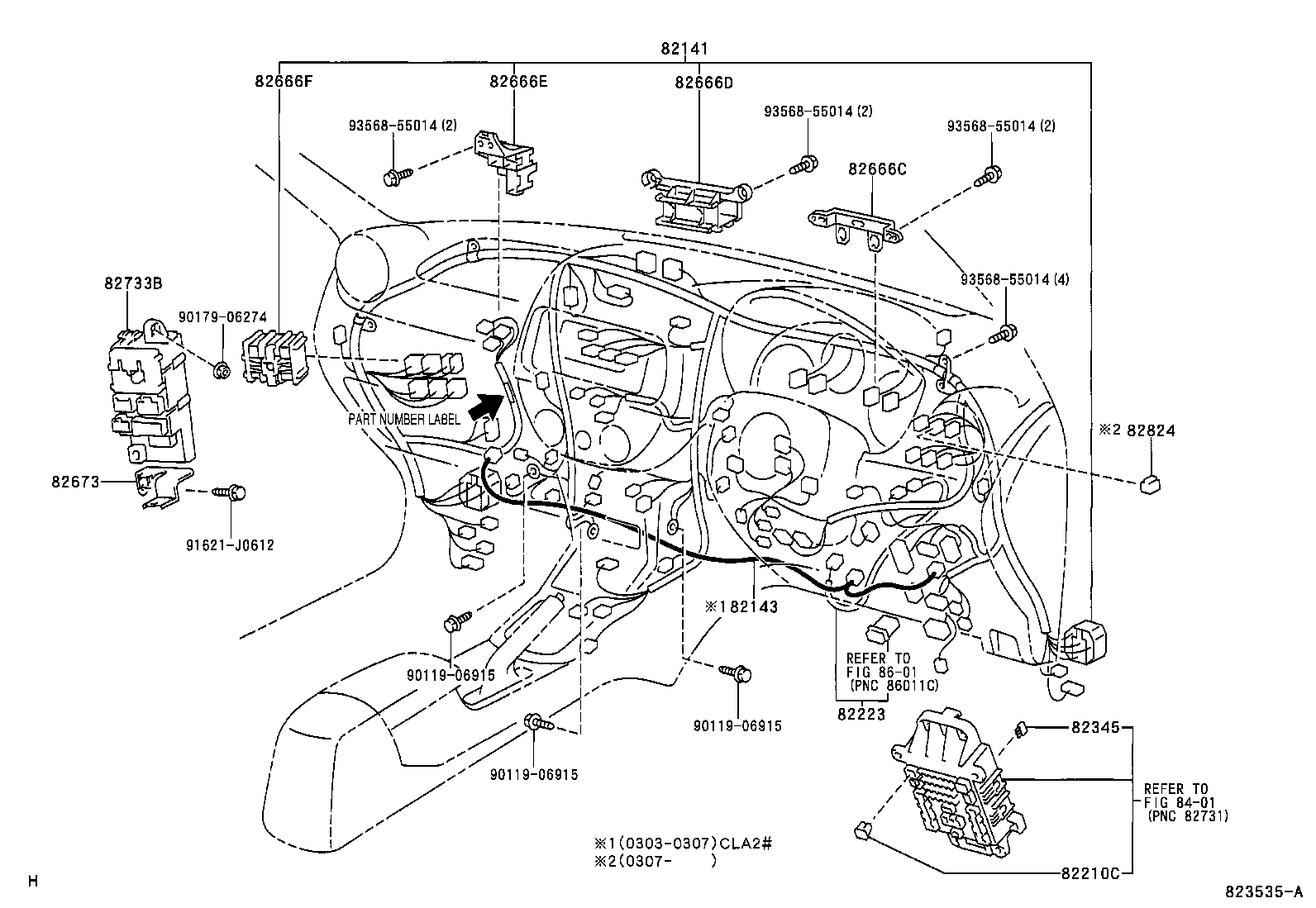

INSTRUMENT PANEL

diagram 82141 82143 82210C 82223 82345 82666C 82666D 82666E 82666F 82673 82733B 82824 8401 8601 9011906915 9011906915 9011906915 9017906274 91621J0612 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-4A860

ACA2#..RHD..MTM..EUR

PART NUMBER LABEL=82141-4A860

 1
82141-42A90

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42A90

 1
82141-42B00

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42B00

 1
82141-42B10

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42B10

 1
82141-42E60

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42E60

 1
82141-42E80

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42E80

 1
82141-42B01

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42B01

 1
82141-42A91

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42A91

 1
82141-42B11

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42B11

 1
82141-42E81

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42E81

 1
82141-42E61

ACA20,21..RHD..EUR

PART NUMBER LABEL=82141-42E61

 1
82210C - FUSIBLE LINK
90982-08280

ACA2#,CLA2#,ZCA2#

30A,TERM.:FEMALE,PNK

 4
90982-08280

ACA2#,CLA2#,ZCA2#

30A,TERM.:FEMALE,PNK

 1
90982-08281

ACA2#,CLA2#,ZCA2#

40A,TERM.:FEMALE,GRN

 1
90982-08281

ACA2#,CLA2#,ZCA2#

40A,TERM.:FEMALE,GRN

 1
90982-08282

ACA2#,ZCA2#

50A,TERM.:FEMALE,RED

 1
82223 - WIRE, SWITCH
82223-42120

ACA2#..RHD..MTM..(ARL,EUR)

W(CRUISE CONTROL)

 1
82223-42140

ACA2#,ZCA2#..RHD

 1
82223-42010

ACA2#,ZCA2#..RHD

 1
82223-42010

ACA2#,CLA2#,ZCA2#..RHD

 1
82345 - DIODE
82345-32020

ACA2#,CLA2#,ZCA2#

 1
82345-32020

ACA2#,CLA2#,ZCA2#

 1
82666C - HOLDER, CONNECTOR NO.4
82666-42030

ACA2#,CLA2#,ZCA2#

 1
82666-42030

ACA2#,CLA2#,ZCA2#

 1
82666D - HOLDER, CONNECTOR NO.5
82666-42060

ACA2#,CLA2#,ZCA2#

 1
82666-42060

ACA2#,CLA2#,ZCA2#

 1
82666E - HOLDER, CONNECTOR NO.6
82666-42070

ACA2#,CLA2#,ZCA2#..RHD

 1
82666-42140

ACA2#,CLA2#,ZCA2#..RHD

 1
82666F - HOLDER, CONNECTOR NO.7
82666-42110

ACA2#,CLA2#,ZCA2#

 1
82666-42110

ACA2#,CLA2#,ZCA2#

 1
82673 - BRACKET, JUNCTION BLOCK
82673-42070

ACA2#,CLA2#,ZCA2#..RHD

 1
82673-42070

ACA2#,CLA2#,ZCA2#..RHD

 1
82733B - BLOCK, PASSENGER SIDE JUNCTION
82733-42050

ACA2#,ZCA2#..RHD

 1
82733-42050

ACA2#,CLA2#,ZCA2#..RHD

 1
82733-42060

ACA2#,CLA2#,ZCA2#..RHD..EUR

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
82733-42060

ACA20,21,CLA2#,ZCA2#..RHD..EUR

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
82733-42051

ACA2#,ZCA2#..RHD

 1
82733-42061

ACA20,21,CLA2#,ZCA2#..RHD..EUR

W(POWER DOOR LOCK & DOUBLE LOCK)

 1
Common parts
90119-06915
90179-06274
91621-J0612
93568-55014
Linked diagrams
8401
8601

ILLUST NO. 6 OF 7(0008- )

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001C 9162261016 9162261016
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07205

ACA2#,ZCA2#

 1
90980-07205

ACA2#,ZCA2#

 1
82001C - CABLE, BOND, NO.2
90980-07315

ACA2#,ZCA2#

 1
90980-07315

ACA2#,ZCA2#

 1
Common parts
91622-61016

ILLUST NO. 2 OF 7(0008- )

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82123 82124A 82666B 82823S 82823T 9011908718 9011910718 91511B0814 91621B0616 91621B0616 91621B0616 91621J0612 91621J0612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-42650

ACA2#..RHD..MTM..(ARL,EUR)

 1
82121-42790

ACA2#..RHD..MTM..(ARL,EUR)

 1
82121-42791

ACA2#..RHD..MTM..(ARL,EUR)

 1
82122 - WIRE, ENGINE, NO.2
82122-42020

ACA2#..RHD

 1
82122-42020

ACA2#..RHD

 1
82123 - WIRE, ENGINE, NO.3
82123-42080

ACA2#,CLA2#,ZCA2#..RHD

 1
82123-42080

ACA2#,CLA2#,ZCA2#..RHD

 1
82124A - WIRE, ENGINE, NO.5
82124-42040

ACA2#,ZCA2#

 1
82124-42040

ACA2#,ZCA2#

 1
82666B - HOLDER, CONNECTOR NO.3
82666-42100

ACA2#,CLA2#,ZCA2#

 1
82666-42100

ACA2#,CLA2#,ZCA2#

 1
82823S - CAP, STARTER TERMINAL
82823-42010

ACA2#

 1
82823-42010

ACA2#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

ACA2#,CLA2#,ZCA2#

 1
82823-22050

ACA2#,CLA2#,ZCA2#

 1
Common parts
90119-08718
90119-10718
91511-B0814
91621-B0616
91621-J0612

ILLUST NO. 1 OF 7(0008- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82210C 82666A 8401 8401 8401 8414 9011906915 9011906915 9017906274
Part # Description Qty Price
Common parts
90119-06915
90179-06274
Linked diagrams
8401
8414

ILLUST NO. 3 OF 7(0008- )

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82144 82210C 82223 82345 82666C 82666D 82666E 82666F 82673 82733B 8401 9011906915 9011906915 9011906915 9017906274 91621J0612 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
Common parts
90119-06915
90179-06274
91621-J0612
93568-55014
Linked diagrams
8401

ILLUST NO. 4 OF 7(0008- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & BACK DOOR

diagram 6451 6451 82151 82152 82153 82154 82161 82171 82172 82184 82666G 82666L 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 91621J0612 91621J0612
Part # Description Qty Price
Common parts
90119-06915
91621-J0612
Linked diagrams
6451

ILLUST NO. 5 OF 7(0008- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271116790 827111E260 827111E300 827112D350 8271195D06 8271521110 8271528A50 827152J060 827152J070 827152J080 827152J120 8271542510 8271542520 8271542540 8271542610 8271542680 91511B0818 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0612 91621J0814 91631B0614
Part # Description Qty Price
Common parts
82711-16790
82711-1E260
82711-1E300
82711-2D350
82711-95D06
82715-21110
82715-28A50
82715-2J060
82715-2J070
82715-2J080
82715-2J120
82715-42510
82715-42520
82715-42540
82715-42610
82715-42680
91511-B0818
91621-J0612
91621-J0814
91631-B0614

ILLUST NO. 7 OF 7(0008- )

Click highlighted areas on diagram

CONNECTOR

diagram 9098010619 9098010796 9098011019 9098011096 9098011156 9098011188 9098011314
Part # Description Qty Price
Common parts
90980-10619
90980-10796
90980-11019
90980-11096
90980-11156
90980-11188
90980-11314
