ACA20R-AZMNKW (2000)
Toyota Rav4

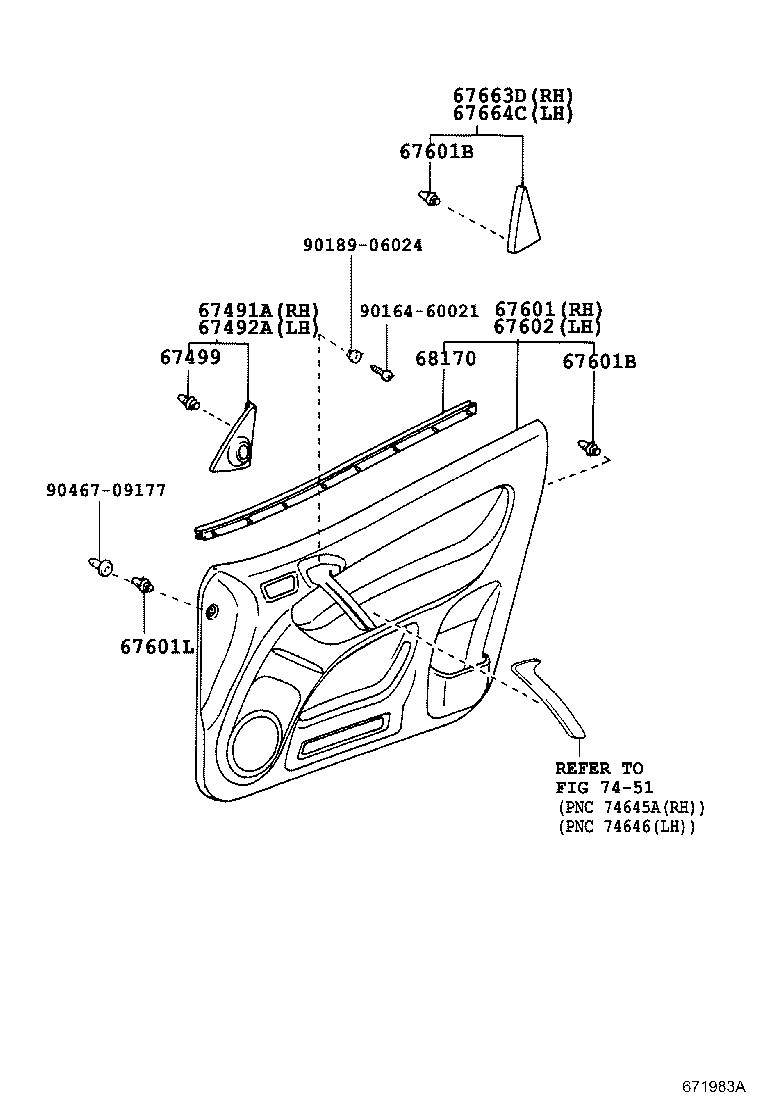

ILLUST NO. 1 OF 4(0005- )ACA20,22,CLA20,ZCA25
3 DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-42040 |
ACA20,21,CLA2#,ZCA2#..EUR W(TWEETER SPEAKER) |
1 | ||
| 67491-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67491-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67492-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67492-42040 |
ACA20,21,CLA2#,ZCA2#..EUR W(TWEETER SPEAKER) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-17020 |
ACA20,CLA20,ZCA25 |
8 | ||
| 67771-17020 |
ACA20,22,CLA20,ZCA25 |
8 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-42570B0 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14 |
1 | ||
| 67610-42580B1 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15 |
1 | ||
| 67610-42570B1 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15 |
1 | ||
| 67610-42580B0 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14 |
1 | ||
| 67610-42670B0 |
ACA20,CLA20,ZCA25 LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67610-42600B1 |
ACA20,CLA20,ZCA25..EUR,GCC DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1# |
1 | ||
| 67610-42660B0 |
ACA20,22,CLA20,ZCA25 W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACA20,22,CLA20,ZCA25 |
16 | ||
| 90467-09206 |
ACA20,CLA20,ZCA25 |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACA20,22,CLA20,ZCA25 |
16 | ||
| 90467-09206 |
ACA20,CLA20,ZCA25 |
16 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133B7 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 90467-06133B8 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-42580B1 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15 |
1 | ||
| 67620-42580B0 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14 |
1 | ||
| 67620-42570B0 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14 |
1 | ||
| 67620-42670B0 |
ACA20,CLA20,ZCA25 LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67620-42570B1 |
ACA20,CLA20,ZCA25 DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15 |
1 | ||
| 67620-42660B0 |
ACA20,22,CLA20,ZCA25 W(POWER WINDOW),DK.GRAY,TRIM1# |
1 | ||
| 67620-42600B1 |
ACA20,CLA20,ZCA25..EUR,GCC DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67663-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67664-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-42030 |
ACA20,CLA20,ZCA25 LH |
1 | ||
| 68171-42030 |
ACA20,CLA20,ZCA25 RH |
1 | ||
| 68172-42030 |
ACA20,22,CLA20,ZCA25 LH |
1 | ||
| 68171-42030 |
ACA20,22,CLA20,ZCA25 RH |
1 | ||
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06024 | ||||
| 90467-09177 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 3 OF 4(0005-0307)
| Part # | Description | Qty | Price |
|---|

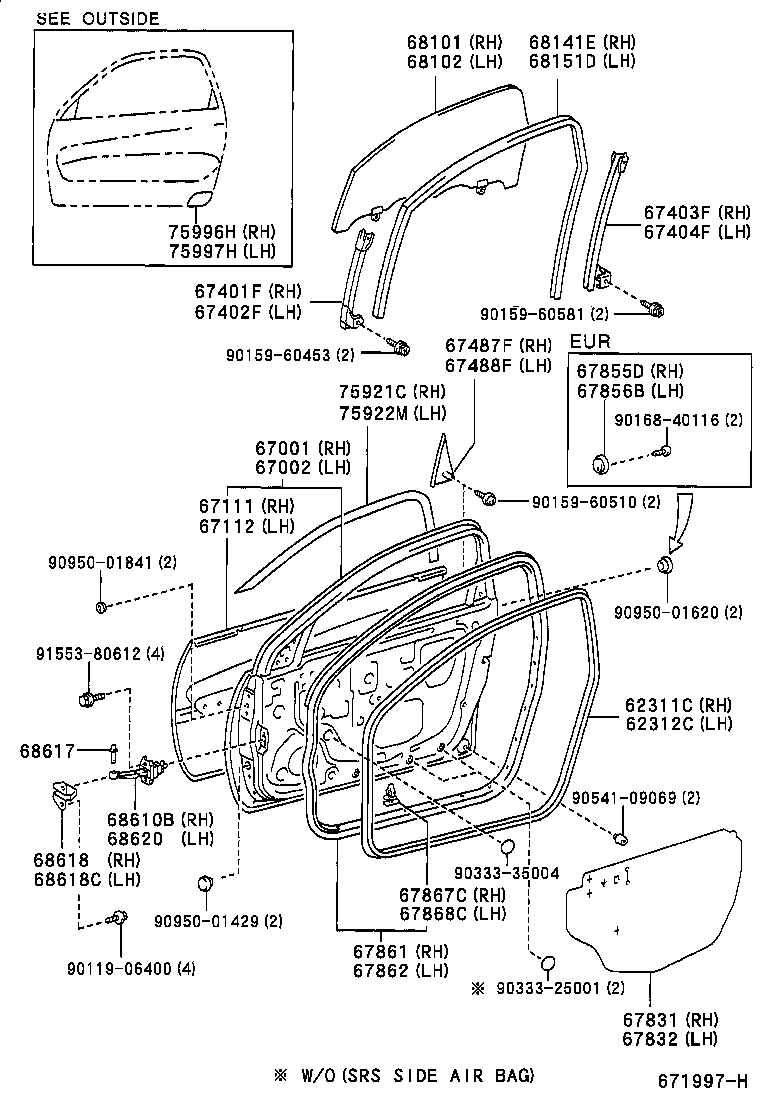

ILLUST NO. 2 OF 4(0005- )ACA20,22,CLA20,ZCA25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-42041B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62311-42040B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62311-42041B2 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-42041B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62312-42040B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62312-42041B2 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-42100 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67001-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67002-42100 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67111-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67112-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67401-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67402-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67403-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67404-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67487F - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67487-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67488F - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67488-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-42050 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67831-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-42050 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67831-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-53010 |
ACA20,21,CLA2#,ZCA2#..RHD..EUR |
1 | ||
| 67855-53010 |
ACA2#,CLA2#,ZCA2#..RHD..EUR |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-53010 |
ACA2#,CLA2#,ZCA2#..RHD..EUR |
1 | ||
| 67855-53010 |
ACA20,21,CLA2#,ZCA2#..RHD..EUR |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-42031 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67861-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67861-42031 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-42031 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67862-42031 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67862-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACA20,22,CLA20,ZCA25 |
19 | ||
| 67867-12150 |
ACA20,CLA20,ZCA25 |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACA20,22,CLA20,ZCA25 |
19 | ||
| 67867-12150 |
ACA20,CLA20,ZCA25 |
19 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-42070 |
ACA20,CLA20,ZCA25 *UVCTT,T=4.0,GREEN |
1 | ||
| 68101-42140 |
ACA20,22,CLA20,ZCA25 *UVCT,T=4.0,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-42070 |
ACA20,CLA20,ZCA25 *UVCTT,T=4.0,GREEN |
1 | ||
| 68102-42140 |
ACA20,22,CLA20,ZCA25 *UVCT,T=4.0,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-42041 |
ACA20,CLA20,ZCA25 |
1 | ||
| 68141-42040 |
ACA20,CLA20,ZCA25 |
1 | ||
| 68141-42042 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 68141-42042 |
ACA20,CLA20,ZCA25 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-42042 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 68151-42040 |
ACA20,CLA20,ZCA25 |
1 | ||
| 68151-42041 |
ACA20,CLA20,ZCA25 |
1 | ||
| 68151-42042 |
ACA20,CLA20,ZCA25 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68610-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-53010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 68617-20011 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 68617-53010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68618-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68618-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 68610-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 75921-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 75922-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 75996H - STRIPE, REAR BODY, RH | ||||
| 75996-42080 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75996-42080 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75997H - STRIPE, REAR BODY, LH | ||||
| 75997-42080 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75997-42080 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| Common parts | ||||
| 90119-06400 | ||||
| 90159-60453 | ||||
| 90159-60510 | ||||
| 90159-60581 | ||||
| 90168-40116 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91553-80612 | ||||
ILLUST NO. 4 OF 4(0005- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 4(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06024 | ||||
| 90467-09177 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 2 OF 4(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06400 | ||||
| 90159-60581 | ||||
| 90541-09069 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01872 | ||||
| 91553-80612 | ||||
ILLUST NO. 4 OF 4(0008- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 4(0008-0307)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 4(0307- )
| Part # | Description | Qty | Price |
|---|
