ACA20R-AZMNKW (2000)
Toyota Rav4

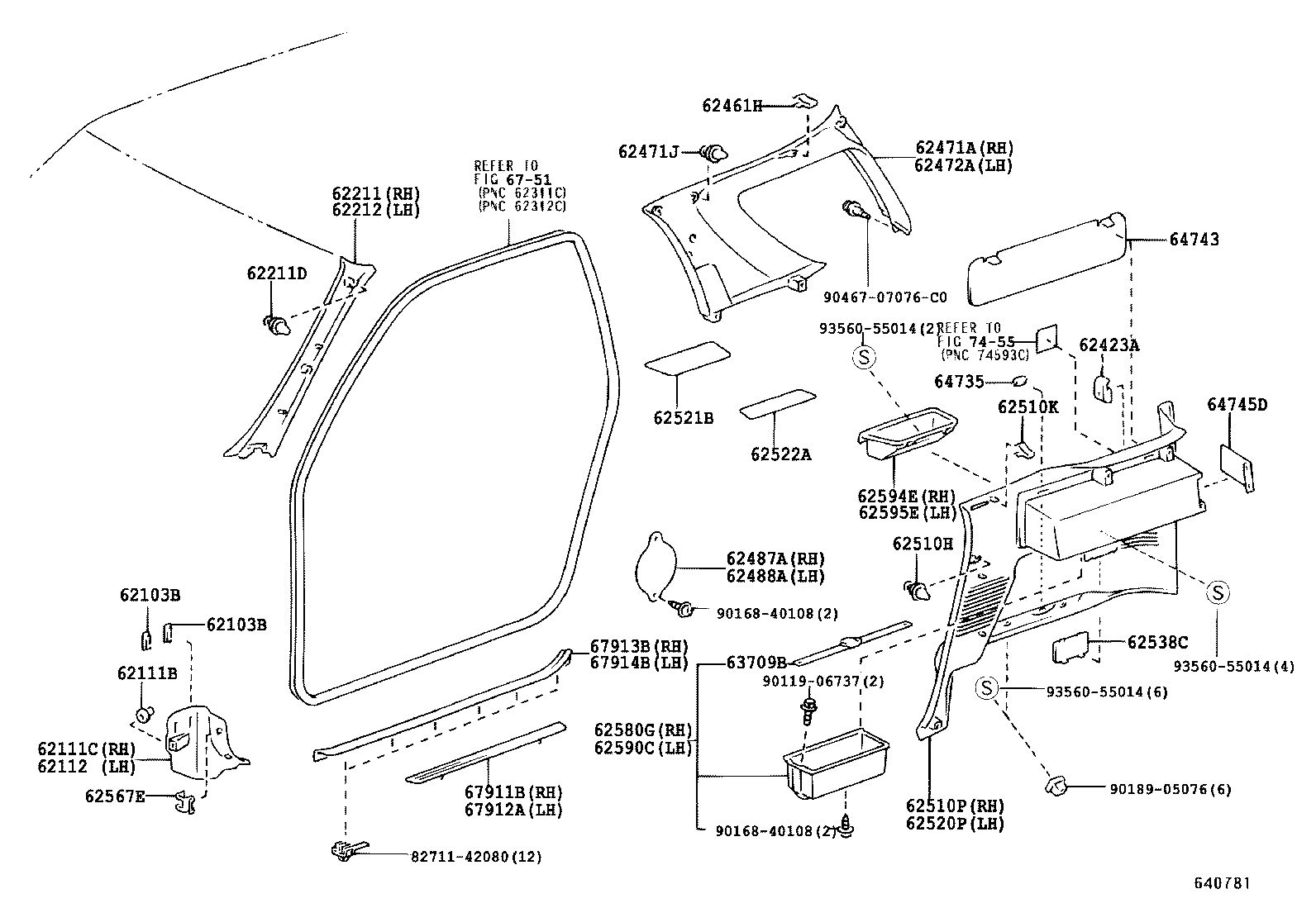

(0005-0307)ACA20,CLA20,ZCA25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103B - PLUG(FOR COWL SIDE TRIM BOARD) | ||||
| 90950-01267B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 90950-01267B3 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
2 | ||
| 62103B - PLUG(FOR COWL SIDE TRIM BOARD) | ||||
| 90950-01267B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 90950-01267B3 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06094 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 90467-06094 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-42031B1 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 62111-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62111-42031B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62112-42031B1 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 62112-42031B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-42010B0 |
ACA2#,CLA2#,ZCA2# NEW GRAY,TRIM1# |
1 | ||
| 62215-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62210-42020B0 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 90467-10161 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-42010B0 |
ACA2#,CLA2#,ZCA2# NEW GRAY,TRIM1# |
1 | ||
| 62220-42020B0 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62216-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62423A - HOOK, SIDE WINDOW GARNISH | ||||
| 62423-42010B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 62423-42010B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
2 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90468-05077 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62550-42010B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ACA20,22,CLA20,ZCA25 |
4 | ||
| 90467-10161 |
ACA20,CLA20,ZCA25 |
12 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62560-42010B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62472-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-42040B0 |
ACA20,22,CLA20,ZCA25 W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62487-42030B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62487-42010 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-42020B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62488-42030B0 |
ACA20,22,CLA20,ZCA25 W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62487-42010 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
ACA20,CLA20,ZCA25 |
16 | ||
| 90467-10161 |
ACA20,22,CLA20,ZCA25 |
16 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90468-05077 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 90468-05077 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62511-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62511-42030B0 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62511-42020B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62512-42030B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62512-42020B0 |
ACA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62512-42030B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62512-42040B0 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62521-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62522-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
2 | ||
| 62538-42020B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
2 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62567-21010 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62567-21010 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62580G - BOX ASSY, SIDE TRIM, RH | ||||
| 62580-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62580-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62590C - BOX ASSY, SIDE TRIM, LH | ||||
| 62590-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62590-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62594E - POCKET, QUARTER TRIM, RH | ||||
| 62594-42030B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62594-42030B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62595E - POCKET, QUARTER TRIM, LH | ||||
| 62595-42030B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62595-42030B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 63709B - BAND SUB-ASSY, ROOM RACK | ||||
| 63709-42011 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 63709-42011 |
ACA20,CLA20,ZCA25 |
2 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-42010B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 64735-42010B3 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 64743 - COVER, SIDE TRIM TOOL BAG | ||||
| 64743-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
2 | ||
| 64743-42020B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
2 | ||
| 64745D - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 64745-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67911-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67912-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-42070B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 67913-42070B0 |
ACA20,ZCA25..EUR,GCC BLUE GRAY,TRIM14,15,1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-42070B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 67914-42070B0 |
ACA20,ZCA25..EUR,GCC BLUE GRAY,TRIM14,15,1# |
1 | ||
| Common parts | ||||
| 82711-42080 | ||||
| 90119-06737 | ||||
| 90168-40108 | ||||
| 90189-05076 | ||||
| 90467-07076C0 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 7455 | ||||

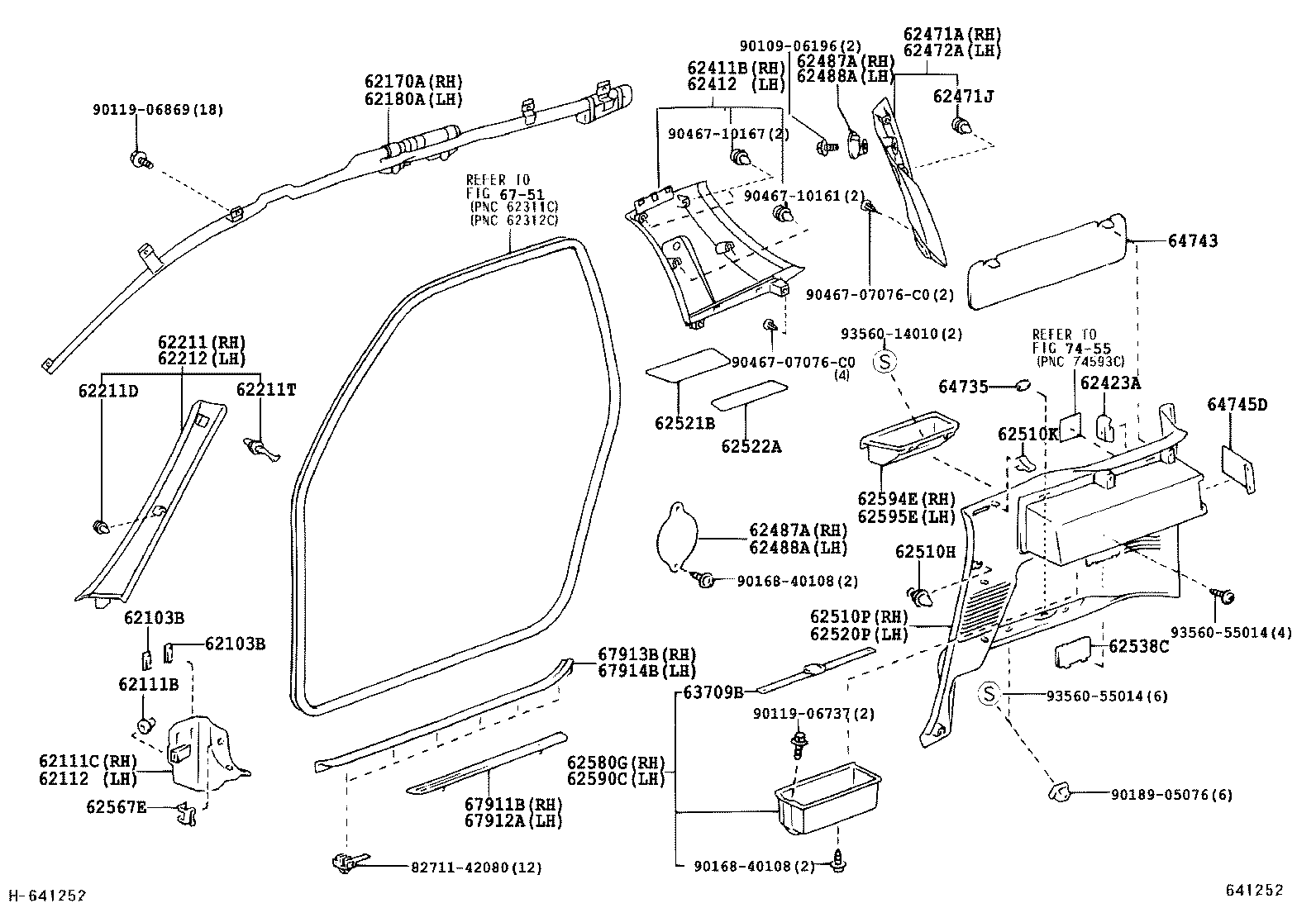

(0307- )ACA20,22,CLA20,ZCA25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103B - PLUG(FOR COWL SIDE TRIM BOARD) | ||||
| 90950-01267B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 90950-01267B3 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
2 | ||
| 62103B - PLUG(FOR COWL SIDE TRIM BOARD) | ||||
| 90950-01267B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 90950-01267B3 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06094 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 90467-06094 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-42031B1 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 62111-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62111-42031B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62112-42031B1 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 62112-42031B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-42010B0 |
ACA2#,CLA2#,ZCA2# NEW GRAY,TRIM1# |
1 | ||
| 62215-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62210-42020B0 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 90467-10161 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08004 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-42010B0 |
ACA2#,CLA2#,ZCA2# NEW GRAY,TRIM1# |
1 | ||
| 62220-42020B0 |
ACA2#,CLA2#,ZCA2#..ARL,EUR,GCC W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62216-42030B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62410-42030B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-42030B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62423A - HOOK, SIDE WINDOW GARNISH | ||||
| 62423-42010B0 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
2 | ||
| 62423-42010B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
2 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62550-42010B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ACA20,22,CLA20,ZCA25 |
4 | ||
| 90467-10161 |
ACA20,CLA20,ZCA25 |
12 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62560-42010B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62472-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-42040B0 |
ACA20,22,CLA20,ZCA25 W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62487-42030B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62487-42010 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-42040B0 |
ACA20,22,CLA20,ZCA25 W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62487-42030B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62487-42010 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-42020B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62488-42030B0 |
ACA20,22,CLA20,ZCA25 W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62487-42010 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-42020B0 |
ACA20,22,CLA20,ZCA25 NEW GRAY,TRIM1# |
1 | ||
| 62488-42030B0 |
ACA20,22,CLA20,ZCA25 W(SRS CURTAIN SHIELD AIR BAG),NEW GRAY,TRIM1# |
1 | ||
| 62487-42010 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
ACA20,CLA20,ZCA25 |
16 | ||
| 90467-10161 |
ACA20,22,CLA20,ZCA25 |
16 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90468-05077 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 90468-05077 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62511-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62511-42030B0 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62511-42020B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62512-42030B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62512-42020B0 |
ACA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62512-42030B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62512-42040B0 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62521-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62522-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
2 | ||
| 62538-42020B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
2 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62567-21010 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62567-21010 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 62580G - BOX ASSY, SIDE TRIM, RH | ||||
| 62580-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62580-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62590C - BOX ASSY, SIDE TRIM, LH | ||||
| 62590-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 62590-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 62594E - POCKET, QUARTER TRIM, RH | ||||
| 62594-42030B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62594-42030B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 62595E - POCKET, QUARTER TRIM, LH | ||||
| 62595-42030B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 62595-42030B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
1 | ||
| 63709B - BAND SUB-ASSY, ROOM RACK | ||||
| 63709-42011 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 63709-42011 |
ACA20,CLA20,ZCA25 |
2 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-42010B2 |
ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
1 | ||
| 64735-42010B3 |
ACA2#,CLA2#,ZCA2# DK.GRAY,TRIM1# |
1 | ||
| 64743 - COVER, SIDE TRIM TOOL BAG | ||||
| 64743-42020B0 |
ACA20,CLA20,ZCA25 BLUE GRAY,TRIM14,15 |
2 | ||
| 64743-42020B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
2 | ||
| 64745D - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 64745-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67911-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 67912-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-42070B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 67913-42070B0 |
ACA20,ZCA25..EUR,GCC BLUE GRAY,TRIM14,15,1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-42070B1 |
ACA20,22,CLA20,ZCA25 DK.GRAY,TRIM1# |
1 | ||
| 67914-42070B0 |
ACA20,ZCA25..EUR,GCC BLUE GRAY,TRIM14,15,1# |
1 | ||
| Common parts | ||||
| 82711-42080 | ||||
| 90109-06196 | ||||
| 90119-06737 | ||||
| 90119-06869 | ||||
| 90168-40108 | ||||
| 90189-05076 | ||||
| 90467-07076C0 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93560-14010 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 7455 | ||||
(0008-0307)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-42080 | ||||
| 90189-05076 | ||||
| 90467-07076C0 | ||||
| 90467-10161 | ||||
| 93560-14010 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-42080 | ||||
| 90109-06196 | ||||
| 90119-06869 | ||||
| 90189-05076 | ||||
| 90467-07076C0 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93560-14010 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 6751 | ||||
| 6755 | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
