ACA20R-AZMNKW (2000)
Toyota Rav4

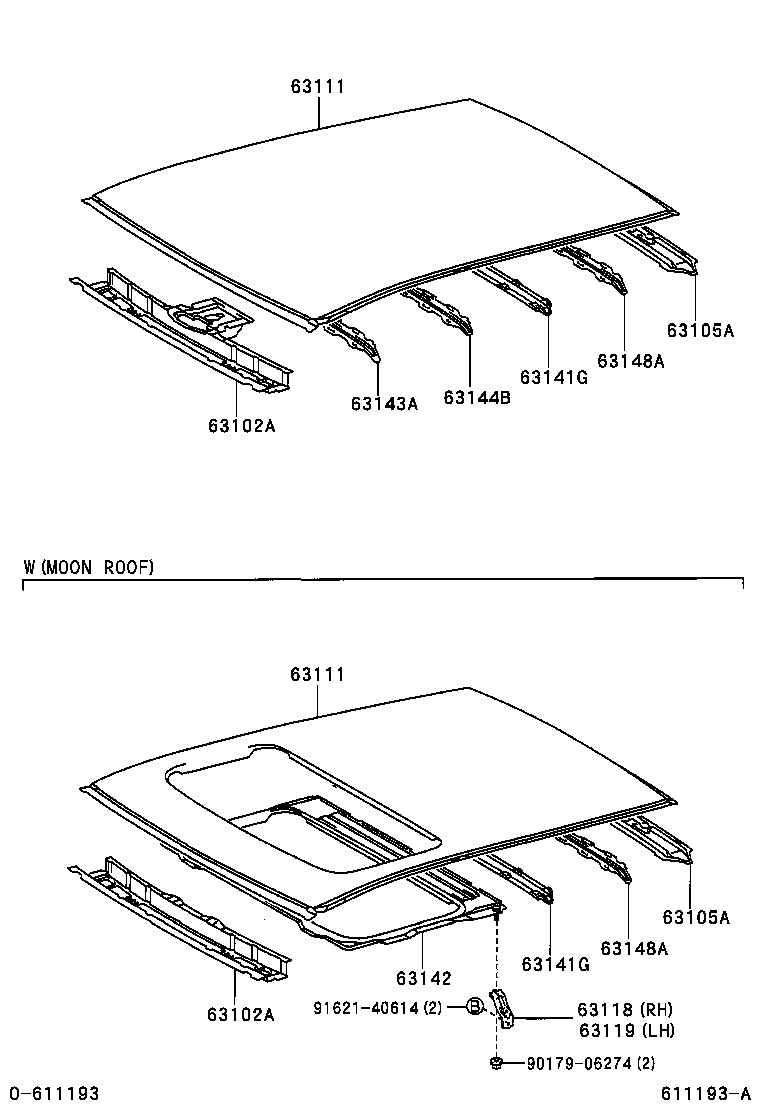

ILLUST NO. 1 OF 3(0005- )ACA20,22,CLA20,ZCA25
ROOF PANEL, 3DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-42010 |
ACA20,ZCA25;ACA21..GCC,GEN;ACA21,ZCA26..LHD..MTM..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,22,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-42010 |
ACA20,ZCA25;ACA21..GCC,GEN;ACA21,ZCA26..LHD..MTM..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,22,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63111-42070 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63111-42070 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-42040 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63118-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63118-42040 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42040 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42040 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63141-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63141-42040 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42040 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63104-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63143-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63144-42021 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63144-42021 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63148-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63148-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91621-40614 | ||||
ILLUST NO. 2 OF 3(0005- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-42081 |
ACA20,CLA20,ZCA25 *TEM,T=4.0,GRAY |
1 | ||
| 63201-42080 |
CLA20,ZCA25;ACA20..LHD..EUR;ACA20..RHD..(EUR,GEN) *TEM,T=4.0,GRAY |
1 | ||
| 63201-42080 |
ACA20,CLA20,ZCA25 *TEM,T=4.0,GRAY |
1 | ||
| 63201-42082 |
ACA20,22,CLA20,ZCA25 *TEM,T=4.0,GRAY |
1 | ||
| 63201-42081 |
ACA20,22,CLA20,ZCA25 *TEM,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63202-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-42051 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63209-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63214-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42080 |
ACA20,CLA20,ZCA25 REAR |
2 | ||
| 63249-42090 |
ACA2#,CLA2#,ZCA2# FRONT |
2 | ||
| 63249-42082 |
ACA20,22,CLA20,ZCA25 REAR |
2 | ||
| 63249-42092 |
ACA2#,CLA2#,ZCA2# FRONT |
2 | ||
| 63249-42090 |
ACA2#,CLA2#,ZCA2# FRONT |
2 | ||
| 63249-42080 |
ACA20,22,CLA20,ZCA25 REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42080 |
ACA20,CLA20,ZCA25 REAR |
2 | ||
| 63249-42090 |
ACA2#,CLA2#,ZCA2# FRONT |
2 | ||
| 63249-42082 |
ACA20,22,CLA20,ZCA25 REAR |
2 | ||
| 63249-42092 |
ACA2#,CLA2#,ZCA2# FRONT |
2 | ||
| 63249-42090 |
ACA2#,CLA2#,ZCA2# FRONT |
2 | ||
| 63249-42080 |
ACA20,22,CLA20,ZCA25 REAR |
2 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63223-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63224-33020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-33031 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63233-33031 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 63239-12030 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-42030 |
ACA20,CLA20,ZCA25 |
4 | ||
| 63241-42060 |
ACA20,22,CLA20,ZCA25 |
4 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-42030 |
ACA20,CLA20,ZCA25 |
4 | ||
| 63241-42060 |
ACA20,22,CLA20,ZCA25 |
4 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-42080 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63260-42080 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63265-12040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 63279-12030 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 63625A - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-33030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63625-33030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63626A - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-33030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63626-33030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90149-40031 | ||||
| 90154-40029 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06274 | ||||
| 90467-07152C0 | ||||
| 90467-14001 | ||||
| 90469-15003 | ||||
| 90480-26026 | ||||
| 90959-01553 | ||||
| 91621-J0612 | ||||
| 96160-00400 | ||||
ILLUST NO. 3 OF 3(0005- )
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185D - BRACKET, ROOF RACK, FRONT | ||||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# W(ROOF RACK) |
2 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63185-42020 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63187-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63437-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63437-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63460A - RACK ASSY, ROOF, RH | ||||
| 63460-42021A0 |
ACA20,CLA20,ZCA25 WHITE,056 |
1 | ||
| 63460-42021F0 |
ACA20,CLA20,ZCA25 CHAMPAGNE ME.,586 |
1 | ||
| 63460-42022A0 |
ACA20,CLA20,ZCA25 WHITE,056 |
1 | ||
| 63460-42021B1 |
ACA20,CLA20,ZCA25 BLACK,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63460-42022B0 |
ACA20,CLA20,ZCA25 SILVER ME.,1D4 |
1 | ||
| 63460-42022F0 |
ACA20,CLA20,ZCA25 CHAMPAGNE ME.,586 |
1 | ||
| 63460-42022B1 |
ACA20,CLA20,ZCA25 BLACK,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63460-42021B0 |
ACA20,CLA20,ZCA25 SILVER ME.,1D4 |
1 | ||
| 63460-42023 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63470-42021A0 |
ACA20,CLA20,ZCA25 WHITE,056 |
1 | ||
| 63470-42022A0 |
ACA20,CLA20,ZCA25 WHITE,056 |
1 | ||
| 63470-42021B0 |
ACA20,CLA20,ZCA25 SILVER ME.,1D4 |
1 | ||
| 63470-42022B0 |
ACA20,CLA20,ZCA25 SILVER ME.,1D4 |
1 | ||
| 63470-42022F0 |
ACA20,CLA20,ZCA25 CHAMPAGNE ME.,586 |
1 | ||
| 63470-42021F0 |
ACA20,CLA20,ZCA25 CHAMPAGNE ME.,586 |
1 | ||
| 63470-42022B1 |
ACA20,CLA20,ZCA25 BLACK,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63470-42023 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63470-42021B1 |
ACA20,CLA20,ZCA25 BLACK,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63479-42010 |
ACA2#,CLA2#,ZCA2# |
6 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63486-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63487-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63488-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63489-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63491-42021B1 |
ACA20,CLA20,ZCA25 BLACK,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63491-42022 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-42021B1 |
ACA20,CLA20,ZCA25 BLACK,056 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63492-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63492-42022 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-42012 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63493-42011B1 |
ACA2#,CLA2#,ZCA2# BLACK,056 ,1D2 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63493-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63494-42011B1 |
ACA2#,CLA2#,ZCA2# BLACK,056 ,1D2 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1 |
1 | ||
| 63494-42012 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 63230-42010 | ||||
| 90152-50024 | ||||
| 90901-19066 | ||||
ILLUST NO. 1 OF 3(0008- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42020 |
ACA2#,CLA2#,ZCA2# W(MOON ROOF) |
1 | ||
| 63102-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-42010 |
ACA20,ZCA25;ACA21..GCC,GEN;ACA21,ZCA26..LHD..MTM..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,22,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-42010 |
ACA20,ZCA25;ACA21..GCC,GEN;ACA21,ZCA26..LHD..MTM..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63105-42010 |
ACA21..GCC,GEN;ACA20,22,CLA20,ZCA25;ACA21,CLA21,ZCA26..LHD..EUR |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63111-42070 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63111-42070 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63111-42080 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-42040 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63118-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63118-42040 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63141-42040 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42040 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63141-42040 |
ACA20,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42040 |
ACA20,22,CLA20,ZCA25 W(MOON ROOF) |
1 | ||
| 63141-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63104-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63143-42040 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63144-42021 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63144-42021 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63148-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63148-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63148-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 63148-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-07081 | ||||
| 91621-40614 | ||||
| 91621-B0610 | ||||
ILLUST NO. 3 OF 3(0008- )
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63230-42010 | ||||
| 90148-50004 | ||||
| 90152-50024 | ||||
| 90901-19066 | ||||
ILLUST NO. 2 OF 3(0008- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06357 | ||||
| 90149-40031 | ||||
| 90154-40029 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06274 | ||||
| 90467-07152C0 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 90959-01553 | ||||
| 91621-J0612 | ||||
| 96160-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
