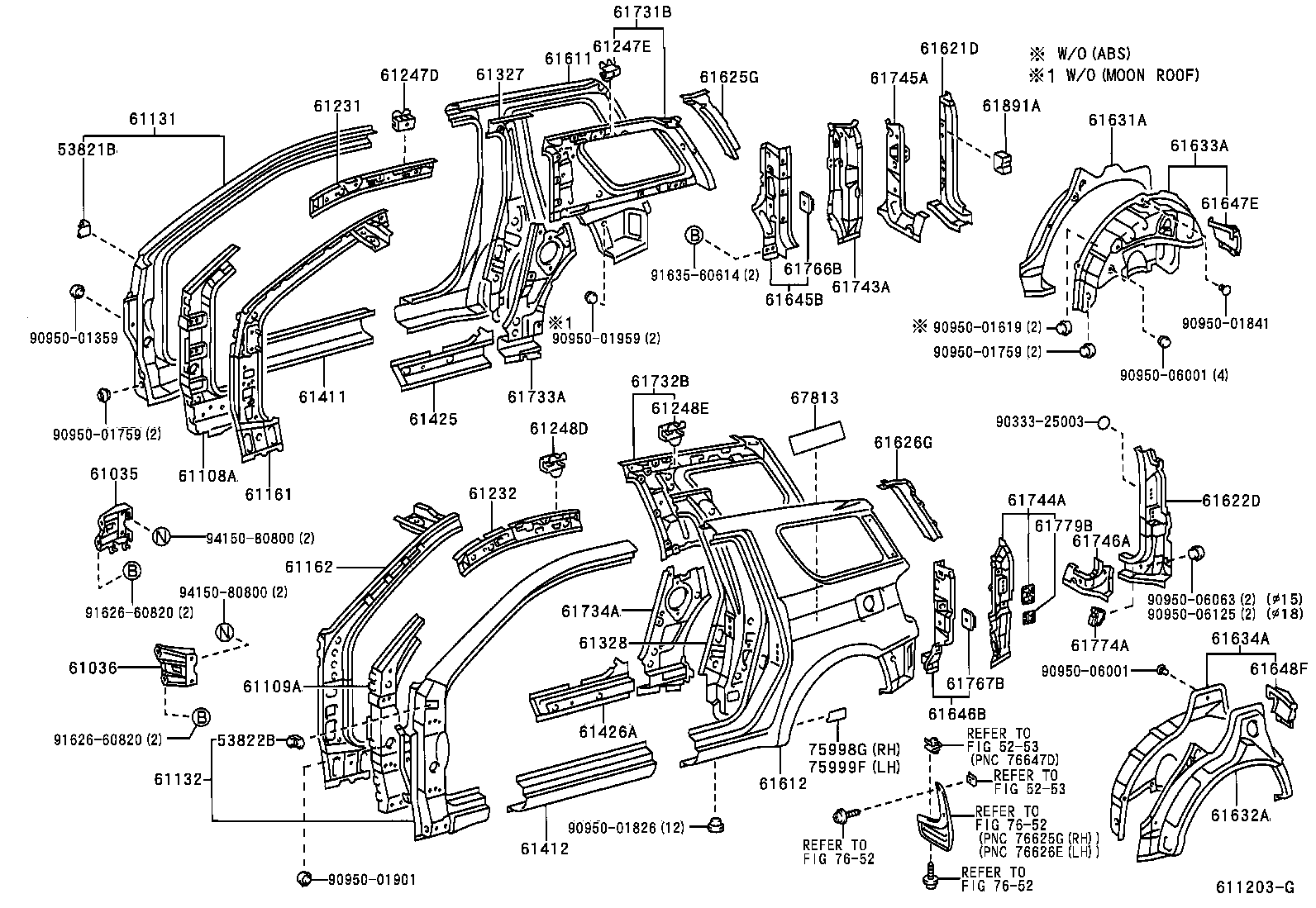

ACA20R-AZMNKW (2000)
Toyota Rav4
(0005-0307)ACA20,CLA20,ZCA25
3 DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61165-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61166-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61108-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61109-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61110-42120 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 61110-42120 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61120-42110 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61120-42110 |
ACA20,22,CLA20,ZCA25..ARL,EUR |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61023-42100 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-42100 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61024-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-42080 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61231-42110 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-42080 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61232-42110 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61247D - BRACKET, ASSIST GRIP, RH | ||||
| 61247-42030 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 61247-42020 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61247E - BRACKET, ASSIST GRIP, NO.4 RH | ||||
| 61247-42020 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61248D - BRACKET, ASSIST GRIP, LH | ||||
| 61247-42020 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61247-42030 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 61248E - BRACKET, ASSIST GRIP, NO.4 RH | ||||
| 61247-42020 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61303-42904 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61327-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH | ||||
| 61304-42904 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61328-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-42100 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61411-42100 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-42090 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61412-42090 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61425 - REINFORCEMENT, ROCKER PANEL, NO.4 RH | ||||
| 61425-42050 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61425-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61426A - REINFORCEMENT, ROCKER PANEL, NO.4 LH | ||||
| 61426-42060 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61426-42060 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-42180 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61611-42140 |
ACA20,CLA20 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61611-42140 |
ACA20,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61611-42180 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61611-42140 |
ACA20,22,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61620-42210 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61620-42160 |
ACA20,CLA20 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61620-42210 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61620-42160 |
ACA20,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61620-42160 |
ACA20,22,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61621-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61622-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61625-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61626-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-42060 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-42070 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61607-42050 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-42060 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61608-42060 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-42901 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61645-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-42901 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61646-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61647E - REINFORCEMENT, QUARTER PANEL, LOWER RH | ||||
| 61647-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61647-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61648F - REINFORCEMENT, QUARTER PANEL, LOWER LH | ||||
| 61648-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61648-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61731-42903 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61732-42903 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61733-42900 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61734-42900 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61743-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-42901 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61744-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61745-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61746-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61766-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61766-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61766-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61774A - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61774-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61774-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61779B - PLATE, BACK DOOR OPENING, LOWER LH | ||||
| 61779-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61779-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61891A - RETAINER, BACK DOOR UPPER HINGE, RH | ||||
| 61891-42010 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61891-42010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 67813 - PAD, QUARTER PANEL SILENCER | ||||
| 67812-42010 |
ACA20,CLA20,ZCA25 |
2 | ||
| 67812-42010 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 75998G - STRIPE, QUARTER, LOWER RH | ||||
| 75998-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| 75998-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75998-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75998-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| 75998-42030 |
ACA20,CLA20..EUR W(OVER FENDER) |
1 | ||
| 75999F - STRIPE, QUARTER, LOWER LH | ||||
| 75999-42030 |
ACA20,CLA20..EUR W(OVER FENDER) |
1 | ||
| 75999-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75999-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| 75999-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75999-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| Common parts | ||||
| 90333-25003 | ||||
| 90950-01359 | ||||
| 90950-01619 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01901 | ||||
| 90950-01959 | ||||
| 90950-06001 | ||||
| 90950-06063 | ||||
| 90950-06125 | ||||
| 91626-60820 | ||||
| 91635-60614 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 5253 | ||||
| 7652 | ||||

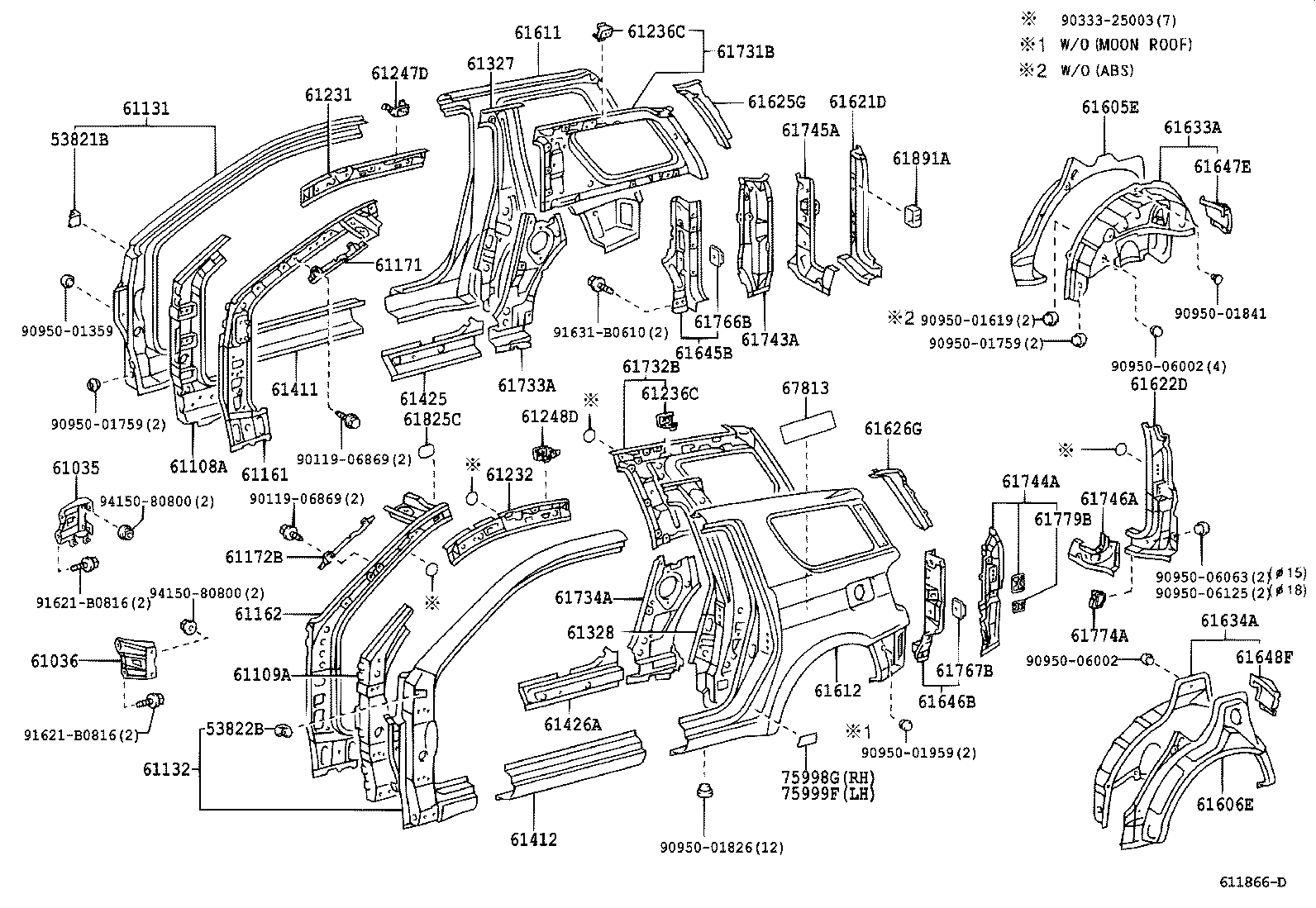

(0307- )ACA20,22,CLA20,ZCA25
3 DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 53821-16010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61165-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61166-42020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61108-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61109-42050 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61110-42120 |
ACA20,CLA20,ZCA25..EUR,GCC,GEN |
1 | ||
| 61110-42120 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61120-42110 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61120-42110 |
ACA20,22,CLA20,ZCA25..ARL,EUR |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61023-42100 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-42100 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61024-42090 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61171 - RETAINER, FRONT PILLAR, LOWER INNER RH | ||||
| 61171-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61172B - RETAINER, FRONT PILLAR, LOWER INNER LH | ||||
| 61172-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-42080 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61231-42110 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-42080 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61232-42110 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61235-42010 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61235-42010 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 61247D - BRACKET, ASSIST GRIP, RH | ||||
| 61247-42030 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 61247-42020 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61248D - BRACKET, ASSIST GRIP, LH | ||||
| 61247-42020 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61247-42030 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61303-42904 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61327-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH | ||||
| 61304-42904 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61328-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-42100 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61411-42100 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-42090 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61412-42090 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61425 - REINFORCEMENT, ROCKER PANEL, NO.4 RH | ||||
| 61425-42050 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61425-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61426A - REINFORCEMENT, ROCKER PANEL, NO.4 LH | ||||
| 61426-42060 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61426-42060 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-42080 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-42090 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-42180 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61611-42140 |
ACA20,CLA20 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61611-42140 |
ACA20,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61611-42180 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61611-42140 |
ACA20,22,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61620-42210 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61620-42160 |
ACA20,CLA20 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61620-42210 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61620-42160 |
ACA20,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61620-42160 |
ACA20,22,CLA20,ZCA25 W(QUARTER OUTSIDE MOULDING) |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61621-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61622-42030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61625-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61626-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-42050 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61607-42050 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-42060 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61608-42060 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-42901 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61645-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-42901 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61646-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61647E - REINFORCEMENT, QUARTER PANEL, LOWER RH | ||||
| 61647-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61647-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61648F - REINFORCEMENT, QUARTER PANEL, LOWER LH | ||||
| 61648-42020 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61648-42020 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61731-42903 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61732-42903 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61733-42900 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-42900 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61734-42900 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-42030 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61743-42030 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-42901 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61744-42901 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61745-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61746-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61766-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61766-42010 |
ACA20,22,CLA20,ZCA25 |
1 | ||
| 61766-42010 |
ACA20,CLA20,ZCA25 |
1 | ||
| 61774A - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61774-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61774-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61779B - PLATE, BACK DOOR OPENING, LOWER LH | ||||
| 61779-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61779-42010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 61825C - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-42010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 61891A - RETAINER, BACK DOOR UPPER HINGE, RH | ||||
| 61891-42010 |
ACA20,CLA20,ZCA25 |
2 | ||
| 61891-42010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 67813 - PAD, QUARTER PANEL SILENCER | ||||
| 67812-42010 |
ACA20,CLA20,ZCA25 |
2 | ||
| 67812-42010 |
ACA20,22,CLA20,ZCA25 |
2 | ||
| 75998G - STRIPE, QUARTER, LOWER RH | ||||
| 75998-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| 75998-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75998-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75998-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| 75998-42030 |
ACA20,CLA20..EUR W(OVER FENDER) |
1 | ||
| 75999F - STRIPE, QUARTER, LOWER LH | ||||
| 75999-42030 |
ACA20,CLA20..EUR W(OVER FENDER) |
1 | ||
| 75999-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75999-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| 75999-42020 |
ACA20,CLA20,ZCA25..EUR |
1 | ||
| 75999-42030 |
ACA20,CLA20,ZCA25..EUR W(OVER FENDER) |
1 | ||
| Common parts | ||||
| 90119-06869 | ||||
| 90333-25003 | ||||
| 90950-01359 | ||||
| 90950-01619 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01959 | ||||
| 90950-06002 | ||||
| 90950-06063 | ||||
| 90950-06125 | ||||
| 91621-B0816 | ||||
| 91631-B0610 | ||||
| 94150-80800 | ||||
(0008-0307)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90950-01619 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01959 | ||||
| 90950-06001 | ||||
| 90950-06063 | ||||
| 90950-06125 | ||||
| 91626-60820 | ||||
| 91635-60614 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 5253 | ||||
| 7652 | ||||
(0307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06869 | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90950-01619 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01959 | ||||
| 90950-06002 | ||||
| 90950-06063 | ||||
| 90950-06125 | ||||
| 91621-B0816 | ||||
| 91631-B0610 | ||||
| 94150-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
