ACA20R-AZMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ACA20,22,CLA20,ZCA25

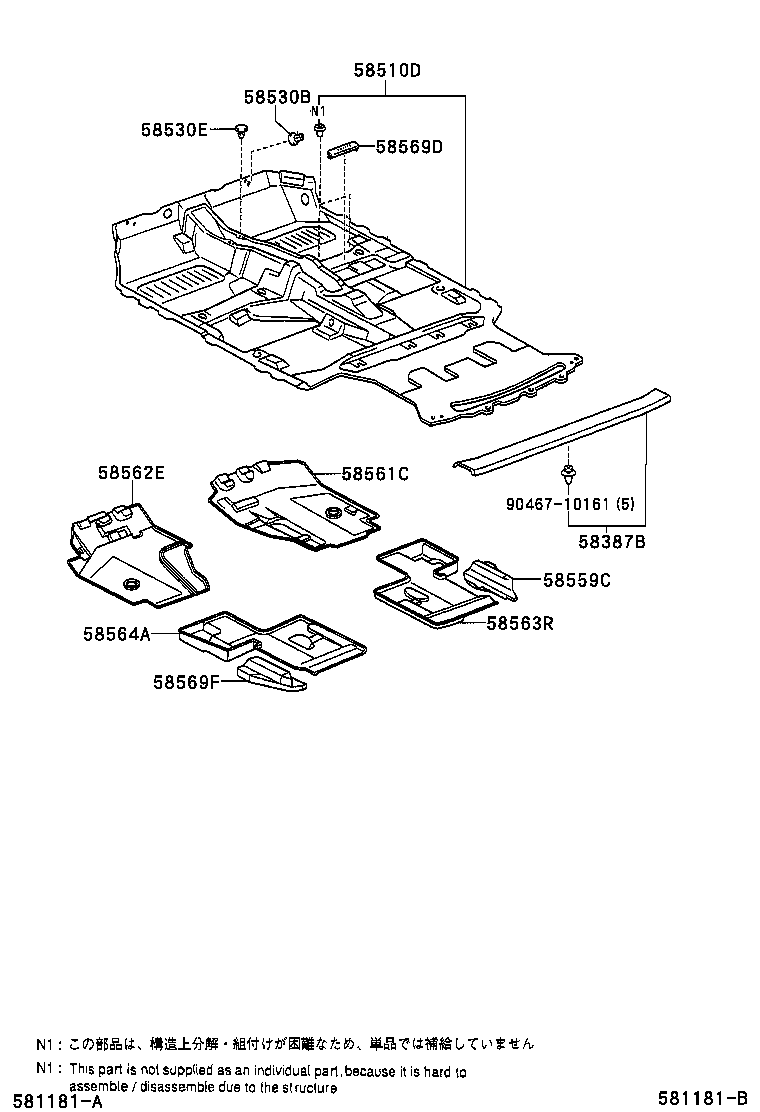

Click highlighted areas on diagram

diagram 58387B 58510D 58530B 58530E 58559C 58561C 58562E 58563R 58564A 58569D 58569F 9046710161
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-42020B0

ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN

BLUE GRAY,TRIM14,15

 1
58387-42020B1

ACA2#,CLA2#,ZCA2#

DK.GRAY,TRIM1#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-42500B0

ACA20,ZCA25..RHD..EUR

BLUISH GRAY,TRIM15,1#

 1
58510-42500J0

ACA20,CLA20,ZCA25..RHD

DARK BLUE,TRIM14

 1
58510-42720B0

ACA20,22,CLA20,ZCA25..RHD

GRAY,TRIM1#

 1
58510-42730B0

ACA20,CLA20,ZCA25..RHD

W(REAR HEATER DUCT),GRAY,TRIM1#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09167

ACA2#,CLA2#,ZCA2#

 2
90467-09167

ACA2#,CLA2#,ZCA2#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-09118

ACA2#,CLA2#,ZCA2#

 2
90467-09118

ACA2#,CLA2#,ZCA2#

 2
58559C - PAD, FRONT FLOOR SIDE, RH
58559-42010

ACA20,22,CLA20,ZCA25

 1
58559-42010

ACA20,CLA20,ZCA25

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-42020

ACA20,21,CLA2#,ZCA2#..EUR

W(REAR HEATER DUCT)

 1
58561-42010

ACA2#,CLA2#,ZCA2#

 1
58561-42010

ACA2#,CLA2#,ZCA2#

 1
58562E - SILENCER, FRONT FLOOR, NO.2
58562-42060

ACA20,21,CLA2#,ZCA2#..RHD..EUR

W(REAR HEATER DUCT)

 1
58562-42010

ACA2#,CLA2#,ZCA2#

 1
58562-42050

ACA2#,CLA2#,ZCA2#

 1
58562-42050

ACA2#,CLA2#,ZCA2#

 1
58563R - SILENCER, FRONT FLOOR, NO.3
58563-42020

ACA20,22,CLA20,ZCA25

 1
58563-42020

ACA20,CLA20,ZCA25

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-42020

ACA20,CLA20,ZCA25

 1
58564-42020

ACA20,22,CLA20,ZCA25

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-44010B2

ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN

SHADOW GRAY,TRIM14,15

 1
58569-44010B5

ACA2#,CLA2#,ZCA2#

DK.GRAY,TRIM1#

 1
58569F - PAD, FRONT FLOOR SIDE, LH
58569-42010

ACA20,CLA20,ZCA25

 1
58569-42010

ACA20,22,CLA20,ZCA25

 1
Common parts
90467-10161

(0008- )

Click highlighted areas on diagram

diagram 58387B 58510D 58530B 58530E 58561C 58562E 58563R 58564A 58564H 58569D 58570C 9046710161
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-42020B0

ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN

BLUE GRAY,TRIM14,15

 1
58387-42020B1

ACA2#,CLA2#,ZCA2#

DK.GRAY,TRIM1#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-42500B0

ACA20,ZCA25..RHD..EUR

BLUISH GRAY,TRIM15,1#

 1
58510-42500J0

ACA20,CLA20,ZCA25..RHD

DARK BLUE,TRIM14

 1
58510-42720B0

ACA20,22,CLA20,ZCA25..RHD

GRAY,TRIM1#

 1
58510-42730B0

ACA20,CLA20,ZCA25..RHD

W(REAR HEATER DUCT),GRAY,TRIM1#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09167

ACA2#,CLA2#,ZCA2#

 2
90467-09167

ACA2#,CLA2#,ZCA2#

 2
58530E - CLIP(FOR FRONT FLOOR REAR CARPET)
90467-09118

ACA2#,CLA2#,ZCA2#

 2
90467-09118

ACA2#,CLA2#,ZCA2#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-42020

ACA20,21,CLA2#,ZCA2#..EUR

W(REAR HEATER DUCT)

 1
58561-42010

ACA2#,CLA2#,ZCA2#

 1
58561-42010

ACA2#,CLA2#,ZCA2#

 1
58562E - SILENCER, FRONT FLOOR, NO.2
58562-42060

ACA20,21,CLA2#,ZCA2#..RHD..EUR

W(REAR HEATER DUCT)

 1
58562-42010

ACA2#,CLA2#,ZCA2#

 1
58562-42050

ACA2#,CLA2#,ZCA2#

 1
58562-42050

ACA2#,CLA2#,ZCA2#

 1
58563R - SILENCER, FRONT FLOOR, NO.3
58563-42020

ACA20,22,CLA20,ZCA25

 1
58563-42020

ACA20,CLA20,ZCA25

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-42020

ACA20,CLA20,ZCA25

 1
58564-42020

ACA20,22,CLA20,ZCA25

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-44010B2

ACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN

SHADOW GRAY,TRIM14,15

 1
58569-44010B5

ACA2#,CLA2#,ZCA2#

DK.GRAY,TRIM1#

 1
Common parts
90467-10161
