ACA20R-AZMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ACA20,22,CLA20,ZCA25

Click highlighted areas on diagram

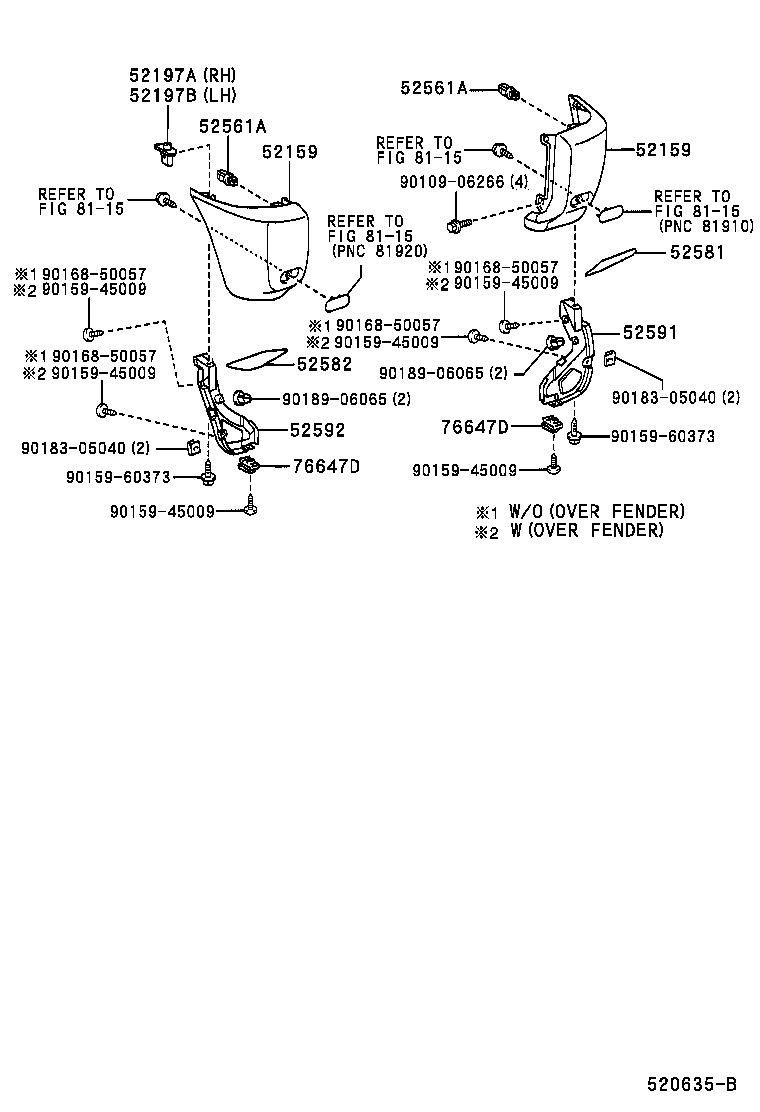

diagram 52159 52159 52197A 52197B 52561A 52561A 52581 52582 52591 52592 76647D 76647D 8115 8115 8115 8115 9010906266 9015945009 9015945009 9015945009 9015945009 9015945009 9015945009 9015960373 9015960373 9016850057 9016850057 9016850057 9016850057 9018305040 9018305040 9018906065 9018906065
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52162-42908

ACA20,CLA20

W(OVER FENDER),LH

 1
52161-42908

ACA20,CLA20

W(OVER FENDER),RH

 1
52161-42907

ACA20,22,CLA20,ZCA25

RH

 1
52161-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42907

ACA20,CLA20,ZCA25

LH

 1
52162-42907

ACA20,22,CLA20,ZCA25

LH

 1
52161-42907

ACA20,CLA20,ZCA25

RH

 1
52161-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),LH

 1
52162-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),LH

 1
52159 - COVER, REAR BUMPER
52162-42908

ACA20,CLA20

W(OVER FENDER),LH

 1
52161-42908

ACA20,CLA20

W(OVER FENDER),RH

 1
52161-42907

ACA20,22,CLA20,ZCA25

RH

 1
52161-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42907

ACA20,CLA20,ZCA25

LH

 1
52162-42907

ACA20,22,CLA20,ZCA25

LH

 1
52161-42907

ACA20,CLA20,ZCA25

RH

 1
52161-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),LH

 1
52162-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),LH

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-11063

ACA2#,CLA2#,ZCA2#

 2
90467-11063

ACA2#,CLA2#,ZCA2#

 2
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-11063

ACA2#,CLA2#,ZCA2#

 2
90467-11063

ACA2#,CLA2#,ZCA2#

 2
52581 - PROTECTOR, REAR BUMPER, RH
52581-42020

ACA20,22,CLA20,ZCA25

 1
52581-42020

ACA20,CLA20,ZCA25

 1
52582 - PROTECTOR, REAR BUMPER, LH
52582-42020

ACA20,CLA20,ZCA25

 1
52582-42020

ACA20,22,CLA20,ZCA25

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-42030

ACA20,CLA20,ZCA25

 1
52591-42030

ACA20,22,CLA20,ZCA25

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-42030

ACA20,CLA20,ZCA25

 1
52592-42030

ACA20,22,CLA20,ZCA25

 1
76647D - RETAINER, FRONT FENDER LINER
53879-14030

ACA20,21,CLA2#,ZCA2#

 2
53879-14030

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
76647D - RETAINER, FRONT FENDER LINER
53879-14030

ACA20,21,CLA2#,ZCA2#

 2
53879-14030

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
Common parts
90109-06266
90159-45009
90159-60373
90168-50057
90183-05040
90189-06065
Linked diagrams
8115

(0008- )

Click highlighted areas on diagram

diagram 52159 52159 52185A 52186A 52187E 52188D 52197A 52197B 52561A 52561A 52581A 52581A 52591 52592 76647D 76647D 8115 8115 8115 8115 9010906266 9015945009 9015945009 9015945009 9015945009 9015945009 9015945009 9015960373 9015960373 9016850057 9016850057 9016850057 9016850057 9018305040 9018305040 9018906065 9018906065
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52162-42908

ACA20,CLA20

W(OVER FENDER),LH

 1
52161-42908

ACA20,CLA20

W(OVER FENDER),RH

 1
52161-42907

ACA20,22,CLA20,ZCA25

RH

 1
52161-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42907

ACA20,CLA20,ZCA25

LH

 1
52162-42907

ACA20,22,CLA20,ZCA25

LH

 1
52161-42907

ACA20,CLA20,ZCA25

RH

 1
52161-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),LH

 1
52162-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),LH

 1
52159 - COVER, REAR BUMPER
52162-42908

ACA20,CLA20

W(OVER FENDER),LH

 1
52161-42908

ACA20,CLA20

W(OVER FENDER),RH

 1
52161-42907

ACA20,22,CLA20,ZCA25

RH

 1
52161-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42907

ACA20,CLA20,ZCA25

LH

 1
52162-42907

ACA20,22,CLA20,ZCA25

LH

 1
52161-42907

ACA20,CLA20,ZCA25

RH

 1
52161-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),RH

 1
52162-42908

ACA20,CLA20,ZCA25

W(OVER FENDER),LH

 1
52162-42908

ACA20,22,CLA20,ZCA25

W(OVER FENDER),LH

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52197-16020

ACA2#,CLA2#,ZCA2#

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-11063

ACA2#,CLA2#,ZCA2#

 2
90467-11063

ACA2#,CLA2#,ZCA2#

 2
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-11063

ACA2#,CLA2#,ZCA2#

 2
90467-11063

ACA2#,CLA2#,ZCA2#

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-42030

ACA20,CLA20,ZCA25

 1
52591-42030

ACA20,22,CLA20,ZCA25

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-42030

ACA20,CLA20,ZCA25

 1
52592-42030

ACA20,22,CLA20,ZCA25

 1
76647D - RETAINER, FRONT FENDER LINER
53879-14030

ACA20,21,CLA2#,ZCA2#

 2
53879-14030

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
76647D - RETAINER, FRONT FENDER LINER
53879-14030

ACA20,21,CLA2#,ZCA2#

 2
53879-14030

ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
76647-42010

ACA2#,CLA2#,ZCA2#

W(MUD GUARD)

 2
Common parts
90109-06266
90159-45009
90159-60373
90168-50057
90183-05040
90189-06065
Linked diagrams
8115
