ACA20R-AZMNKW (2000)

Toyota Rav4

Production May 2000 - Nov 2005
Engine 1AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0005- )ACA2#..RHD

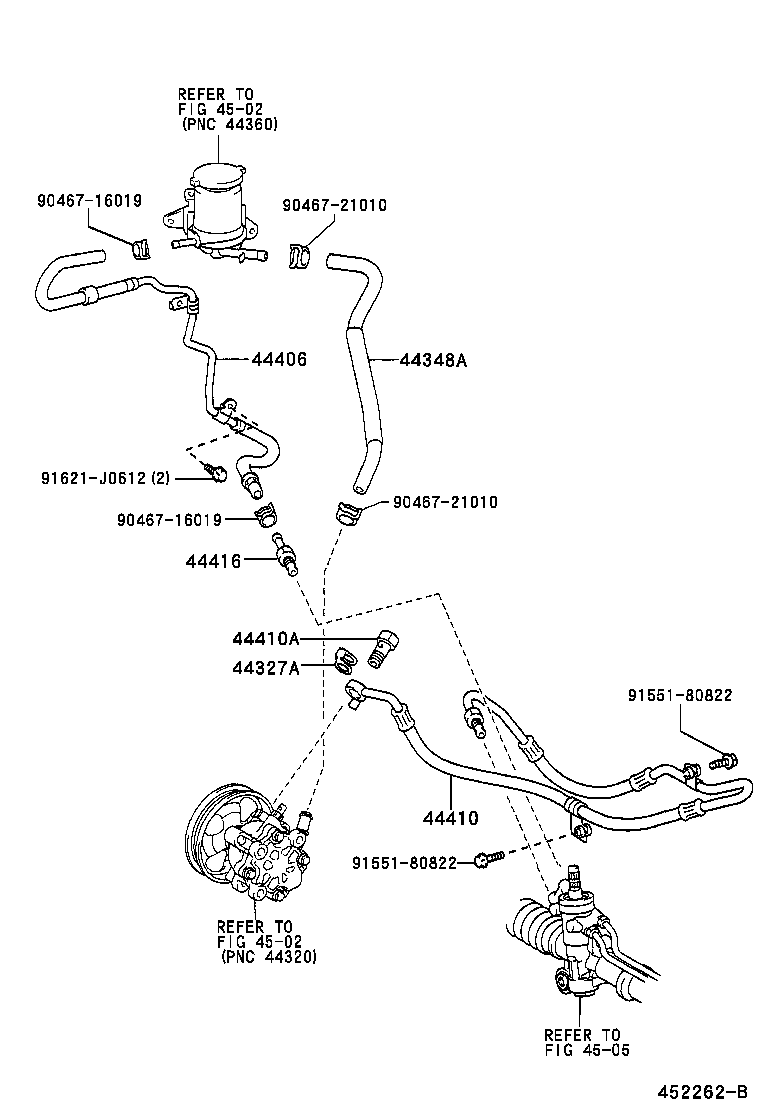

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44410A 44416 4502 4502 4505 9046716019 9046716019 9046721010 9046721010 9155180822 9155180822 91621J0612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACA2#,CLA2#,ZCA2#

 1
44327-30030

ACA2#,CLA2#,ZCA2#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-42050

ACA2#

 1
44348-42050

ACA2#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-42080

ACA2#,ZCA2#

 1
44406-42100

ACA2#,ZCA2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-42060

ACA2#..RHD

 1
44410-42120

ACA2#..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

ACA2#,CLA2#,ZCA2#

 1
96341-41603

ACA2#,CLA2#,ZCA2#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

ACA2#,CLA2#,ZCA2#..RHD

 1
44416-26080

ACA2#,CLA2#,ZCA2#..RHD

 1
Common parts
90467-16019
90467-21010
91551-80822
91621-J0612
Linked diagrams
4502
4505

(0008- )

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44410A 44420A 44457C 4502 4502 4505 8271189196 9046716019 9046716019 9046721010 9046721010 9094901C40 9155180822 9155180822 91621J0612 91621J0612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACA2#,CLA2#,ZCA2#

 1
44327-30030

ACA2#,CLA2#,ZCA2#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-42050

ACA2#

 1
44348-42050

ACA2#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-42080

ACA2#,ZCA2#

 1
44406-42100

ACA2#,ZCA2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-42060

ACA2#..RHD

 1
44410-42120

ACA2#..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

ACA2#,CLA2#,ZCA2#

 1
96341-41603

ACA2#,CLA2#,ZCA2#

 1
Common parts
82711-89196
90467-16019
90467-21010
90949-01C40
91551-80822
91621-J0612
Linked diagrams
4502
4505
