ZVW52R-AHXEBW (2016)

Toyota Prius Phv

Production Sep 2016 - Apr 2019
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

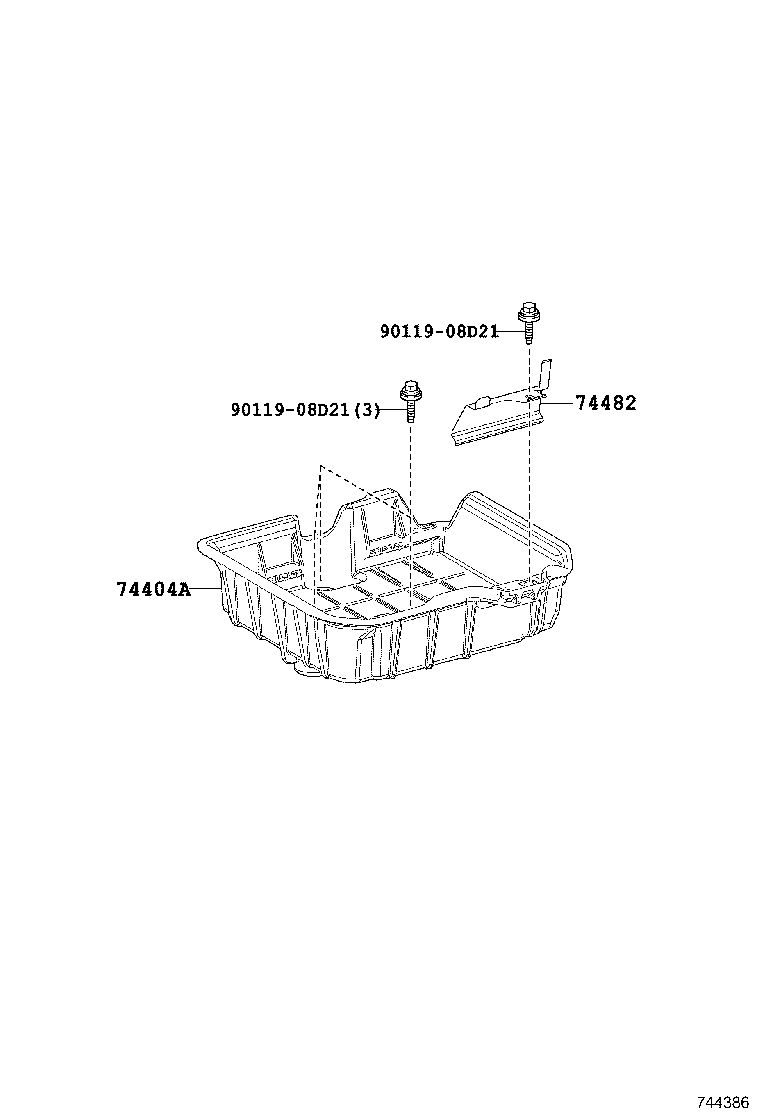

FRONT

diagram 74404A 74482 9011908D21 9011908D21
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-47030

ZVW52

 1
74482 - CLAMP, BATTERY, NO.2
74482-47010

ZVW52

 1
Common parts
90119-08D21

(1609- )

Click highlighted areas on diagram

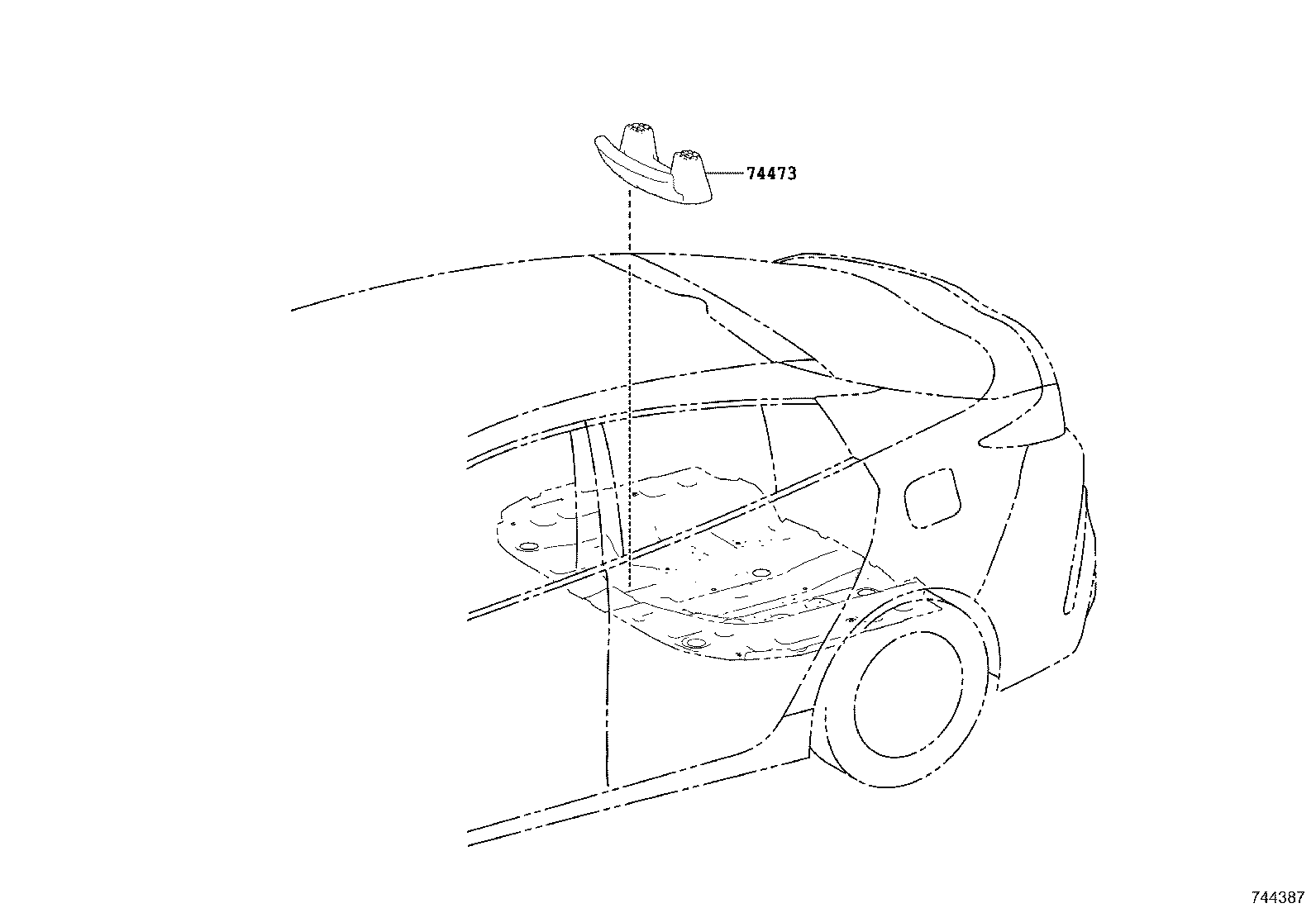

REAR

diagram 74473
Part # Description Qty Price
74473 - SPACER, BATTERY
74473-47030

ZVW52

 1
