ZVW52R-AHXEBW (2016)
Toyota Prius Phv
Production
Sep 2016
-
Apr 2019
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )

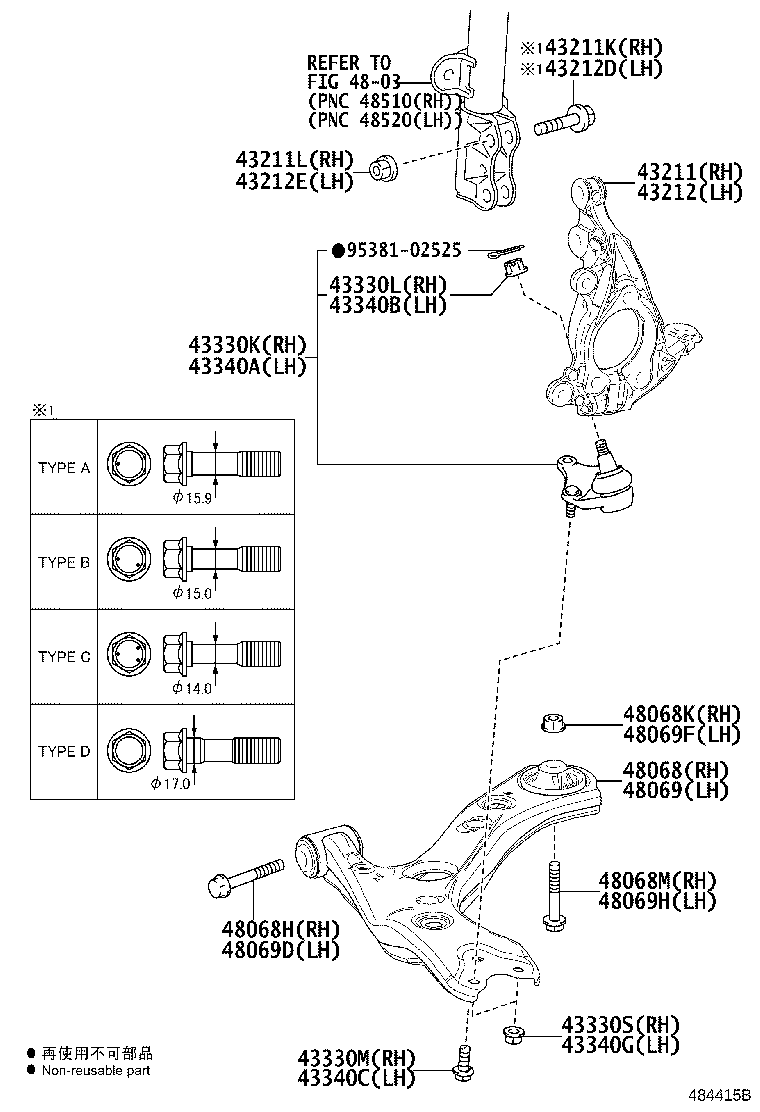

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-47040 |
ZVW52 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17011 |
ZVW52 OD=14,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17010 |
ZVW52 OD=15,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17021 |
ZVW52 OD=17 |
2 | ||
| 90105-17012 |
ZVW52 OD=17 |
2 | ||
| 90105-17009 |
ZVW52 OD=15.9,TYPE A:REFER ILLUST. |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17002 |
ZVW52 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-47040 |
ZVW52 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17012 |
ZVW52 OD=17,TYPE D:REFER ILLUST. |
2 | ||
| 90105-17021 |
ZVW52 OD=17,TYPE D:REFER ILLUST. |
2 | ||
| 90105-17009 |
ZVW52 OD=15.9,TYPE A:REFER ILLUST. |
1 | ||
| 90105-17010 |
ZVW52 OD=15,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17011 |
ZVW52 OD=14,TYPE C:REFER ILLUST. |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17002 |
ZVW52 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19115 |
ZVW52 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
ZVW52 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12346 |
ZVW52 |
1 | ||
| 90105-12407 |
ZVW52 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-12019 |
ZVW52 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-19115 |
ZVW52 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
ZVW52 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12407 |
ZVW52 |
1 | ||
| 90105-12346 |
ZVW52 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-12019 |
ZVW52 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-47060 |
ZVW52 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-16091 |
ZVW52 |
1 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90179-14068 |
ZVW52 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90119-14180 |
ZVW52 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-47060 |
ZVW52 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-16091 |
ZVW52 |
1 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90179-14068 |
ZVW52 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90119-14180 |
ZVW52 |
1 | ||
| Common parts | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
