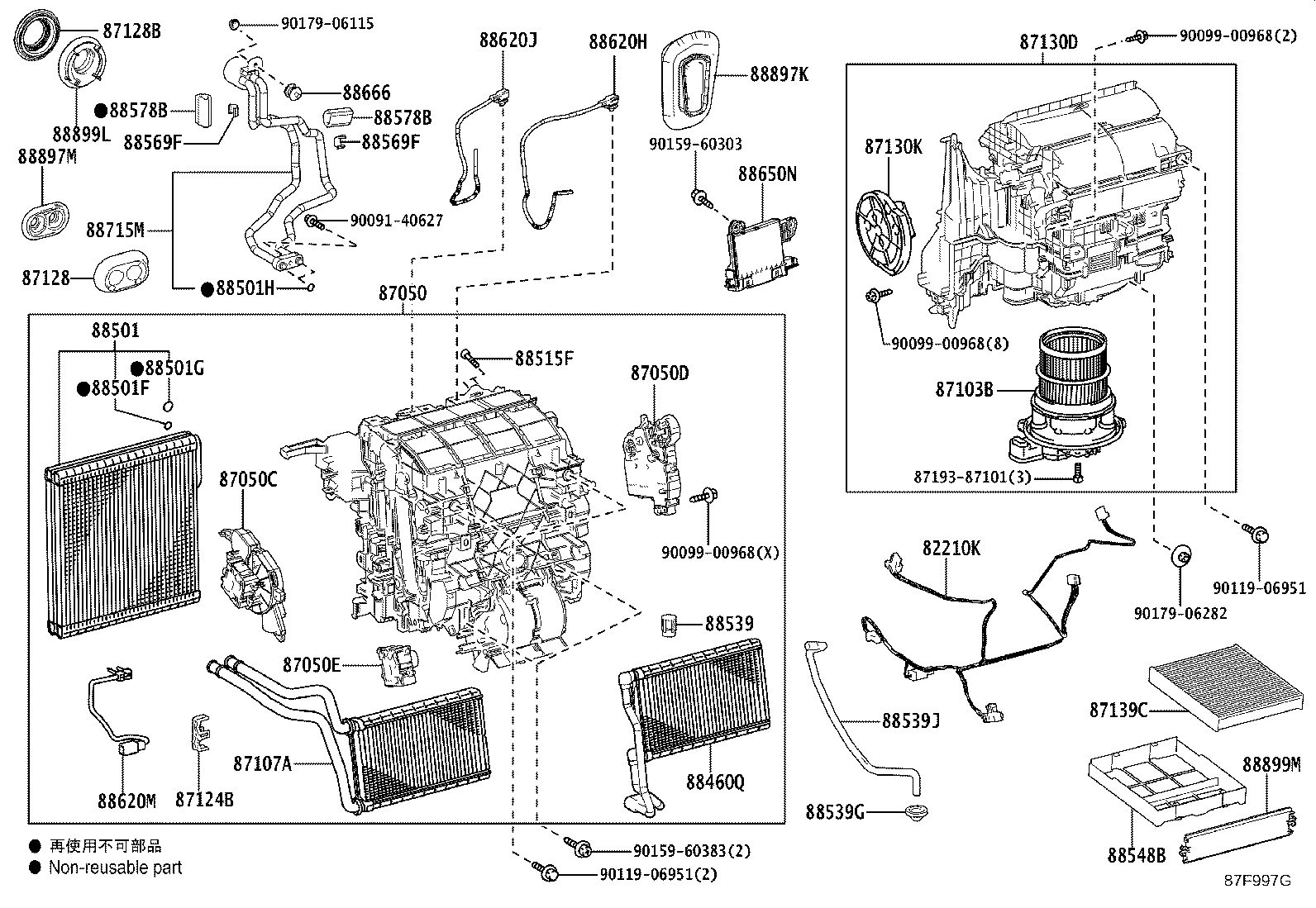

Toyota Prius phv ZVW52 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-47040	ZVW52..LHD	09/2016 - 04/2019	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-47420	ZVW52..LHD	09/2016 - 04/2019	1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-47210	ZVW52..LHD	09/2016 - 04/2019	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-48170	ZVW52	09/2016 - 04/2019	1
87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87106-47200	ZVW52..LHD	09/2016 - 04/2019	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-58080	ZVW52..LHD	09/2016 - 04/2019	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-47080	ZVW52..LHD	09/2016 - 04/2019	1
87124B - CLAMP, HEATER
87124-33070	ZVW52	09/2016 - 04/2019	1
87128 - GROMMET, HEATER
87128-28020	ZVW52	09/2016 - 04/2019	1
87128B - GROMMET, HEATER, NO.2
87128-47030	ZVW52	09/2016 - 04/2019	1
87130D - BLOWER ASSY
87130-47290	ZVW52..LHD	09/2016 - 04/2019	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-58050	ZVW52..LHD	09/2016 - 04/2019	1
87139C - FILTER, CLEAN AIR
87139-28020	ZVW52 POLLEN FILTER,OE PART	09/2016 - 04/2019	1
87139-58010	ZVW52 DEODORANT FILTER	09/2016 - 04/2019	1
88460Q - CONDENSER ASSY
88490-47010	ZVW52..LHD	09/2016 - 04/2019	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10160	ZVW52	09/2016 - 04/2019	1
88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
90099-14120	ZVW52 ID=10.8,OD=15.6	09/2016 - 04/2019	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	ZVW52 ID=13.4,OD=18.2	09/2016 - 04/2019	1
88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE)
90099-14120	ZVW52 ID=10.8,OD=15.6	09/2016 - 04/2019	2
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	ZVW52	09/2016 - 04/2019	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88899-10110	ZVW52	09/2016 - 04/2019	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-47010	ZVW52	09/2016 - 04/2019	1
88539J - HOSE, DRAIN COOLER
88539-47060	ZVW52..LHD	09/2016 - 04/2019	1
88548B - CASE, AIR FILTER
88899-47090	ZVW52	09/2016 - 04/2019	1
88569F - CLAMP
88569-74090	ZVW52	09/2016 - 04/2019	2
88569F - CLAMP
88569-74090	ZVW52	09/2016 - 04/2019	2
88578B - PACKING, COOLING UNIT, NO.1
88578-47080	ZVW52	09/2016 - 04/2019	2
88578B - PACKING, COOLING UNIT, NO.1
88578-47080	ZVW52	09/2016 - 04/2019	2
88620H - SENSOR, INTERNAL CONDENSER TEMPERATURE
88620-47050	ZVW52	09/2016 - 04/2019	1
88620J - SENSOR, DISCHARGE TEMPERATURE
88620-47040	ZVW52	09/2016 - 04/2019	1
88620M - SENSOR, EVAPORATOR TEMPERATURE
88620-28050	ZVW52	09/2016 - 04/2019	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-47560	ZVW52	12/2017 - 04/2019	1
88650-47290	ZVW52	09/2016 - 11/2017	1
88666 - SPACER (FOR COOLER UNIT)
88467-47040	ZVW52	09/2016 - 04/2019	1
88715M - TUBE, DISCHARGE, NO.1
88705-47050	ZVW52..LHD	09/2016 - 04/2019	1
88897K - GROMMET, (FOR COOLER PIPE)
88899-47100	ZVW52	09/2016 - 04/2019	1
88897M - GROMMET (FOR HEATER PIPE)
87128-28010	ZVW52	09/2016 - 04/2019	1
88899L - PARTS, COOLING UNIT
88899-47110	ZVW52	09/2016 - 04/2019	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-47120	ZVW52	07/2017 - 04/2019	1
88899-28620	ZVW52	09/2016 - 06/2017	1
Common parts
87193-87101
90091-40627
90099-00968
90119-06951
90159-60303
90159-60383
90179-06115
90179-06282

ZVW52L-AHXEBW (2016)

(1609- )LHD
