ZVW52L-AHXEBW (2016)
Toyota Prius Phv
(1609-1905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

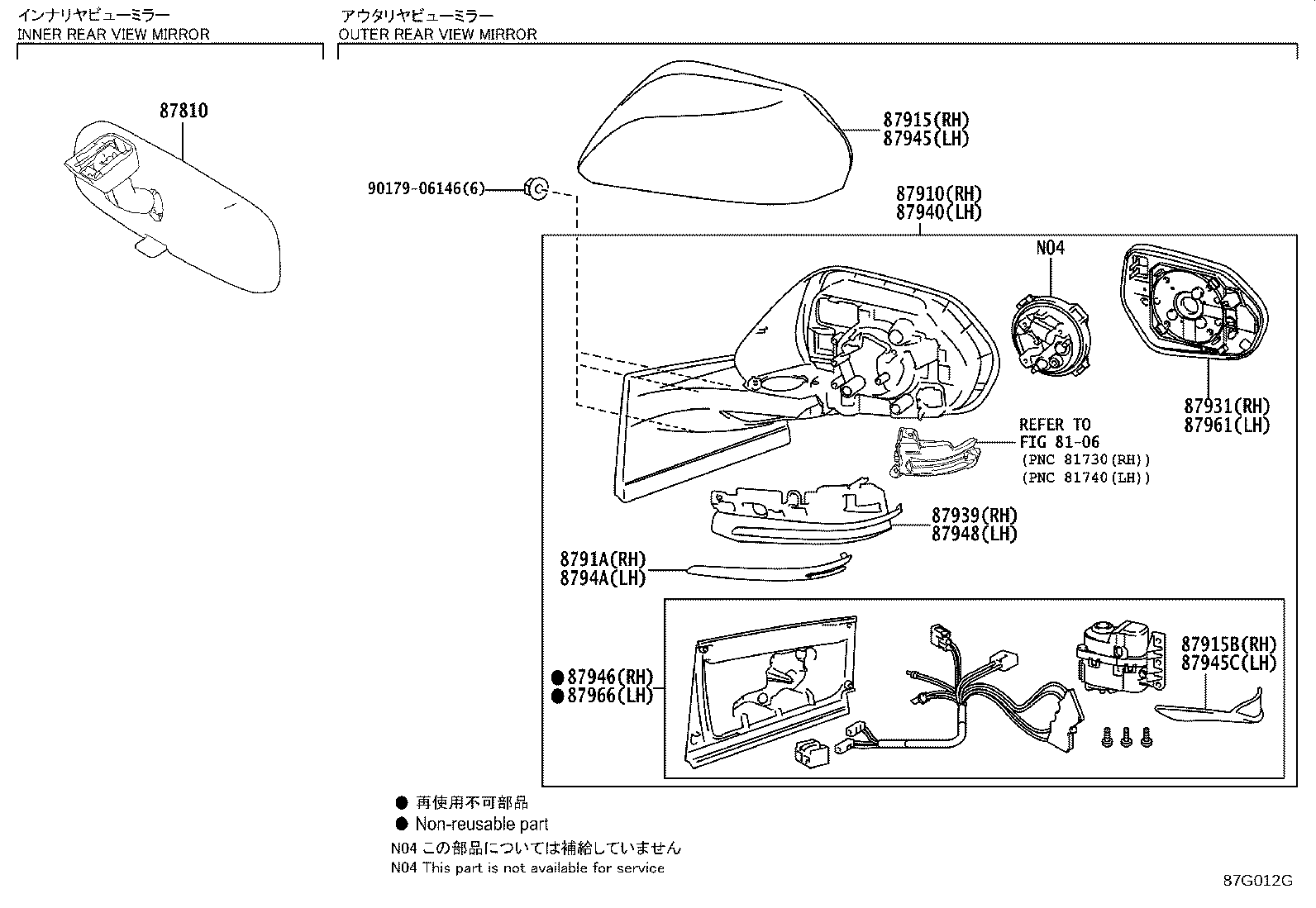

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WS60 |
ZVW52 |
1 | ||
| 87810-0WQ50 |
ZVW52 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-47390 |
ZVW52..LHD PLATED,TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87910-47560 |
ZVW52..LHD NO PAINT REQ.,WITH(HEAD UP DISPLAY) |
1 | ||
| 87910-47390 |
ZVW52..LHD PLATED |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-47070A0 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,SUPER WHITE 2,040 |
1 | ||
| 87915-47070A0 |
ZVW52 SUPER WHITE 2,040 |
1 | ||
| 87915-47070A1 |
ZVW52 WHITE PEARL CS.,070 |
1 | ||
| 87915-47070B1 |
ZVW52 GRAY ME.,1G3 |
1 | ||
| 87915-47070B1 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,GRAY ME.,1G3 |
1 | ||
| 87915-47070D0 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,EMOTIONAL RED,3T7 |
1 | ||
| 87915-47070D0 |
ZVW52 EMOTIONAL RED,3T7 |
1 | ||
| 87915-47070A1 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,WHITE PEARL CS.,070 |
1 | ||
| 87915-47070H1 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,SPIRITED AQUA ME.,791 |
1 | ||
| 87915-47070E0 |
ZVW52 STEEL BLONDE,4X1 |
1 | ||
| 87915-47070H1 |
ZVW52 SPIRITED AQUA ME.,791 |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87939-47530 |
ZVW52..LHD WITH(HEAD UP DISPLAY) |
1 | ||
| 87939-47390 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87939-47390 |
ZVW52..LHD |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-47360 |
ZVW52 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-47390 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87931-47390 |
ZVW52..LHD |
1 | ||
| 87931-47400 |
ZVW52..LHD WITH(HEAD UP DISPLAY) |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-47360 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87939-47360 |
ZVW52 |
1 | ||
| 87939-47550 |
ZVW52 WITH(HEAD UP DISPLAY) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-47560 |
ZVW52..LHD NO PAINT REQ.,WITH(HEAD UP DISPLAY) |
1 | ||
| 87940-47380 |
ZVW52..LHD PLATED |
1 | ||
| 87940-47380 |
ZVW52..LHD PLATED,TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-47060A0 |
ZVW52 SUPER WHITE 2,040 |
1 | ||
| 87945-47060A1 |
ZVW52 WHITE PEARL CS.,070 |
1 | ||
| 87945-47060B1 |
ZVW52 GRAY ME.,1G3 |
1 | ||
| 87945-47060E0 |
ZVW52 STEEL BLONDE,4X1 |
1 | ||
| 87945-47060H1 |
ZVW52 SPIRITED AQUA ME.,791 |
1 | ||
| 87945-47060A0 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,SUPER WHITE 2,040 |
1 | ||
| 87945-47060H1 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,SPIRITED AQUA ME.,791 |
1 | ||
| 87945-47060D0 |
ZVW52 EMOTIONAL RED,3T7 |
1 | ||
| 87945-47060A1 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,WHITE PEARL CS.,070 |
1 | ||
| 87945-47060B1 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,GRAY ME.,1G3 |
1 | ||
| 87945-47060D0 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,EMOTIONAL RED,3T7 |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87948-47380 |
ZVW52..LHD |
1 | ||
| 87948-47380 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87948-47530 |
ZVW52..LHD WITH(HEAD UP DISPLAY) |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-47390 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87946-47560 |
ZVW52..LHD WITH(HEAD UP DISPLAY) |
1 | ||
| 87946-47390 |
ZVW52..LHD |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-47250 |
ZVW52 |
1 | ||
| 87948-47250 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87948-47550 |
ZVW52 WITH(HEAD UP DISPLAY) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-47250 |
ZVW52 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-47390 |
ZVW52..LHD WITH(HEAD UP DISPLAY) |
1 | ||
| 87961-47380 |
ZVW52..LHD |
1 | ||
| 87961-47380 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-47380 |
ZVW52..LHD |
1 | ||
| 87966-47560 |
ZVW52..LHD WITH(HEAD UP DISPLAY) |
1 | ||
| 87966-47380 |
ZVW52..LHD TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER |
1 | ||
| Common parts | ||||
| 90179-06146 | ||||
| Linked diagrams | ||||
| 8106 | ||||
