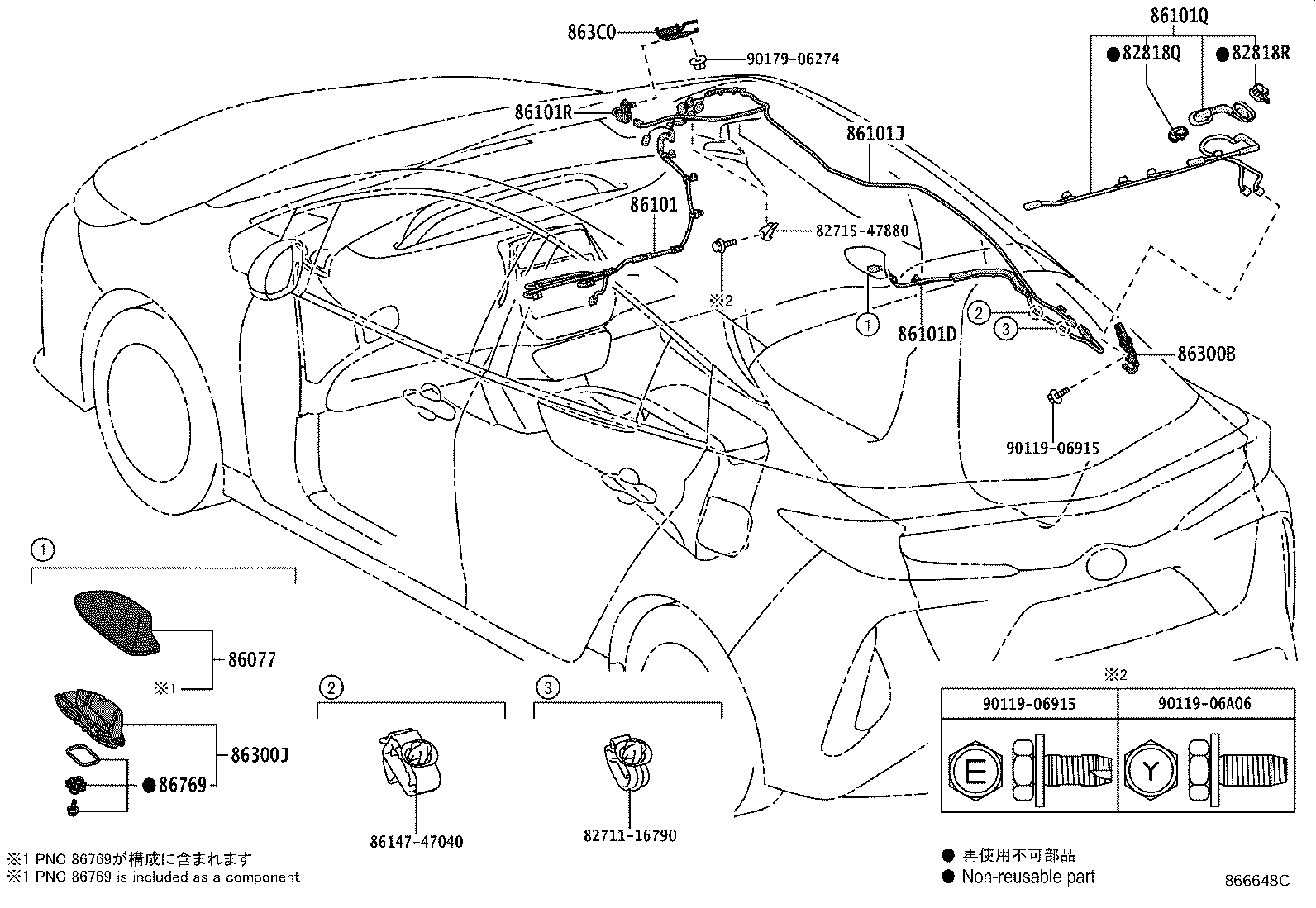

Toyota Prius phv ZVW52 ANTENNA - JDM Part Detective

Part #	Description	Period	Qty
82818Q - PROTECTOR, WIRING HARNESS, NO.1
82817-47L50	ZVW52	09/2016 - 04/2019	1
82818R - PROTECTOR, WIRING HARNESS, NO.2
82817-47S70	ZVW52	09/2016 - 04/2019	1
86077 - COVER KIT, ANTENNA
86077-47010A0	ZVW52 SUPER WHITE 2,040	09/2016 - 04/2019	1
86077-47010A1	ZVW52 WHITE PEARL CS.,070	09/2016 - 04/2019	1
86077-47010H1	ZVW52 SPIRITED AQUA ME.,791	09/2016 - 04/2019	1
86077-47010E0	ZVW52 STEEL BLONDE,4X1	09/2016 - 04/2019	1
86077-47010D0	ZVW52 EMOTIONAL RED,3T7	09/2016 - 04/2019	1
86077-47010B1	ZVW52 GRAY ME.,1G3	09/2016 - 04/2019	1
86077-47010C1	ZVW52 BLACK,040 ,070 ,1G3 ,3T7 ,4X1 ,791	09/2016 - 04/2019	1
86101 - CORD SUB-ASSY, ANTENNA
86101-47C90	ZVW52..LHD	09/2016 - 04/2019	1
86101-47D00	ZVW52..LHD TAIWAN SPEC&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER&EMV & NAVIGATION SYSTEM-WITH(SD CARD NAVIGATION)	09/2016 - 04/2019	1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-47E70	ZVW52	09/2016 - 04/2019	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-47E90	ZVW52	09/2016 - 04/2019	1
86101-47E80	ZVW52..LHD TAIWAN SPEC	09/2016 - 04/2019	1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-47M00	ZVW52	09/2016 - 04/2019	1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-47D10	ZVW52..LHD TAIWAN SPEC	09/2016 - 04/2019	1
86101-47D10	ZVW52	09/2016 - 04/2019	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-47160	ZVW52	09/2016 - 04/2019	1
86300J - ANTENNA ASSY, ROOF
86300-47180	ZVW52	09/2016 - 04/2019	1
863C0 - ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
863C0-78010	ZVW52	09/2016 - 04/2019	1
863C0-78010	ZVW52..LHD TAIWAN SPEC	09/2016 - 04/2019	1
86769 - HOUSING, ROOF ANTENNA
86769-12010	ZVW52	09/2016 - 04/2019	1
Common parts
82711-16790
82715-47880
86147-47040
90119-06915
90119-06A06
90179-06274

ZVW52L-AHXEBW (2016)

(1609- )
