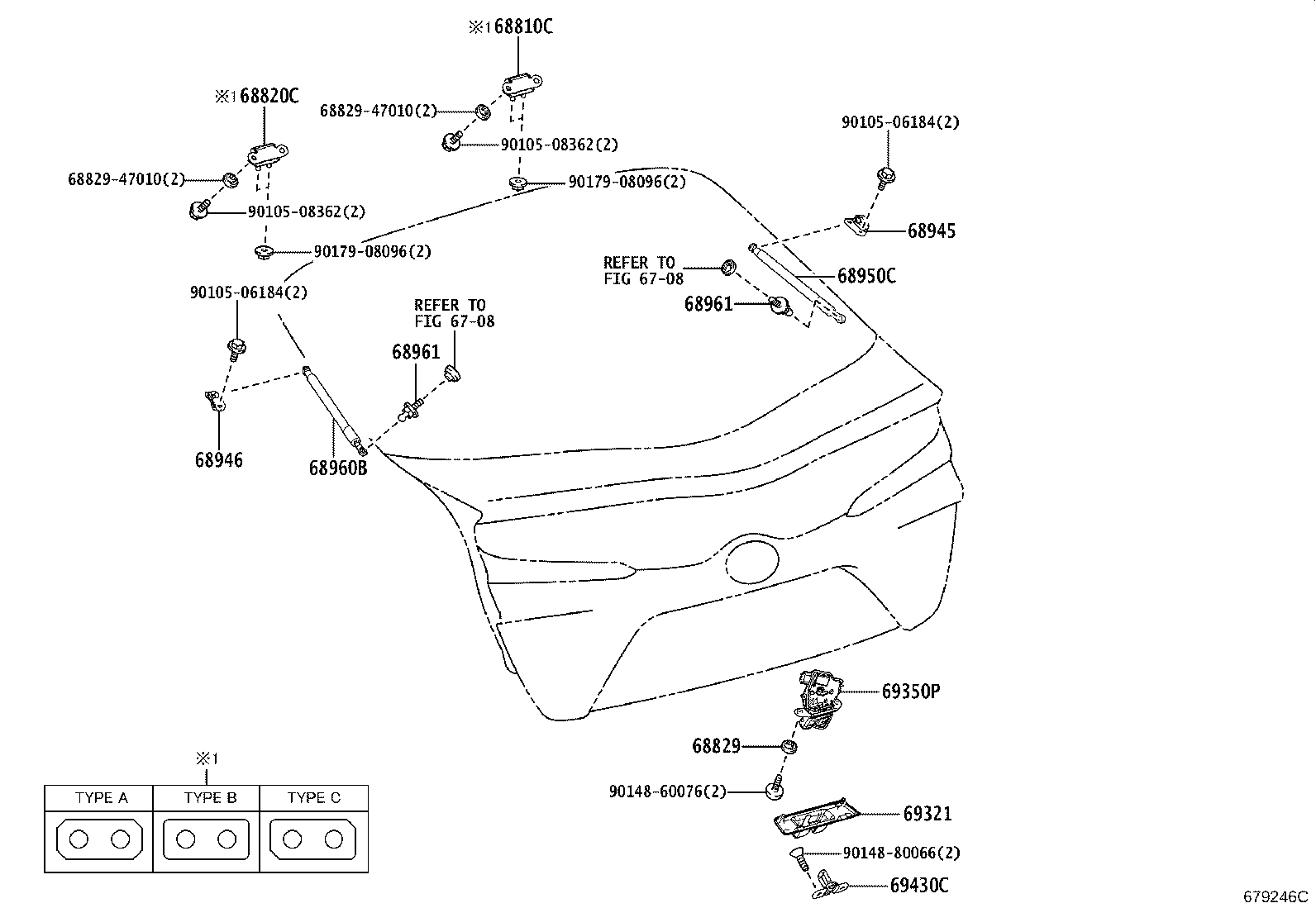

Toyota Prius phv ZVW52 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68810C - HINGE ASSY, BACK DOOR, RH
68810-47100	ZVW52 TYPE B	09/2016 - 04/2019	1
68810-47110	ZVW52 TYPE C	09/2016 - 04/2019	1
68810-47090	ZVW52 TYPE A	09/2016 - 04/2019	1
68820C - HINGE ASSY, BACK DOOR, LH
68810-47110	ZVW52 TYPE C	09/2016 - 04/2019	1
68810-47090	ZVW52 TYPE A	09/2016 - 04/2019	1
68810-47100	ZVW52 TYPE B	09/2016 - 04/2019	1
68829 - COLLAR, BACK DOOR HINGE
68829-47020	ZVW52	09/2016 - 04/2019	2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-52110	ZVW52	09/2016 - 04/2019	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-52110	ZVW52	09/2016 - 04/2019	1
68950C - STAY ASSY, BACK DOOR, RH
68950-0WB20	ZVW52	09/2016 - 04/2019	1
68960B - STAY ASSY, BACK DOOR, LH
68960-0WB20	ZVW52	09/2016 - 04/2019	1
68961 - BOLT, BACK DOOR STAY
68961-13030	ZVW52	09/2016 - 04/2019	2
68961 - BOLT, BACK DOOR STAY
68961-13030	ZVW52	09/2016 - 04/2019	2
69321 - COVER, BACK DOOR LOCK
69321-47020	ZVW52	09/2016 - 04/2019	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-47060	ZVW52	09/2016 - 04/2019	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52050	ZVW52	09/2016 - 04/2019	1
Common parts
68829-47010
90105-06184
90105-08362
90148-60076
90148-80066
90179-08096
Linked diagrams
6708

ZVW52L-AHXEBW (2016)
