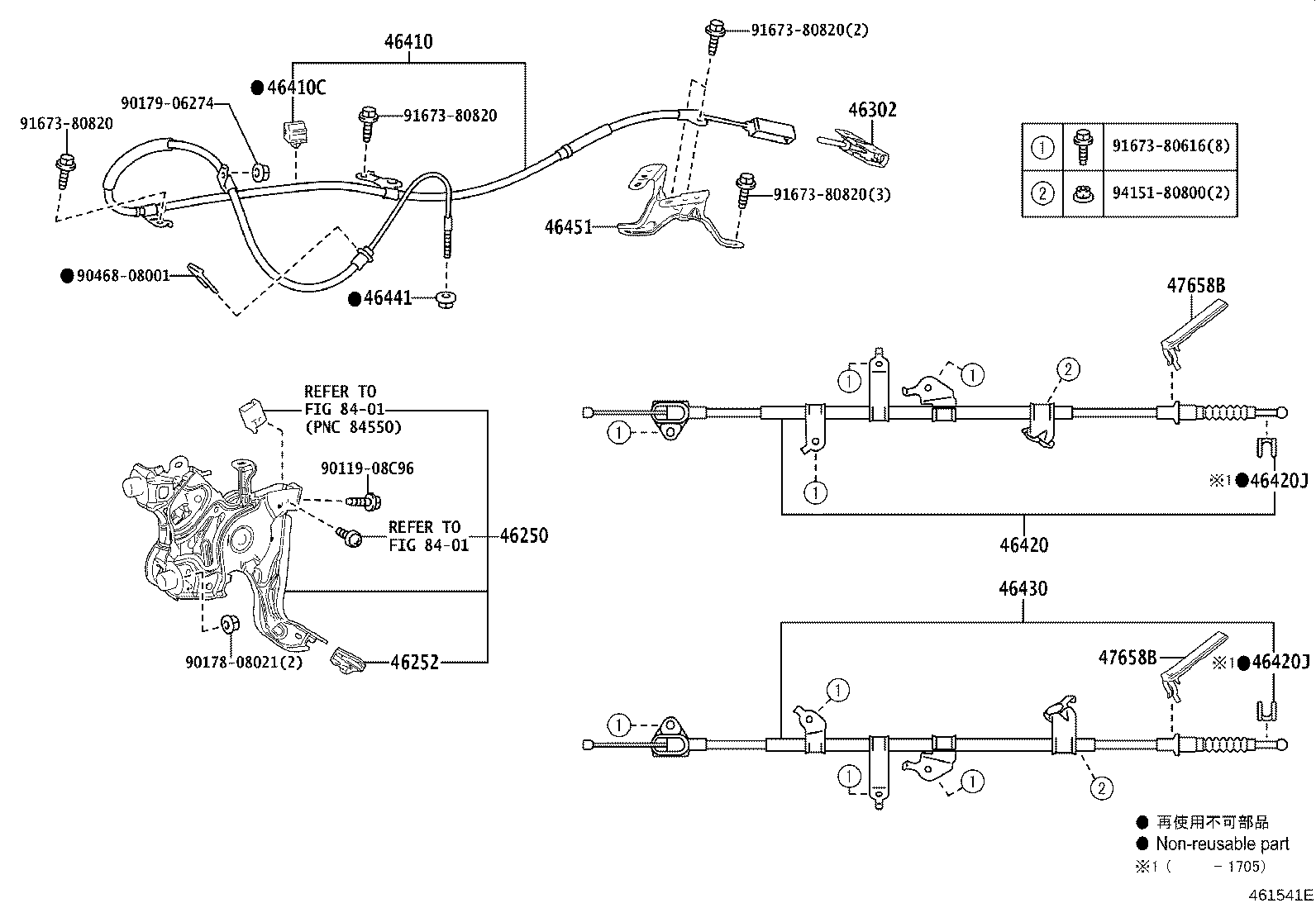

Toyota Prius phv ZVW52 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46250 - PEDAL ASSY, PARKING BRAKE W/O CABLE
46250-47040	ZVW52	09/2016 - 02/2017	1
46250-33010	ZVW52	03/2017 - 04/2019	1
46252 - PAD, PARKING PEDAL
46252-47020	ZVW52	09/2016 - 04/2019	1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-47020	ZVW52	09/2016 - 04/2019	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-47140	ZVW52..LHD	09/2016 - 04/2019	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46402-12030	ZVW52..LHD	09/2016 - 04/2019	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-47110	ZVW52	09/2016 - 05/2017	1
46420-47120	ZVW52	05/2017 - 04/2019	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46423-47020	ZVW52	09/2016 - 05/2017	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46423-47020	ZVW52	09/2016 - 05/2017	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-47120	ZVW52	05/2017 - 04/2019	1
46430-47110	ZVW52	09/2016 - 05/2017	1
46441 - NUT, WIRE ADJUSTING, NO.1
90177-06003	ZVW52	09/2016 - 04/2019	1
46451 - BRACKET, CABLE SUPPORT
46451-47030	ZVW52	09/2016 - 04/2019	1
47658B - PROTECTOR, PARKING BRAKE LEVER
47658-47010	ZVW52	09/2016 - 04/2019	2
47658B - PROTECTOR, PARKING BRAKE LEVER
47658-47010	ZVW52	09/2016 - 04/2019	2
Common parts
90119-08C96
90178-08021
90179-06274
90468-08001
91673-80616
91673-80820
94151-80800
Linked diagrams
8401

ZVW52L-AHXEBW (2016)
