ZVW52L-AHXEBW (2019)
Toyota Prius Phv

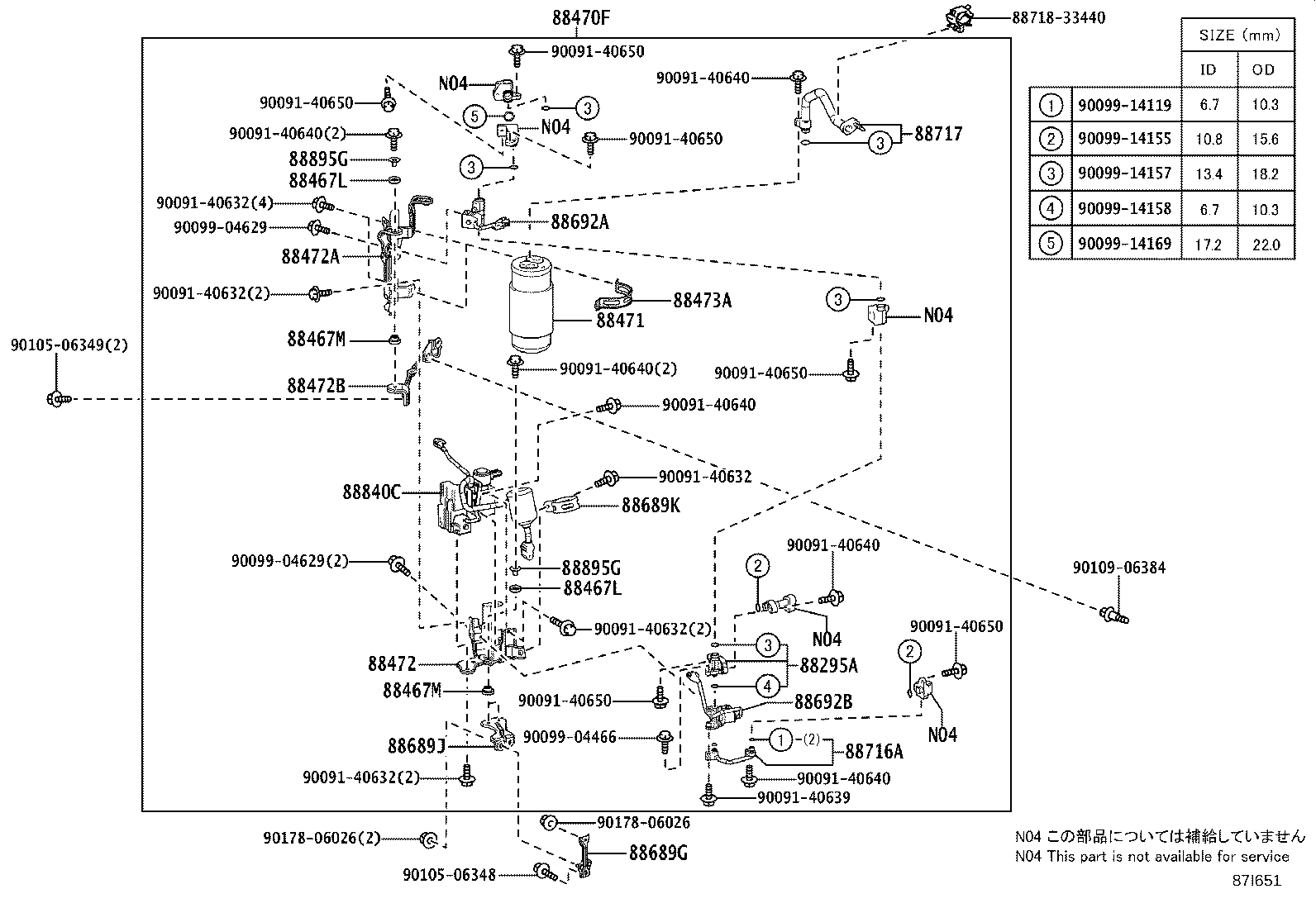

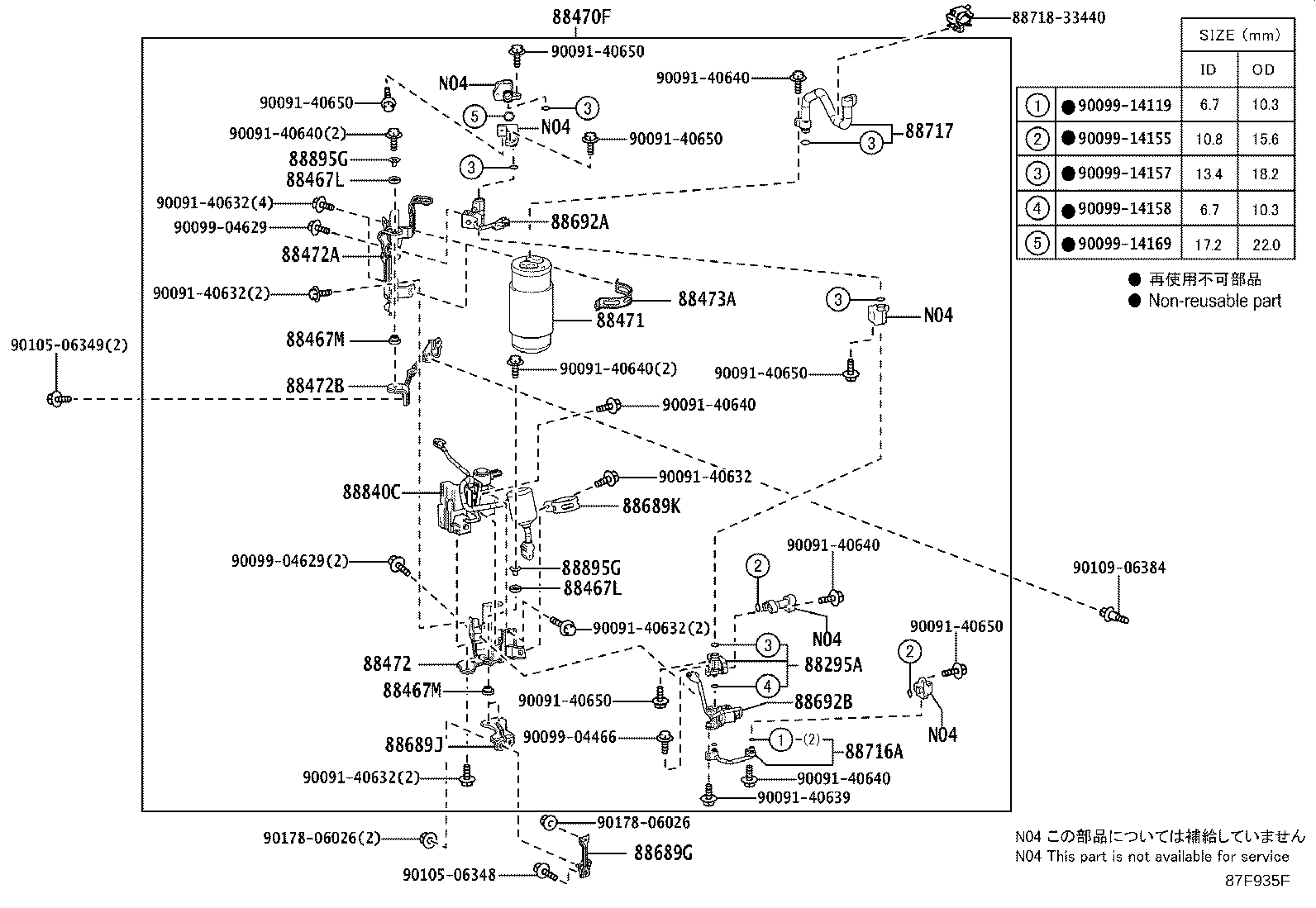

ILLUST NO. 2 OF 2(1609-2007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295A - TUBE, VALVE TO CONNECTOR | ||||
| 88295-47010 |
ZVW52 |
1 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
ZVW52 |
4 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
ZVW52 |
4 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
ZVW52 |
4 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
ZVW52 |
4 | ||
| 88470F - ACCUMULATOR & ACCESSORY ASSY | ||||
| 88470-47020 |
ZVW52 |
1 | ||
| 88470-47021 |
ZVW52 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-47020 |
ZVW52 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88688-47800 |
ZVW52 |
1 | ||
| 88472A - BRACKET, RECEIVER TANK, NO.2 | ||||
| 88688-47780 |
ZVW52 |
1 | ||
| 88472B - BRACKET, RECEIVER TANK, NO.3 | ||||
| 88688-47820 |
ZVW52 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88688-47790 |
ZVW52 |
2 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-47740 |
ZVW52 |
1 | ||
| 88689J - BRACKET, COOLER, NO.5 | ||||
| 88688-47810 |
ZVW52 |
1 | ||
| 88689K - BRACKET, COOLER, NO.6 | ||||
| 88688-47830 |
ZVW52 |
1 | ||
| 88692A - VALVE, LOW PRESSURE MAGNETIC | ||||
| 88690-47020 |
ZVW52 |
1 | ||
| 88692B - VALVE, HIGH PRESSURE MAGNETIC | ||||
| 88690-47030 |
ZVW52 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-47210 |
ZVW52 |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-47041 |
ZVW52 |
1 | ||
| 88717-47040 |
ZVW52 |
1 | ||
| 88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1 | ||||
| 88840-47010 |
ZVW52 |
1 | ||
| 88895G - BUSH | ||||
| 88467-14050 |
ZVW52 |
4 | ||
| 88895G - BUSH | ||||
| 88467-14050 |
ZVW52 |
4 | ||
| Common parts | ||||
| 88718-33440 | ||||
| 90091-40632 | ||||
| 90091-40639 | ||||
| 90091-40640 | ||||
| 90091-40650 | ||||
| 90099-04466 | ||||
| 90099-04629 | ||||
| 90099-14119 | ||||
| 90099-14155 | ||||
| 90099-14157 | ||||
| 90099-14158 | ||||
| 90099-14169 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90109-06384 | ||||
| 90178-06026 | ||||

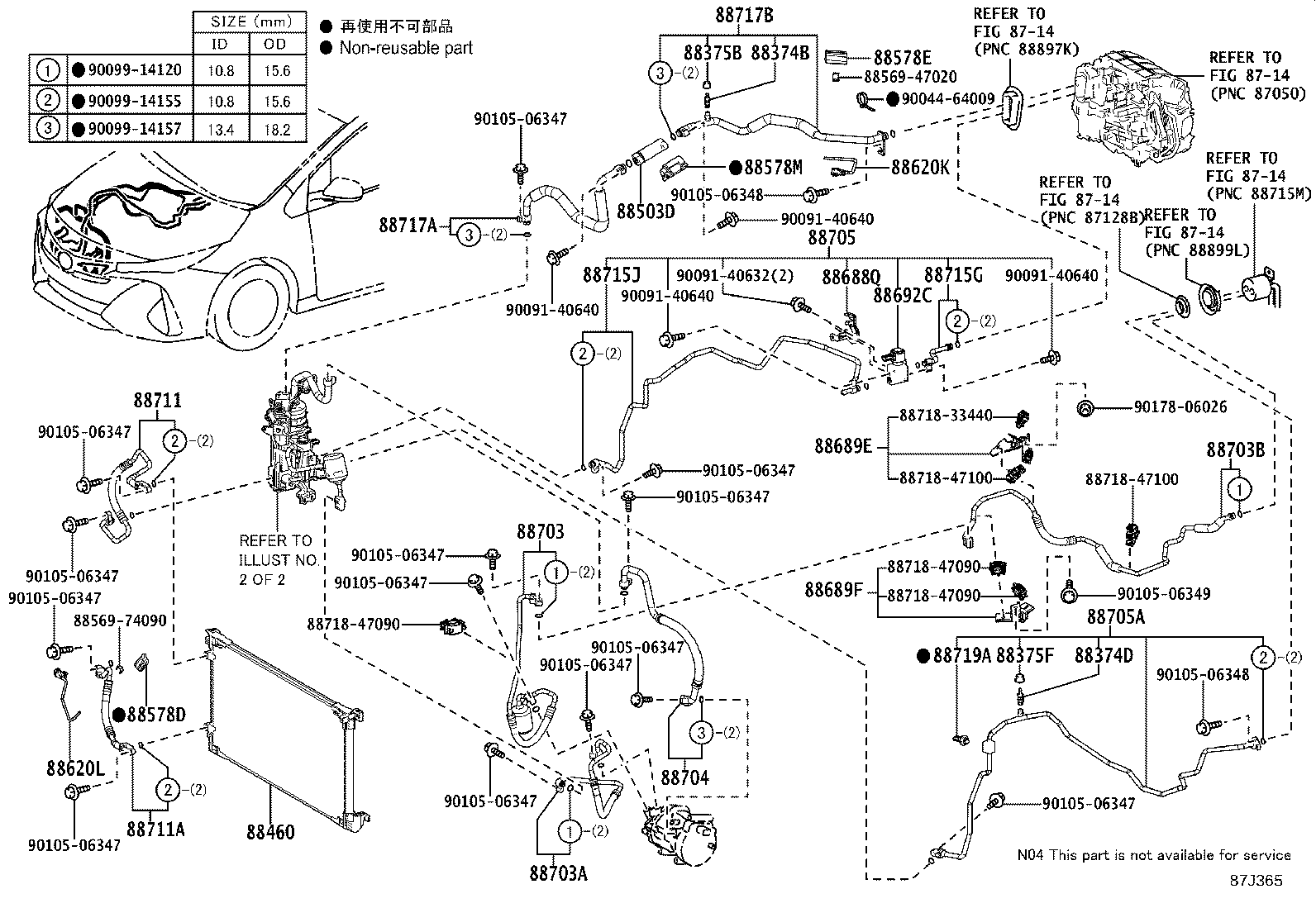

ILLUST NO. 1 OF 2(1609-2007)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-74010 |
ZVW52 |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
ZVW52 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-74010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30310 |
ZVW52 |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30280 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30320 |
ZVW52 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-47180 |
ZVW52 |
1 | ||
| 88503D - REGULATOR, EVAPORATOR PRESSURE | ||||
| 88503-47010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88503-47020 |
ZVW52 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-47070 |
ZVW52 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-47060 |
ZVW52 |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-47090 |
ZVW52 |
1 | ||
| 88620K - SENSOR, EVAPORATOR PIPE TEMPERATURE | ||||
| 88620-47060 |
ZVW52 |
1 | ||
| 88620L - SENSOR, HEAT EXCHANGER TEMPERATURE | ||||
| 88620-47070 |
ZVW52 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-47860 |
ZVW52 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-47720 |
ZVW52 |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-47730 |
ZVW52 |
1 | ||
| 88692C - VALVE, ELECTRIC EXPANSION(COOLING) | ||||
| 88690-47040 |
ZVW52 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-47090 |
ZVW52 |
1 | ||
| 88703A - HOSE SUB-ASSY, DISCHARGE, NO.1 | ||||
| 88703-47100 |
ZVW52 |
1 | ||
| 88703B - HOSE SUB-ASSY, DISCHARGE, NO.2 | ||||
| 88703-47110 |
ZVW52 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-47130 |
ZVW52 |
1 | ||
| 88704-47110 |
ZVW52 |
1 | ||
| 88704-47111 |
ZVW52 |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-47010 |
ZVW52..LHD |
1 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-47041 |
ZVW52 |
1 | ||
| 88705-47030 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88705-47040 |
ZVW52 |
1 | ||
| 88705-47031 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-47060 |
ZVW52 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-47080 |
ZVW52 |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-47050 |
ZVW52..LHD |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-47060 |
ZVW52..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-47050 |
ZVW52 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-47060 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88717-47080 |
ZVW52..LHD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
ZVW52 |
1 | ||
| Common parts | ||||
| 88569-47020 | ||||
| 88569-74090 | ||||
| 88718-33440 | ||||
| 88718-47090 | ||||
| 88718-47100 | ||||
| 90044-64009 | ||||
| 90091-40632 | ||||
| 90091-40640 | ||||
| 90099-14120 | ||||
| 90099-14155 | ||||
| 90099-14157 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||

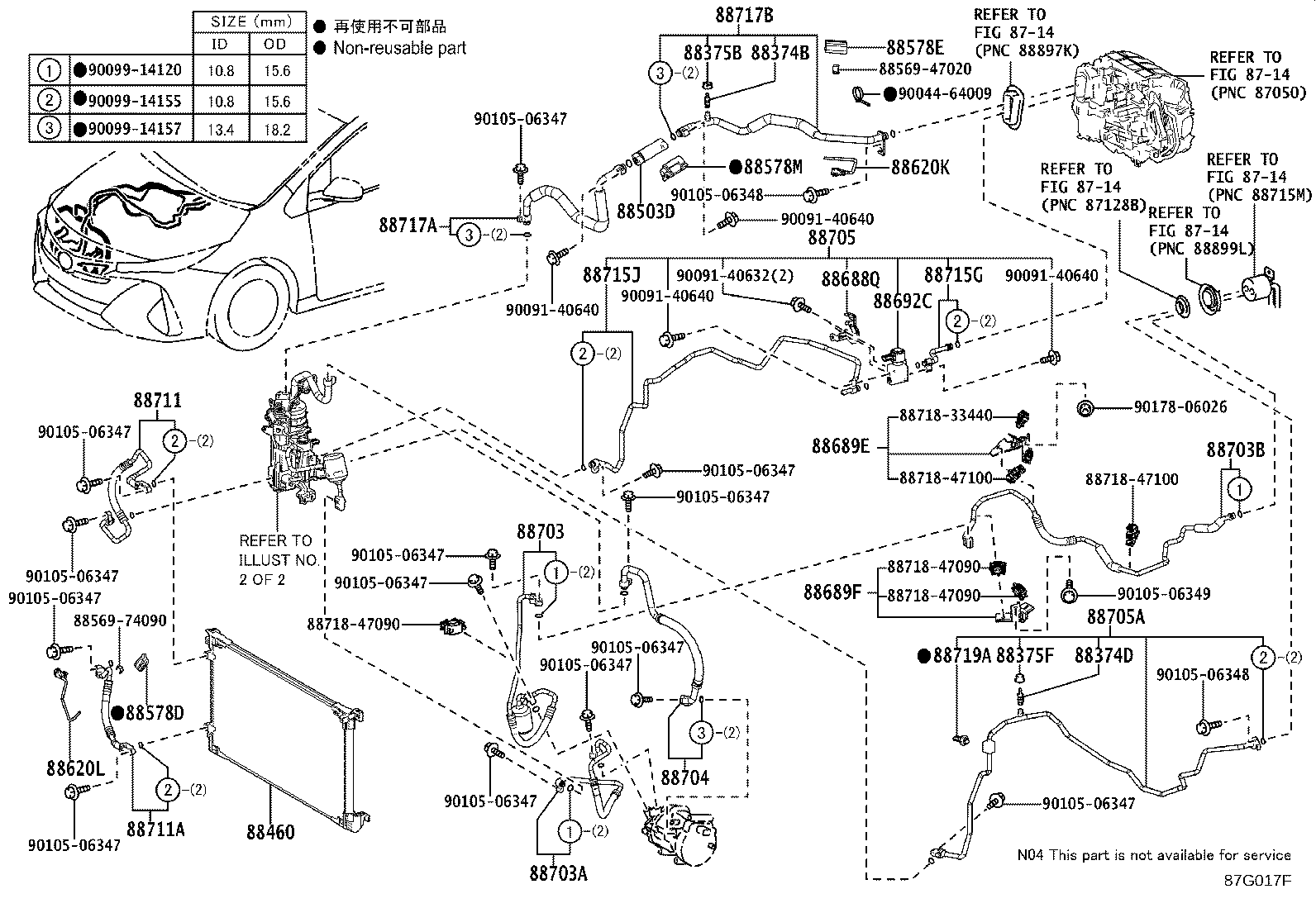

ILLUST NO. 1 OF 2(2007- )LHD
TAIWAN SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-74010 |
ZVW52 |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
ZVW52 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-74010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30310 |
ZVW52 |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30280 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30320 |
ZVW52 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-47180 |
ZVW52 |
1 | ||
| 88503D - REGULATOR, EVAPORATOR PRESSURE | ||||
| 88503-47010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88503-47020 |
ZVW52 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-47070 |
ZVW52 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-47060 |
ZVW52 |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-47090 |
ZVW52 |
1 | ||
| 88620K - SENSOR, EVAPORATOR PIPE TEMPERATURE | ||||
| 88620-47060 |
ZVW52 |
1 | ||
| 88620L - SENSOR, HEAT EXCHANGER TEMPERATURE | ||||
| 88620-47070 |
ZVW52 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-47860 |
ZVW52 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-47720 |
ZVW52 |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-47730 |
ZVW52 |
1 | ||
| 88692C - VALVE, ELECTRIC EXPANSION(COOLING) | ||||
| 88690-47040 |
ZVW52 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-47090 |
ZVW52 |
1 | ||
| 88703A - HOSE SUB-ASSY, DISCHARGE, NO.1 | ||||
| 88703-47100 |
ZVW52 |
1 | ||
| 88703B - HOSE SUB-ASSY, DISCHARGE, NO.2 | ||||
| 88703-47110 |
ZVW52 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-47130 |
ZVW52 |
1 | ||
| 88704-47110 |
ZVW52 |
1 | ||
| 88704-47111 |
ZVW52 |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-47010 |
ZVW52..LHD |
1 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-47041 |
ZVW52 |
1 | ||
| 88705-47030 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88705-47040 |
ZVW52 |
1 | ||
| 88705-47031 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-47060 |
ZVW52 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-47080 |
ZVW52 |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-47050 |
ZVW52..LHD |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-47060 |
ZVW52..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-47050 |
ZVW52 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-47060 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88717-47080 |
ZVW52..LHD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
ZVW52 |
1 | ||
| Common parts | ||||
| 88569-47020 | ||||
| 88569-74090 | ||||
| 88718-33440 | ||||
| 88718-47090 | ||||
| 88718-47100 | ||||
| 90044-64009 | ||||
| 90091-40632 | ||||
| 90091-40640 | ||||
| 90099-14120 | ||||
| 90099-14155 | ||||
| 90099-14157 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||

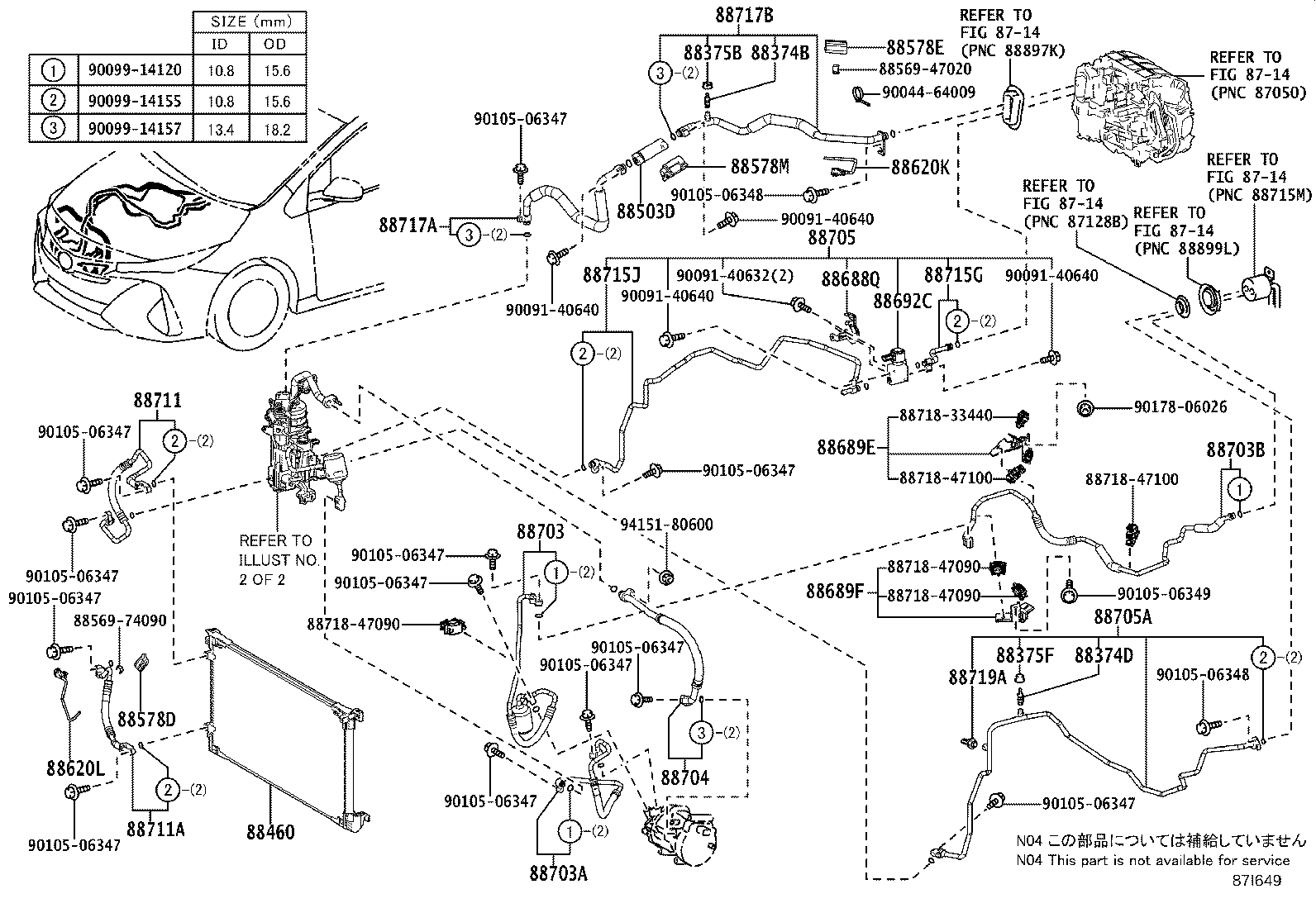

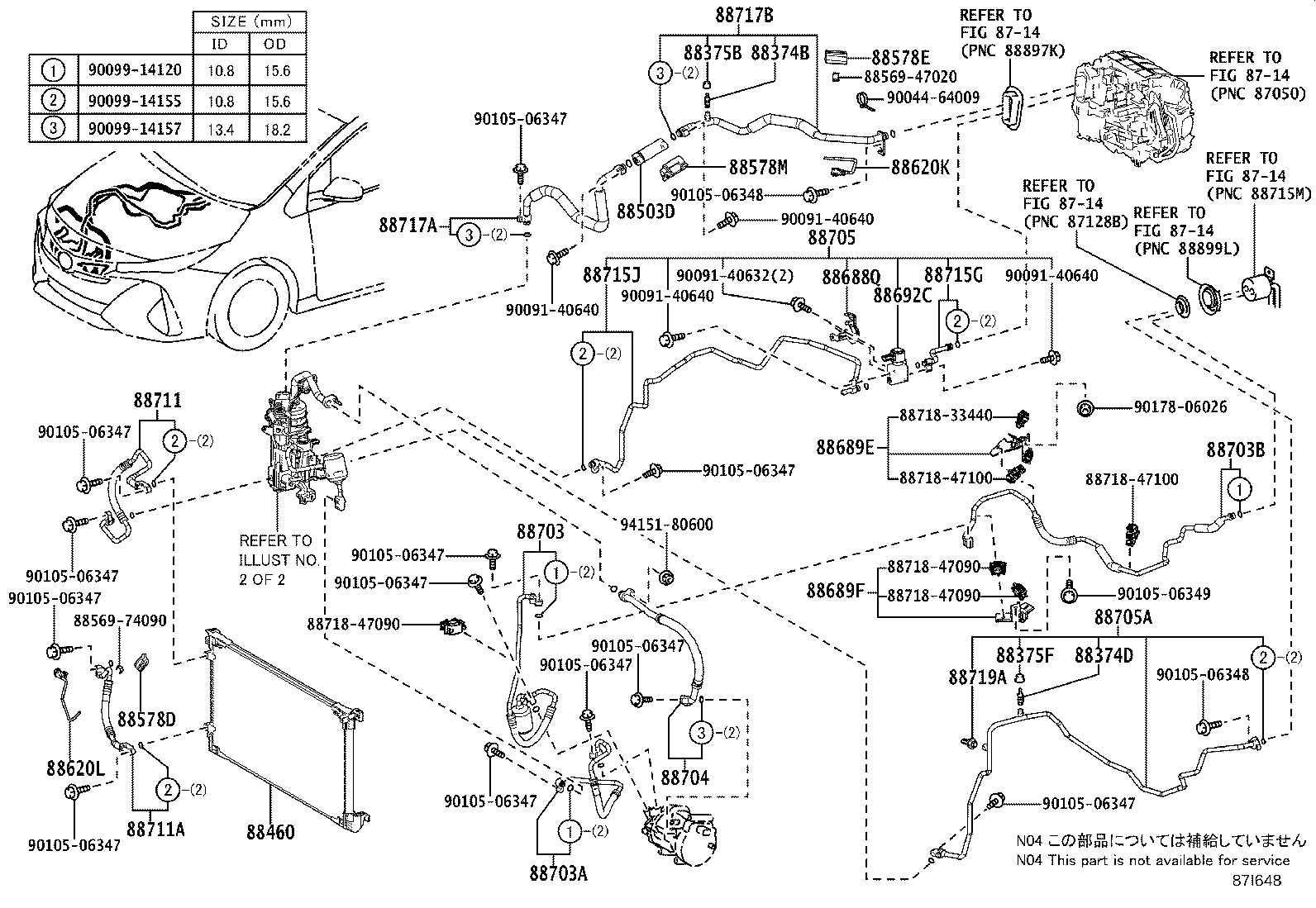

ILLUST NO. 1 OF 2(2007- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-74010 |
ZVW52 |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
ZVW52 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-74010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30310 |
ZVW52 |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30280 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30320 |
ZVW52 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-47180 |
ZVW52 |
1 | ||
| 88503D - REGULATOR, EVAPORATOR PRESSURE | ||||
| 88503-47010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88503-47020 |
ZVW52 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-47070 |
ZVW52 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-47060 |
ZVW52 |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-47090 |
ZVW52 |
1 | ||
| 88620K - SENSOR, EVAPORATOR PIPE TEMPERATURE | ||||
| 88620-47060 |
ZVW52 |
1 | ||
| 88620L - SENSOR, HEAT EXCHANGER TEMPERATURE | ||||
| 88620-47070 |
ZVW52 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-47860 |
ZVW52 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-47720 |
ZVW52 |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-47730 |
ZVW52 |
1 | ||
| 88692C - VALVE, ELECTRIC EXPANSION(COOLING) | ||||
| 88690-47040 |
ZVW52 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-47090 |
ZVW52 |
1 | ||
| 88703A - HOSE SUB-ASSY, DISCHARGE, NO.1 | ||||
| 88703-47100 |
ZVW52 |
1 | ||
| 88703B - HOSE SUB-ASSY, DISCHARGE, NO.2 | ||||
| 88703-47110 |
ZVW52 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-47130 |
ZVW52 |
1 | ||
| 88704-47110 |
ZVW52 |
1 | ||
| 88704-47111 |
ZVW52 |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-47010 |
ZVW52..LHD |
1 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-47041 |
ZVW52 |
1 | ||
| 88705-47030 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88705-47040 |
ZVW52 |
1 | ||
| 88705-47031 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-47060 |
ZVW52 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-47080 |
ZVW52 |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-47050 |
ZVW52..LHD |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-47060 |
ZVW52..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-47050 |
ZVW52 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-47060 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88717-47080 |
ZVW52..LHD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
ZVW52 |
1 | ||
| Common parts | ||||
| 88569-47020 | ||||
| 88569-74090 | ||||
| 88718-33440 | ||||
| 88718-47090 | ||||
| 88718-47100 | ||||
| 90044-64009 | ||||
| 90091-40632 | ||||
| 90091-40640 | ||||
| 90099-14120 | ||||
| 90099-14155 | ||||
| 90099-14157 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 2(2007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295A - TUBE, VALVE TO CONNECTOR | ||||
| 88295-47010 |
ZVW52 |
1 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
ZVW52 |
4 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
ZVW52 |
4 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
ZVW52 |
4 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
ZVW52 |
4 | ||
| 88470F - ACCUMULATOR & ACCESSORY ASSY | ||||
| 88470-47020 |
ZVW52 |
1 | ||
| 88470-47021 |
ZVW52 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-47020 |
ZVW52 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88688-47800 |
ZVW52 |
1 | ||
| 88472A - BRACKET, RECEIVER TANK, NO.2 | ||||
| 88688-47780 |
ZVW52 |
1 | ||
| 88472B - BRACKET, RECEIVER TANK, NO.3 | ||||
| 88688-47820 |
ZVW52 |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88688-47790 |
ZVW52 |
2 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-47740 |
ZVW52 |
1 | ||
| 88689J - BRACKET, COOLER, NO.5 | ||||
| 88688-47810 |
ZVW52 |
1 | ||
| 88689K - BRACKET, COOLER, NO.6 | ||||
| 88688-47830 |
ZVW52 |
1 | ||
| 88692A - VALVE, LOW PRESSURE MAGNETIC | ||||
| 88690-47020 |
ZVW52 |
1 | ||
| 88692B - VALVE, HIGH PRESSURE MAGNETIC | ||||
| 88690-47030 |
ZVW52 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-47210 |
ZVW52 |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-47041 |
ZVW52 |
1 | ||
| 88717-47040 |
ZVW52 |
1 | ||
| 88840C - ACCESSORY ASSY, AIR CONDITIONER, NO.1 | ||||
| 88840-47010 |
ZVW52 |
1 | ||
| 88895G - BUSH | ||||
| 88467-14050 |
ZVW52 |
4 | ||
| 88895G - BUSH | ||||
| 88467-14050 |
ZVW52 |
4 | ||
| Common parts | ||||
| 88718-33440 | ||||
| 90091-40632 | ||||
| 90091-40639 | ||||
| 90091-40640 | ||||
| 90091-40650 | ||||
| 90099-04466 | ||||
| 90099-04629 | ||||
| 90099-14119 | ||||
| 90099-14155 | ||||
| 90099-14157 | ||||
| 90099-14158 | ||||
| 90099-14169 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90109-06384 | ||||
| 90178-06026 | ||||
ILLUST NO. 1 OF 2(1609-2007)LHD
TAIWAN SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-74010 |
ZVW52 |
1 | ||
| 88374D - VALVE, SERVICE NO.3 | ||||
| 88374-30010 |
ZVW52 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-74010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30310 |
ZVW52 |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30280 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88375-30320 |
ZVW52 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-47180 |
ZVW52 |
1 | ||
| 88503D - REGULATOR, EVAPORATOR PRESSURE | ||||
| 88503-47010 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88503-47020 |
ZVW52 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-47070 |
ZVW52 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-47060 |
ZVW52 |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-47090 |
ZVW52 |
1 | ||
| 88620K - SENSOR, EVAPORATOR PIPE TEMPERATURE | ||||
| 88620-47060 |
ZVW52 |
1 | ||
| 88620L - SENSOR, HEAT EXCHANGER TEMPERATURE | ||||
| 88620-47070 |
ZVW52 |
1 | ||
| 88688Q - BRACKET (FOR MAGNET VALVE) | ||||
| 88688-47860 |
ZVW52 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-47720 |
ZVW52 |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-47730 |
ZVW52 |
1 | ||
| 88692C - VALVE, ELECTRIC EXPANSION(COOLING) | ||||
| 88690-47040 |
ZVW52 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-47090 |
ZVW52 |
1 | ||
| 88703A - HOSE SUB-ASSY, DISCHARGE, NO.1 | ||||
| 88703-47100 |
ZVW52 |
1 | ||
| 88703B - HOSE SUB-ASSY, DISCHARGE, NO.2 | ||||
| 88703-47110 |
ZVW52 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-47130 |
ZVW52 |
1 | ||
| 88704-47110 |
ZVW52 |
1 | ||
| 88704-47111 |
ZVW52 |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-47010 |
ZVW52..LHD |
1 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-47041 |
ZVW52 |
1 | ||
| 88705-47030 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88705-47040 |
ZVW52 |
1 | ||
| 88705-47031 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-47060 |
ZVW52 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-47080 |
ZVW52 |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-47050 |
ZVW52..LHD |
1 | ||
| 88715J - TUBE, DISCHARGE, J | ||||
| 88715-47060 |
ZVW52..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-47050 |
ZVW52 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-47060 |
ZVW52..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC |
1 | ||
| 88717-47080 |
ZVW52..LHD |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
ZVW52 |
1 | ||
| Common parts | ||||
| 88569-47020 | ||||
| 88569-74090 | ||||
| 88718-33440 | ||||
| 88718-47090 | ||||
| 88718-47100 | ||||
| 90044-64009 | ||||
| 90091-40632 | ||||
| 90091-40640 | ||||
| 90099-14120 | ||||
| 90099-14155 | ||||
| 90099-14157 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
