ZVW55L-AHXEBW (2018)
Toyota Prius
(1812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
2ZRFXE..ZVW5# |
2 | ||
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
2ZRFXE..ZVW5# |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47180 |
ZVW5# |
1 | ||
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-47020 |
ZVW5# |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-47010 |
ZVW5# |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47270 |
ZVW5# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47050 |
ZVW5# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47050 |
ZVW5# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47980 |
ZVW5# PAINT REQ. |
1 | ||
| 52119-47981 |
ZVW5# PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-47981 |
ZVW5# PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(*PVM) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-47911 |
ZVW5# |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47910 |
ZVW5# |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-47010 |
ZVW5# |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW5# |
6 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW5# |
6 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-47030 |
ZVW5# NO.1:REFER ILLUST. |
1 | ||
| 52421-47040 |
ZVW5# NO.2:REFER ILLUST. |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-47030 |
ZVW5# NO.1:REFER ILLUST. |
1 | ||
| 52421-47040 |
ZVW5# NO.2:REFER ILLUST. |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-47030 |
ZVW5# NO.1:REFER ILLUST. |
1 | ||
| 52421-47040 |
ZVW5# NO.2:REFER ILLUST. |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW5# |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47210 |
ZVW5# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47130 |
ZVW5# |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-47040 |
ZVW5# |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-47040 |
ZVW5# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-47310 |
ZVW5# NO PAINT REQ. |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-47060 |
ZVW5# |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-12070A1 |
ZVW5# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,RH |
1 | ||
| 89348-12140A1 |
ZVW5# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,LH |
1 | ||
| 89348-1207022 |
ZVW5# CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,RH |
1 | ||
| 89348-12070R0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,RH |
1 | ||
| 89348-12070B0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH |
1 | ||
| 89348-12140B7 |
ZVW5# CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,LH |
1 | ||
| 89348-12070E3 |
ZVW5# CLEARANCE & BACK SONAR-WITH,STEEL BLONDE ME.,4X1,RH |
1 | ||
| 89348-12070D4 |
ZVW5# CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,RH |
1 | ||
| 89348-12070B7 |
ZVW5# CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,RH |
1 | ||
| 89348-12140E3 |
ZVW5# CLEARANCE & BACK SONAR-WITH,STEEL BLONDE ME.,4X1,LH |
1 | ||
| 89348-12070A4 |
ZVW5# CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,RH |
1 | ||
| 89348-12140D4 |
ZVW5# CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,LH |
1 | ||
| 89348-1214022 |
ZVW5# CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,LH |
1 | ||
| 89348-12140R0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,LH |
1 | ||
| 89348-12140A0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH |
1 | ||
| 89348-12140B0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH |
1 | ||
| 89348-12070A0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH |
1 | ||
| 89348-12140A4 |
ZVW5# CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,LH |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-47040D7 |
ZVW5# CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,RH |
1 | ||
| 89348-47040A1 |
ZVW5# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,RH |
1 | ||
| 89348-47040A0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH |
1 | ||
| 89348-47050A1 |
ZVW5# CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070,LH |
1 | ||
| 89348-47040B0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH |
1 | ||
| 89348-47040H0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781,RH |
1 | ||
| 89348-47050A0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH |
1 | ||
| 89348-47040C0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,RH |
1 | ||
| 89348-47050H0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781,LH |
1 | ||
| 89348-47040J6 |
ZVW5# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,RH |
1 | ||
| 89348-47050B1 |
ZVW5# CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,LH |
1 | ||
| 89348-47040B1 |
ZVW5# CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3,RH |
1 | ||
| 89348-47050E0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1,LH |
1 | ||
| 89348-47040E0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1,RH |
1 | ||
| 89348-47050A4 |
ZVW5# CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,LH |
1 | ||
| 89348-47050C0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218,LH |
1 | ||
| 89348-47050B0 |
ZVW5# CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH |
1 | ||
| 89348-47050J6 |
ZVW5# CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7,LH |
1 | ||
| 89348-47040A4 |
ZVW5# CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089,RH |
1 | ||
| 89348-47050D7 |
ZVW5# CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5,LH |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-08241 | ||||
| 90189-06237 | ||||
| 90467-07220 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||

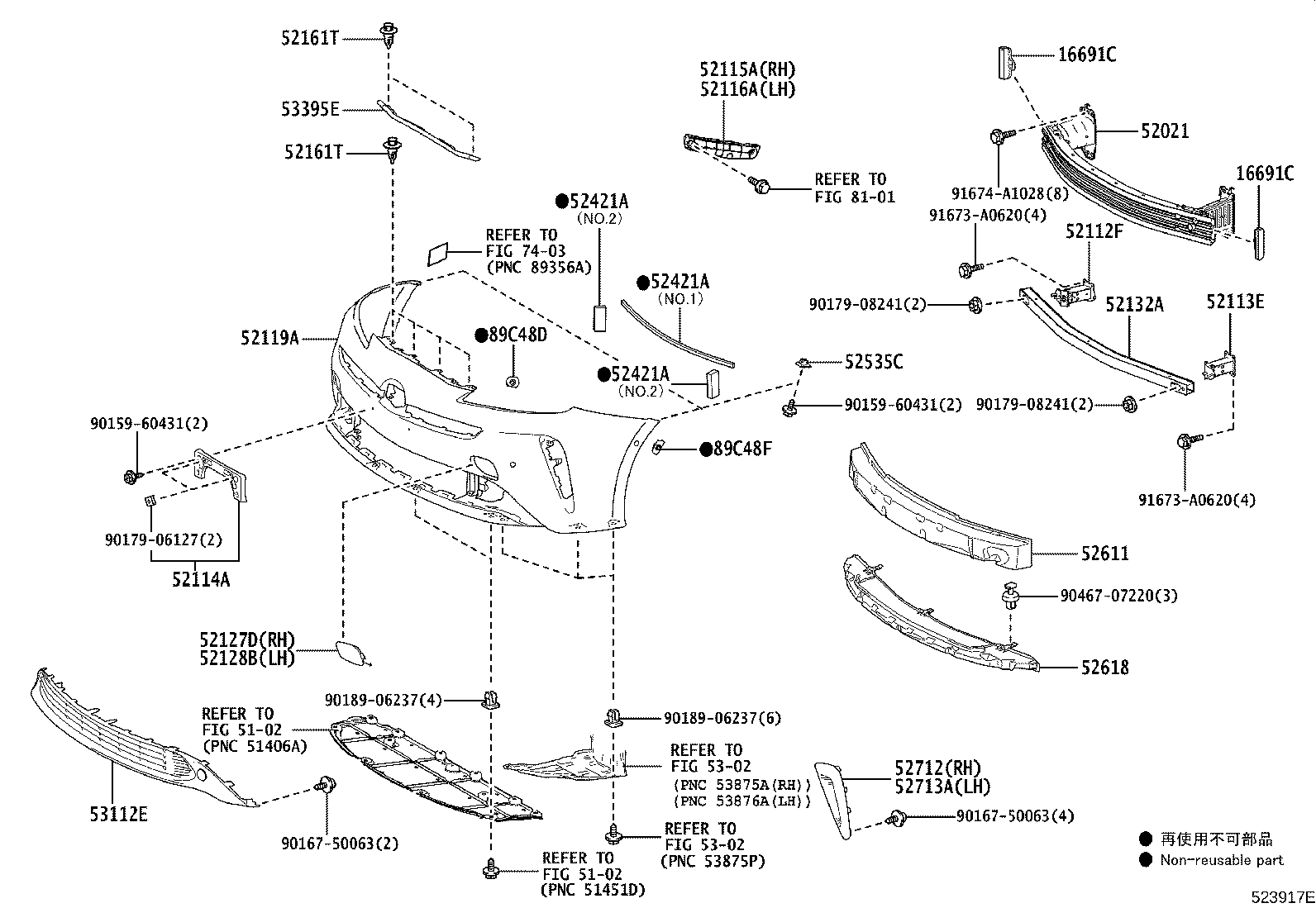

| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7403 | ||||
| 8101 | ||||
