ZVW30R-AHXEBW (2009)
Toyota Prius

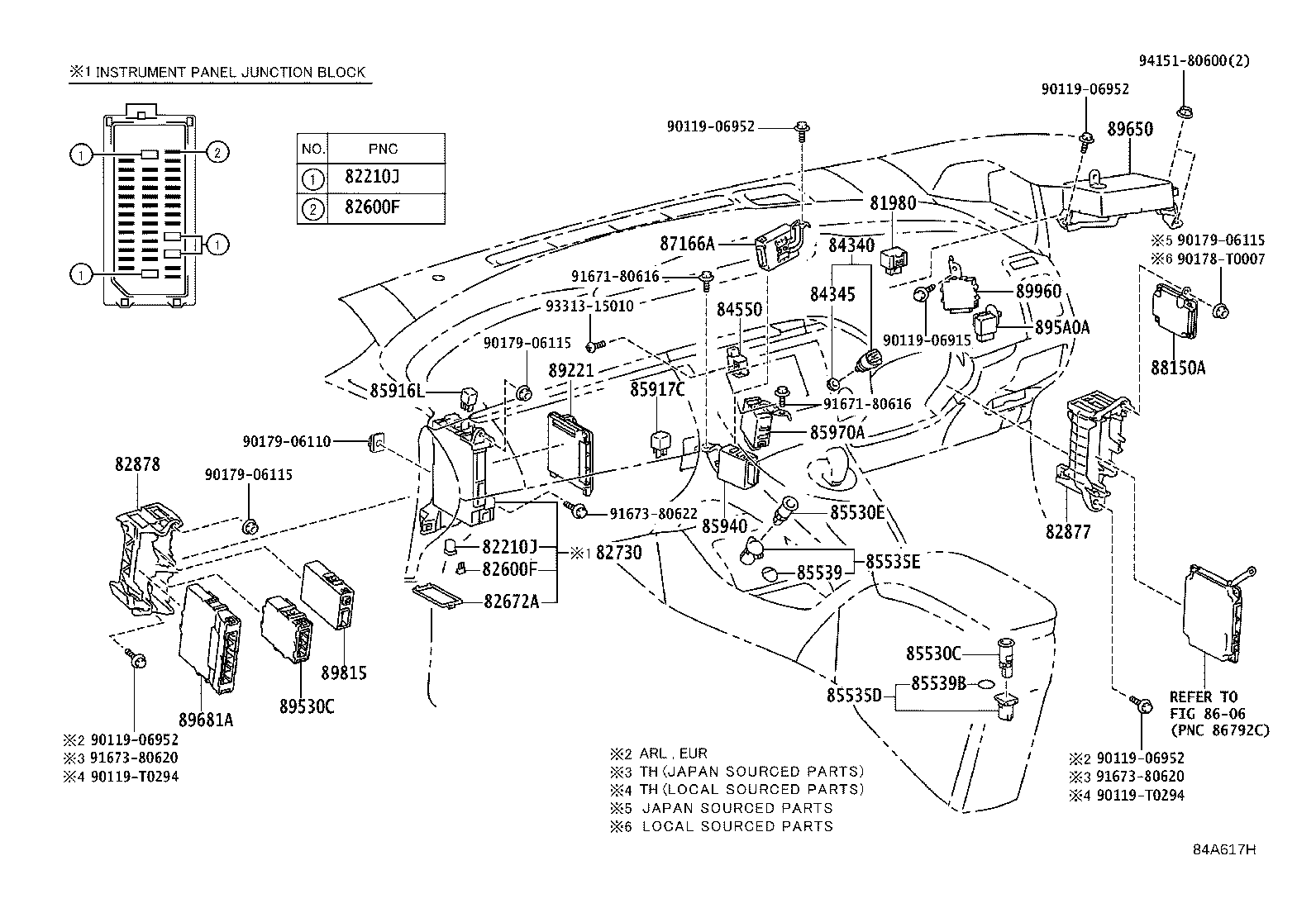

ILLUST NO. 4 OF 7(0904-1112)RHD..ARL,EUR ; (1012-1204)TH
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ZVW30..ARL,EUR |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
ZVW30..ARL,EUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08306 |
ZVW30..ARL,EUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ZVW30..ARL,EUR 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZVW30..ARL,EUR 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW30..ARL,EUR 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZVW30..ARL,EUR 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZVW30..ARL,EUR 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZVW30..ARL,EUR 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZVW30..ARL,EUR 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ZVW30..ARL,EUR 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZVW30..ARL,EUR 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW30..ARL,EUR 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZVW30..ARL,EUR 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZVW30..ARL,EUR 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZVW30..ARL,EUR 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZVW30..ARL,EUR 20A,MINI FUSE,YELLOW |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-47091 |
ZVW30..ARL,EUR |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47441 |
ZVW30..RHD..EUR EUROPE SUPERLATIVE PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&CRUISECONTROL-WITH(MICRO WAVE TYPE)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 82730-47441 |
ZVW30..RHD..EUR EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 82730-47441 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 82730-47441 |
ZVW30..RHD..EUR EXPORT UPPER PACKAGE&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47020 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ZVW30..ARL,EUR |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW30..ARL,EUR |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
ZVW30..ARL,EUR |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-42010 |
ZVW30..ARL,EUR |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ZVW30..ARL,EUR |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-33060 |
ZVW30..ARL,EUR |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100C0 |
ZVW30..ARL,EUR BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ZVW30..ARL,EUR |
1 | ||
| 85539B - LABEL, POWER OUTLET NOTICE, CENTER | ||||
| 85539-60020 |
ZVW30..ARL,EUR |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZVW30..EUR |
1 | ||
| 85917C - RELAY, SOLAR | ||||
| 90987-04010 |
ZVW30..ARL,EUR |
1 | ||
| 90987-04010 |
ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 90987-04010 |
ZVW30..EUR MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 90987-04010 |
ZVW30..EUR EXPORT UPPER PACKAGE&MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 90987-04010 |
ZVW30..EUR MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-47020 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 85940-47020 |
ZVW30..RHD..EUR WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 85940-47020 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 85940-47020 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 85940-47020 |
ZVW30..RHD..EUR WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 85940-47020 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| 85940-47020 |
ZVW30..RHD..EUR WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-47020 |
ZVW30..RHD..EUR |
1 | ||
| 87166A - COMPUTER, SOLAR BATTERY AIRCONDITIONER BLOWER VENT | ||||
| 87166-47010 |
ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-47010 |
ZVW30..RHD..(ARL,EUR) PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-47260 |
ZVW30..RHD..EUR ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 89220-47360 |
ZVW30..RHD..EUR MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 89220-47270 |
ZVW30..RHD..EUR ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL)&HEADLAMP-LED |
1 | ||
| 89220-47250 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&HEADLAMP-LED |
1 | ||
| 89220-47280 |
ZVW30..RHD..EUR ENGLAND SPEC |
1 | ||
| 89220-47320 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47300 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47300 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47350 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47320 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47410 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47340 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47240 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO) |
1 | ||
| 89220-47290 |
ZVW30..RHD..EUR ENGLAND SPEC&HEADLAMP-LED |
1 | ||
| 89220-47390 |
ZVW30..RHD..EUR HEADLAMP-LED |
1 | ||
| 89220-47370 |
ZVW30..RHD..EUR MOON ROOF-WITH(SOLAR PANEL)&HEADLAMP-LED |
1 | ||
| 89220-47400 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47380 |
ZVW30..RHD..EUR |
1 | ||
| 89220-47300 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47320 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47640 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47630 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47370 |
ZVW30..RHD..EUR MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47360 |
ZVW30..RHD..EUR MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47400 |
ZVW30..RHD..EUR REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89220-47270 |
ZVW30..RHD..EUR ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED |
1 | ||
| 89220-47260 |
ZVW30..RHD..EUR ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-75030 |
ZVW30 |
1 | ||
| 89535-76020 |
ZVW30..ARL,EUR |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-47030 |
ZVW30..RHD..(ARL,EUR) EMERGENCY BRAKE SIGNAL-WITHOUT |
1 | ||
| 895A0-47020 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47270 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-47230 |
ZVW30..ARL,EUR |
1 | ||
| 89681-47100 |
ZVW30 |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-20010 |
ZVW30 PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH) |
1 | ||
| 89815-47010 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-47070 |
ZVW30..ARL,EUR HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| 90119-T0294 | ||||
| 90178-T0007 | ||||
| 90179-06110 | ||||
| 90179-06115 | ||||
| 91671-80616 | ||||
| 91673-80620 | ||||
| 91673-80622 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8606 | ||||
ILLUST NO. 6 OF 7(0904- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42060 |
ZVW30..RHD..EUR HONG KONG SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR SINGAPORE SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR BRUNEI SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR INDONESIA SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR THAILAND SPEC |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR SINGAPORE SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR HONG KONG SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR MALAYSIA SPEC |
1 | ||
| 84140-42111 |
ZVW30..RHD..EUR EUROPE SUPERLATIVE PACKAGE&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR THAILAND SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42111 |
ZVW30..EUR EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR INDONESIA SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42101 |
ZVW30..EUR |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR BRUNEI SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR MALAYSIA SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR INDIA SPEC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42060 |
ZVW30..RHD..EUR HONG KONG SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR SINGAPORE SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR BRUNEI SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR INDONESIA SPEC |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR THAILAND SPEC |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR SINGAPORE SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR HONG KONG SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR MALAYSIA SPEC |
1 | ||
| 84140-42111 |
ZVW30..RHD..EUR EUROPE SUPERLATIVE PACKAGE&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR THAILAND SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42111 |
ZVW30..EUR EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR INDONESIA SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42101 |
ZVW30..EUR |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR BRUNEI SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42080 |
ZVW30..RHD..EUR MALAYSIA SPEC&EXPORT UPPER PACKAGE&HEADLAMP-LED |
1 | ||
| 84140-42060 |
ZVW30..RHD..EUR INDIA SPEC |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-47030B0 |
ZVW30..ARL,EUR SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84244-47040B0 |
ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-47030B0 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84247-47030B0 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84247-47020B0 |
ZVW30..EUR SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84247-47030B0 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84247-47030B0 |
ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-47210B0 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84250-47220B0 |
ZVW30..EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84250-47210B0 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84250-47200B0 |
ZVW30..EUR SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84250-47210B0 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-74020 |
ZVW30..ARL,EUR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42140 |
ZVW30..RHD..EUR HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEWMIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEWMIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48180 |
ZVW30..EUR |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT& BACK)&AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42140 |
ZVW30..RHD..EUR HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEWMIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SOUTH AFRICA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEWMIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR BRUNEI SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR THAILAND SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR INDIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48180 |
ZVW30..EUR |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-42140 |
ZVW30..RHD..EUR MALAYSIA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 84652-48190 |
ZVW30..EUR MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT& BACK)&AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

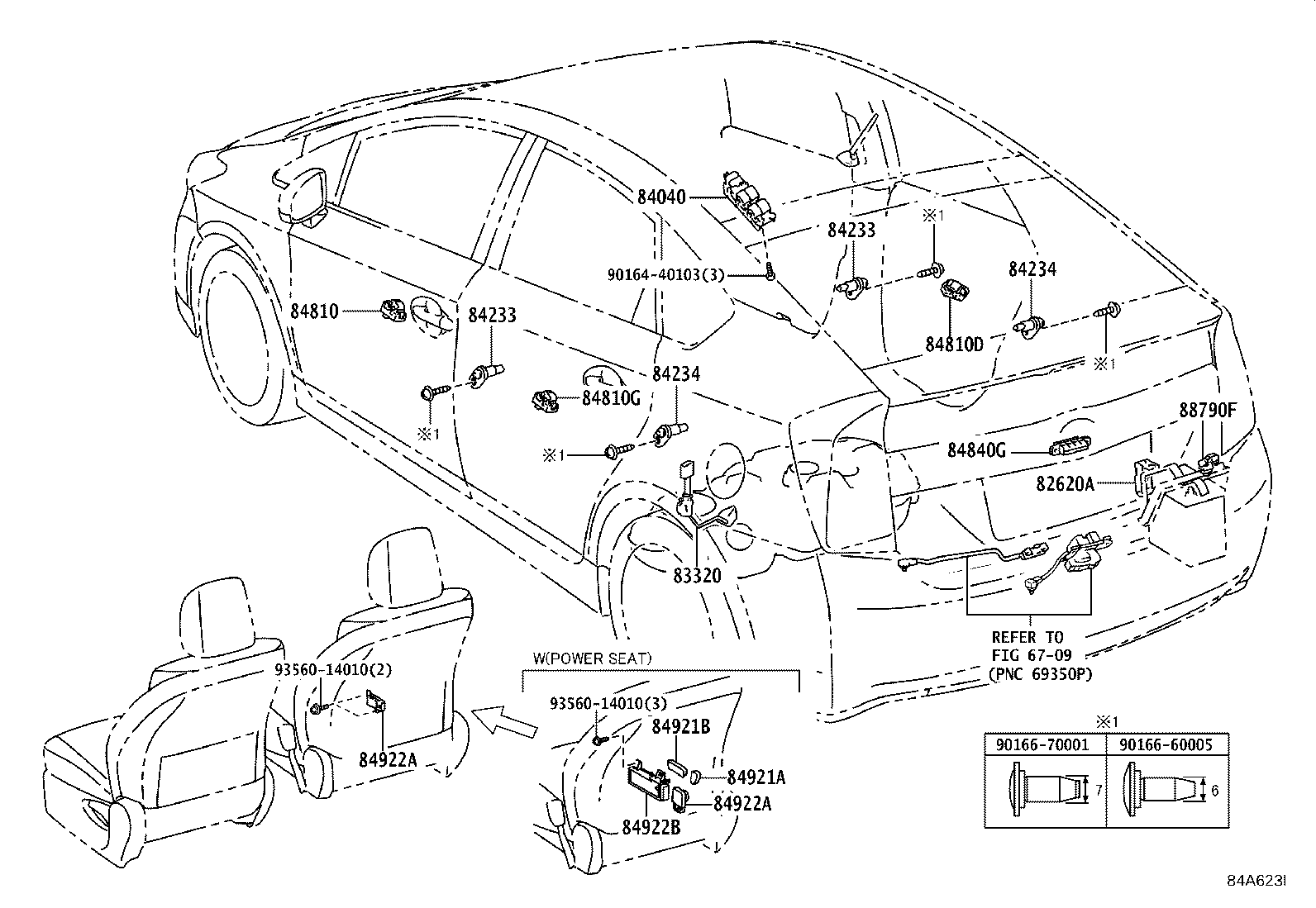

ILLUST NO. 7 OF 7(0904- )RHD
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
ZVW30..ARL,EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-47050 |
ZVW30..ARL,EUR |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW30..ARL,EUR |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW30..ARL,EUR |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW30..ARL,EUR |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW30..ARL,EUR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ZVW30..ARL,EUR |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW30..ARL,EUR |
1 | ||
| 84810G - SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2 | ||||
| 84810-33120 |
ZVW30..ARL,EUR |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ZVW30..EUR |
1 | ||
| 84840-28040 |
ZVW30..EUR WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK) |
1 | ||
| 84840-28040 |
ZVW30..EUR WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK) |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60040B1 |
ZVW30..RHD..(ARL,EUR) MD.GRAY,TRIM1# |
1 | ||
| 84920-60040G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60040B1 |
ZVW30..RHD..(ARL,EUR) MD.GRAY,TRIM1# |
1 | ||
| 84920-60040G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-22131 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 6709 | ||||

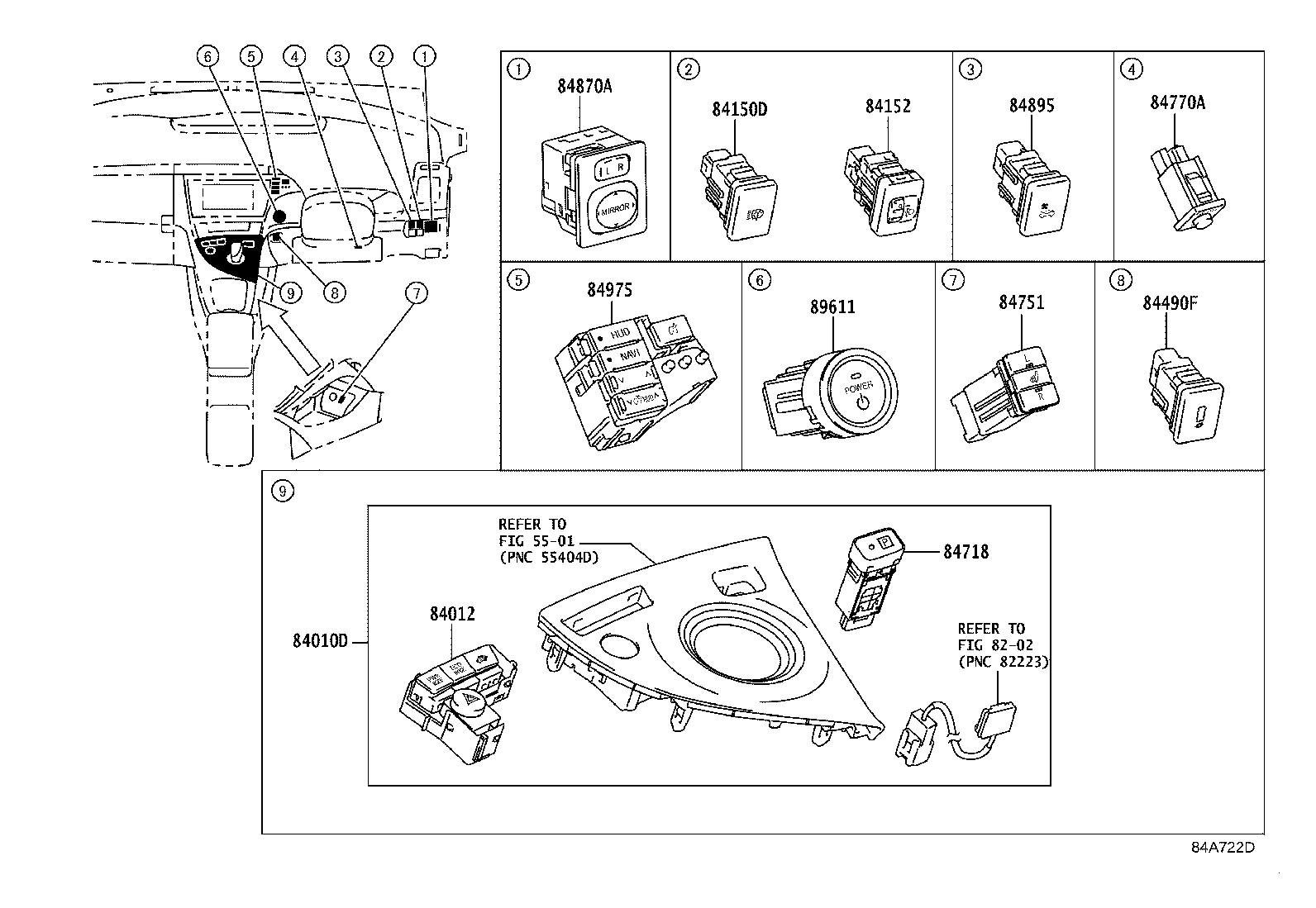

ILLUST NO. 5 OF 7(0904-1112)RHD..ARL,EUR ; (1012-1204)TH
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-47010 |
ZVW30..RHD |
1 | ||
| 84010-47010B0 |
ZVW30..RHD..(ARL,EUR) SILVER ME.11SV09,TRIM1#,6# |
1 | ||
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-47010 |
ZVW30..ARL,EUR HEADLAMP-LED |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52070 |
ZVW30..ARL,EUR |
1 | ||
| 84152-52070 |
ZVW30..ARL,EUR HEADLAMP-LED |
1 | ||
| 84490F - SWITCH ASSY, PARKING ASSIST PRE SUPPORT | ||||
| 84490-58020 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52030 |
ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-48010 |
ZVW30..ARL,EUR PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ZVW30..ARL,EUR |
1 | ||
| 84895 - SWITCH, VENTILATOR | ||||
| 84895-47010 |
ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-47040 |
ZVW30..RHD..EUR ENGLAND SPEC&AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84975-47010 |
ZVW30..RHD..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 84975-47100 |
ZVW30..RHD..EUR ENGLAND SPEC |
1 | ||
| 84975-47080 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-33010 |
ZVW30 |
1 | ||
| 89611-33011 |
ZVW30..ARL,EUR |
1 | ||
| 89611-33012 |
ZVW30..ARL,EUR |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 7(0904- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZVW30..ARL,EUR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47080 |
ZVW30..ARL,EUR |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZVW30..ARL,EUR |
1 | ||
| 89467-47020 |
ZVW30 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 82715-12D70 | ||||
| 82715-42710 | ||||
| 82715-47380 | ||||
| 82715-47390 | ||||
| 90105-W0140 | ||||
| 90119-T0134 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91671-80612 | ||||
ILLUST NO. 2 OF 7(0904-1112)ARL,EUR ; (1012-1204)TH
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-48020 |
ZVW30 HEADLAMP-LED |
1 | ||
| 85942-58010 |
ZVW30..ARL,EUR HEADLAMP-LED |
1 | ||
ILLUST NO. 3 OF 7(0904-1112)ARL,EUR ; (1012-1204)TH
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW30..ARL,EUR |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08297 |
ZVW30..ARL,EUR 125A,PINK |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08297 |
ZVW30..ARL,EUR 125A,PINK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ZVW30..ARL,EUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08308 |
ZVW30..ARL,EUR 40A-30A-30A,FEMALE |
1 | ||
| 90982-08304 |
ZVW30..ARL,EUR 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08300 |
ZVW30..ARL,EUR 50A-30A-30A,FEMALE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ZVW30..ARL,EUR 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZVW30..ARL,EUR 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW30..ARL,EUR 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZVW30..ARL,EUR 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZVW30..ARL,EUR 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZVW30..ARL,EUR 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZVW30..ARL,EUR 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW30..ARL,EUR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW30..ARL,EUR |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-75010 |
ZVW30..ARL,EUR |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47031 |
ZVW30 |
1 | ||
| 82641-75070 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 82641-75080 |
ZVW30..RHD..(ARL,EUR) HEADLAMP-LED |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-71010 |
ZVW30..ARL,EUR |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ZVW30..ARL,EUR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47040 |
ZVW30..ARL,EUR |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-75010 |
ZVW30..ARL,EUR |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47090 |
ZVW30 |
1 | ||
| 82662-47091 |
ZVW30..ARL,EUR |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-75010 |
ZVW30..ARL,EUR |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-75010 |
ZVW30..ARL,EUR |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ZVW30..ARL,EUR |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02025 |
ZVW30..ARL,EUR |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ZVW30 |
1 | ||
| 90987-02025 |
ZVW30..ARL,EUR |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW30..ARL,EUR |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW30..ARL,EUR |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW30..ARL,EUR |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
ZVW30..RHD..EUR |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90987-02027 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
