ZVW30R-AHXEBQ (2009)

Toyota Prius

Production Apr 2009 - Dec 2011
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )RHD

Click highlighted areas on diagram

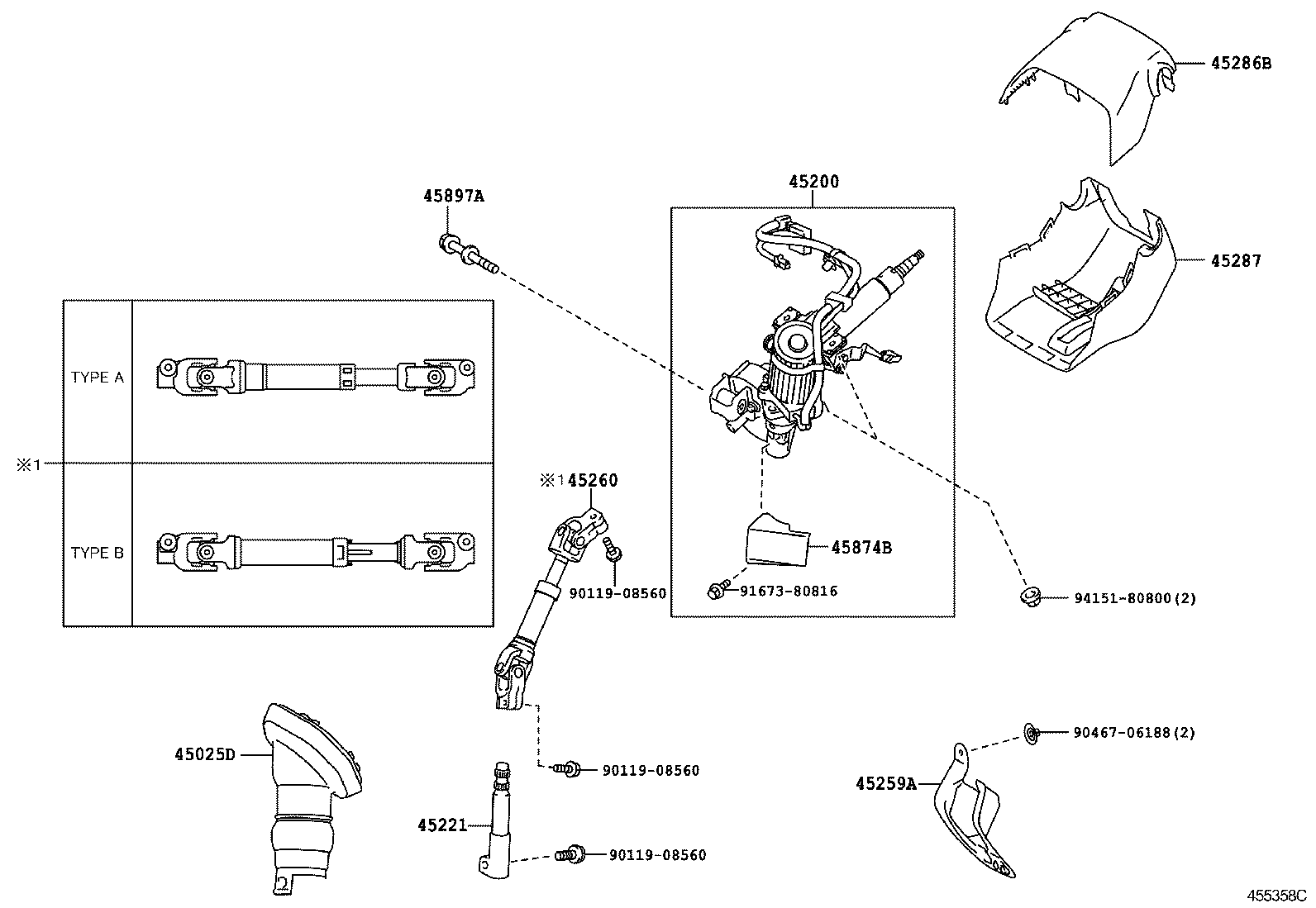

diagram 45025D 45200 45221 45259A 45260 45286B 45287 45874B 45897A 9011908560 9011908560 9011908560 9046706188 9167380816 9415180800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12280

ZVW30..RHD..(ARL,EUR)

 1
45200 - POST ASSY, STEERING
45250-47250

ZVW30..RHD..(ARL,EUR)

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12330

ZVW30..ARL,EUR

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12050

ZVW30..RHD..(ARL,EUR)

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-47060

ZVW30..ARL,EUR

 1
45286B - COVER, STEERING COLUMN, UPR
45286-47040B0

ZVW30..ARL,EUR

MIST GRAY,TRIM6#

 1
45286-47040C0

ZVW30..ARL,EUR

BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-12590B1

ZVW30..ARL,EUR

MIST GRAY,TRIM6#

 1
45287-12590C0

ZVW30..ARL,EUR

BLACK,TRIM1#

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-12090

ZVW30..RHD..(ARL,EUR)

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

ZVW30..ARL,EUR

 1
Common parts
90119-08560
90467-06188
91673-80816
94151-80800
