ZVW30R-AHXEBQ (2011)

Toyota Prius

Production Dec 2011 - Nov 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )ARL

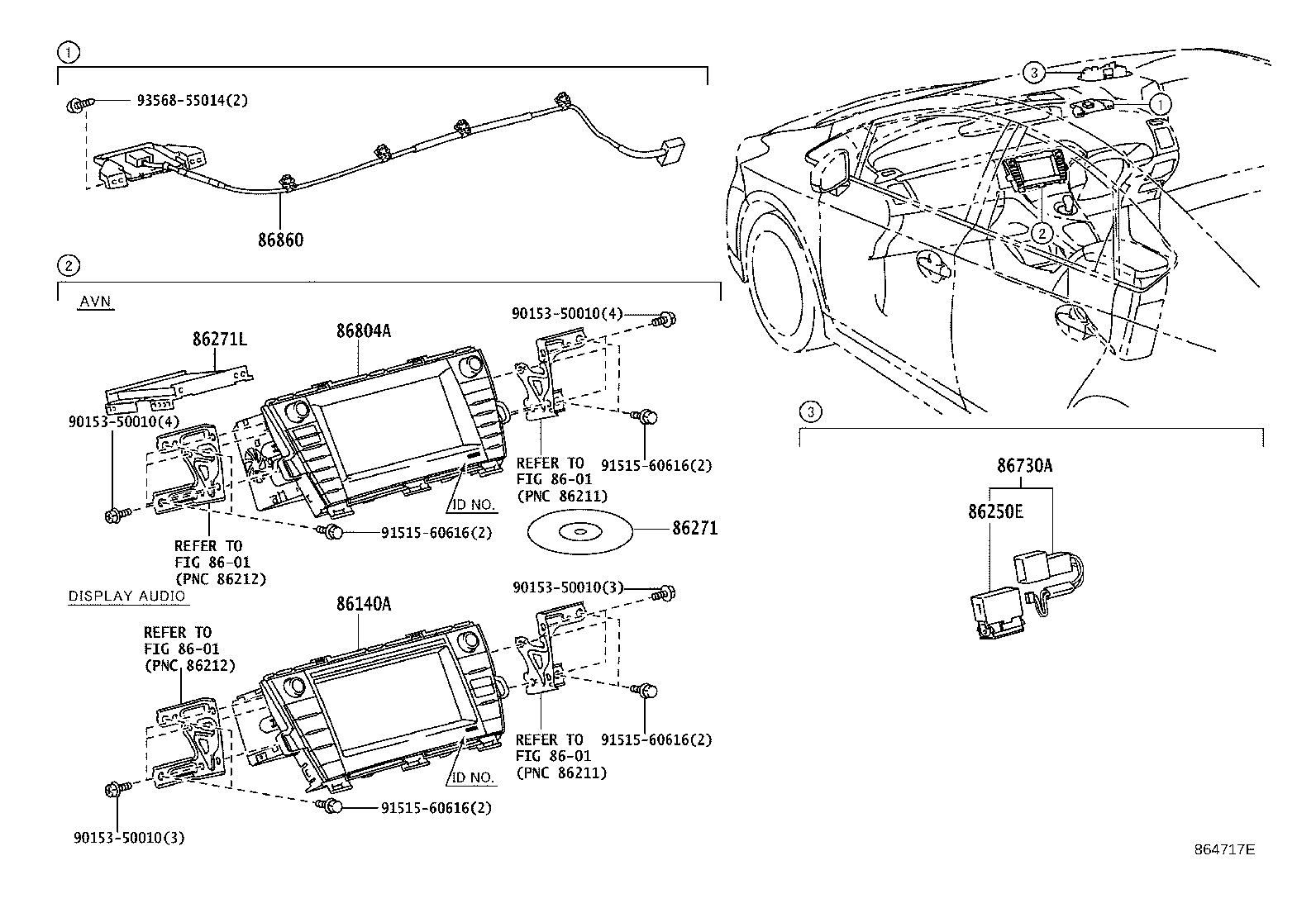

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86140A 86250E 86271 86271L 86730A 86804A 86860 9015350010 9015350010 9015350010 9015350010 9151560616 9151560616 9151560616 9151560616 9356855014
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-47100

ZVW30..ARL

PANASONIC,ID=57038

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

ZVW30..ARL

 1
86250-52020

ZVW30..RHD..(ARL,EUR)

 1
86271 - DISC, DISC PLAYER
86271-47070

ZVW30..ARL

AUDIO-AVN,BLUETOOTH,8SPEAKER

 1
86807-06010

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86807-30120

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86807-06012

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86807-06011

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86271L - HARD DISC
86271-33160

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86271-33161

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86271-33163

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86271-33162

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86271-33164

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-28040

ZVW30..ARL

 1
86730-53030

ZVW30..ARL

MOON ROOF-WITH(SOLAR PANEL)

 1
86730-53030

ZVW30..ARL

MOON ROOF-WITH(SOLAR PANEL)

 1
86730-28040

ZVW30..RHD..(ARL,EUR)

 1
86804A - SUB-ASSY, NAVIGATION COMPUTER
86804-47150

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-47070

ZVW30..ARL

AUDIO-AVN,BLUETOOTH,8SPEAKER

 1
86860-47070

ZVW30..ARL

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN(FOR AUSTRALIA) *BT USB JBL 8SPEAKER

 1
Common parts
90153-50010
91515-60616
93568-55014
Linked diagrams
8601
