ZVW30R-AHXEBQ (2011)
Toyota Prius

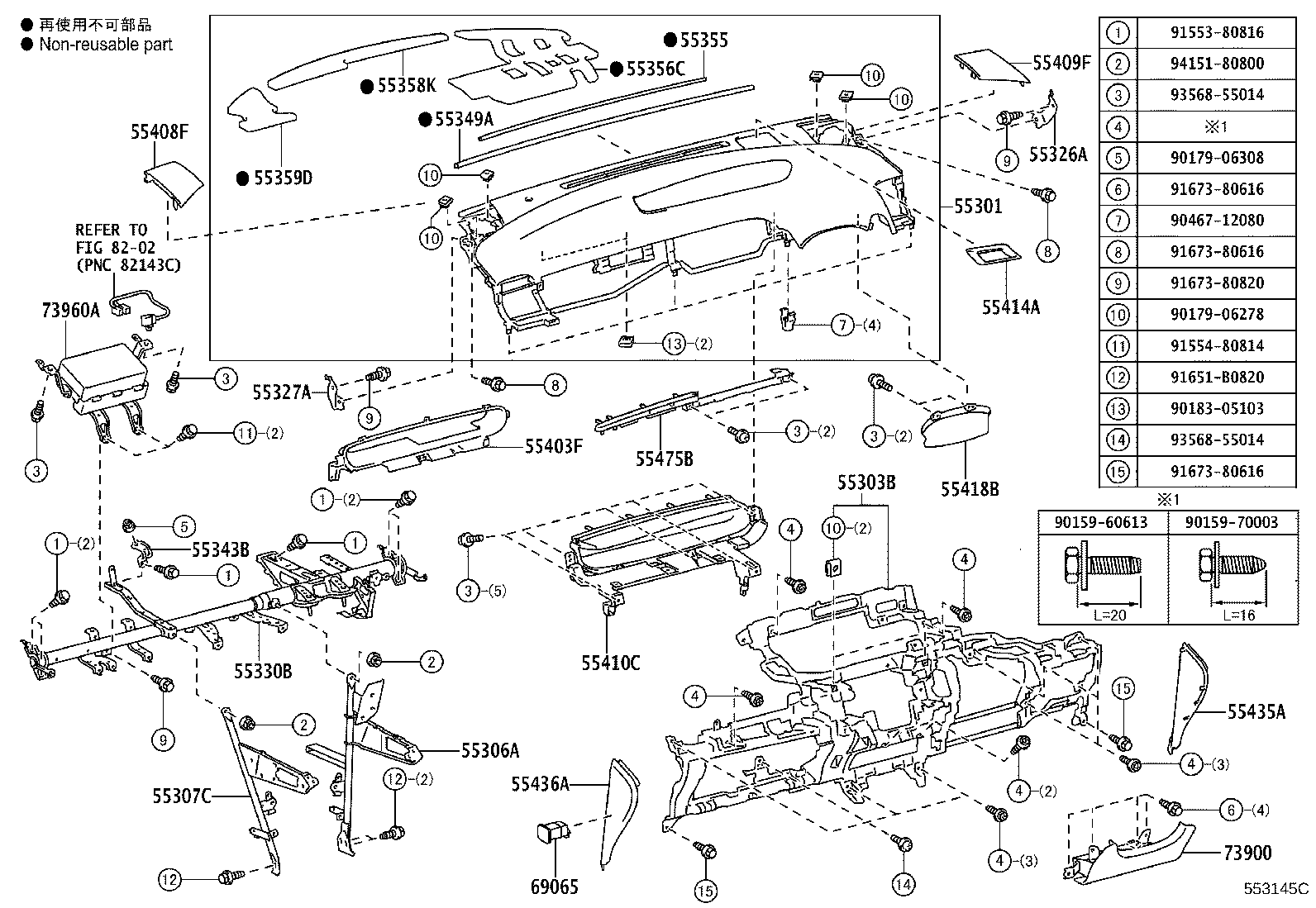

ILLUST NO. 1 OF 2(1112- )RHD..ARL,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-47070B0 |
ZVW30..RHD..(ARL,EUR) MIST GRAY,TRIM6# |
1 | ||
| 55300-47210C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM1#,2#,6# |
1 | ||
| 55300-47070C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47040C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM2# |
1 | ||
| 55303-47040G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 55303-47040B0 |
ZVW30..RHD..(ARL,EUR) MD.GRAY,TRIM1# |
1 | ||
| 55303-47040G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47060 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55306-47060 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55307-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-47030 |
ZVW30..ARL,EUR |
1 | ||
| 55326-47030 |
ZVW30..ARL,EUR |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-47030 |
ZVW30..ARL,EUR |
1 | ||
| 55327-47030 |
ZVW30..ARL,EUR |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47080 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55330-47081 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55330-47082 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-47020 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55343-47020 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-47070 |
ZVW30..ARL,EUR |
1 | ||
| 55349-47070 |
ZVW30..ARL,EUR |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-47080 |
ZVW30..ARL,EUR |
1 | ||
| 55355-47040 |
ZVW30..ARL,EUR |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-47030 |
ZVW30..ARL,EUR |
1 | ||
| 55356-47070 |
ZVW30..ARL,EUR |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-47050 |
ZVW30..ARL,EUR |
1 | ||
| 55358-47050 |
ZVW30..ARL,EUR |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-47030 |
ZVW30..ARL,EUR |
1 | ||
| 55359-47020 |
ZVW30..ARL,EUR |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-47030 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55403-47030 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47020C0 |
ZVW30..ARL,EUR BLACK,TRIM1# |
1 | ||
| 55472-47020C0 |
ZVW30..ARL,EUR BLACK,TRIM1#,2#,6# |
1 | ||
| 55472-47020B0 |
ZVW30..ARL,EUR MIST GRAY,TRIM6# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47010C0 |
ZVW30..ARL,EUR BLACK,TRIM1#,2#,6# |
1 | ||
| 55473-47010C0 |
ZVW30..ARL,EUR BLACK,TRIM1# |
1 | ||
| 55473-47010B0 |
ZVW30..ARL,EUR MIST GRAY,TRIM6# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-47080 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55410-47080 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-47030B0 |
ZVW30..RHD..(ARL,EUR) MIST GRAY,TRIM6# |
1 | ||
| 55414-47030C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM1# |
1 | ||
| 55414-47031C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM2#,6# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55418-47010 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47010G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 55435-47010B0 |
ZVW30..RHD..(ARL,EUR) MD.GRAY,TRIM1# |
1 | ||
| 55435-47010C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM2# |
1 | ||
| 55435-47010G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47010G0 |
ZVW30..LHD;ZVW30..ARL AQUA,TRIM6# |
1 | ||
| 55436-47010C0 |
ZVW30..LHD;ZVW30..ARL BLACK,TRIM2# |
1 | ||
| 55436-47010B0 |
ZVW30..LHD;ZVW30..ARL MD.GRAY,TRIM1# |
1 | ||
| 55436-47010G0 |
ZVW30..LHD;ZVW30..ARL AQUA,TRIM6# |
1 | ||
| 55475B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER | ||||
| 55475-47050 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 55475-47100 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-47010C0 |
ZVW30..RHD..(ARL,EUR) BLACK,TRIM2# |
1 | ||
| 73900-47010G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 73900-47010B0 |
ZVW30..RHD..(ARL,EUR) MD.GRAY,TRIM1# |
1 | ||
| 73900-47010G0 |
ZVW30..RHD..(ARL,EUR) AQUA,TRIM6# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47050 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| 73960-47050 |
ZVW30..RHD..(ARL,EUR) |
1 | ||
| Common parts | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06278 | ||||
| 90179-06308 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91553-80816 | ||||
| 91554-80814 | ||||
| 91651-B0820 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
