ZVW30L-AHXEBW (2011)
Toyota Prius

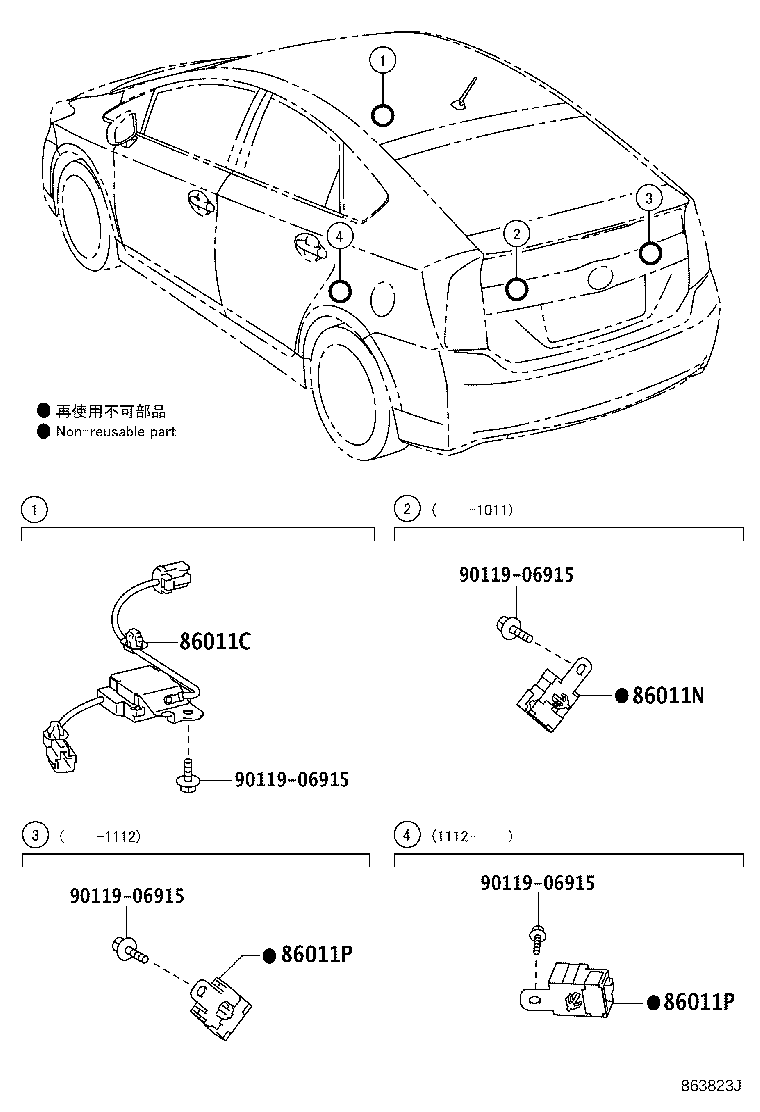

ILLUST NO. 2 OF 2(0904- )ARL,EUR
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 863B0-47020 |
ZVW30..ARL,EUR MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 863B0-47010 |
ZVW30 MOON ROOF-WITH(SOLAR PANEL) |
1 | ||
| 86011N - FILTER, NOISE | ||||
| 90980-04189 |
ZVW30 |
1 | ||
| 86011P - FILTER, NOISE | ||||
| 90980-04189 |
ZVW30..ARL,EUR |
1 | ||
| 90980-04189 |
ZVW30..ARL,EUR |
1 | ||
| 86011P - FILTER, NOISE | ||||
| 90980-04189 |
ZVW30..ARL,EUR |
1 | ||
| 90980-04189 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 1 OF 2(1112- )ARL,EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-47040 |
ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER |
1 | ||
| 86183-47040 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 86183-47040 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 86183-47110 |
ZVW30..EUR AUDIO-*DA *BT USB JBL 8SPEAKER |
1 | ||
| 86183-47040 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| 86183-47110 |
ZVW30..LHD AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER |
1 | ||
| 86183-47110 |
ZVW30..EUR AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER |
1 | ||
| 86183-47110 |
ZVW30..LHD AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER |
1 | ||
| 86183-47110 |
ZVW30..EUR AUDIO-*DA *BT USB JBL 8SPEAKER |
1 | ||
| 86183-47040 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-47020 |
ZVW30..ARL,EUR |
1 | ||
| 86190-48010 |
ZVW30..ARL,EUR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-47100 |
ZVW30..ARL,EUR |
1 | ||
| 86211-47050 |
ZVW30..EUR AUDIO-RADIO LESS,6SPEAKER |
1 | ||
| 86211-47050 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| 86211-47060 |
ZVW30..ARL,EUR |
1 | ||
| 86211-47050 |
ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-47050 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| 86212-47050 |
ZVW30..EUR AUDIO-RADIO LESS,6SPEAKER |
1 | ||
| 86212-47060 |
ZVW30..ARL,EUR |
1 | ||
| 86212-47100 |
ZVW30..ARL,EUR |
1 | ||
| 86212-47050 |
ZVW30..LHD AUDIO-RADIO LESS,6SPEAKER |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-47020 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER |
1 | ||
| 86280-47020 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER |
1 | ||
| 86280-0WA51 |
ZVW30..EUR AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER |
1 | ||
| 86280-0WA51 |
ZVW30..EUR AUDIO-*DA *BT USB JBL 8SPEAKER |
1 | ||
| 86280-0WA51 |
ZVW30..LHD AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER |
1 | ||
| 86280-47080 |
ZVW30..EUR AUDIO-*DA *BT USB JBL 8SPEAKER |
1 | ||
| 86280-47020 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER |
1 | ||
| 86280-47020 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER |
1 | ||
| 86280-47080 |
ZVW30..LHD AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER |
1 | ||
| 86280-47080 |
ZVW30..EUR AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER |
1 | ||
| 86280-0WA51 |
ZVW30..LHD AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER |
1 | ||
| 86280-47020 |
ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER |
1 | ||
| 86280-47080 |
ZVW30..EUR AUDIO-*DA *BT USB JBL 8SPEAKER |
1 | ||
| 86280-47080 |
ZVW30..LHD AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER |
1 | ||
| 86280-0WA51 |
ZVW30..EUR AUDIO-*DA *BT USB JBL 8SPEAKER |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-10183 | ||||
| 91515-60616 | ||||
