ZVW30L-AHXEBW (2011)

Toyota Prius

Production Dec 2011 - Nov 2015
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

Click highlighted areas on diagram

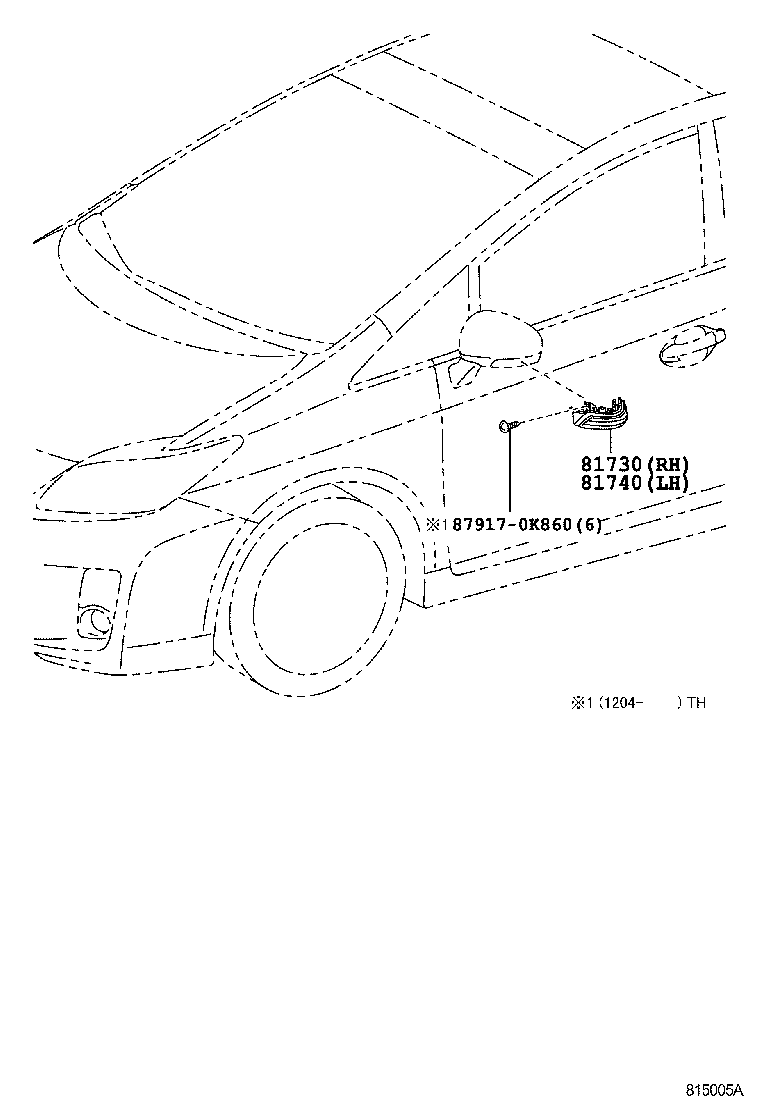

diagram 81730 81740 879170K860
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-52090

ZVW30..ARL,EUR

 1
81730-30140

ZVW30..ARL,EUR

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-30130

ZVW30..ARL,EUR

 1
81740-52040

ZVW30..ARL,EUR

 1
Common parts
87917-0K860
